Experience warmth and style with our fire furnishing collection, the Sanctuary Series. Featuring a rectangular fire table model and a round fire bowl model, both equipped with a sleek stainless steel burner system and encased in a durable GFRC enclosure, bringing elegance and comfort to your outdoor space.

What's Included

• GFRC Fire Table
• H Burner
• Flat Pan
• Ignition System


Not Included (Sold Separately)

• Propane Tank Holder
• Deluxe Weather Cover
• LP Conversion Kit
• Media Options

Features

• GFRC Fire Table offered in 56” and 76” lengths
• Available with Pro Brass or Stainless Steel Burner Systems

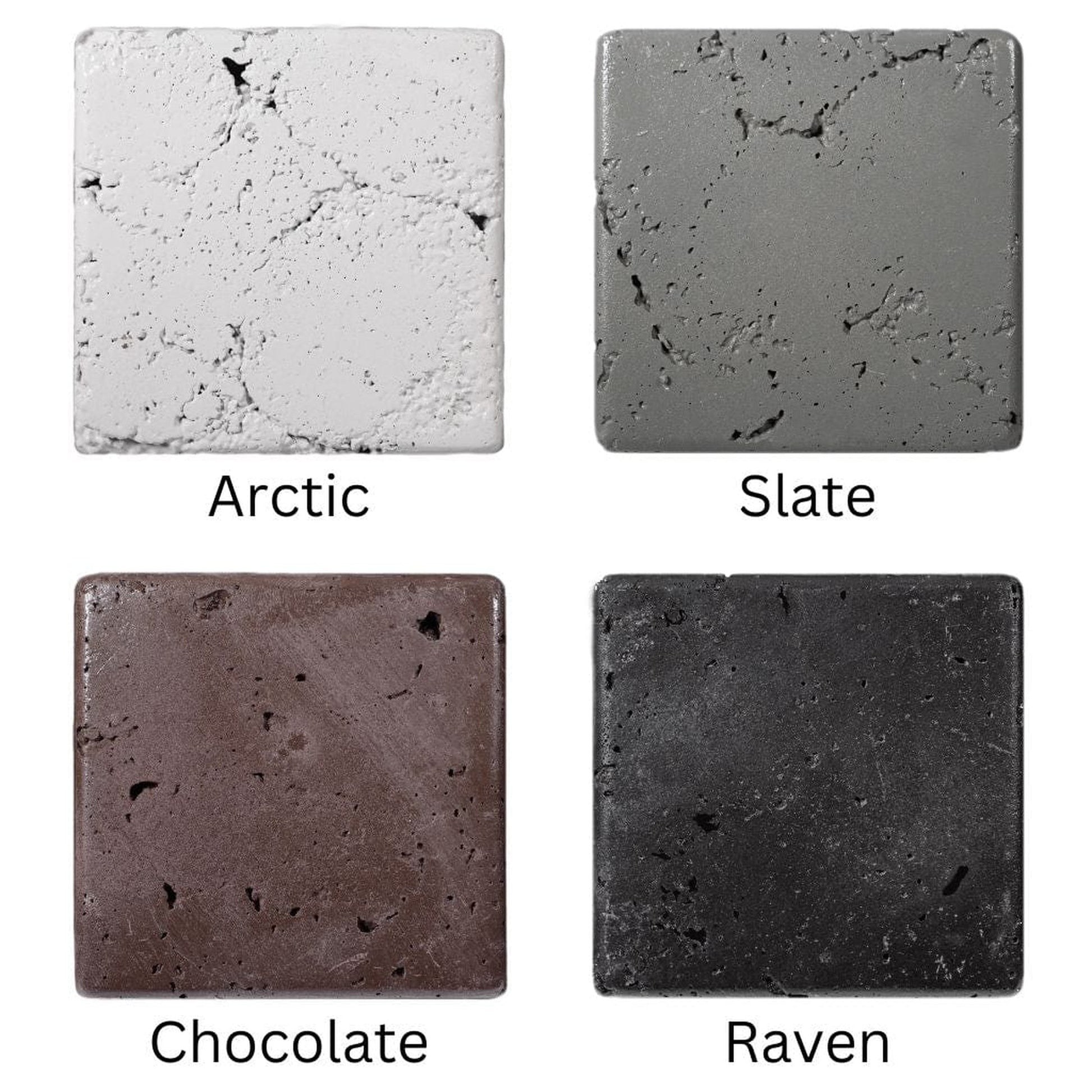

• Available in Arctic, Slate, Chocolate, and Raven colors
• Available with AWS Electronic, TPSI, and Match Throw ignition systems
• Linear table design
• Adjustable flame height
• Constructed of high-strength, glass fiber reinforced concrete
• Brass H-burner and stainless steel flat pan

• Thermocouple Piloted System with Safety Valve turns gas off when loss of flame.


Specifications

Model	Sanctuary 1 - TPSI
Series	Stainless Steel Sanctuary
Item Number	SAN1-30LHTPSI-AR
Product Type	Fire Pit Table
Fuel Type	Natural Gas
BTU	75,000
Colors	Arctic
Style	Linear
Length	56 in.
Width	38 in.
Height	16 in.
Ignition System	Thermocouple Piloted Safety Ignition
Weight	430 lbs. (Table Only)
Main Burner Material	304 Stainless Steel
Required Items	30 lbs. of Glass Media Only | 20 lbs. of Lava Rock (Base) | 35 lbs. of Lava Stones
Tested & Approved to	Certified To ANSI Standards

Warranty

Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period:

BURNER SYSTEMS | BURNERS | COMPONENTS | ACCESSORIES

	Consumer Applications	Commercial Applications
Construction and Manufacturer Defects	Lifetime	2 Year
Stainless Steel Burners and Pans	Lifetime	2 Year
Pro Series Burners	Lifetime	2 Year
Gas Valve, Spark Igniter, and Pilot Assemblies	5 Year	2 Year
AWS Electronic Ignition Systems (12 VAC, 24 VAC, 30 VAC)	5 Year	2 Year
TPSI Electronic Components	5 Year	2 Year
MT Components (Key Valve)	5 Year	2 Year
Refractory Gas Log Sets	5 Year	2 Year
Skytech Manufactured Optional Controls	5 Year	2 Year

SANCTUARY SERES - GFRC FIRE FEATURES

GFRC Structure

3 Year

3 Year

• The warranty covers manufacturing defects or structural failure. Small stress cracks and surface crazing are a natural occurrence in GFRC products and are not covered within this warranty. Discoloration over time is a natural process and is not covered by this warranty.

ACCESSORIES

Construction and Manufacturer Defects	Lifetime	Lifetime
Stainless Steel Components (Lids, Stainless Steel Covers)	Lifetime	Lifetime
ESTOP1-0H, Windshields, Hoses & Regulators	1 Year	1 Year

Documents & Files

• Firegear Product Guide
• Sanctuary 1 & 76 Installation Instructions
• Media Use Guide
• Gas Piping Chart
• Warranty Guide

Frequently Asked Questions

What is Thermocouple Piloted Safety Ignition (TPSI)? TPSI Ignition System Thermocouple Piloted System with Safety Valve turns gas off when loss of flame Easy ignition with Battery Spark Igniter (included) TPSI system with Safety Valve turn gas off when pilot flame goes out Robust ignition system with full BTU throughput How it Lights Press and hold Red Ignitor button to spark While holding the red ignitor button, Push in slightly & rotate the Control Knob from the OFF to PILOT LIGHT position Release the Ignitor Button while Continuing to depress the Control Knob for 30-60 seconds. Release the Control Knob Confirm your pilot light is on. Turn Control Knob from PILOT LIGHT to the ON position to ignite your burner.
