Features

Building upon the elegant design of the original Sanctuary Series, the Pro Series introduces high-quality brass burners available in various intricate designs, ensuring both durability and a captivating flame presence. These enhancements make the Pro Series Sanctuary Series an ideal choice for those seeking luxury and functionality in their outdoor spaces.

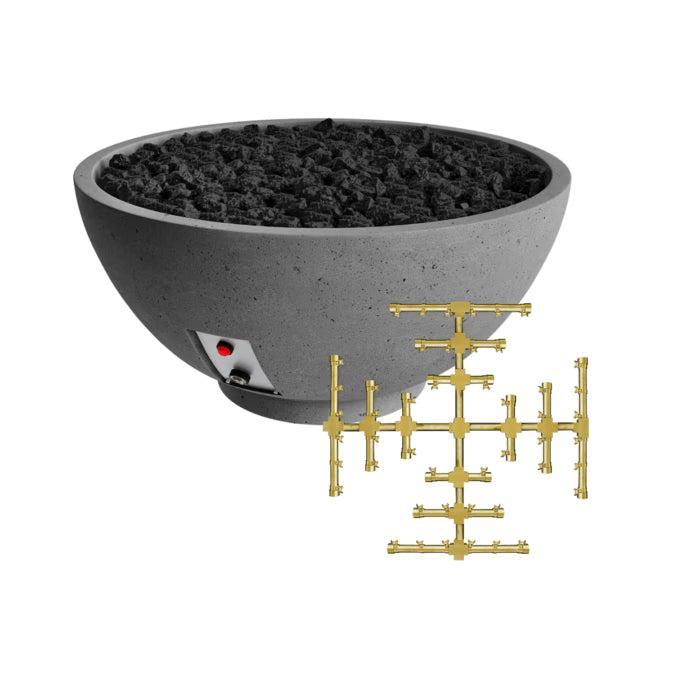

• Upgraded Pro Series Brass Burners: Choose from designs like Snowflake, Spur, Linear H, and Linear T, all crafted from premium brass for enhanced durability and performance.

• Durable GFRC Enclosure: The fire tables and bowls are encased in Glass Fiber Reinforced Concrete, offering resilience against outdoor elements while maintaining a sophisticated look.

• Multiple Configurations: Available in rectangular fire tables and round fire bowls to suit various outdoor settings and preferences.

• Gas-Specific Units: Burners are factory-configured for specific gas types, ensuring optimal safety and performance.

• Sleek Aesthetic: The combination of stainless steel components and brass burners provides a contemporary yet timeless appeal.

Specifications

Brand	Firegear
Item Number	SAN2-34DPSTPSI-N-SL

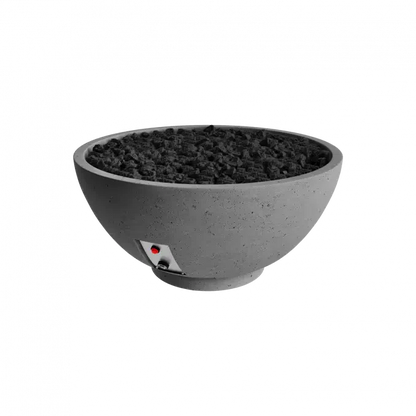

Model	Sanctuary 2

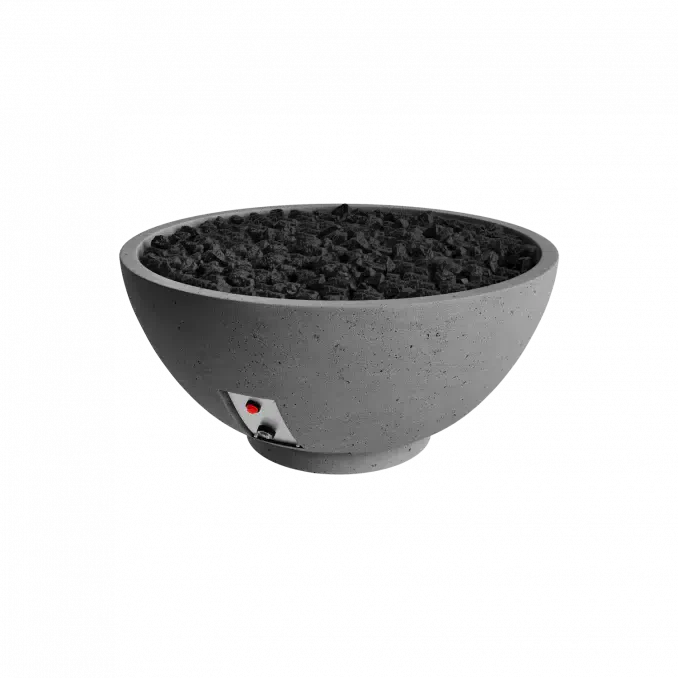

Product Type	Fire Pit Bowl
Fuel Type	Natural Gas
BTU	145,000
Colors	Slate (Grey)
Bowl Dimensions	39" (Diameter) x 18" (Height)
Burner Diameter	18"
Pan Diameter	34"
Ignition Systems	Thermocouple Piloted Safety Ignition
Weight	222 lbs. (Bowl Only)
Main Burner Material	Brass
Required Items	120 lbs. of Glass Only | 30 lbs. of Lava Rock Only | 30 lbs. of Lava Stones Only
Tested & Approved to	Certified To ANSI Standards

Warranty

Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period:

BURNER SYSTEMS | BURNERS | COMPONENTS | ACCESSORIES

	Consumer Applications	Commercial Applications
Construction and Manufacturer Defects	Lifetime	2 Year
Stainless Steel Burners and Pans	Lifetime	2 Year
Pro Series Burners	Lifetime	2 Year
Gas Valve, Spark Igniter, and Pilot Assemblies	5 Year	2 Year
AWS Electronic Ignition Systems (12 VAC, 24 VAC, 30 VAC)	5 Year	2 Year
TPSI Electronic Components	5 Year	2 Year
MT Components (Key Valve)	5 Year	2 Year
Refractory Gas Log Sets	5 Year	2 Year
Skytech Manufactured Optional Controls	5 Year	2 Year

SANCTUARY SERES - GFRC FIRE FEATURES

GFRC Structure

3 Year

3 Year

• The warranty covers manufacturing defects or structural failure. Small stress cracks and surface crazing are a natural occurrence in GFRC products and are not covered within this warranty. Discoloration over time is a natural process and is not covered by this warranty.

ACCESSORIES

Construction and Manufacturer Defects	Lifetime	Lifetime
Stainless Steel Components (Lids, Stainless Steel Covers)	Lifetime	Lifetime
ESTOP1-0H, Windshields, Hoses & Regulators	1 Year	1 Year

Documents & Files

• Firegear Product Guide
• Media Use Guide
• Gas Piping Chart
• Warranty Guide

Frequently Asked Questions

What is Thermocouple Piloted Safety Ignition (TPSI)? TPSI Ignition System Thermocouple Piloted System with Safety Valve turns gas off when loss of flame Easy ignition with Battery Spark Igniter (included) TPSI system with Safety Valve turn gas off when pilot flame goes out Robust ignition system with full BTU throughput How it Lights Press and hold Red Ignitor button to spark While holding the red ignitor button, Push in slightly & rotate the Control Knob from the OFF to PILOT LIGHT position Release the Ignitor Button while Continuing to depress the Control Knob for 30-60 seconds. Release the Control Knob Confirm your pilot light is on. Turn Control Knob from PILOT LIGHT to the ON position to ignite your burner.
