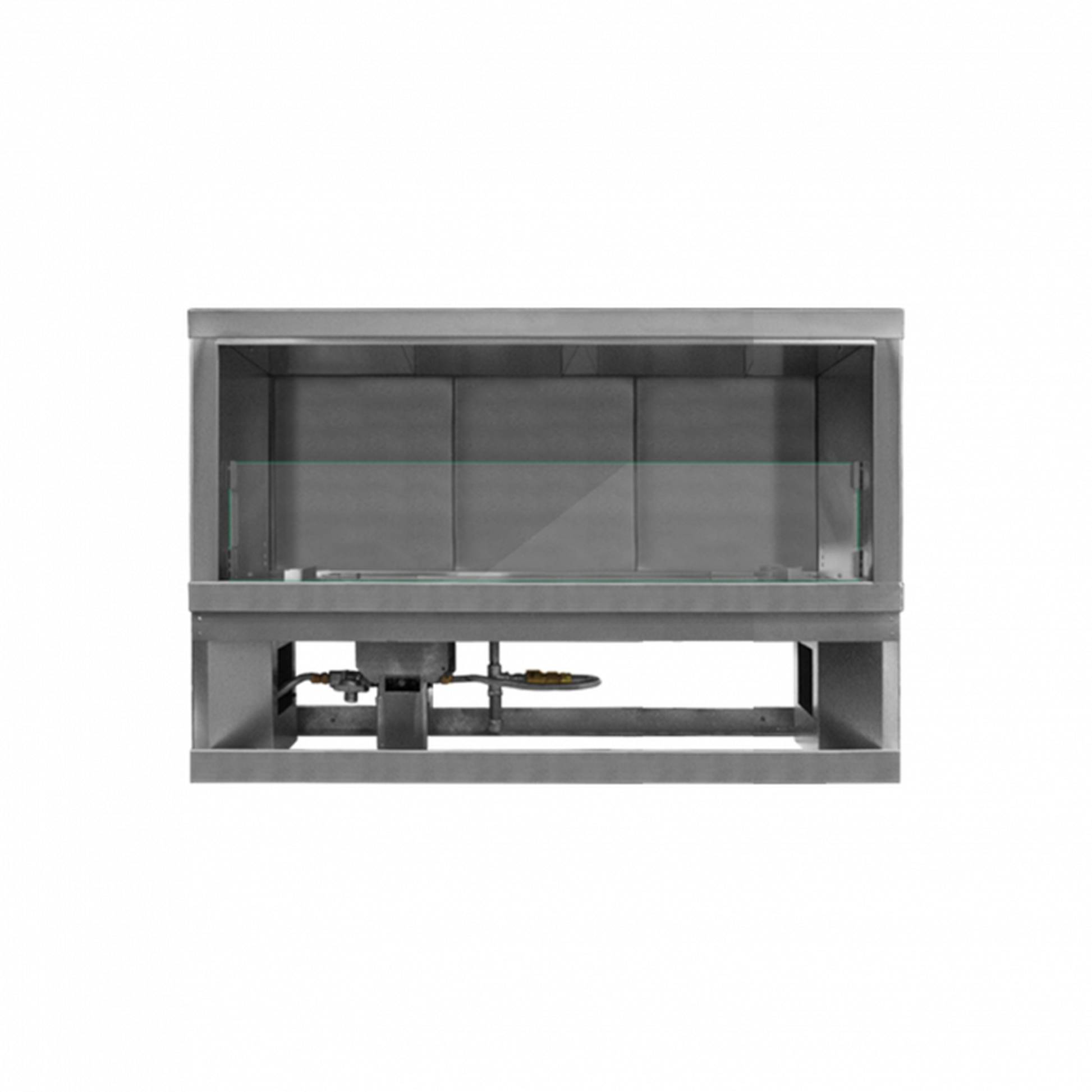

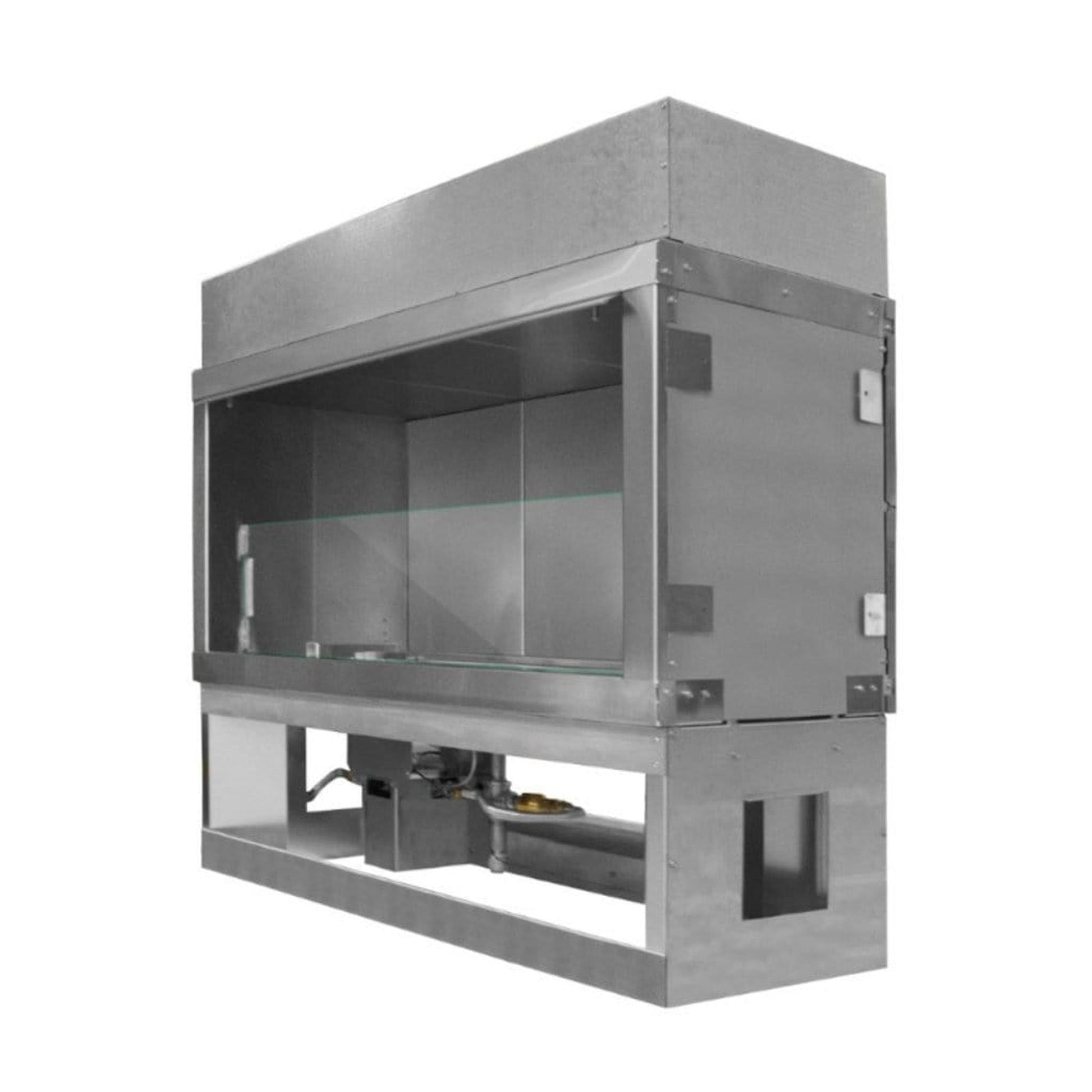

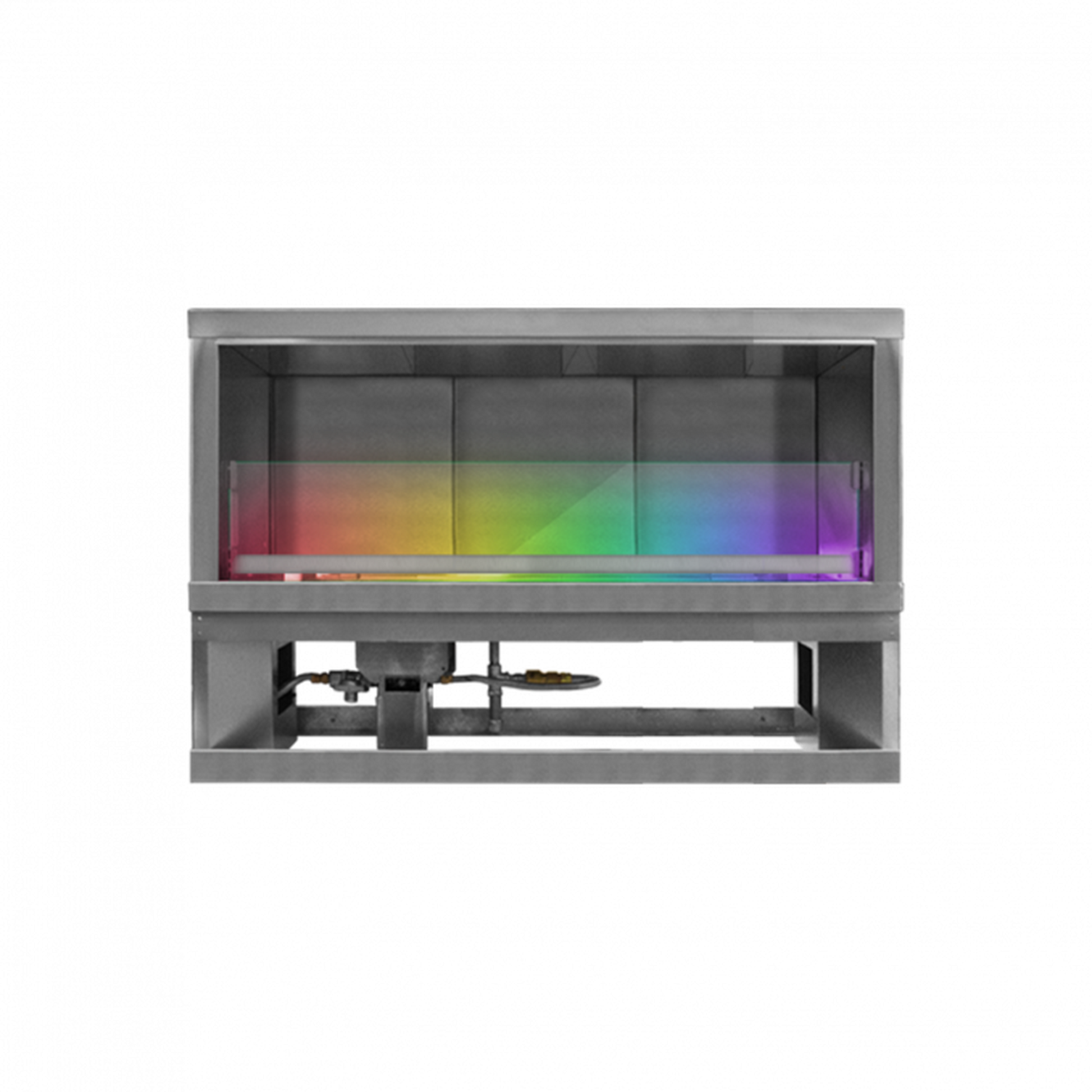

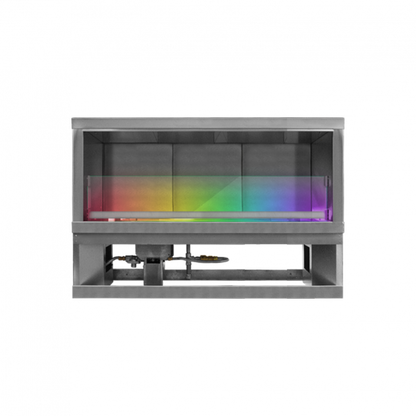

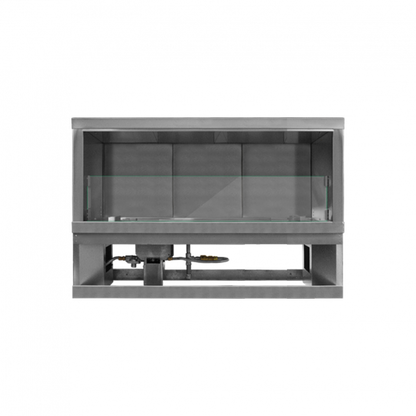

Firegear Kalea Bay LED 48" Linear Outdoor Stainless Steel Vent-Free Natural Gas Fireplace
Firegear Kalea Bay LED 48" Linear Outdoor Stainless Steel Vent-Free Natural Gas Fireplace
Regular price
$4,999.00
Regular price
Sale price
$4,999.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
Make a modern statement with the all-new Kalea Bay LED & Non-LED outdoor linear gas fireplace. Designed with a clean and contemporary style in mind. No chimney or venting required makes it an ideal product for quick & efficient framing & finishing.
What's Included
- Fireplace Unit
Not Included (Sold Separately)

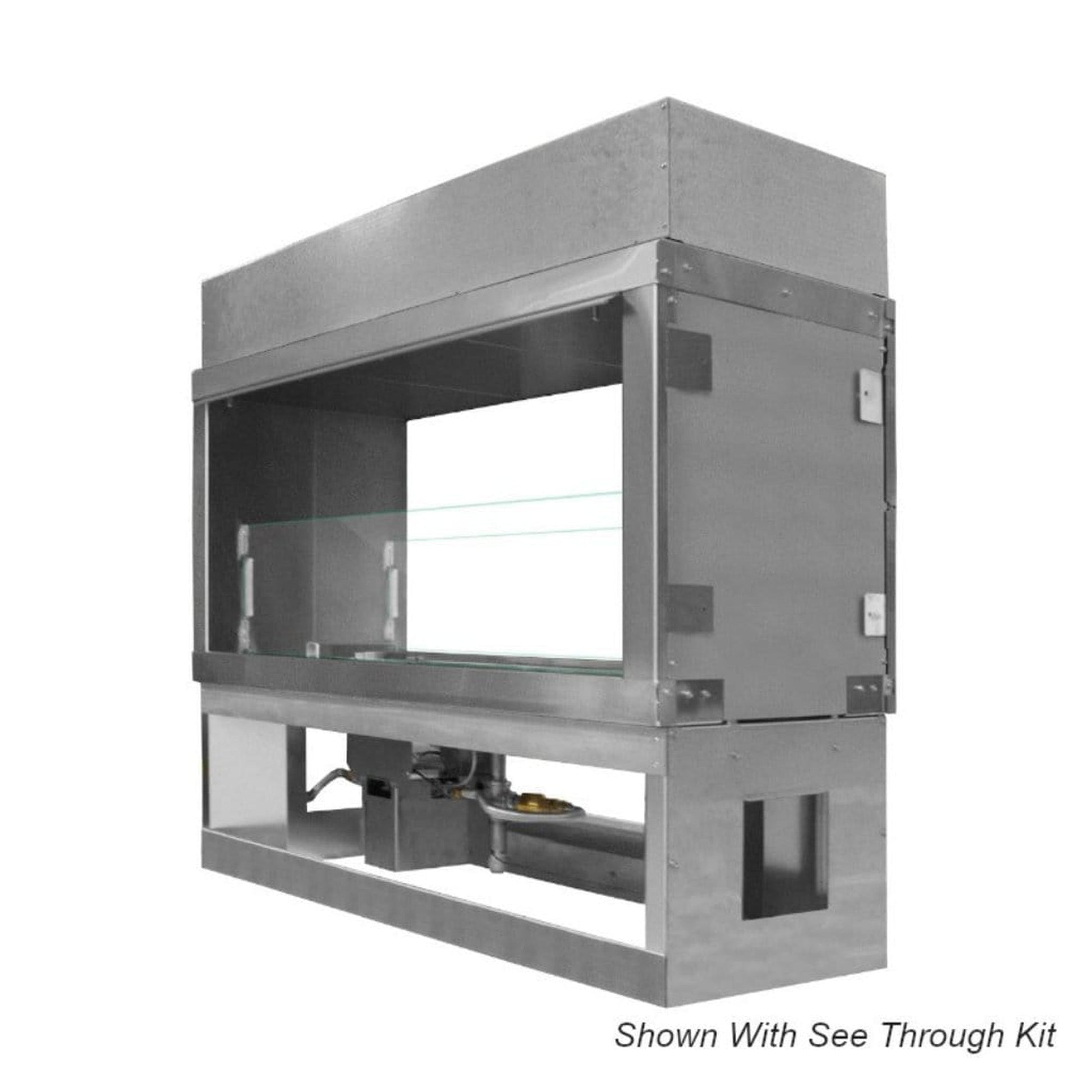

- See-Through Conversion Kit
- Weather Cover
- Extension Wire
- LP Conversion Kit
- Glass Media
Features
- Full spectrum lighting (120VAC Required)
- Available in 48", and 60" models. (All 16" tall opening)
- Burner & firebox constructed of weather/corrosion resistant 304 stainless steel.
- Ecoflow Electronic Ignition System features built-in safety shutoff in case of loss of flame and auto-relight.
- Control Center with each model housed in 304 Stainless Steel Cabinet.
- Tested & Approved to: ANSI Z21.97-2017, CSA 2.41-2017
Specifications
| Model | OFP-48LECO-NLED |
| Fuel Type | Natural Gas |
| BTU | 43,500 on High, 29,000 on Low |
| Opening Width | 48 in. |
| Opening Height | 16 in. |
| Opening Depth | 16 in. |
| Framing Width | 52.5 in. |
| Framing Height | 37.75 in. |
| Framing Depth | 15.75 in. |
| Ecoflow Valve System | Full spectrum lighting (120VAC Required) |
| Electrical | 120VAC |
| Weight |
198 lbs. |
| Style | Contemporary |
| Required Media | Glass Media (20 lbs.) |
| Tested & Approved to | ANSI Z21.97-2014/CSA 2.41-2014 standards - Made in the USA |
Technical Dimensions
Single-Sided
See-Through
| Single Sided | See-Through |
|
| A - Overall Length | 76" |
76" |
| B - Inside Opening | 72" |
72" |
| C - Overall Height | 33 ½" | 33 ½" |
| D - Opening Height | 16" | 16" |
| E - Overall Depth | 16 ¼" | 16" |
| F - Leg Height | 11 ½" | 11 ½" |
| G - Valve Box Depth | 10 ¼" | 10 ¼" |
| H - Clearance to Combustible Side Wall | 6" |
36" |
| I - Clearance to Combustible Ceiling | 46 ½" | 46 ½" |
Warranty
 |
Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: |
OUTDOOR FIREPLACE | KALEA BAY
| Consumer Applications | Commercial Applications | |
| Construction and Manufacturer Defects | Lifetime | Lifetime |
| Stainless Steel Components | Lifetime | Lifetime |
| Gas Valve, pilot Assembly, Power Supply, and Controls | 5 Year | 2 Year |
| Skytech Manufactured Optional Controls | 5 Year | 2 Year |
ACCESSORIES
| Consumer Applications | Commercial Applications | |
| Construction and Manufacturer Defects | Lifetime | Lifetime |
| Stainless Steel Components (Lids, Stainless Steel Covers) | Lifetime | Lifetime |
| ESTOP1-0H, Windshields, Hoses & Regulators | 1 Year | 1 Year |
