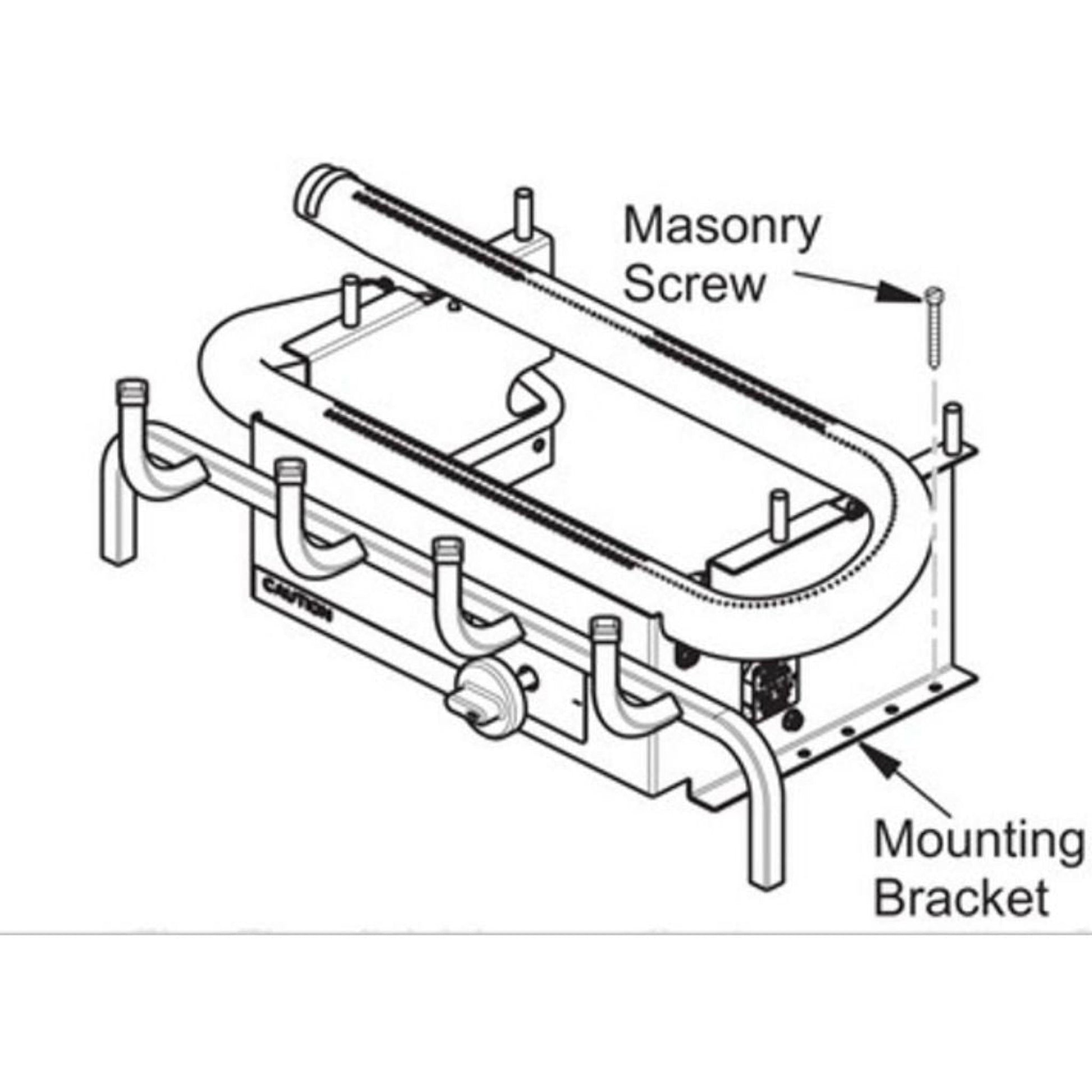

This burner system includes an Oxygen Depletion System to quickly shut off the gas if room oxygen levels drop to unsafe levels. It is for use in a vent free firebox. It is a millivolt burner and can be operated manually at the burner or with a remote. No remote is included. It is for use with Liquid Propane Gas and will accommodate 18" 24" or 30" Everwam Palmetto and Low Country Timber log sets.

Notes:

1. Burners are certified to work with SPECIFIC Log Sets only. While there may be several allowable Log Sets for a specific burner, they are NOT universal. Using a burner with a non-compatible log set can lead to Fire, Carbon Monoxide Poisoning and Property Damage.
2. Vent-Free Products Cannot Be Shipped To The State Of California.
3. State and local codes in some areas prohibit the use of vent free products.
4. PLEASE CHECK YOUR LOCAL BUILDING CODES BEFORE ORDERING OR INSTALLING A VENT FREE PRODUCT.

What's Included

• Millivolt Valve Vent Free Liquid Propane Gas Burner
• Oxygen Depletion System
• 1 x Log Base

• 6 x HX SLT WSR 10-32x3/8 Screw

• 1 x Igniter, Piezo

• 1 x Fastener, Palnut

• 1 x Assy, Grate Yellow Flame

• 1 x Decal, Caution ENG 6.00x0.75

• 1 x Pilot, ODS Copreci #243 MV LP

• 1 x Tube, Pilot

• 1 x Cable, Igniter

• 1 x Injector, .111 (2.82mm)

• 1 x Tube, Inlet

• 1 x Wire, Jumper

• 1 x Shield, Valve Heat

• 1 x Valve, LP

• 1 x Knob, Short Extension (Pilot)

• 1 x Knob, Short Extension (Hi-Lo)

• 1 x Connector, Male 3/8NPTF 3/8 Tube

Not Included (Sold Separately)

• Remote

Specifications

General

Model No.	EWPO2430PV
Fireplace Style	Single Sided
Location of Use	Indoor
Type of Venting	Vent Free
Media Style	Traditional Log Set
Type of Grate	Standard
Fuel Type	Liquid Propane Gas
Allowable Log Set Sizes (in.)	18" / 24" / 30"
Certified Usage	Mobile Home Approved

Performance

BTUs (Max.)	39,000
Ignition Type	Millivolt (Remote Ready)
Remote	Optional

Gas Requirements

Gas Connection Size	1/2"
Manifold Pressure (in.)	10.0" w.c.
Inlet Gas Pressure (Min.)	11.0" w.c.
Inlet Gas Pressure (Max.)	14.0" w.c.

Requirements for 18" Logs

Req. Min. Front Width (in.)	24"
Req. Min. Rear Width (in.)	20.5"
Req. Min. Depth (in.)	13.5"
Req. Min. Height (in.)	17"

Requirements for 24" Logs

Req. Min. Front Width (in.)	28"
Req. Min. Rear Width (in.)	20.5"
Req. Min. Depth (in.)	13.5"
Req. Min. Height (in.)	17"

Requirements for 30" Logs

Req. Min. Front Width (in.)	32"
Req. Min. Rear Width (in.)	26"
Req. Min. Depth (in.)	13.5"
Req. Min. Height (in.)	17"

Warranty

4 Year Parts and Limited Labor Warranty

Documents & Files

• Install Guide
