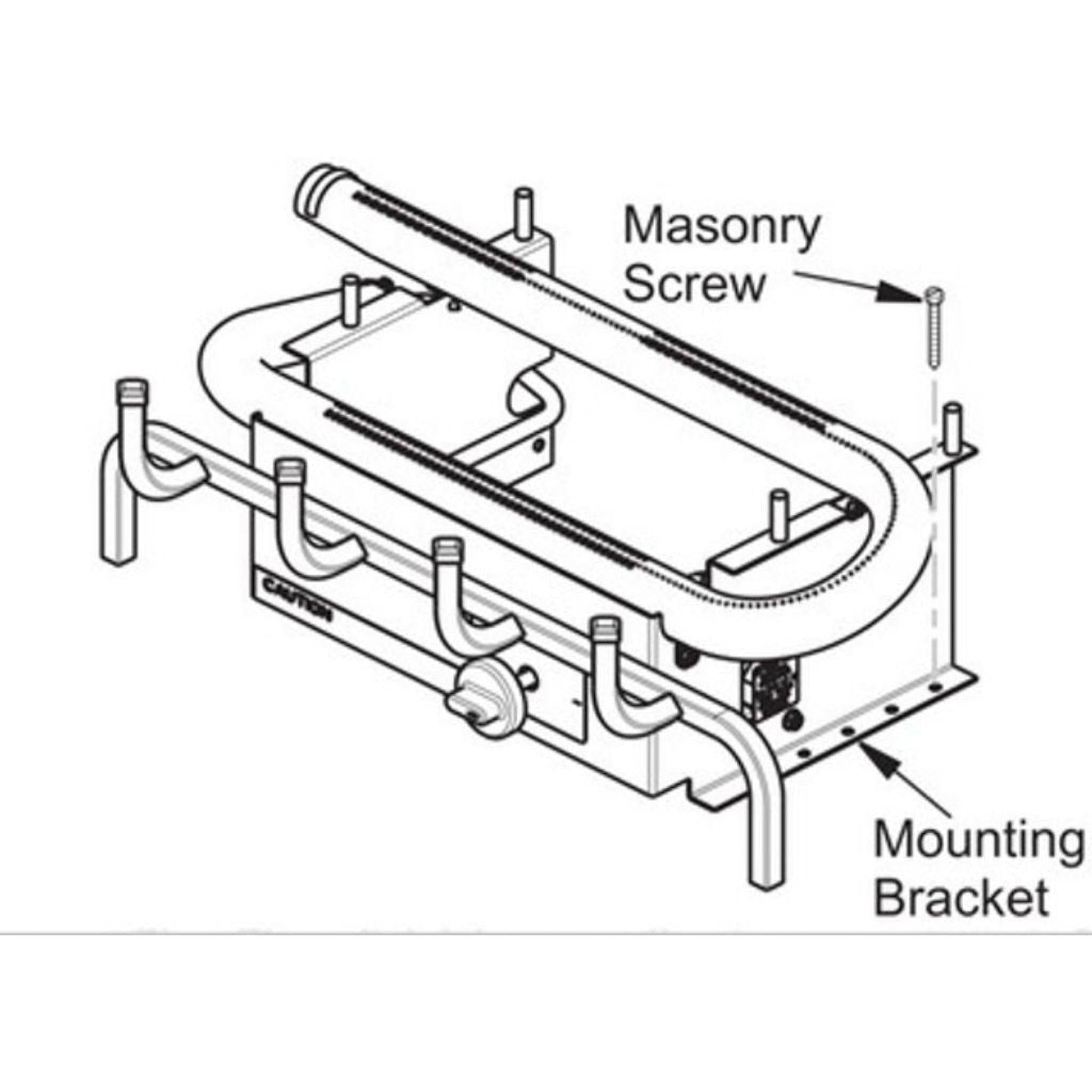

This burner system includes an Oxygen Depletion System to quickly shut off the gas if room oxygen levels drop to unsafe levels. It is for use in a vent free firebox. It is a manual valve burner and will not operate with a remote. It is controlled only at the burner inside the firebox. It is for use with Liquid Propane and will accommodate 18" 24" or 30" Everwam Palmetto and Low Country Timber log sets.

Notes:

1. Burners are certified to work with SPECIFIC Log Sets only. While there may be several allowable Log Sets for a specific burner, they are NOT universal. Using a burner with a non-compatible log set can lead to Fire, Carbon Monoxide Poisoning and Property Damage.
2. Vent-Free Products Cannot Be Shipped To The State Of California.
3. State and local codes in some areas prohibit the use of vent free products.
4. PLEASE CHECK YOUR LOCAL BUILDING CODES BEFORE ORDERING OR INSTALLING A VENT FREE PRODUCT.

What's Included

• Manual Valve Vent Free Liquid Propane Gas Burner
• Oxygen Depletion System
• 1 x Log Base

• 1 x Grate, Hollow Bar Stock

• 1 x Yellow Flame Thrower

• 1 x Regulator Bracket

• 1 x Gas Regulator

• 1 x Manual Valve with Ignitor

• 1 x Burner Inlet Tube

• 1 x 0.0670

• 1 x Pilot Tube

• 1 x Control Knob

• 1 x Decal Control Position

• 1 x Decal, Caution

Specifications

General

Model No.	EWPO2430PM
Fireplace Style	Single Sided
Location of Use	Indoor
Type of Venting	Vent Free
Media Style	Traditional Log Set
Type of Grate	Standard
Fuel Type	Liquid Propane Gas
Allowable Log Set Sizes (in.)	18" / 24" / 30"
Certified Usage	Mobile Home Approved

Performance

BTUs (Max.)	33,000
Ignition Type	Manual (No Remote)

Gas Requirements

Gas Connection Size	1/2"
Manifold Pressure (in.)	8.0" w.c.
Inlet Gas Pressure (Min.)	11.0" w.c.
Inlet Gas Pressure (Max.)	14.0" w.c.

Requirements for 18" Logs

Req. Min. Front Width (in.)	24"
Req. Min. Rear Width (in.)	20.5"
Req. Min. Depth (in.)	13.5"
Req. Min. Height (in.)	17"

Requirements for 24" Logs

Req. Min. Front Width (in.)	28"
Req. Min. Rear Width (in.)	20.5"
Req. Min. Depth (in.)	13.5"
Req. Min. Height (in.)	17"

Requirements for 30" Logs

Req. Min. Front Width (in.)	32"
Req. Min. Rear Width (in.)	26"
Req. Min. Depth (in.)	13.5"
Req. Min. Height (in.)	17"

Warranty

4 Year Parts and Limited Labor Warranty

Documents & Files

• Install Guide
