SKU:EWCL18NV

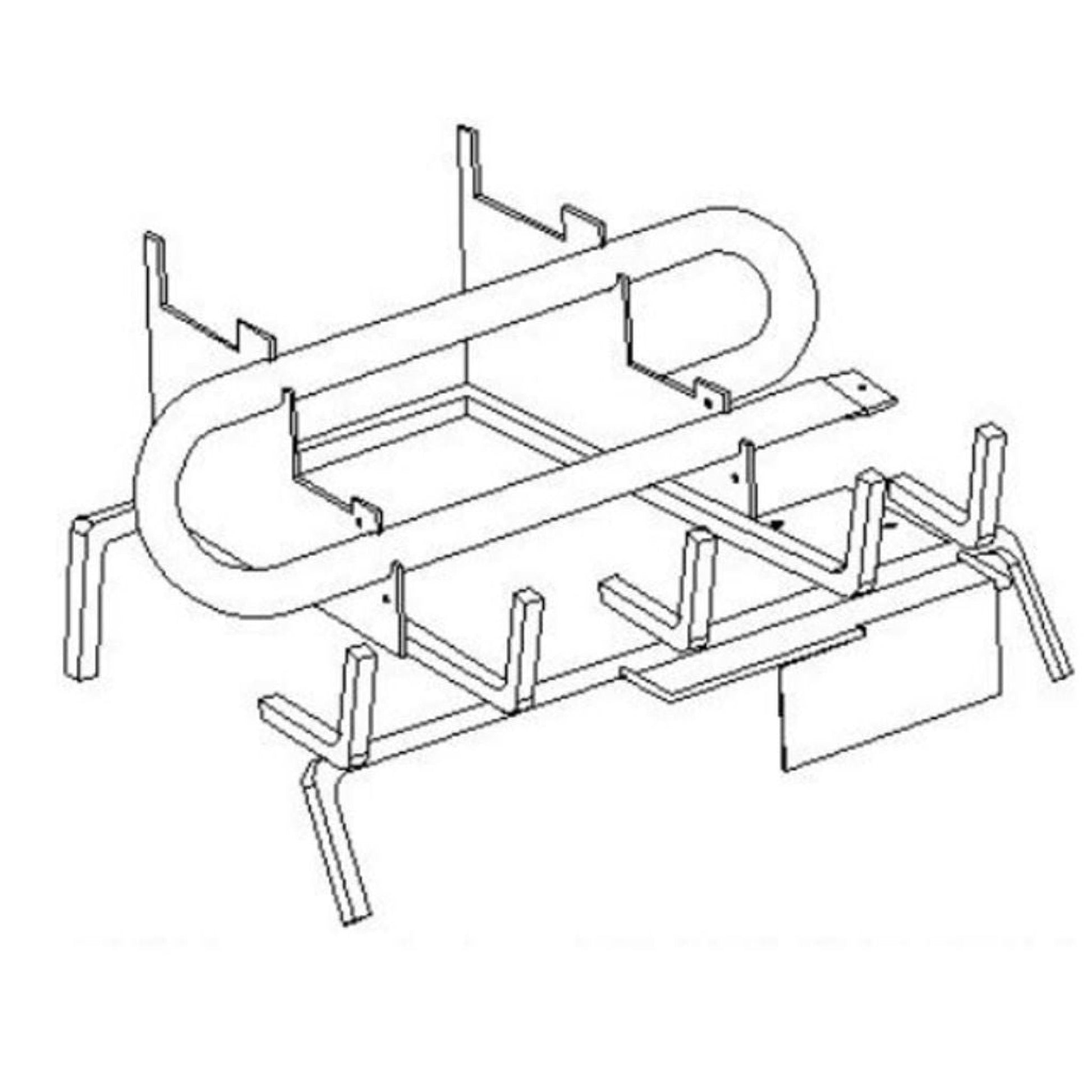

Everwarm Cumberland 18" Millivolt Valve Vent-Free Natural Gas Burner
Everwarm Cumberland 18" Millivolt Valve Vent-Free Natural Gas Burner
Regular price
$554.67
Regular price
Sale price
$554.67
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
This burner system includes an Oxygen Depletion System to quickly shut off the gas if room oxygen levels drop to unsafe levels. It is for use in a vent free firebox. It is a millivolt burner and can be operated manually at the burner or with a remote. No remote is included. It is for use with Natural Gas and will accommodate 18" Everwarm Cumberland log sets. It is designed specifically for the Cumberland logs and will not fit other log sets.
Notes:
- Burners are certified to work with SPECIFIC Log Sets only. While there may be several allowable Log Sets for a specific burner, they are NOT universal. Using a burner with a non-compatible log set can lead to Fire, Carbon Monoxide Poisoning and Property Damage.
- Vent-Free Products Cannot Be Shipped To The State Of California.
- State and local codes in some areas prohibit the use of vent free products.
- PLEASE CHECK YOUR LOCAL BUILDING CODES BEFORE ORDERING OR INSTALLING A VENT FREE PRODUCT.
What's Included
- 18" Cumberland Millivolt Valve Vent Free Natural Gas Burner
- Oxygen Depletion System
- Grate
- Cover Plate
- Pilot Bracket
- Valve Bracket
- Millivolt Valve
- On/Off Switch
- Pilot Regulator (NG Only)
- Piezo
- Piezo Wire
Not Included (Sold Separately)
- Remote Control
Specifications
General
| Model No. | EWCL18NV |
| Fireplace Style | Single Sided |
| Location of Use | Indoor |
| Type of Venting | Vent Free |
| Media Style | Traditional Log Set |
| Type of Grate | Standard |
| Fuel Type | Natural Gas |
| Allowable Log Set Sizes (in.) | 18" |
| Certified Usage | Mobile Home Approved |
Performance
| BTUs (Max.) | 34,000 |
| Ignition Type | Millivolt (Remote Ready) |
| Remote | Optional |
Gas Requirements
| Gas Connection Size | 1/2" |
| Manifold Pressure (in.) | 4.0" w.c. |
| Inlet Gas Pressure (Min.) | 7.0" w.c. |
| Inlet Gas Pressure (Max.) | 10.5" w.c. |
Requirements for 18" Logs
| Req. Min. Front Width (in.) | 21.5" |
| Req. Min. Rear Width (in.) | 16" |
| Req. Min. Depth (in.) |
14" |
| Req. Min. Height (in.) | 15" |
Warranty
 |
5 Year Limited Warranty |
Documents & Files
