SKU:DVCTL60CFP95N

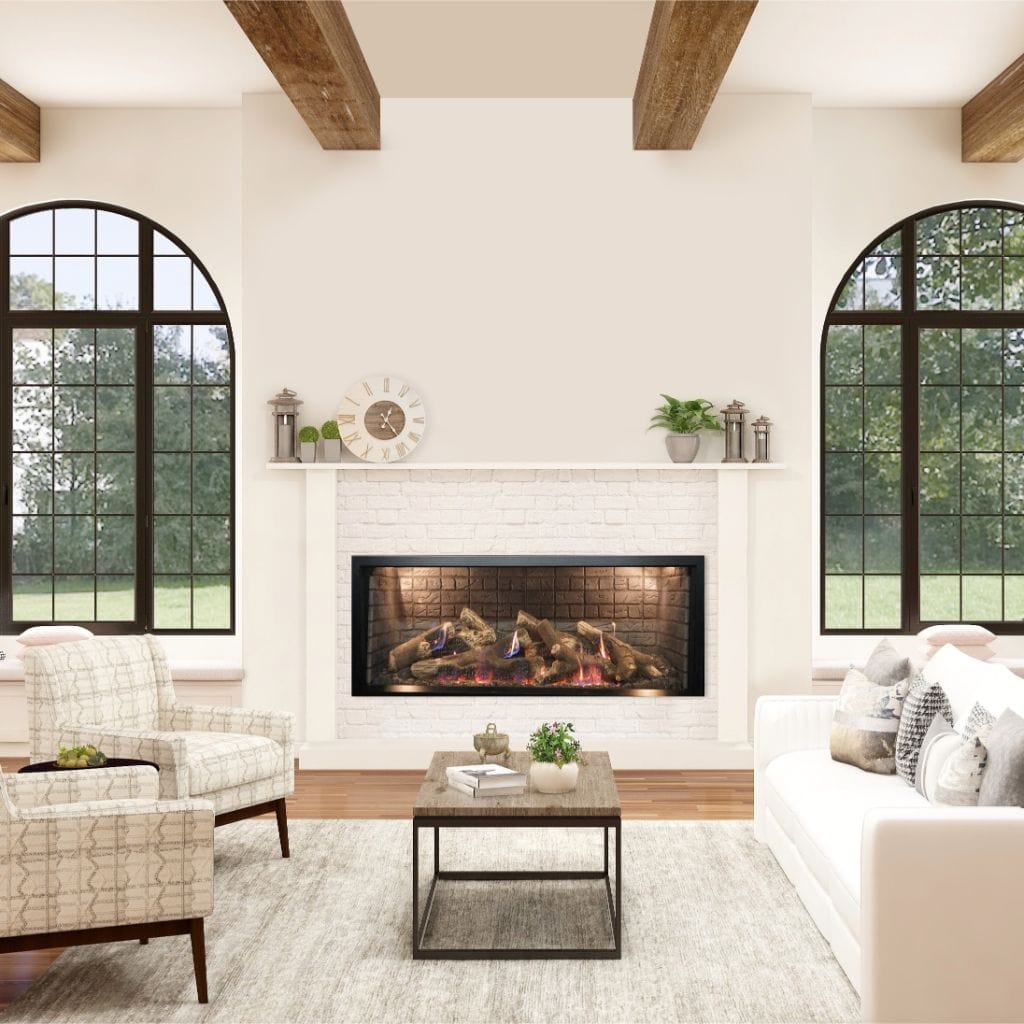

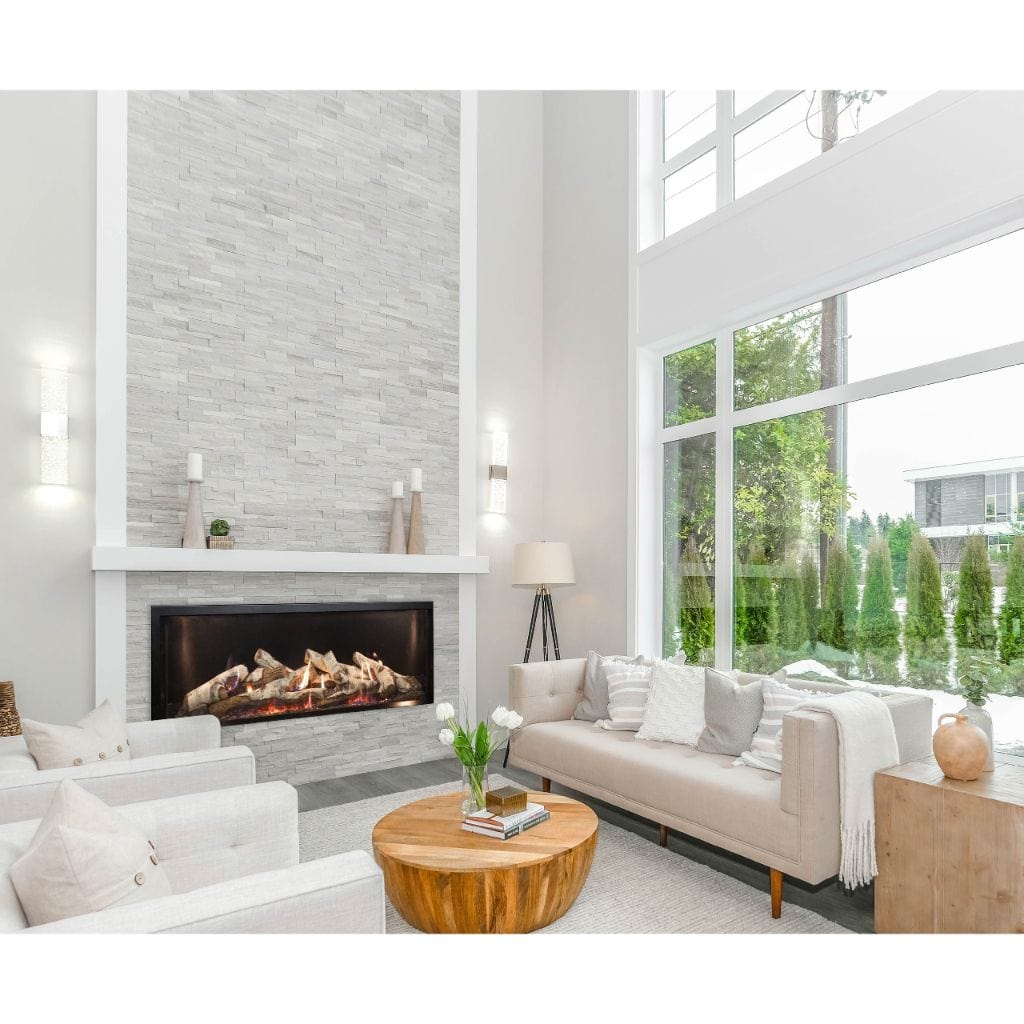

Empire McKinley 60" TruFlame Direct Vent Linear Gas Fireplace
Empire McKinley 60" TruFlame Direct Vent Linear Gas Fireplace
Log Set (Required)
-- Please Select --
No, Thank You
Liner (Required)
-- Please Select --
No, Thank You
Blower
-- Please Select --
No, Thank You
Gas Conversion Kit
-- Please Select --
No, Thank You
Forced Air Kit (Heat Management)
-- Please Select --
No, Thank You
Flex Vent (Required for Forced Ait Kit)
-- Please Select --
No, Thank You
Horizontal Power Vent (Required)
-- Please Select --
No, Thank You
Conversion Kit (Convert Horizontal to Vertical Power Vent)
-- Please Select --
No, Thank You
For 5x8 Vent Pipe (Pipe Reducer Required for Power Vent)
-- Please Select --
No, Thank You
Wire Harness (Required for Power Vent)
-- Please Select --
No, Thank You
Forged Iron Fronts
Beveled Frame
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Personalize your experience with multiple logs sets, liners and trim kits to choose from.
What's Included
- Fine Mesh Barrier Screen
- LED Lighting under burner
- Thermostat Variable Remote Control
- Extension Kit to mount lighting wall controls
up to 6 ft. away
Not Included (Sold Separately)
- Log Set (Required)
- Liners (Required)
- Power Vent (Required)
- Twin Blower
- Heat Management
- Gas Conversion Kit
- Decorative Forged Front
- Beveled Frame
- Wire Harness
Features
- Single Sided
- Fine Mesh Barrier
- Non-Combustible Board
- Choice of Interior Liners
- Choice of Ceramic Fiber or Burncrete® Logs
- UL Listed
- Optional Blower
- Optional Fronts
- Zero Clearance Gas Fireplace
- Power Vent - Maximum 50' Vent Run up to (6) Elbows
- Multi-Function System with Thermostat Variable Remote Control
- Multi-Function Remote to Control:
- Front and Rear Burner
- 6-Step Variable Flame Height
- Independent Rear Burner On/Off (70% Turn Down)
- Accent Lighting On/Off with 6-Step Dimming
- Optional Double Blower On/Off with 6-Speed Settings
- TruFlame Technology:
- Catalyst allows Large Flame and Extensive Ember Bed
- Clean Burn
Specifications
| Max BTU (w/both burners) | 58,000 |
| Min BTU (w/both burners) | 38,000 |
| Min BTU (front burner only) | 14,500 |
| Vent Type | Direct Vent |
| Gas Type | Natural Gas | Propane |
| Ignition | IPI - Intermittent Pilot Ignition |
| Venting | 4" x 6 5/8" Top Vent Only |
| KWH (Maximum) | 17 |
| KWH (Minimum) | 11.14/4.25 |
| Orifice - Front | #43 |
| Orifice - Rear | 3.1 mm |
| Air Shutter Opening Front / Rear | Fully Closed |
| Gas Inlet Shut-Off Valve (pipe) | 1/2 NPT |
Dimensions
| Width | 66.19" |
| Height | 41.5" |
| Depth | 11.06" |
| Ceramic Glass Width | 60.12" |
| Ceramic Glass Height | 18.25" |
| Framing Width | 75.12" |
| Framing Height | 59.87" |
| Framing Depth | 23.5" |
Warranty
10-years Limited Warranty on Combustion Chamber, Limited Lifetime on Glass. All other parts carry a three-year limited warranty. All remote controls and lighting systems carry a one-year limited warranty.
