SKU:DVC20IN31N

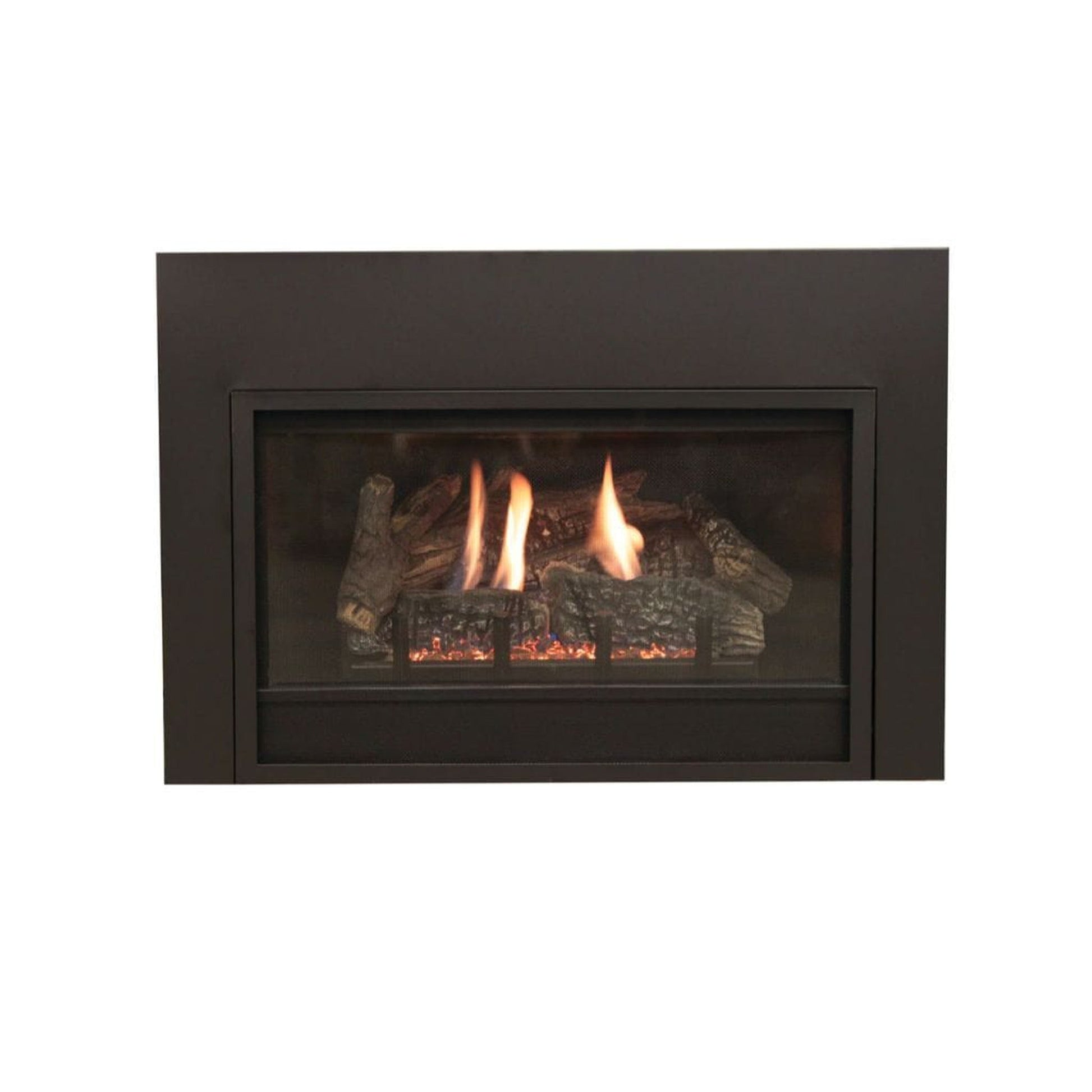

Empire Innsbrook 28" Small Direct Vent Clean Face Millivolt Control, Natural Gas Traditional Fireplace Insert
Empire Innsbrook 28" Small Direct Vent Clean Face Millivolt Control, Natural Gas Traditional Fireplace Insert
Cast Iron Surround
-- Please Select --
No, Thank You
Surround Adaptor (Required for Cast Iron Surround)
-- Please Select --
No, Thank You
3-Sided Surrounds
-- Please Select --
No, Thank You
Bottom Cover (Required for Surround)
-- Please Select --
No, Thank You
Fronts (Surround Required for Fronts)
-- Please Select --
No, Thank You
Custom Surrounds
-- Please Select --
No, Thank You
Shroud
-- Please Select --
No, Thank You
Liners
-- Please Select --
No, Thank You
Conversion Kit
-- Please Select --
No, Thank You
Control Options
- Free Shipping on Orders Over $300
- Same-Day Order Processing
A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).
Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.
A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.

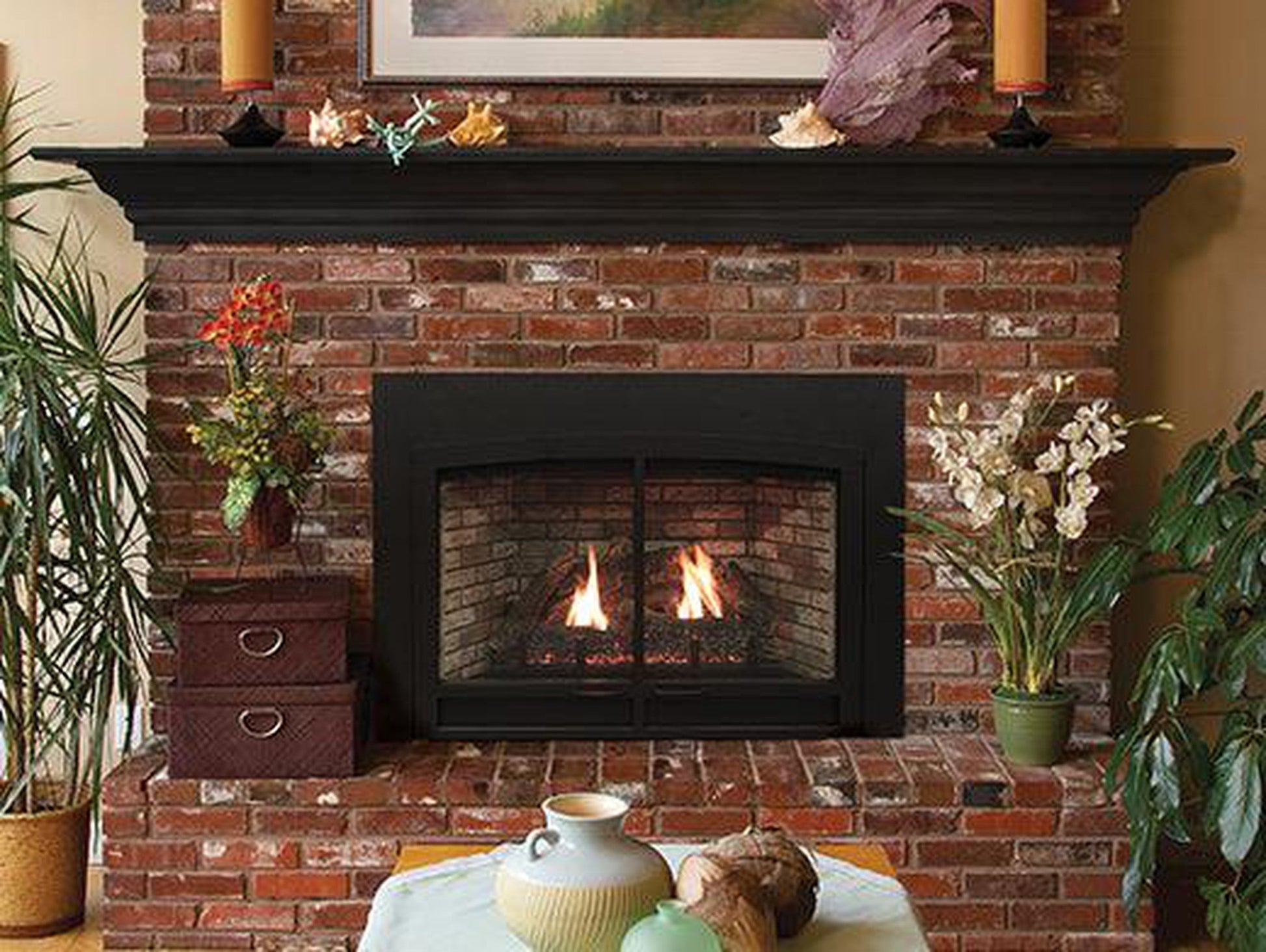

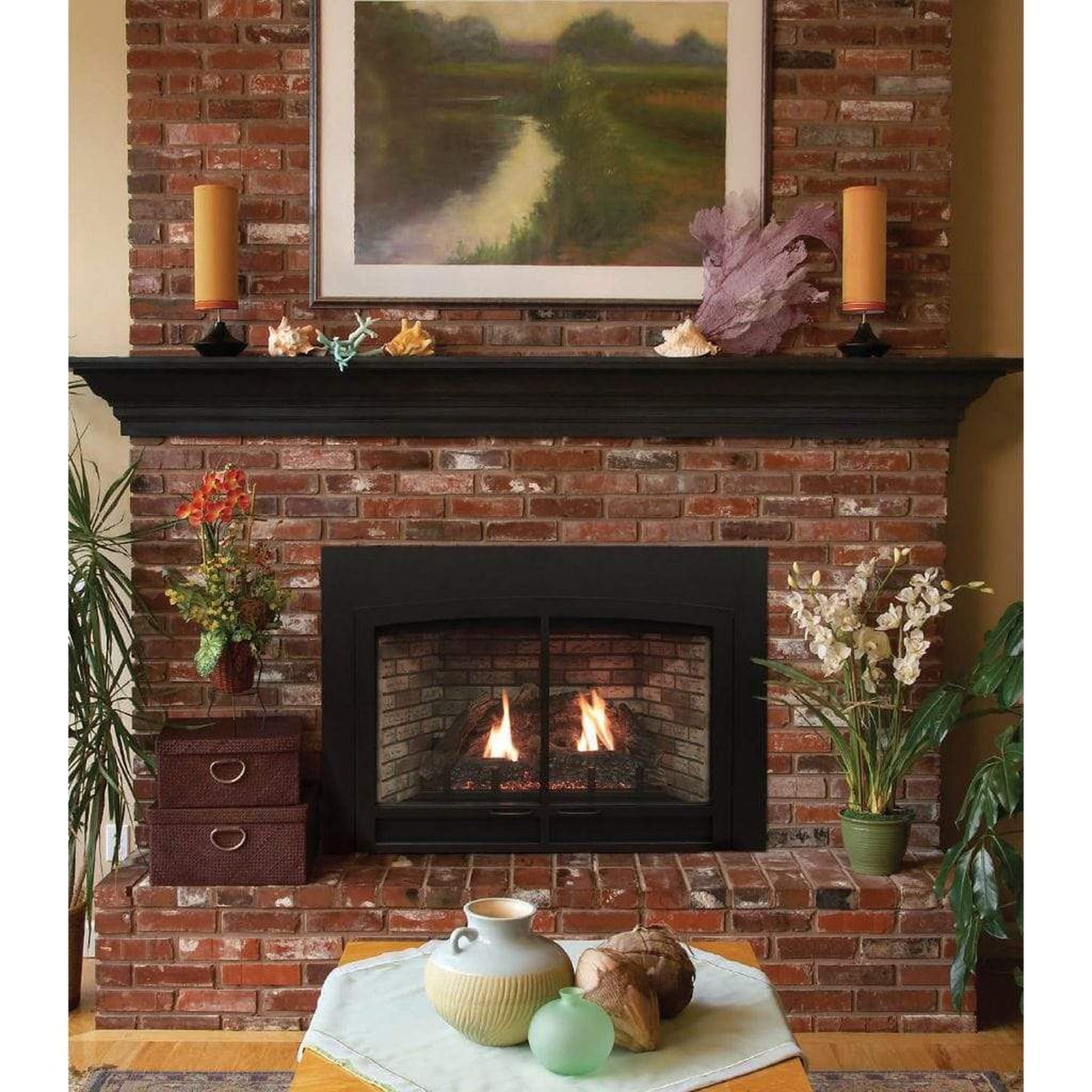

Innsbrook Direct-Vent Insert
A Direct-Vent Fireplace Insert turns your existing wood-burning fireplace into an efficient gas-fired heat source. Direct-Vent Fireplace Inserts are classified as zone heating appliances. Zone heating is inherently more efficient than your existing wood-burning fireplace or your central furnace.
Innsbrook Direct-Vent Inserts (DVC)
Our Innsbrook Direct-Vent inserts feature optional liners and hand-painted ceramic fiber logs, nestled atop the variable flame height burner, to create an exceptionally attractive traditional fireplace. With inputs of 20,500 Btu, 26,000 Btu, and 28,500 Btu, the Direct-Vent insert’s unique Slope Glaze Burner produces natural flickering flames that dance and delight – warming your heart as it warms your soles.
What's Included
- Innsbrook Clean Face Fireplace Insert
- Blower
- Log Set
- Ceramic Glass
- Barrier Screen
Not Included (Sold Separately)
- Surround (Required)
- Decorative Liners
- Control Options
- Bottom Covers
- Decorative Fronts
- Gas Conversion Kit
- Cast Iron Surround
- Adaptor for Cast Iron Surround
- Custom Surround & Shroud
Features
- Good efficiency – 60 to 80%
- May be used as primary heat source
- Separates room air from combustion air
- Can operate with a remote or thermostat
- Most systems can provide life-saving heat during a winter power outage
- Good heat output with thermal transfer through the glass and air circulation
- We offer our traditional Innsbrook Direct-Vent Inserts in three sizes – small, medium, and large – to fit most wood-burning fireplaces
- Choose Millivolt ignition with standing pilot to provide heat, even in the absence of electric power, or Intermittent Pilot, which saves even more energy
- IP systems can operate with a standing or intermittent pilot during power outages
- Innsbrook Direct-Vent inserts feature optional liners and hand-painted ceramic fiber logs, nestled atop the variable flame height burner, to create an exceptionally attractive traditional fireplace
- Direct-Vent insert’s unique Slope Glaze Burner produces natural flickering flames that dance and delight – warming your heart as it warms your soles
Specifications
Model | DVC20IN |
Max BTU (w/both burners) | 20,500 |
Min BTU (w/both burners) | 14,500 |
Vent Type | Direct Vent |
Ignition Type | Millivolt Control |
Type of Gas | Natural Gas |
Venting | 3-Inch Flex |
Installation | Insert |
KWH (Maximum) | 5.95 |
KWH (Minimum) | 4.2 |
Orifice | #44 |
Air Shutter Opening | 1/8 inch open |
Gas Inlet Shutoff Valve (pipe) | 1/2" NPT |
Gas Supply Pressure (Inches Water Column) |
Maximum | 14 |
Minimum | 4.5 |
Manifold | 3.5 |
Dimensions
Ceramic Glass Width | 25" |
Ceramic Glass Height | 11" |
Framing Width | 28" |
Framing Height | 18" |
Framing Depth | 15" |
Warranty
- 10-year limited warranty on combustion chamber, limited lifetime on glass
- All remote controls carry a one-year limited warranty
- All other parts carry a three-year limited warranty
Documents & Files
Frequently Asked Questions
Can I buy a fireplace online and install it myself?
We highly recommend a certified professional install all of our units. Any issues that arise from improper installation will not be covered under warranty. |
Does our product work during a power outage?
Yes, most of our appliances have the ability to be used in a power outage situation please see a local dealer for more information. |
What is the difference between Millivolt and electronic ignition fireplaces?
Millivolt fireplaces use the electricity produced by a standing pilot to operate the fireplace. Electronic ignition fireplaces rely on a power source to power the fireplace, this can be house voltage as well as battery voltage. |
Can I use a Wi-Fi Thermostat with my unit?
Our units are designed to be operated by millivolts or low voltage, most Wi-Fi thermostats use 24volts and are not compatible. |
Where can I find my model and serial number?
There is a rating plate attached to the valve of your appliance that will have the model and serial number information. |
Can you tell me how old my unit is?
Once you locate your rating plate the serial number will help identify the age, the first two digits of the serial number denote the year of manufacture (21, 20, 19...) the next two digits identify the week of that year that the unit was built. |
What is the difference between a fireplace, a firebox, and an insert?
Fireplaces are designed to be installed into a framed opening with specific clearances to combustibles. Fireboxes are just like Fireplaces in terms of where they can be installed but in addition a burner and a set of logs is required to finish off the unit. Inserts are designed to be installed directly into an existing wood burning fireplace that meets all standards of construction. |
