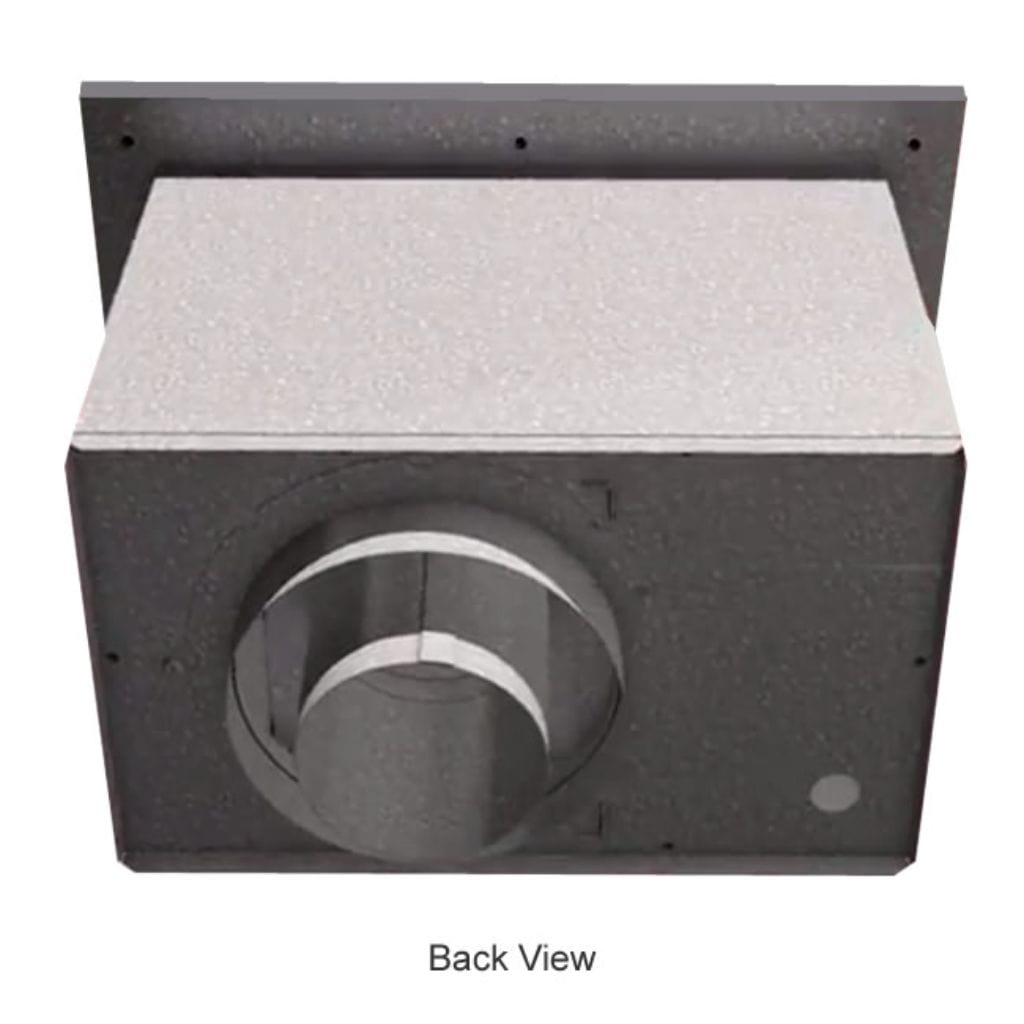

Empire Horizontal Power Vent for Direct Vent Units

Empire Horizontal Power Vent for Direct Vent Units

$1,349.00
$1,349.00
Sale Sold out
Shipping calculated at checkout.

Vertical Conversion Kit

-- Please Select --

No, Thank You

Vent Pipe Reducer

-- Please Select --

No, Thank You

Wire Harness

-- Please Select --

No, Thank You
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
Installing a power vent to your direct vent fireplace will give you the option of installing your direct vent fireplace almost anywhere in your home. The DVKPM power vent allows for a longer vent run from the standard 40 feet up to 100 feet. Additionally, if your installation requires several elbows or needs to run downward before running outside, it can! The powerful blower expels the combustion gasses from your fireplace while drawing in cool outside air.
This power vent connects to a 4" x 6-5/8" vent pipe. If you have a 5" x 8" vent pipe an additional, optional adapter required (SD58DVAX46). Downward venting is possible up to 5 feet below the base of the fireplace. DVKPM is a Horizontal Power Vent and a vertical conversion kit (DVKCV) is available. A wiring harness is also required and available in several lengths from 25 ft to 100 ft.
Horizontal power vent can be used with several Empire Direct Vent Fireplaces as long as they are equipped with a multi-function remote.

What's Included

  • 1 x Dura-vent Pipe Adapter
  • 1 x Inlet Gasket
  • 1 x Gasket, Flue Connector
  • 1 x Flue Box Assembly
  • 1 x Inducer Assembly
  • 1 x Air Intake Box assembly
  • 1 x Foam Gasket
  • 1 x Fascia Assembly-Horizontal
  • 8 x #10 X 1" Hex Head Screws
  • 12 x #10 X 1/2" Hex Head Screws

Not Included (Sold Separately)

  • Wire Harness (25ft. to 100ft.)
  • Pipe Reducer (SD58DVAX46)
  • Vertical Conversion Kit (DVKCVP)

Features

  • This power vent is designed to be installed horizontally, making it an ideal choice for spaces where vertical venting is not possible or practical.
  • The Empire Horizontal Power Vent is equipped with a powerful fan that can quickly and effectively remove combustion gases from your home or building.
  • This power vent features multiple intake and exhaust ports that allow for greater flexibility in installation, making it easier to fit into a variety of spaces and configurations.
  • Made from high-quality materials, this power vent is built to last and can withstand the rigors of daily use and exposure to the elements.
  • With its simple design and easy-to-follow instructions, the Empire Horizontal Power Vent can be quickly and easily installed by a qualified professional.
  • By removing combustion gases more efficiently, this power vent can help your heating appliance operate more efficiently.

Specifications

Clearance to Combustibles
Back 0 inch
Sides 0 inch
Top/Bottom 0 inch
