SKU:DVC55IPXNAT

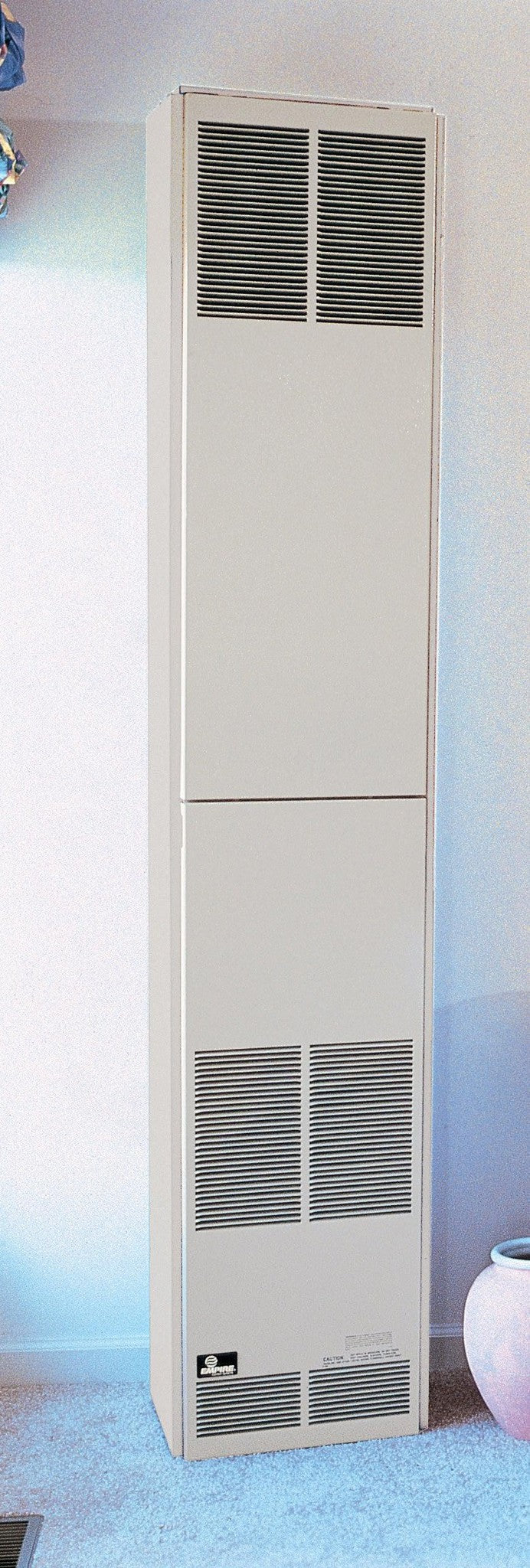

Empire 82" Beige 55,000 BTU Electronic Intermittent Pilot, Natural Gas Direct Vent Counterflow Wall Furnace
Empire 82" Beige 55,000 BTU Electronic Intermittent Pilot, Natural Gas Direct Vent Counterflow Wall Furnace
Conversion Kit
-- Please Select --
No, Thank You
Venting Kits
Control Options
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Direct-Vent systems mount on an outside wall and have a vent-within-a-vent system to draw in outdoor air to support combustion and exhaust flue products to the outdoors. The vent cap installs on the outside wall of the home. Because they do not draw your already-heated room air to support combustion, Direct-Vent systems are among the most efficient of the vented heaters. A Direct-Vent system may be installed as your home’s primary heating system.
These Direct-Vent Counterflow Wall Furnaces may be recessed between standard wall studs and can be installed on an outside wall. Provides total comfort for a fraction of the cost of electric heat. Matchless pushbutton piezo ignition for manual operation; also works with optional thermostats or other remote controls. Front panels remove for cleaning and servicing. Counterflow design circulates warm air at floor level.
What's Included
- 82" Beige 55,000 BTU Electronic Intermittent Pilot, Direct Vent Counterflow Wall Furnace
- DV600 Vent Kit
Not Included
- Wall Thermostats
- 10" Side Outlet Kit
- Side Outlet Register
- Slim-Line Vent Kit
- Vinyl Siding Vent Kit
- Gas Conversion Kit
Features
- Made in USA
- Up to 76% A.F.U.E. efficient
- DVC55 Install on Outside Walls
- Matchless Pushbutton Piezo Ignition
- Front Panels Remove for Cleaning and Servicing
- Multi-Room Heating Capacity with Optional Outlet Kits
- Counterflow Blower Circulates Warm Air at Floor Level
- Total Comfort for a Fraction of the Cost of Electric Heat
- Standing Pilot (saves even more energy)
Specifications
| Model | DVC55IPXNAT |
| Cabinet and Front Panels Color | Beige |
| BTU Input | 55,000 |
| Blower Output, Cu. Ft./Min. | 400 CFM |
| Fuel Type |
Natural Gas |
| Control Options (Not Included) |
| Works with Manual; Toggle Switch, Thermostat; Wall Switch or Remote Control | Yes |
| Safety Controls |
| Pilot and Main Burners Include Automatic Shut-off | Yes |
| Gas Inlet |
| Iron Pipe Size (N.P.T.) | 1/2" |
| Wall to Valve Inlet | 6 1/2" |
| Center of Heater to Center of 1/2” Inlet Elbow | 3" |
| Floor Covering to Valve Inlet | 3 3/4" |
| Overall Dimensions |
| Width | 16" |
| Depth | 11" |
| Height | 82" |
| Shipping Weight, lb | 140 lbs |
| Minimum Clearances to Combustibles From |
| Top (To Ceiling) | 4" |
| Each Side (To Nearest Adjacent Sidewall) | 4" without Register 18" with (SOR1) |
| Bottom of Unit to Wood Floor | Zero |
| Center of Vent Connector Opening to Combustibles | N/A |
| Depth Unit May Be Recessed | 4" |
Warranty
| Combustion Chamber | 10-Year limited warranty |
| All Other Part Carry | 1-Year limited warranty |
Documents & Files
Frequently Asked Questions
Does our product work during a power outage?
Yes, most of our appliances have the ability to be used in a power outage situation please see a local dealer for more information. |
What is the difference between, Millivolt and electronic ignition heaters?
Millivolt fireplaces use the electricity produced by a standing pilot to operate the fireplace. Electronic ignition fireplaces rely on a power source to power the fireplace, this can be house voltage as well as battery voltage. |
Can I use a Wi-Fi Thermostat with my unit?
Our units are designed to be operated by millivolts or low voltage, most Wi-Fi thermostats use 24volts and are not compatible. |
Where can I find my model and serial number?
There is a rating plate attached to the valve of your appliance that will have the model and serial number information. |
Can you tell me how old my unit is?
Once you locate your rating plate the serial number will help identify the age, the first two digits of the serial number denote the year of manufacture (21, 20, 19...) the next two digits identify the week of that year that the unit was built. |
