Empire 46" Loft Linear Direct Vent Gas Fireplace

OVERVIEW

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run,
but can also be installed elsewhere in the home and vented through the roof.

Advantages:

• Good efficiency – 60 to 80%
• Good heat output with thermal transfer through the glass and air circulation
• Separates room air from the combustion air
• May be used as a primary heat source
• Can operate with a remote or thermostat
• Most systems can provide live-saving heat during a winter power outage

Loft Direct-Vent Fireplace

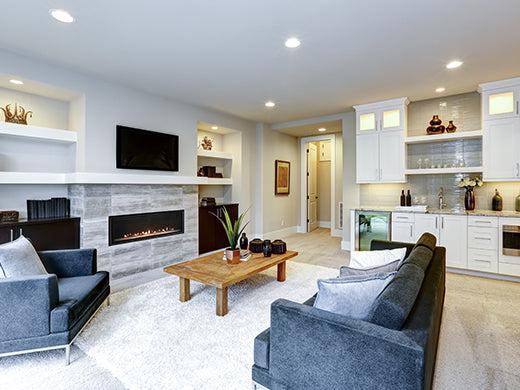

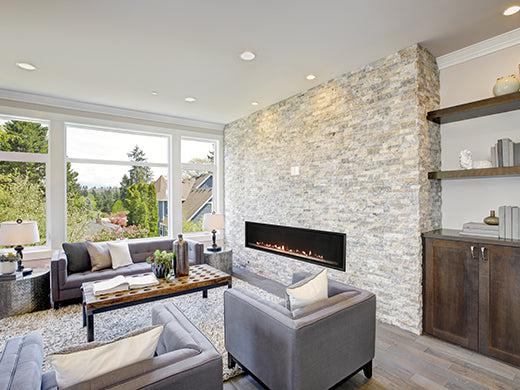

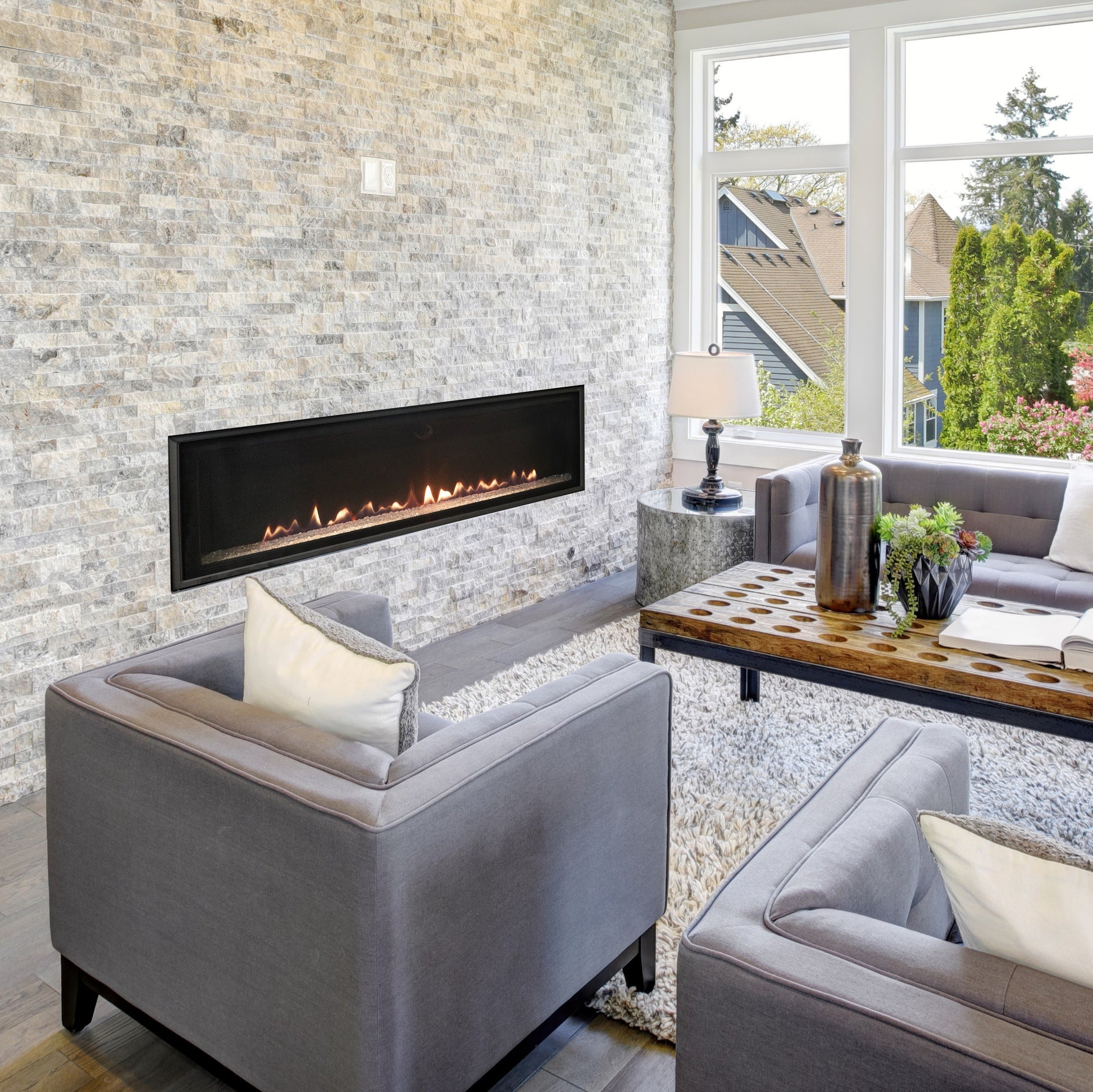

The Loft adds a modern, linear style at an exceptional value to any home or office. The contemporary design is highlighted by a long, flickering flame rising through a bed of crushed glass media.

The Loft is available in 36" and 46" models to fit a variety of spaces and applications. Take control of your fireplace by choosing the controls that suit you best from simple millivolt to multifunction remote controlled electronic ignition.

Choose from a variety of media options to personalize the fireplace for any space.

Includes:

• Clear Crushed Glass
• On/off switch w/10' wire

FEATURES

• Available in 36" and 46" sizes
• Millivolt / Intermittent Pilot Ignition
• Natural Gas / Propane
• Max Btu Natural Gas: 30,000 BTU's
• Max Btu Propane: 31,000 BTU's
• Tempered Glass: 13H x 42 7/16 W
• Venting: 4 x 6 5/8 Top Vent Only, 12-in min. rise before horizontal
• Framing 33 H x 58 3/16 W x 15 1/2 D

DIMENSIONS

CA Residents: See Prop 65 WARNING.

DOWNLOADS

• Download Product Brochure
• Download Installation Instructions Manual
• Download Architect Drawing - DVL46BP

OPTIONS & ACCESSORIES

Log Set

Driftwood Log Set Ceramic Fiber with Rock Set 22-Pcs Rustic Log Set Contemporary Fiber Log Set 7 Rustic Logs 11 Rocks 5 SS Coils

Accessories

	Black Porcelain Liner Type: Reflective Liner Finish: Black Porcelain Black Porcelain liner to enhance the illusion of flame and depth Please Note: (Fireplace includes Matte Black Liner)
	Decorative Fronts Type: Beveled Frame Color: Matte Black Size: 3/4 Inch
	Lighting Kit (LK10) 120V lighting kit Creates dramatic shadows inside fireplace Provides visual interest even when fire isn't burning

Conversion Kits

Conversion Kits Type: Conversion Kit Liquid Propane to Natural Gas Conversion Kit Natural Gas to Liquid Propane Conversion Kit Use with Intermittent Pilot and Millivolt Control For Direct-Vent Loft Fireplaces

Click to see Crushed Glass Media

	Black Polished Crushed Glass Approx. 1 sq. ft. Covers burner ports and provides a unique appearance Install only to manufacturer specifications Reflective nature amplifies burner flames
	Blue Clear Crushed Glass Approx. 1 sq. ft. Covers burner ports and provides a unique appearance Install only to manufacturer specifications Reflective nature amplifies burner flames
	Copper Reflective Crushed Glass Approx. 1 sq. ft. Covers burner ports and provides a unique appearance Install only to manufacturer specifications Reflective nature amplifies burner flames
	Bronze Reflective Crushed Glass Approx. 1 sq. ft. Covers burner ports and provides a unique appearance Install only to manufacturer specifications Reflective nature amplifies burner flames

Click to see Heat Management Options

	Heat Management Kit Gravity heat management Part of the heat management system (Includes 48" Plenum and 10' Flex)
	External Forced Air Heat Management External forced air kit Part of the heat management system Requires the Empire Flex Vent Kit for Forced Air Kit
	Flex Vent Kit for Forced Air Kit Flex Vent Kit (25' Flex and Clamps) Part of the heat management system This flex vent kit is required for forced air kit

WARRANTY

• 10-year Limited Warranty on Combustion Chamber, Limited Lifetime on Glass.
• All other parts carry a three-year limited warranty.
• All remote controls and lighting systems carry a one-year limited warranty.
