A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the
case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room. A DV system is often installed along an outside wall to simplify the vent run,
but can also be installed elsewhere in the home and vented through the roof.

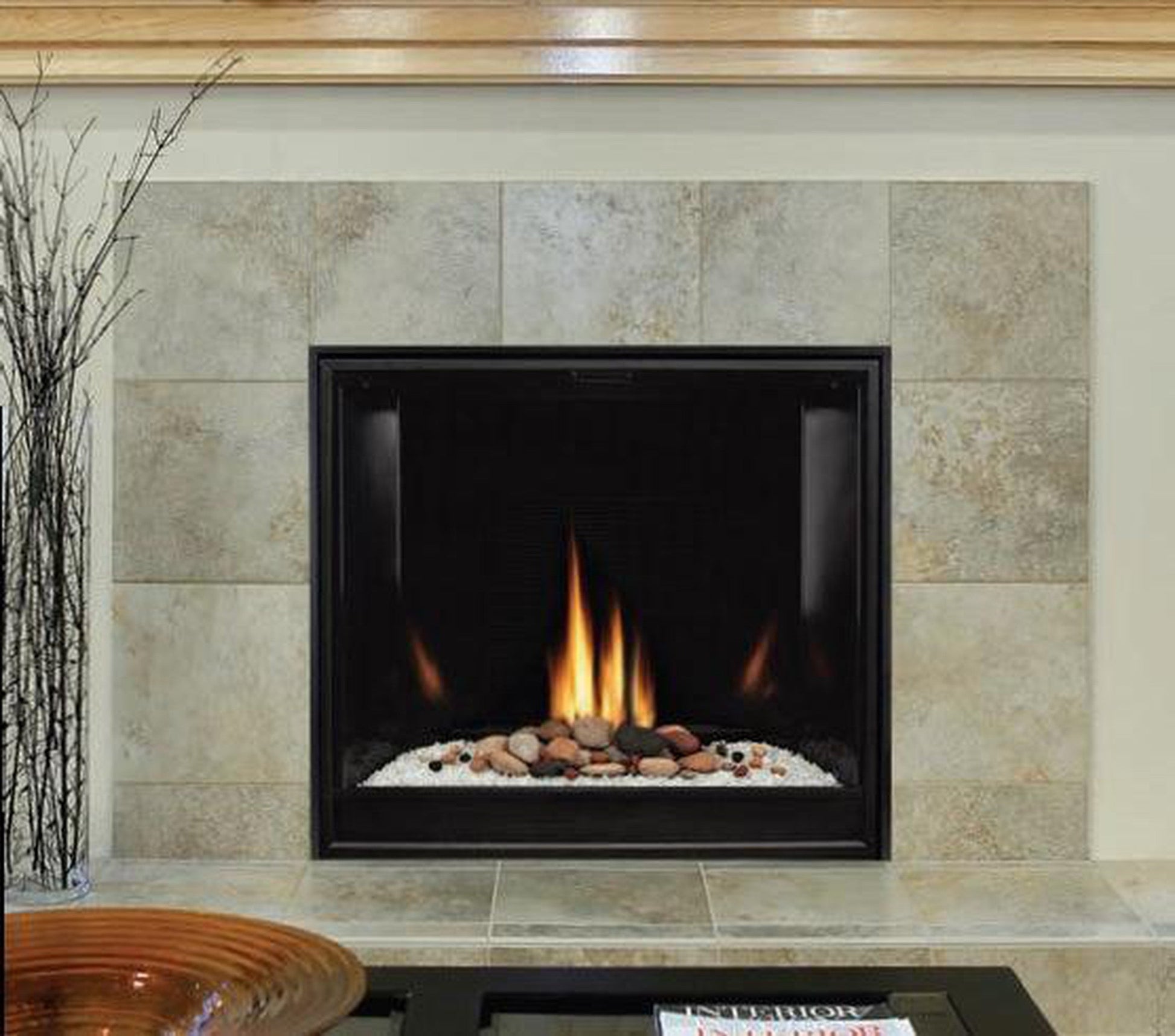

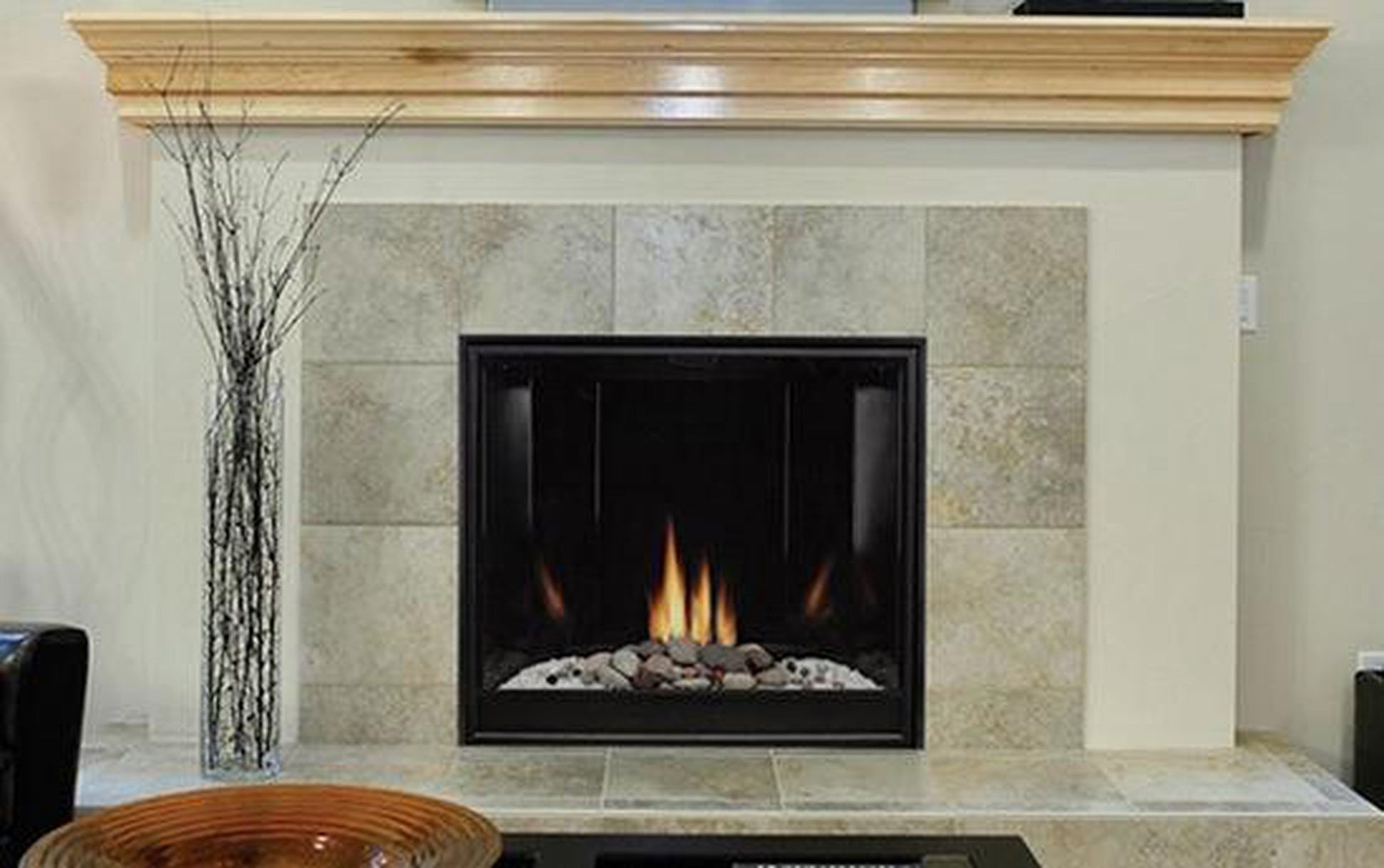

Tahoe Clean-Face Premium Contemporary (DVCC)

Ceramic Fiber Liner options for Clean-Face Premium models include a traditional Aged Brick with smoky highlights, and an old-world Rustic Brick. Or choose the deep black polished porcelain-steel liner that reflects the flames for a luxurious effect.

The available lighting kit draws attention to the intricate details of the decorative rock kit and brick liner – even when no fire is burning. You can enhance heat distribution with the optional variable-speed blower. Both the light and blower include dimmer controls.

Clean-Face Premium models are available in Millivolt and Intermittent Pilot.

What's Included

• Tahoe Clean Face Contemporary Fireplace
• Black Porcelain Liner
• Tempered Glass
• Barrier Screen


Not Included (Sold Separately)

• Rock Set (Required)
• Crushed Glass 1 1/2" sq. ft. (Required)

• Blower

• Lighting Kit
• Flex Gas Line

• Control Options

• Gas Conversion Kit

Features

• Good efficiency – 60 to 80%

• May be used as primary heat source
• Separates room air from combustion air

• Can operate with a remote or thermostat
• Most systems can provide life-saving heat during a winter power outage
• Good heat output with thermal transfer through the glass and air circulation
• The Premium Clean-Face Tahoe includes a tempered glass view window and a unique burner that delivers a rich flame pattern
• The ceramic fiber rock set is required each rock piece is hand painted
• The contemporary fireplace includes a deep black polished porcelain-steel liner to enhance the reflected flames
• The available lighting kit draws attention to the intricate details of the decorative rock kit and brick liner – even when no fire is burning
• Clean-Face Premium models are available in Millivolt and Intermittent Pilot

Specifications

Dimensions

Warranty

• 10-year limited warranty on combustion chamber; limited lifetime on glass
• All Remote Controls carry a 1-year limited warranty
• All other parts carry a 3-year limited warranty
