Empire 42" Tahoe Clean Face Direct Vent Luxury Fireplace - Millivolt Control Series

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.

Advantages:

• Good efficiency – 60 to 80%
• Good heat output with thermal transfer through the glass and air circulation
• Separates room air from the combustion air
• May be used as the primary heat source
• Can operate with a remote or thermostat
• Most systems can provide live-saving heat during a winter power outage

Tahoe Direct-Vent Fireplaces

Tahoe Clean-Face Deluxe models feature our Contour tube-style burner, designed to complement the hand-painted ceramic fiber log set, and produce a natural dancing flame.

The Clean-Face Deluxe Fireplace comes with a discreet air distribution channel that eliminates the look of louvers, yet still allows you to operate the optional blower. It features a large tempered glass window that provides an unobstructed view to the log set. Choose an optional liner to customize your fireplace.

Tahoe Clean-Face Deluxe models require 17-3/4, and use 4 x 6-5/8 venting, making them ideal for applications where wall-cavity space is tight.

Designed for in-wall installation, your Tahoe Direct-Vent fireplace can be finished with tile or other non-combustible material, which conceals the outer edge of the fireplace to provide a true built-in appearance.

The available lighting kit draws attention to the intricate details in the log set and brick liner – even when no fire is burning. You can enhance heat distribution with the optional variable-speed blower. Both the light and blower include dimmer controls.

Clean-Face Premium models are available in Millivolt and Intermittent Pilot.

Tahoe Clean Face Luxury

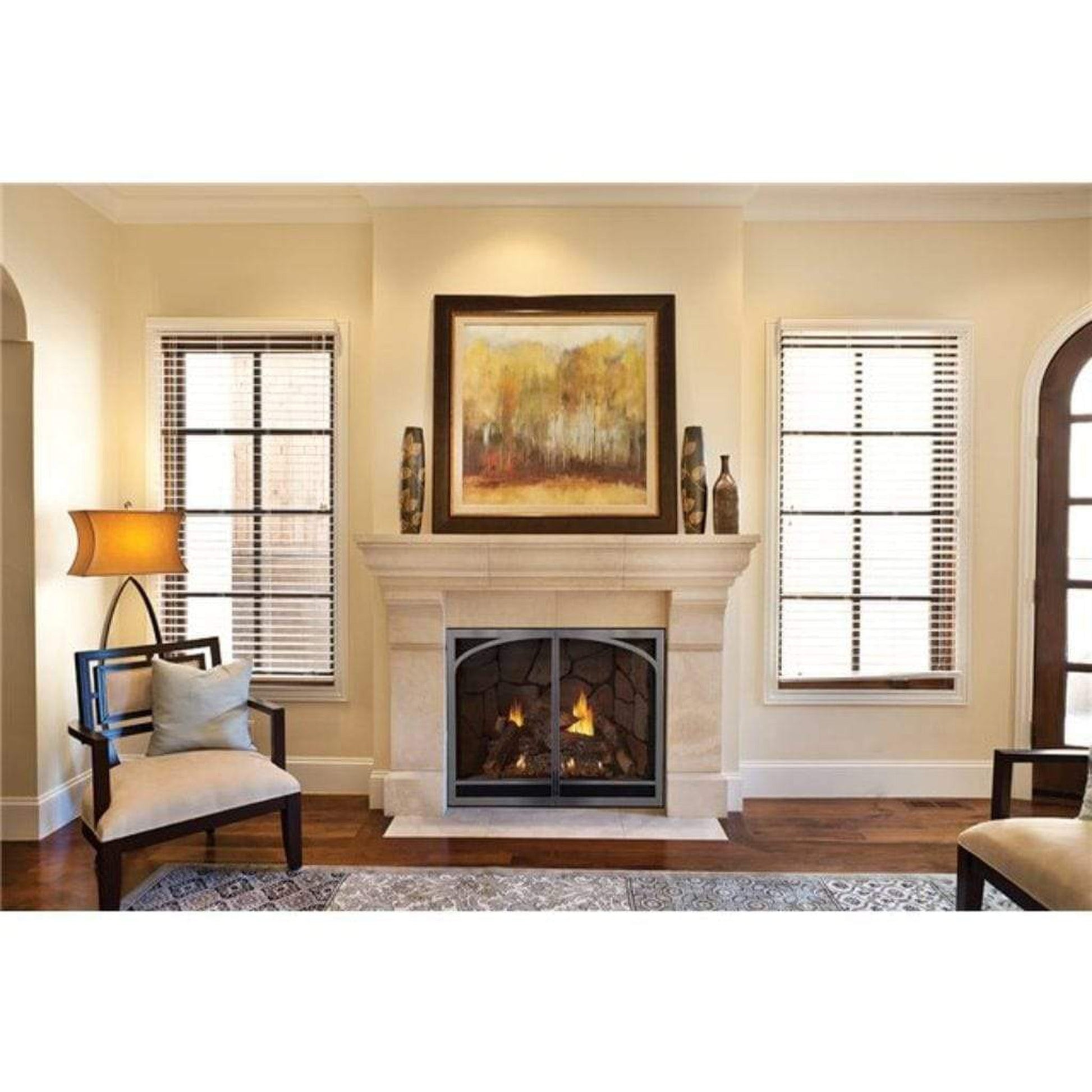

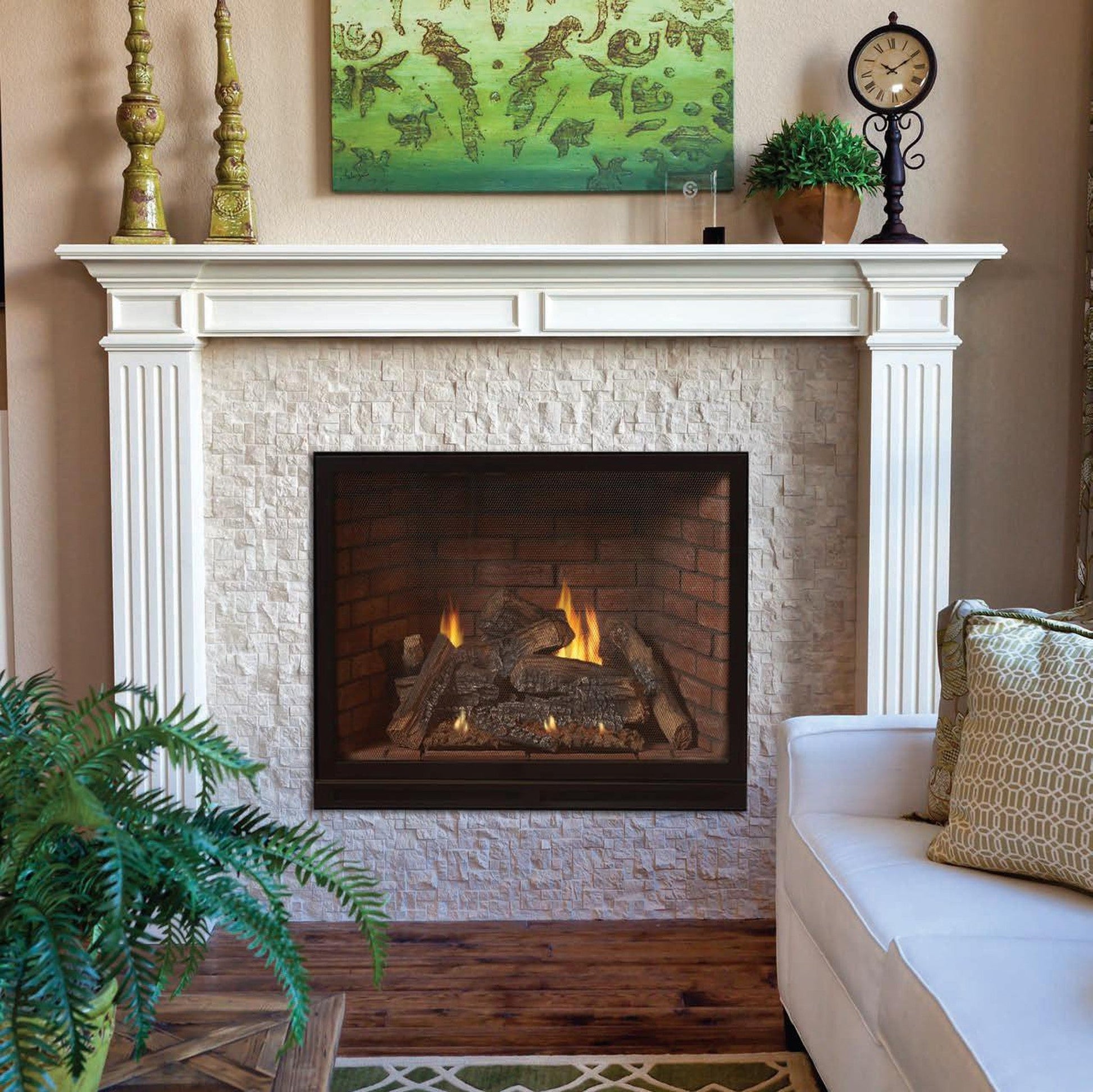

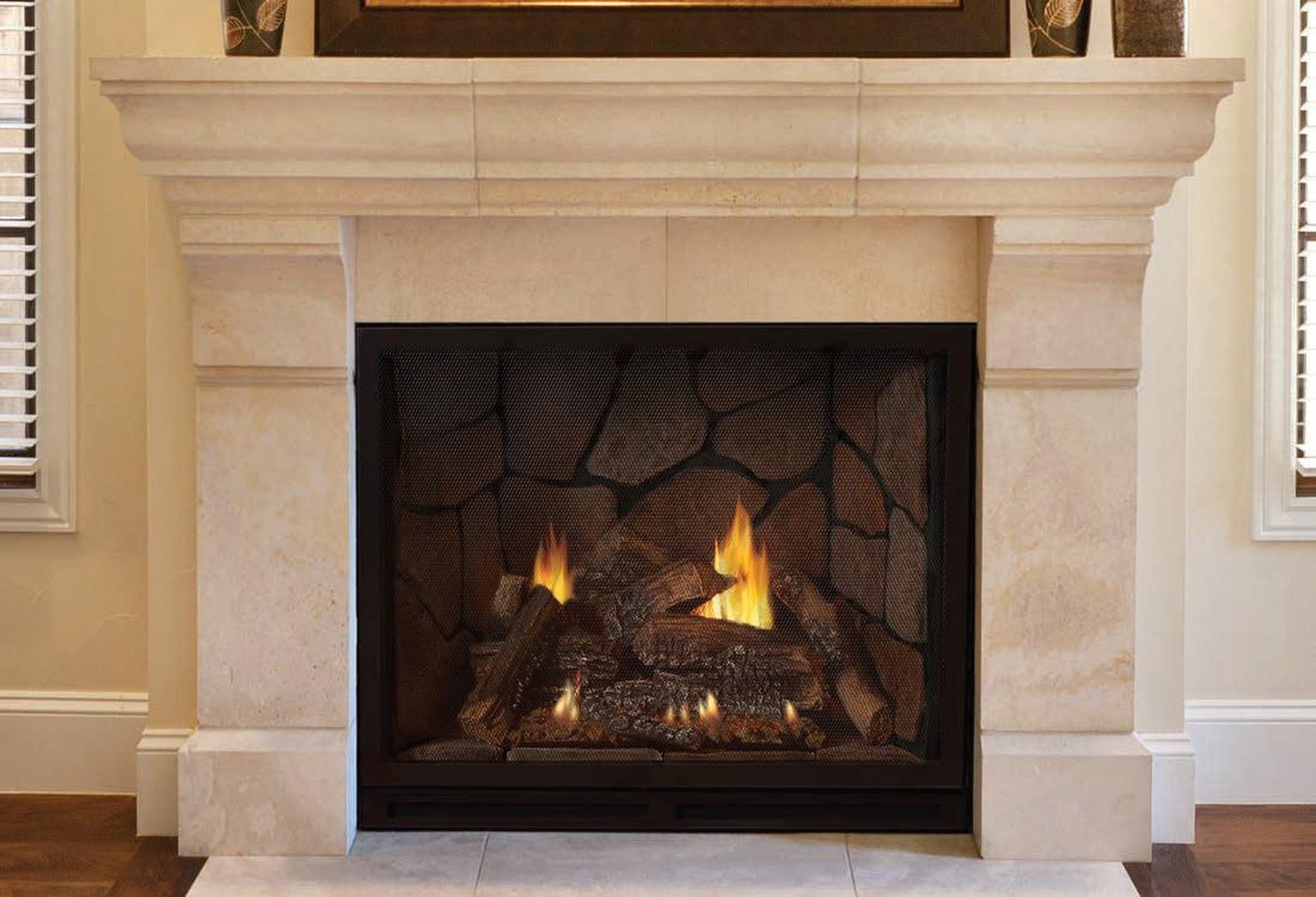

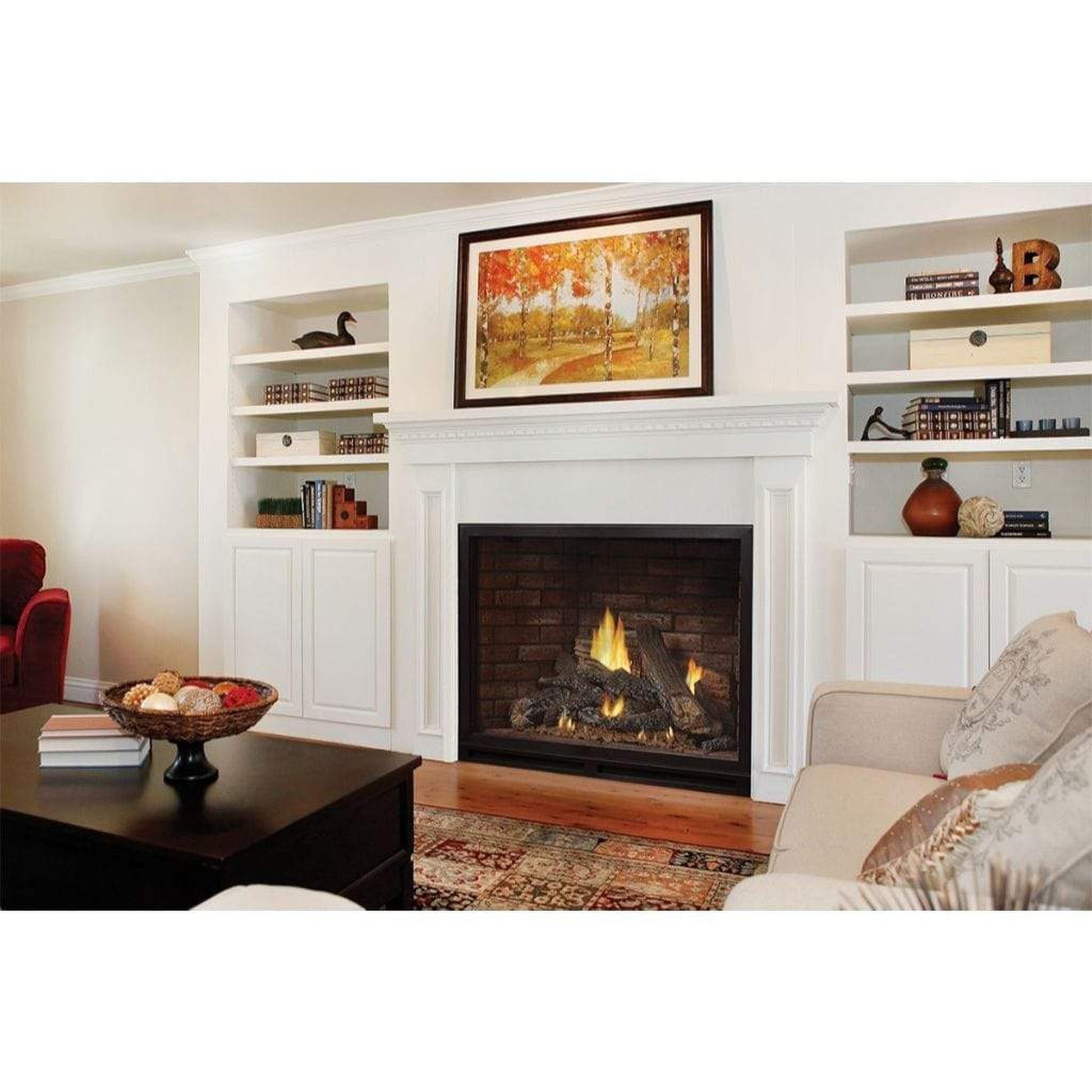

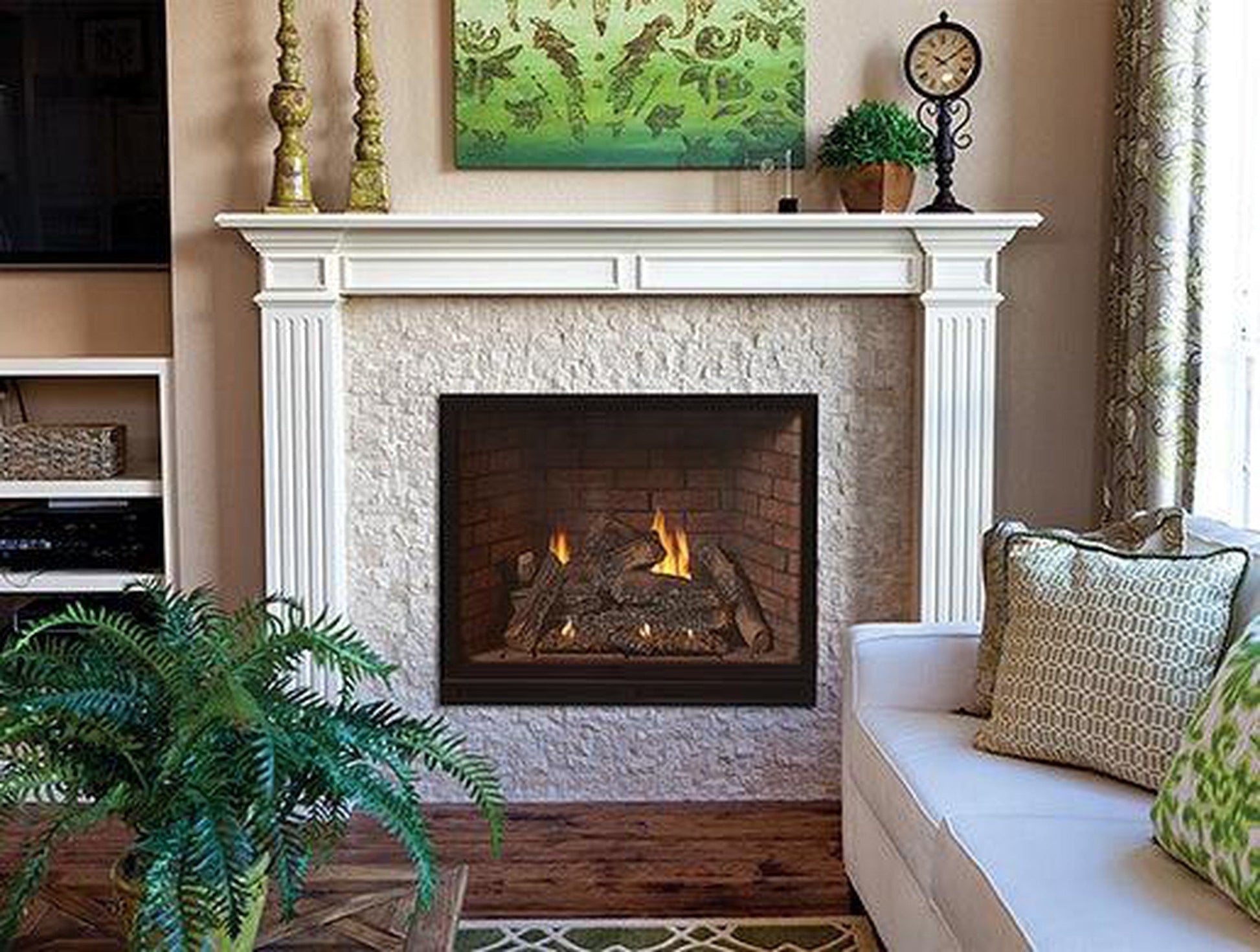

With its large ceramic glass window and clean-face design, this luxury direct-vent fireplace creates the illusion of a site-built fireplace, but offers the convenience and operating efficiency of a modern gas system. The traditional luxury clean-face fireplace is available in 36-inch and 42-inch models.

Tahoe Clean-Face Luxury fireplaces are heater rated, so they will mesmerize your friends and family as well as warm your room. Zone heating with a gas fireplace saves energy while warming the rooms you use most. The available blower helps circulate warm air more quickly.

Designed for in-wall installation, our Clean-Face Luxury models require just over 22 inches of depth. The venting connects to the top of the fireplace, but can run out the wall or up through the roof. Tile or other noncombustible material may be used to conceal the outer edge of the fireplace to create a true built-in system.

Mantel is shown in image, however not included in this product.

A fireplace barrier screen is included to help protect you and your family from inadvertently touching the hot glass.

These direct-vent fireplaces draw in fresh outside air to support combustion and exhaust combustion by-products to the outdoors. The 5 x 8 vent-within-a-vent isolates the incoming fresh air from the exhaust, yet still requires just a single hole through the wall or roof.

FEATURES

• Available in 36" and 42" sizes.
• Tempered Glass: 24 1/8 x 37
• Venting: 5 x 8 Top Vent Only
• Framing: 42 5/16 H x 46 3/8 W x 21 1/2 D
• Available Liners
• Includes:
• Fireplace Barrier Screen
• Burner with expanded Ember Bed
• 9-piece Log Set
• Rustic Brick Fireplace Brick Floor
• Optional remotes available
• Manually Variable Valve
• Optional Decorative Fronts

CA Residents: See Prop 65 WARNING.

OPTIONS & ACCESSORIES

Click to see Liner Kits

	Black Reflective Fireplace Floor Panel Color: Reflective Black Reflective quality amplifies the flame presentation Designed to cover the fireplace floor and conceal the burner Offers a thoroughly modern appearance Designed for use with the DVP42XKR liner assembly
	Black Reflective Fireplace Rear and Sides Liner Color: Reflective Black Reflective quality amplifies the flame presentation Three-piece assembly lines the firebox walls Offers a thoroughly modern appearance Designed for use with the DVF42XKR floor liner
	Rustic Brick Fireplace Rear and Sides Liner Model #: DVP42XRB Type: Liner Dimension: 42"
	Old World Stone Fireplace Floor, Rear, and Sides Model #: DVP42XWS Type: Liner and Floor Finish: Old World Stone Dimension: 42"

Click to see Blower & Lighting Kit

	Variable Speed Blower Included rheostat for variable speed control A thermal switch allows on/off operation based on temperature Increases overall thermal efficiency of the fireplace Installation bracket and wiring harness included
	Lighting Kit, 120V (includes Rheostat) Interior accent lighting kit provides illumination of the log set Ideal for accenting the fireplace when not in use Rheostat type dimmer switch included Simple 120-volt plugin system

Click to see Accessories

	Traditional Log and Ember Bed Kit Include: six (6) burnt log pieces, white ash, and lava rock *This kit is not for use atop a burner.
	Platinum Glowing Fireplace Embers Platinum Glowing Embers (For use on burner - Serves 3 to 4 fireplaces)
	Decorative Forged Andirons, Black (set of 2) Color: Black Durable and stately forged iron construction Helps to provide the appearance of a real wood fire
