SKU:DVL25IN33P

Empire 40" Loft Small Direct-Vent Gas Fireplace Insert (20,000 BTU)

Name: Empire 40" Loft Small Direct-Vent Gas Fireplace Insert (20,000 BTU)
Brand: Empire Comfort Systems
SKU: DVL25IN33P
Price: 2469.0 USD
Availability: OutOfStock

$2,469.00

Sale Sold out

Shipping calculated at checkout.

Ignition Type Millivolt Intermittent Pilot

Fuel Type Propane Natural Gas

Product variants

Free Shipping on Orders Over $300
Same-Day Order Processing

OVERVIEW

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the  case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run,  but can also be installed elsewhere in the home and vented through the roof.

Advantages

Good efficiency – 60 to 80%
Good heat output with thermal transfer through the glass and air circulation
Separates room air from combustion air
May be used as primary heat source
Can operate with a remote or thermostat
Most systems can provide life-saving heat during a winter power outage

Loft Direct-Vent Inserts

A Direct-Vent Fireplace Insert turns your existing wood-burning fireplace into an efficient gas-fired heat source. Direct-Vent Fireplace Inserts are classified as zone heating appliances. Zone heating is inherently more efficient than your existing wood-burning fireplace or your central furnace.

Loft Direct-Vent Inserts (DVL)

Awaken your inner artist with a Loft Series Contemporary Direct-Vent Insert – in small (20,000 Btu) or medium (27,000 Btu). Choose Millivolt ignition or Intermittent Pilot. The black porcelain lining inside the Loft insert reflects the mesmerizing flame from the contemporary linear burner to create depth and visual interest from any angle.

Please Note: Surround with Barrier Screen or Decorative Front with Barrier Screen required to complete this unit.

Also Note: For Decorative Front with Barrier Screen installation, 3-Sided, 1-piece metal frame required. Please Check Options & Accessories section for more details.

Available Models

Empire 40" Loft Small Direct-Vent Gas Fireplace Insert (20,000 BTU)
Empire 43" Loft Medium Direct-Vent Gas Fireplace Insert (27,000 BTU)

FEATURES

Up to 20,000 BTUs
Venting: 3-inch Flex
Ceramic Glass: 10 7/16 x 20 1/4
Opening - 18 3/8 H x 27 1/2 W x 12 3/4 D
This unit installs as an insert inside an existing fireplace

Includes:

Black Porcelain Liner
Blower

Requires:

Surround with Barrier Screen or Decorative Front with Barrier Screen

SPECIFICATION

Model	DVL25
Actual Dimensions	22 1/2 H x 40 W x 15 D
Fuel Type	Natural Gas / Propane
Vent Type	Direct Vent
Ignition Type	Millivolt / Intermittent Pilot
Installation Type	Insert
Style	Contemporary
Input BTU/HR (KW/H) Max/Min (Propane)	20,000/15,000
Input BTU/HR (KW/H) Max/Min (Natural Gas)	20,000/15,000

CA Residents: See Prop 65 WARNING.

DOWNLOADS

OPTIONS & ACCESSORIES

Click to see Surrounds & Fronts Options

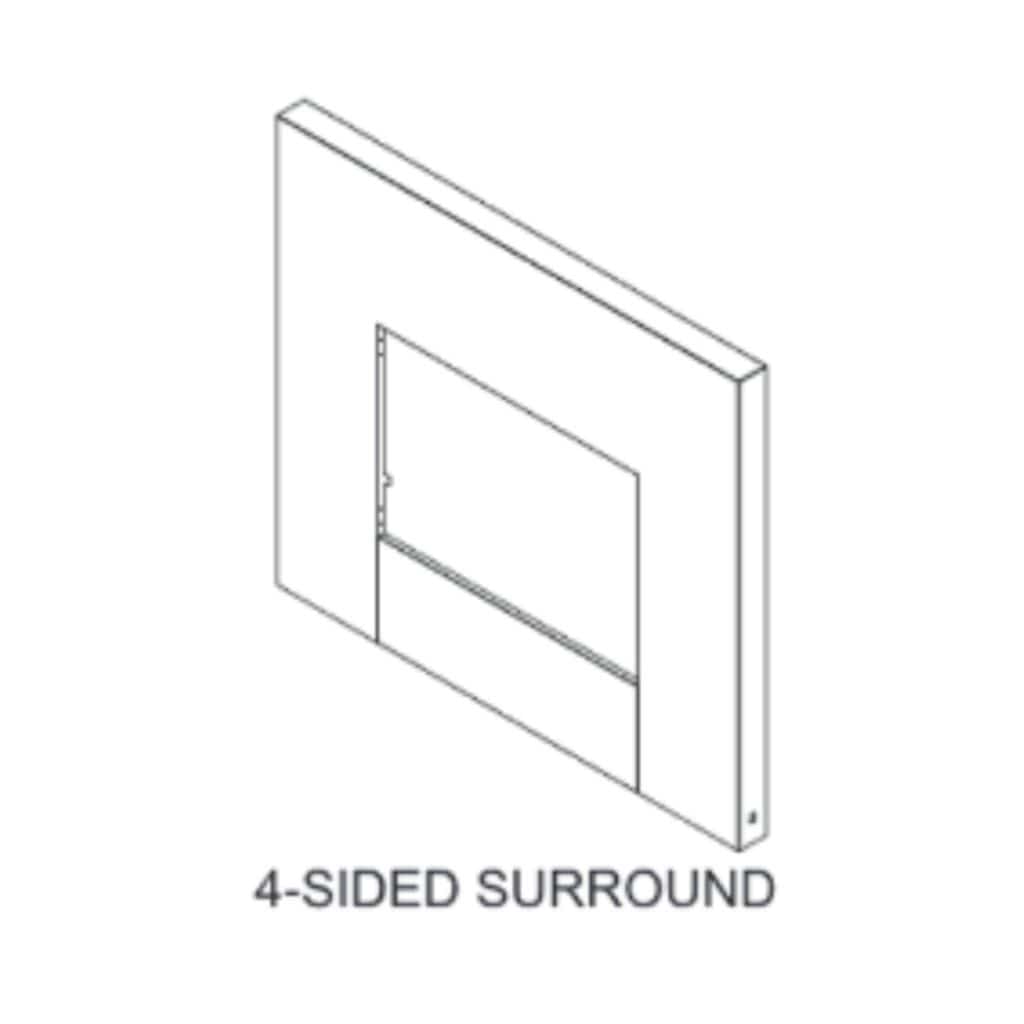

	4-Sided Metal Surround with Barrier Type: 4-Sided Surround Finish: Matte Black / Black and Stainless Dimensions: 6" x 6" x 2" For use with Loft Series Direct-Vent Fireplace Insert

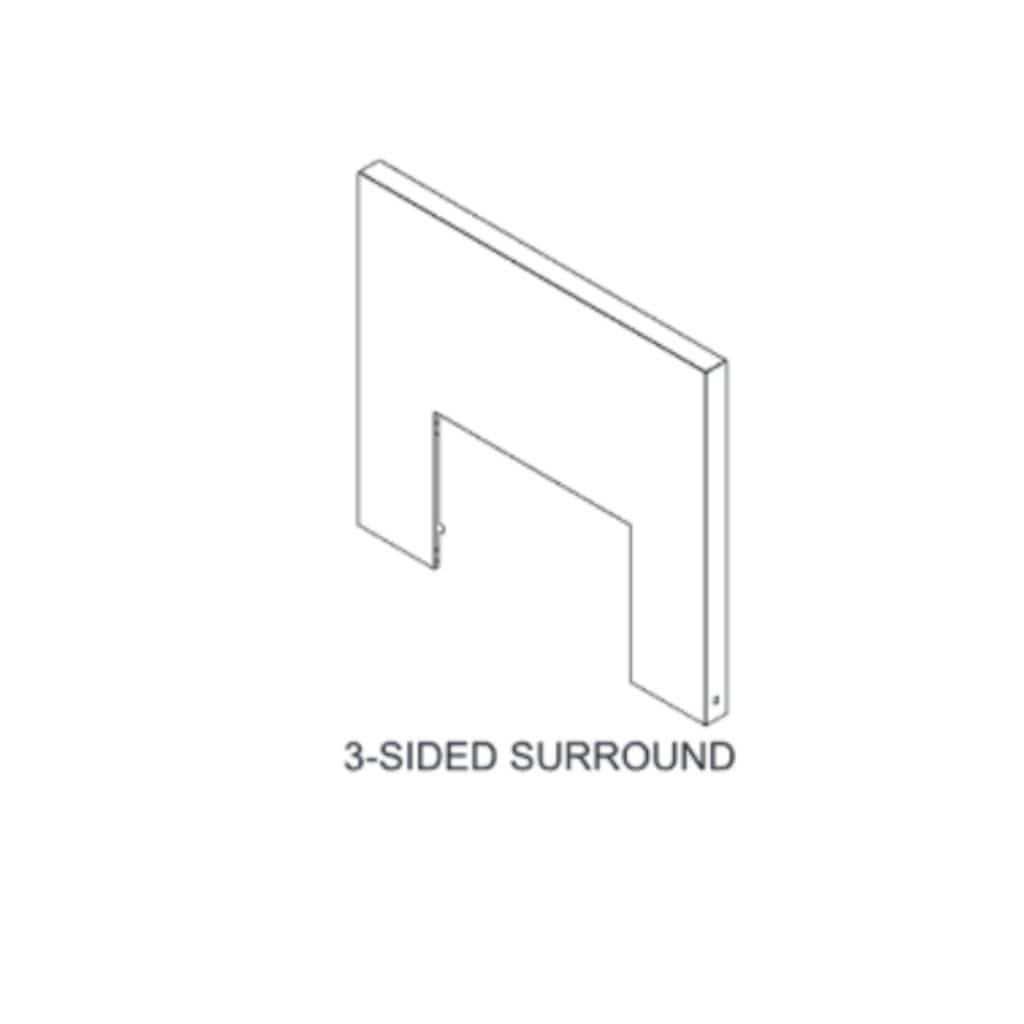

	3-Sided Metal Surround - 1 Piece Type: 3-Sided Surround Finish: Matte Black Overall dimensions are 40" W, 25.5" H, and 1.25" D. Please Note: This is required for installation of barrier screens and decorative fronts. For use with Loft Series Direct-Vent Fireplace Insert
	Front with Barrier Screen (Eclipse) Type: Front Finish: Matte Black Please Note: 3-Sided, 1-piece Metal Surround or Custom Surround required for installation. For use with Loft Series Direct-Vent Fireplace Insert
	3-Sided Custom Surround Type: 3-Sided Surround Finish: Matte Black Custom Built Surround for Various Empire Fireplaces and Fireplace Inserts
	4-Sided Custom Surround Type: 4-Sided Surround Finish: Matte Black Custom Built Surround for Various Empire Fireplaces and Fireplace Inserts
	SH1BL Shroud Helps cover large gaps between your fireplace and surround when installing fireplace inserts Finish: Black Dimension: (48-in W x 35 3/4-in H, plus 2-in Bottom panel. Opening 36-in x 23 3/4-in)

Click to see Decorative Media Crushed Glass

	Black Polished Crushed Glass Approx. 1 sq. ft. Covers burner ports and provides a unique appearance Install only to manufacturer specifications Reflective nature amplifies burner flames
	Blue Clear Crushed Glass Approx. 1 sq. ft. Covers burner ports and provides a unique appearance Install only to manufacturer specifications Reflective nature amplifies burner flames
	Clear Frost Crushed Glass Approx. 1 sq. ft. Covers burner ports and provides a unique appearance Install only to manufacturer specifications Reflective nature amplifies burner flame
	Copper Reflective Crushed Glass Approx. 1 sq. ft. Covers burner ports and provides a unique appearance Install only to manufacturer specifications Reflective nature amplifies burner flames
	Bronze Reflective Crushed Glass Approx. 1 sq. ft. Covers burner ports and provides a unique appearance Install only to manufacturer specifications Reflective nature amplifies burner flames

Click to see Control Options

	FRBC Battery Operated On or Off Remote Control Turn burner OFF and ON using two-button handheld remote (Adjust flame from low to high using knob on the valve) Does not require running wire to the fireplace Requires batteries for the receiver and for the handheld remote Operates during power outages
	FRBTC2 Battery Operated Thermostat Remote Control Type: Remote Control Millivolt Control Options Only Turns heater adjusts Thermostat Battery-operated remote control
	FREC Electric On-Off Remote Control with Battery Transmitter Millivolt Control Options Only Remote control with Battery transmitter for Empire remote-ready appliances Easy and convenient to use The receiver must be plugged in.
	FRBTPS Battery Operated Programmable Touch Screen Remote Control Type: Remote Control Millivolt Control Options Only Programmable and easy to use Battery-operated remote control
	FWS1 Wall Switch On/Off On-Off wall switch for Empire remote-ready appliances Mounts conveniently on wall
	TMV Wall Thermostat Reed Switch Wall thermostat with reed switch for Empire remote-ready appliances Mounts conveniently on wall
	TRW Wall Thermostat Wireless Remote Wall thermostat with wireless remote for Empire remote-ready appliances Thermostat mounts conveniently on wall
	Variable Remote for Intermittent Pilot Remote Kit for Natural Gas / Propane Model: RVKN - Natural Gas Model: RVKP - Propane Type: Remote Kit Variable Flame Height Kit Includes: Stepper Motor, Thermostat Remote, and Wiring.
