SKU:BVD34FP30FN

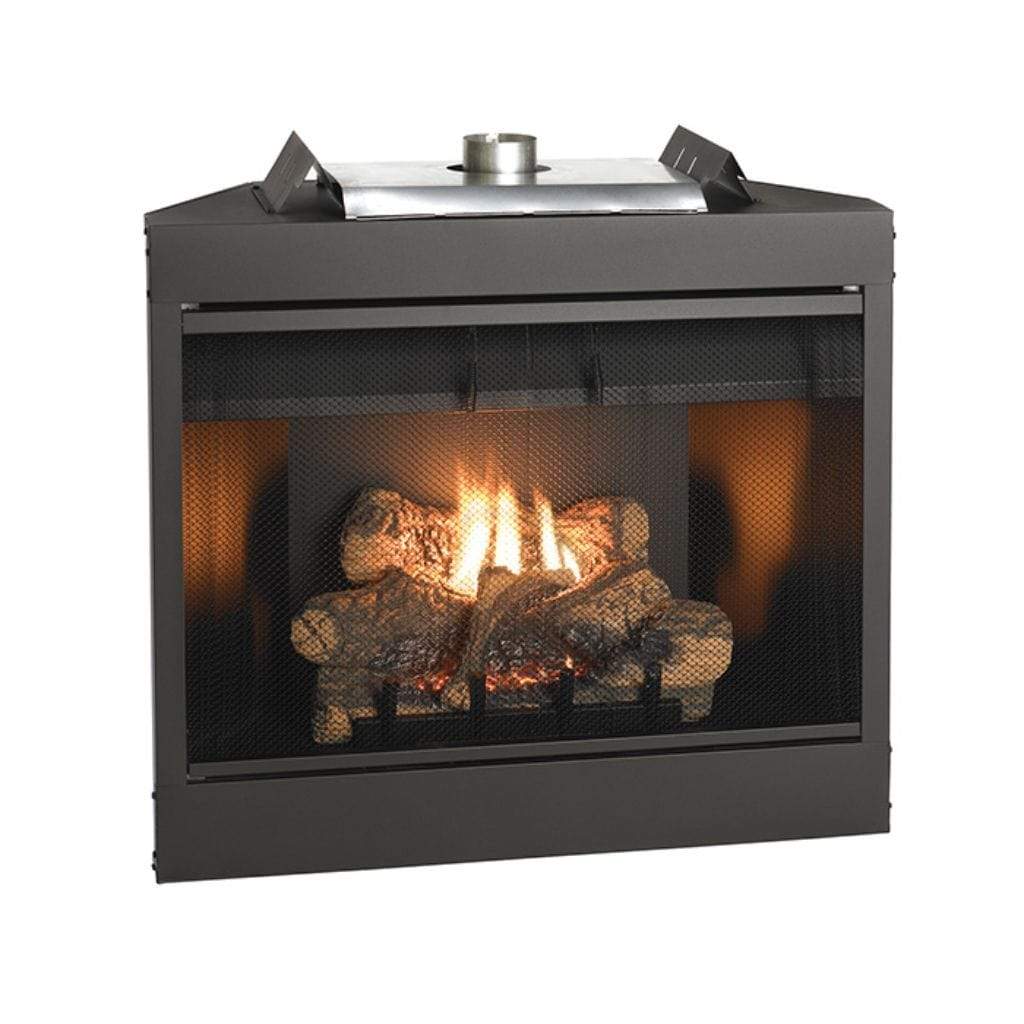

Empire Keystone 34" Millivolt Control With Flush Face, Natural Gas B-Vent Deluxe Fireplace
Empire Keystone 34" Millivolt Control With Flush Face, Natural Gas B-Vent Deluxe Fireplace
Liners
-- Please Select --
No, Thank You
Bi-Fold Black Glass Doors
-- Please Select --
No, Thank You
Door Frame With Barrier
-- Please Select --
No, Thank You
Rectangle Door Set
-- Please Select --
No, Thank You
Louvers
-- Please Select --
No, Thank You
Outer Frame
-- Please Select --
No, Thank You
Bottom Trim Kit
-- Please Select --
No, Thank You
Conversion Kit
-- Please Select --
No, Thank You
Accessories
Control Options
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Keystone B-Vent Fireplaces combine modern technology with traditional venting to create the appearance and performance of a conventional fireplace but with the convenience of gas.

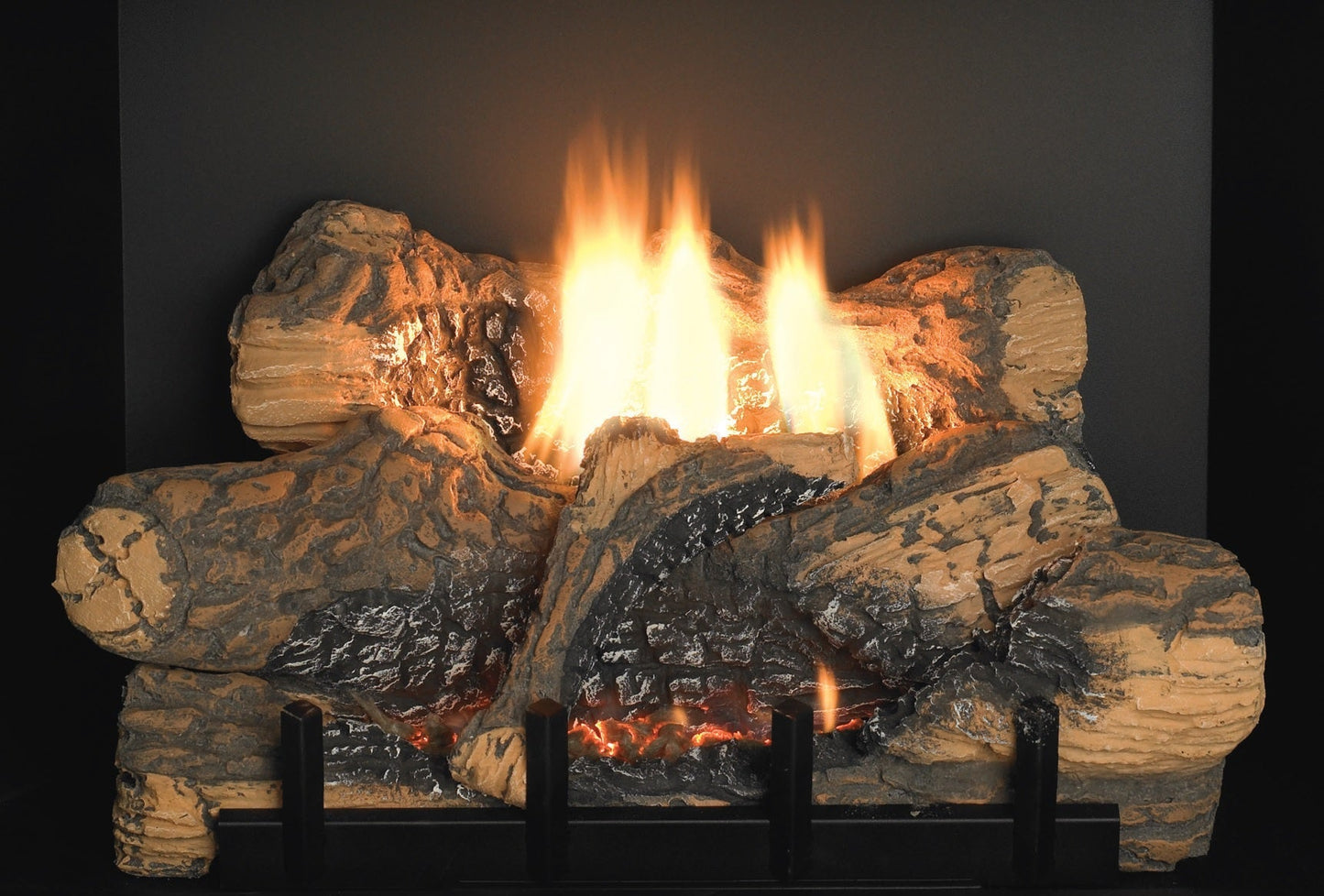

Our B-Vent systems let you prolong the flicker of the flames without overheating your room. The BVD-34 input is 21,000 Btu; the BVD-36 is 25,000 Btu; and the Premium BVP-42 is 30,000 Btu. The hand-painted ceramic fiber Log Set features large logs, arranged to fill the fireplace and complement the flames.
Keystone Deluxe Fireplace (BVD)
The Deluxe 34- and 36-inch B-Vent fireplaces include hand-painted logs artfully arranged on our more compact Contour Burner. Keystone fireplaces come with matte black slat louvers (except flush front models), and operable curtain screens.
These B-Vent fireplaces also feature hem-bent seams that provide a better seal while eliminating dozens of screws and fasteners. The result is a lighter, more rigid box that’s easier to install.
What's Included
- Keystone B-Vent Deluxe Fireplace
- Log Set
Not Included (Sold Separately)
- Liners
- Accessories
- Control Options
- Bi-fold Glass Doors
- Decorative Louvers
- Door Frame and Doors
- Outer Frame and Bottom Trim
- Propane Gas Conversion Kit
Features
- Zero Clearance Certified
- Remote Control Options
- Louvered and Flush Models
- A Variety of Decorative Accessories
- Millivolt and Intermittent Pilot Models
- Natural Gas (Propane conversion available)
- Blowers not available on Flush Face models
- B-Vent Fireplaces do not require Barriers − Barriers are available
Specifications
Model | BVD34 |
Input Btu/Hr Maximum | 21,000 |
KWH (Maximum) | 6.2 |
B-Vent Size | 4" Diameter |
Type of Gas | Natural Gas | Propane |
Ignition | Millivolt |
Vent Type | B-Vent |
Installation | Zero Clearance |
Orifice (NG) | #44 (.086) P-252 |
Air Shutter Opening (NG) | 1/8" (3.2mm) |
Orifice (LP) | 1.35mm P-289 |
Air Shutter Opening (LP) | 5/16" (7.9mm) |
Gas Inlet Shut-Off Valve (Pipe) | 1/2" NPT |
Dimensions
Height without standoff | 33" |
Width | 37" |
Depth | 15" |
Warranty
- All parts carry 3-years limited warranty
- All remote controls carry a 1-year limited warranty
Documents & Files
- Product Brochure
- Installation Instructions for Fresh Air Kit
- Installation Instructions and Owner's Manual
- Installation Instructions for Bi-fold Glass Doors
Frequently Asked Questions
Can I buy a fireplace online and install it myself?
We highly recommend a certified professional install all of our units. Any issues that arise from improper installation will not be covered under warranty. |
Does our product work during a power outage?
Yes, most of our appliances have the ability to be used in a power outage situation please see a local dealer for more information. |
What is the difference between Millivolt and electronic ignition fireplaces?
Millivolt fireplaces use the electricity produced by a standing pilot to operate the fireplace. Electronic ignition fireplaces rely on a power source to power the fireplace, this can be house voltage as well as battery voltage. |
Can I use a Wi-Fi Thermostat with my unit?
Our units are designed to be operated by millivolts or low voltage, most Wi-Fi thermostats use 24volts and are not compatible. |
Where can I find my model and serial number?
There is a rating plate attached to the valve of your appliance that will have the model and serial number information. |
Can you tell me how old my unit is?
Once you locate your rating plate the serial number will help identify the age, the first two digits of the serial number denote the year of manufacture (21, 20, 19...) the next two digits identify the week of that year that the unit was built. |
What is the difference between a fireplace, a firebox, and an insert?
Fireplaces are designed to be installed into a framed opening with specific clearances to combustibles. Fireboxes are just like Fireplaces in terms of where they can be installed but in addition a burner and a set of logs is required to finish off the unit. Inserts are designed to be installed directly into an existing wood burning fireplace that meets all standards of construction. |
