Empire 37" Forest Hills Traditional Direct Vent Gas Fireplace

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the
case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run,
but can also be installed elsewhere in the home and vented through the roof.

Advantages

• Good efficiency – 60 to 80%
• Good heat output with thermal transfer through the glass and air circulation
• Separates room air from the combustion air
• May be used as the primary heat source
• Can operate with a remote or thermostat
• Most systems can provide live-saving heat during a winter power outage

Portrait-Style Direct-Vent Fireplaces

With its clean vertical lines the Forest Hills Portrait-Style Fireplace adds a striking design element to your home décor.

Available in Contemporary and Traditional models, these unique fireplaces offer several designer options to let you create your perfect fireplace.

All Portrait-Style fireplaces come with an accent lighting system.

Forest Hills Traditional (DVTL27)

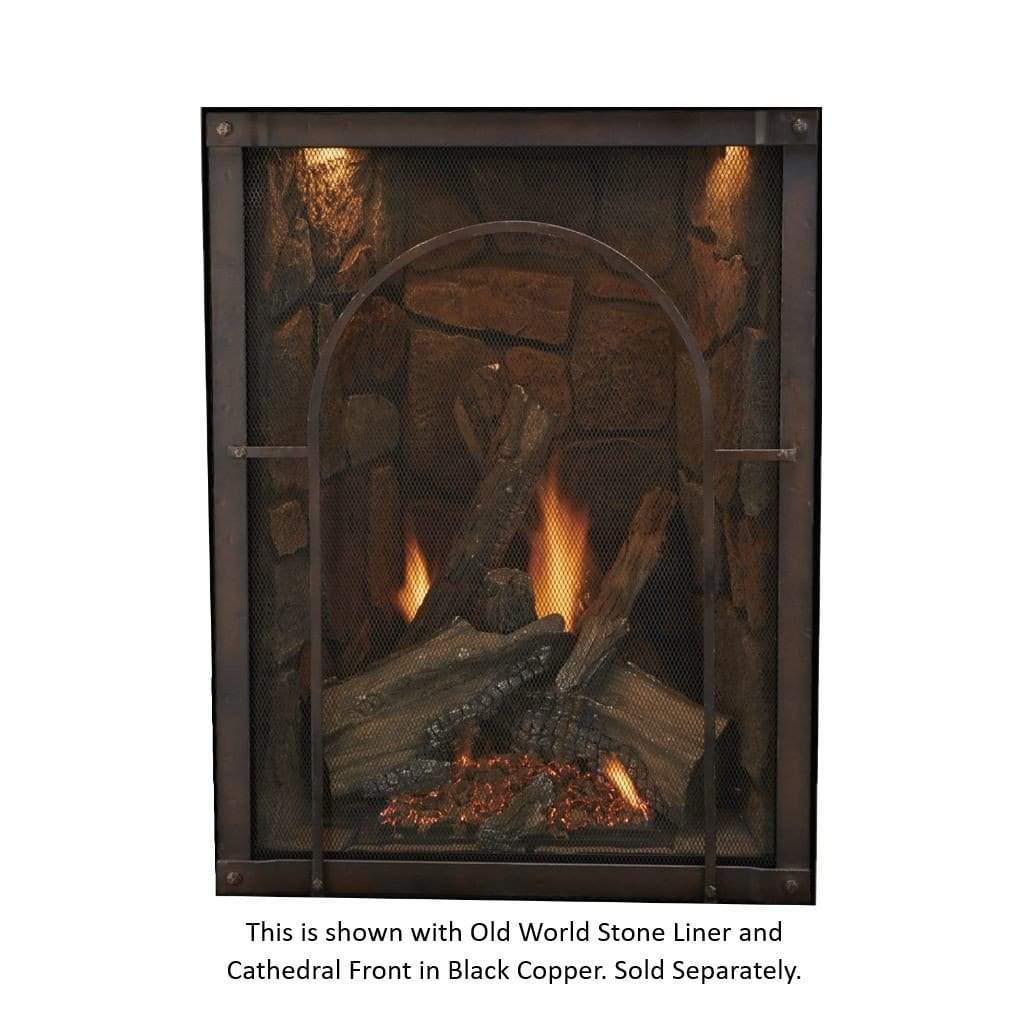

For a more conventional fireplace, choose the traditional model with its realistic hand-painted log set and ceiling-mounted accent lighting. Add the Rustic Banded Brick or Old World Stone liner – or the Black Porcelain liner which reflects the flame to create even greater visual interest. The available andirons help convey an old-world look.

All Forest Hills fireplaces include a multifunction thermostat remote control that can vary the flame height of the main burner. The remote lets you vary the accent lighting system or the optional blower, and even operate an unrelated appliance – such as a lamp or holiday decorations plugged into the outlet beneath the fireplace.

The clean-face design allows tile or stonework to the edge of the window frame.

FEATURES

• Ceramic Glass: 23 7/8 x 32

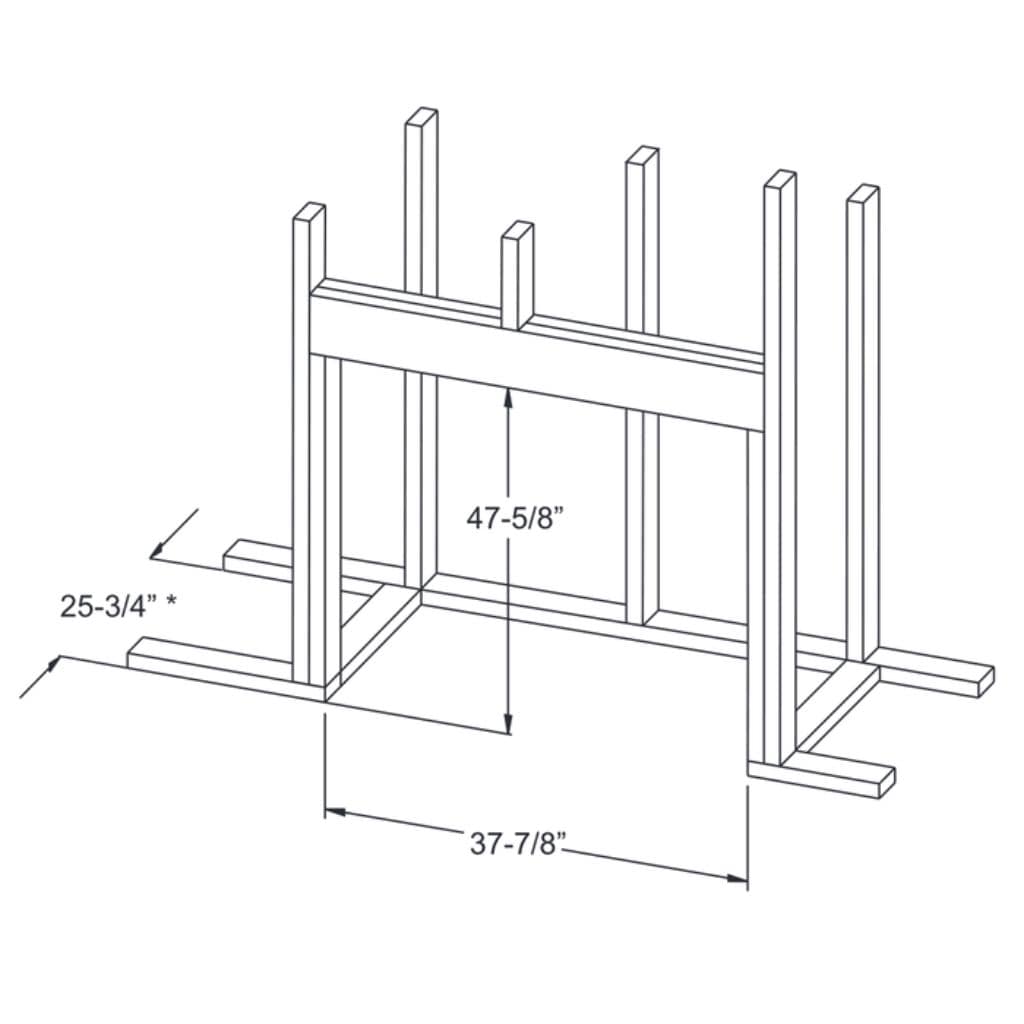

• Framing 47 5/8 H x 37 7/8 W x 25 3/4 D
• Max/Min BTU Propane: 36,000/11,000
• Max/Min BTU Natural Gas: 36,000/11,500

Includes:

• Multi-Function Remote to control

  • Burner
  • Variable flame height
  • Rear burner
  • Shut down and dimmer lighting
• Ceramic Glass
• Overhead Lighting
• 7-piece Log Set

Requires:

• Barrier or Decorative Front with Barrier
• Liner

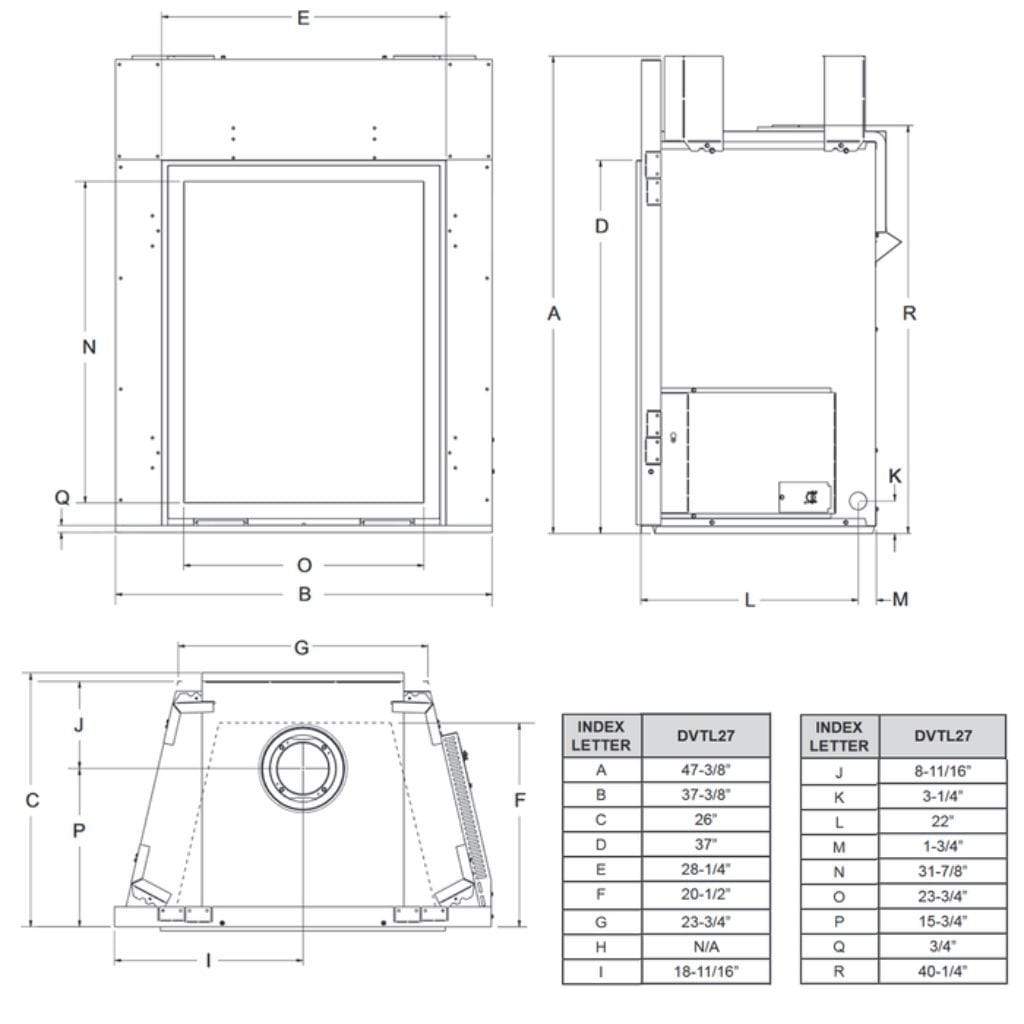

Dimensions:

Height	47-3/8"
Width	37-3/8"
Depth	24-3/8"

CA Residents: See Prop 65 WARNING

OPTIONS & ACCESSORIES

Click to see Fronts and Barriers (Required)

	Barrier Black Type: Barrier Screen Finish: Matte Black
	Brushed Nickel Front, 3.5-Inch Type: Front Size: 3.5-Inch Finish: Brushed Nickel Floating Front with Barrier Screen
	Cathedral Front in Black Copper Type: Front Finish: Black Copper Includes a barrier screen to prevent accidental contact with the hot glass
	Portico Front in Natural Iron Type: Front Finish: Natural Iron Includes a barrier screen to prevent accidental contact with the hot glass
