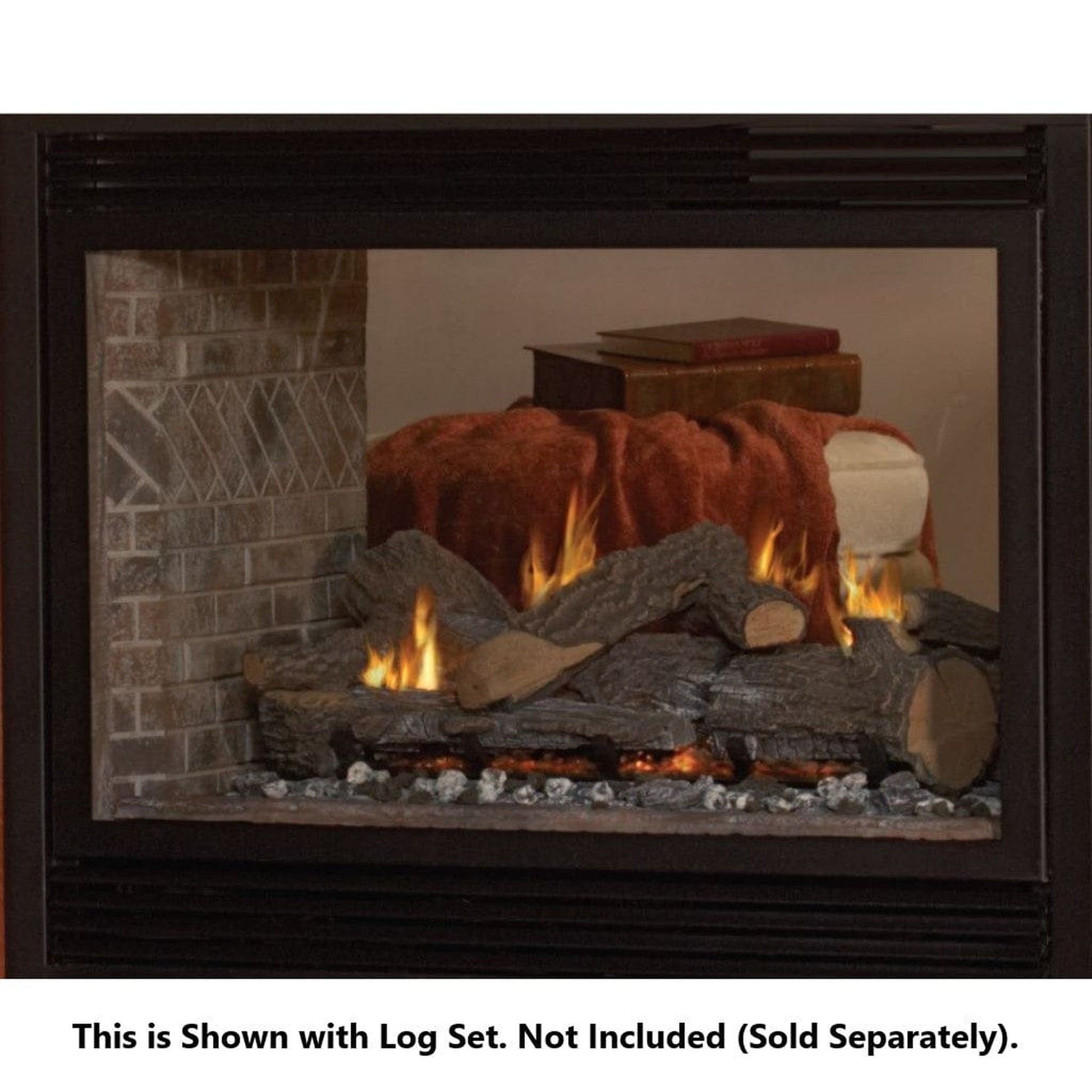

Empire 36" Tahoe See-Through Direct Vent Gas Fireplace

OVERVIEW

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the
case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run,
but can also be installed elsewhere in the home and vented through the roof.

Advantages

• Good efficiency – 60 to 80%
• Good heat output with thermal transfer through the glass and air circulation
• Separates room air from combustion air
• May be used as primary heat source
• Can operate with a remote or thermostat
• Most systems can provide life-saving heat during a winter power outage

Tahoe Multi-Sided (DVP36SP)

Heater Rated at 35,000 Btu input, the Tahoe Multi-Sided system draws in outdoor air to support combustion and sends its exhaust directly outdoors, and must be located in a position that allows venting through an exterior wall or through the roof. Tahoe Multi-Sided fireplaces install using readily available 4 x 6 5/8 direct-vent pipe.

Tahoe Multi-Sided systems include a built-in 24-inch Slope Glaze Vista Burner, large tempered-glass viewing windows, Banded Brick Liner, ceramic fiber floor liner, dimmer controlled lighting, and glowing embers. The 24-inch Rock Creek Log Set and barrier screens must be ordered to complete the fireplace. (Doors are not available for multi-sided fireplaces.)

FEATURES

• Up to 35,000 BTUs
• Banded brick ceramic fiber liner
• Large tempered glass view windows
• Built-in 24" Slope Glaze Vista Burner
• Standing pilot with remote-ready millivolt controls
• Two open sides provide an excellent view of flames
• Slope Glaze Vista Burner use with Rock Creek refractory log set only

• Dimmer Controlled Accent Light
• Banded Brick Liner

• Two Fireplace Barriers
• Rock Creek Log Set

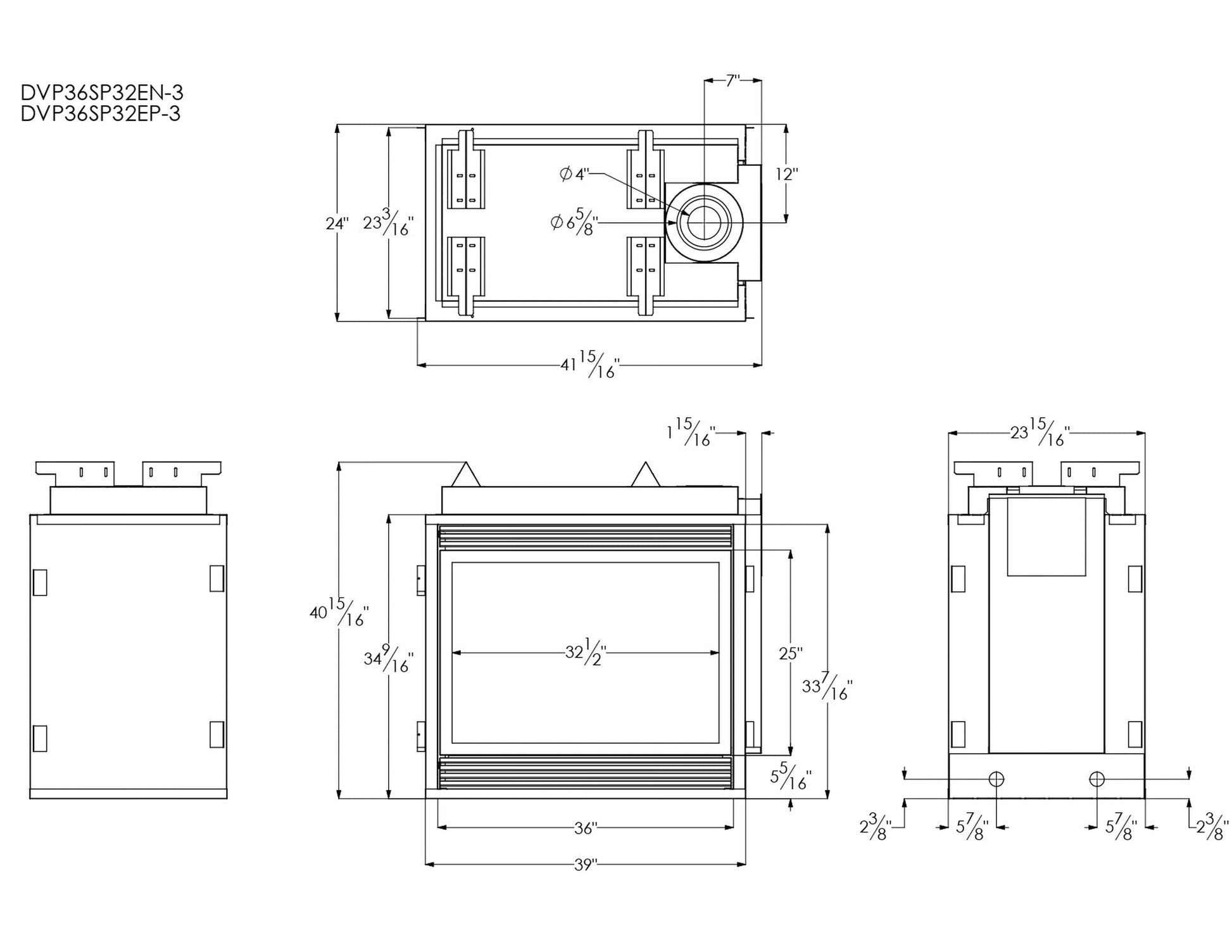

Specifications

CA Residents: See Prop 65 WARNING.

OPTIONS & ACCESSORIES

Log Set

*Please Note: Log set required to complete this unit

Barrier

*Please Note: Two 36-Inch Barriers Required to Complete this unit.

Click to see Louvers

	Mission Louvers (36-Inch) Decorative mission louvers Finish: Matte Black and Hammered Pewter
	Arch Louvers (36-Inch) Decorative arch louvers Finish: Matte Black and Hammered Pewter

Click to see Outer Frame and Trim

	Steel Frame, Black Finish: Matte Black 3-piece outer frame Transitions appliance to adjoining surface Easy Install Design
	Steel Frame, Hammered Pewter Finish: Hammered Pewter 3-piece outer frame Transitions appliance to adjoining surface Easy Install Design
	Trim Kit, Bottom Available in hammered pewter Bottom trim completes the fourth side of the color frame.

Click to see Remote Control Options

	FRBC Battery Operated On or Off Remote Control Turn burner OFF and ON using two-button handheld remote (Adjust flame from low to high using knob on the valve) Does not require running wire to the fireplace Requires batteries for the receiver and for the handheld remote Operates during power outages
	FRBTC2 Battery Operated Thermostat Remote Control Type: Remote Control Millivolt Control Options Only Turns heater adjusts Thermostat Battery-operated remote control
	FREC Electric On-Off Remote Control with Battery Transmitter Millivolt Control Options Only Remote control with Battery transmitter for Empire remote-ready appliances Easy and convenient to use The receiver must be plugged in.
	FRBTPS Battery Operated Programmable Touch Screen Remote Control Type: Remote Control Millivolt Control Options Only Programmable and easy to use Battery-operated remote control
	FWS1 Wall Switch On/Off On-Off wall switch for Empire remote-ready appliances Mounts conveniently on wall
	TMV Wall Thermostat Reed Switch Wall thermostat with reed switch for Empire remote-ready appliances Mounts conveniently on wall
	TRW Wall Thermostat Wireless Remote Wall thermostat with wireless remote for Empire remote-ready appliances Thermostat mounts conveniently on wall

WARRANTY

• 10-year limited warranty on combustion chamber; limited lifetime on glass.
• All other parts carry a 3-year limited warranty.
• All Remote Controls carry a 1-year limited warranty.
