SKU:DVX36FP31LN
Empire 36" Tahoe Direct Vent Luxury Fireplace
Empire 36" Tahoe Direct Vent Luxury Fireplace
Barrier/Door Frame With Barrier (Required)
-- Please Select --
No, Thank You
Liners (Required)
-- Please Select --
No, Thank You
Door Set (Required)
-- Please Select --
No, Thank You
Louvers
-- Please Select --
No, Thank You
Outer Frame
-- Please Select --
No, Thank You
Bottom Trim Kit
-- Please Select --
No, Thank You
Conversion Kit
-- Please Select --
No, Thank You
Accessories
Control Options
- Free Shipping on Orders Over $300
- Same-Day Order Processing
OVERVIEW
A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).
Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.
A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.
Advantages:
- Good efficiency – 60 to 80%
- Good heat output with thermal transfer through the glass and air circulation
- Separates room air from the combustion air
- May be used as the primary heat source
- Can operate with a remote or thermostat
- Most systems can provide live-saving heat during a winter power outage
Tahoe Direct-Vent Fireplaces
Tahoe Clean-Face Deluxe models feature our Contour tube-style burner, designed to complement the hand-painted ceramic fiber log set, and produce a natural dancing flame.
The Clean-Face Deluxe Fireplace comes with a discreet air distribution channel that eliminates the look of louvers, yet still allows you to operate the optional blower. It features a large tempered glass window that provides an unobstructed view to the log set. Choose an optional liner to customize your fireplace.
Tahoe Clean-Face Deluxe models require 17-3/4, and use 4 x 6-5/8 venting, making them ideal for applications where wall-cavity space is tight.
Designed for in-wall installation, your Tahoe Direct-Vent fireplace can be finished with tile or other non-combustible material, which conceals the outer edge of the fireplace to provide a true built-in appearance.
Tahoe Luxury
Tahoe Luxury models retain the same overall dimensions as Premium models but feature ceramic glass (for better heat transfer), a dimmer-controlled accent lamp inside the fireplace, automatic blower, and an intricately detailed 13-piece log set.
The larger Slope Glaze Excess Burner provides a fuller ember bed and generates more heat than a comparably sized Premium model.
Liner options for Luxury Models include: Banded Brick, Stacked Limestone, and Black Reflective.
Luxury models are offered in Millivolt, IP, and Multi-Function remote models.
Controls Description:
Millivolt: Luxury 36-inch Direct-Vent Fireplace, 13-pc Log Set, Slope Glaze "Excess" Burner, Millivolt, Standing Pilot/Piezo, Blower, Dimmer Light, 30,000 Btu - Propane / Natural GasIP: Luxury 36-inch Direct-Vent Fireplace, 13-pc Log Set, Slope Glaze "Excess" Burner, Electronic Ignition Intermittent Pilot, Blower, Dimmer Light, 30,000 Btu - Propane / Natural Gas
Multi-Function: Luxury 36-inch Direct-Vent Fireplace, 13-pc Log Set, Slope Glaze "Excess" Burner, Multi-Function Remote, Blower, Dimmer Light, 30,000 Btu - Propane / Natural Gas
*Please Note: Banded brick liner ,Mantel, Arch louver is shown in image, however not included in this product (sold separately).
FEATURES
- Available in 36" and 42" sizes.
- Tempered Glass: 22 x 32 1/2
- Top Venting: 4 x 6 5/8 (Refer to manual for venting requirements)

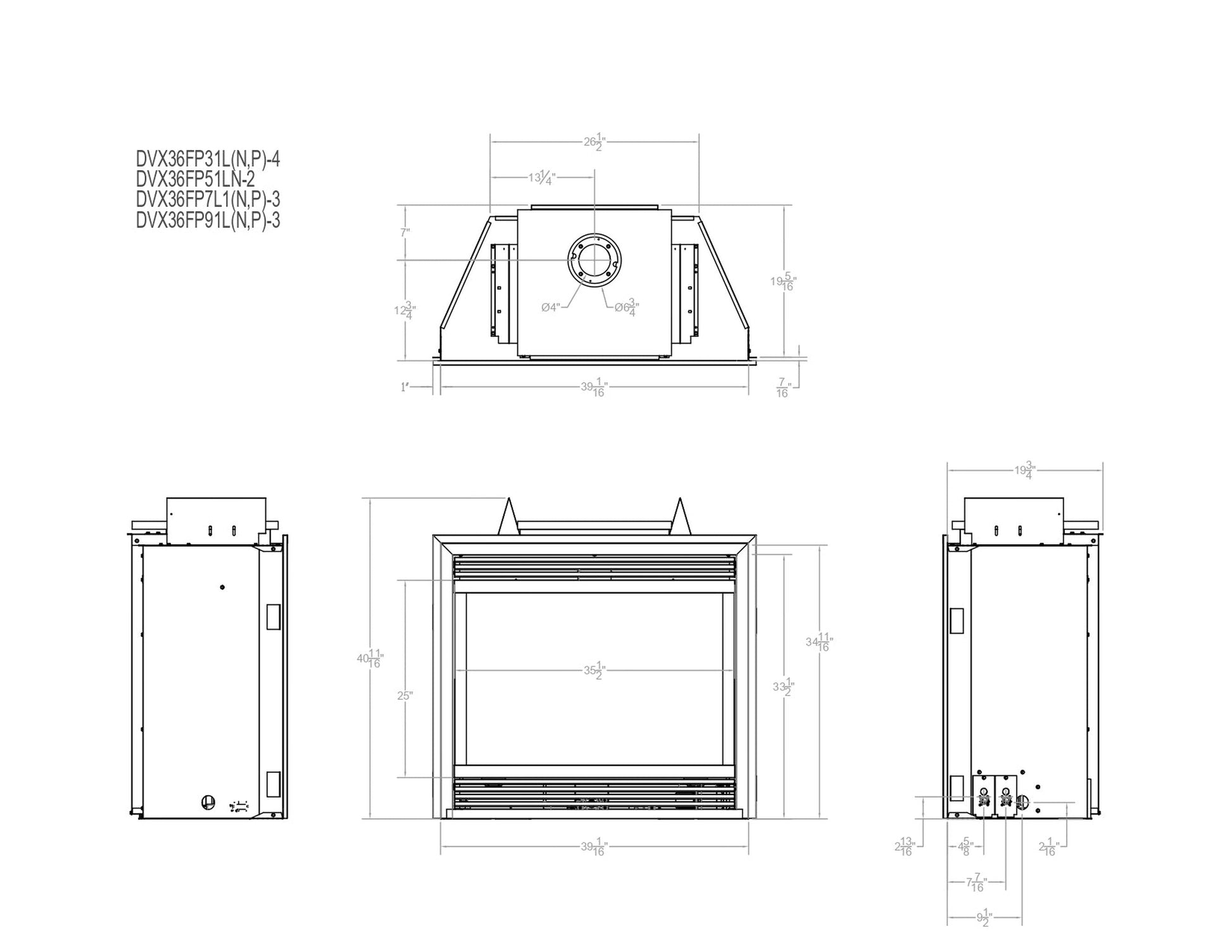

- Framing: 40 7/8 H x 39 3/8 W x 19 7/8 D (see manual before framing)
- Pallet Quantity: 4
- Includes:
- Blower and Dimmer Controlled Accent Light
- Log Set
- Requires:
OPTIONS & ACCESSORIES
(Requires Door Frame with Barrier)
Rectangle Door Set (DVDB36CBL)
|
Click to see Louvers
Decorative Mission Louvers (FBG36MBL) Features
|
Decorative Arch Louvers (FBG36ABL) Features
|
Click to see Liner Kit
|
Black Reflective Fireplace Floor Panel
|
Banded Brick Ceramic Fiber Fireplace Liner
|
|
Stacked Fieldstone Fireplace Liner
|
Click to see Gas Line & Ember Kit
|
24 Inch Flexible Stainless Steel Gas Line
|
Platinum Glowing Fireplace Embers
|
|
Traditional Log and Ember Bed Kit
*This kit is not for use atop a burner. |
Click to see Door Frame & Barrier
|
Fireplace Barrier Screen Color: Matte Black |
Door Frame with Barrier Screen
|
Click to see Outer Frame and Bottom Trim
|
Steel Frame, Black (DVF36BL)
|
Steel Frame, Hammered Pewter (DVF36HP)
|
|
Firebox and Fireplace Bottom Trim Kit (FBS36HP)
|
Click to see Remote Control Options
|
FRBC Battery Operated On or Off Remote Control
|
FRBTC2 Battery Operated Thermostat Remote Control
|
|
FREC Electric On-Off Remote Control with Battery Transmitter
|
|
FRBTPS Battery Operated Programmable Touch Screen Remote Control
|
|
FWS1 Fireplace On/Off Switch
|
|
TMV Wall Thermostat Reed Switch
|
|
TRW Wall Thermostat Wireless Remote
|
|
Variable Remote for Intermittent Pilot (Natural Gas / Propane)
|
Conversion Kits
Fuel Conversion Kits
|
