SKU:DVCP36PP30N

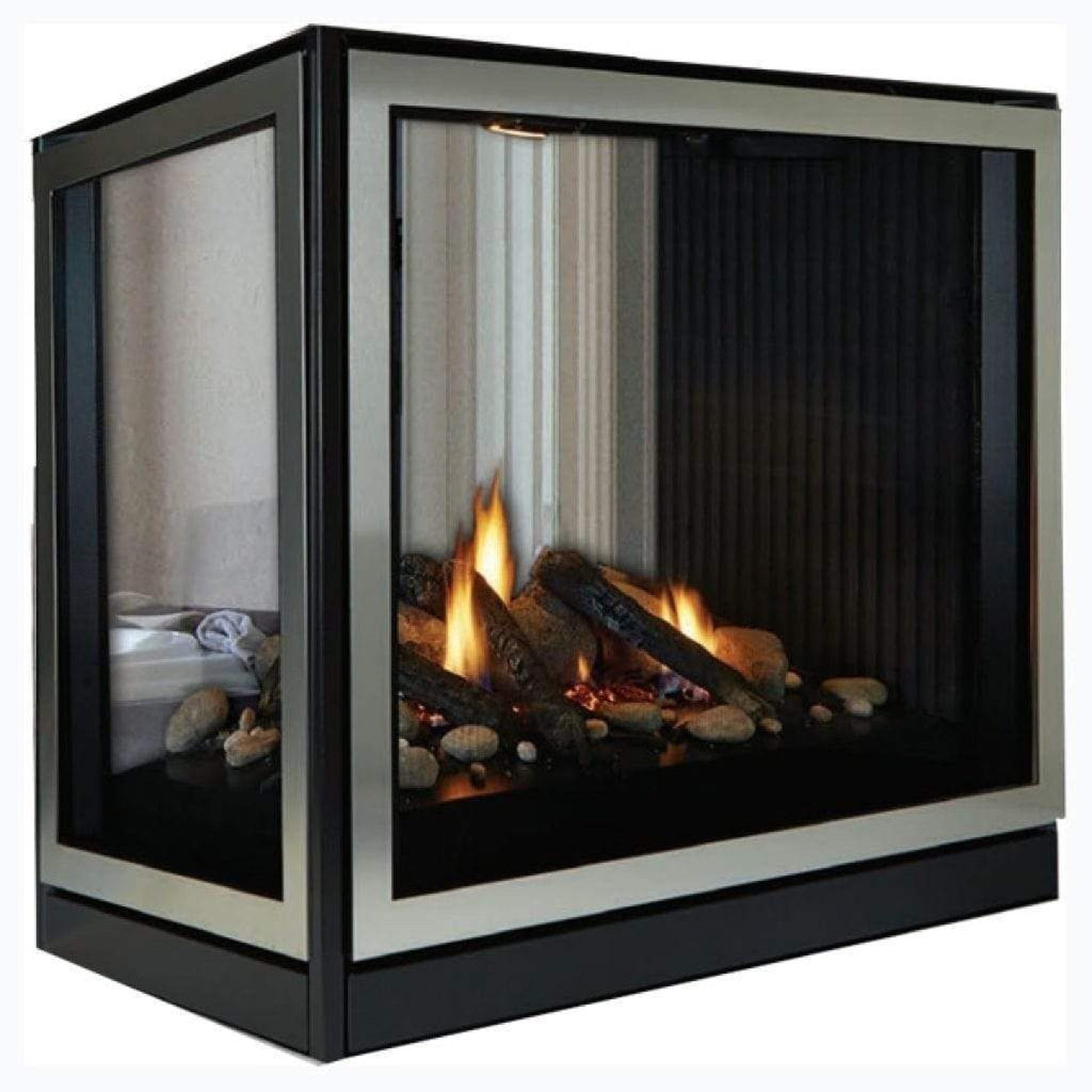

Empire Tahoe Clean Face 36" Millivolt Control With On/Off Switch, Natural Gas Direct Vent Premium Peninsula Fireplace
Empire Tahoe Clean Face 36" Millivolt Control With On/Off Switch, Natural Gas Direct Vent Premium Peninsula Fireplace
Logs and Media (Required)
-- Please Select --
No, Thank You
Vent Elbow (Required)
-- Please Select --
No, Thank You
Liners
-- Please Select --
No, Thank You
Decorative Beveled Frame
-- Please Select --
No, Thank You
Decorative Rectangle Front (For Peninsula Fireplace End)
-- Please Select --
No, Thank You
Conversion Kit
-- Please Select --
No, Thank You
Accessories
Control Options
Vent Kits
Power Vent
Wire Harness (Required for Power Vent)
-- Please Select --
No, Thank You
- Free Shipping on Orders Over $300
- Same-Day Order Processing
A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).
Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room. A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.
Tahoe Clean-Face Multi-Sided (DVCP36PP)
Peninsula models feature an attractive clean-face design that integrates the barrier screens into the fireplace – flush with the fireplace face – allowing you to install tile, brick, or other non-combustible materials right up to the fireplace opening.
Choose between the hand-painted Campfire Logs or Mixed Logs and Stones to customize your fireplace.
The optional decorative doors and fronts let you finish your new fireplace in the look that suits your décor.
What's Included
- Tahoe Clean Face Peninsula Fireplace
- Tempered Glass
- 3 Barrier Screen
Not Included (Sold Separately)
- Logs & Media (Required)
- 45° Vent Elbow (Required)
- Liners
- Blower
- Vent Kit
- Ember Kit
- Lighting Kit
- Flex Gas Line
- Control Options
- Decorative Fronts
- Gas Conversion Kit
- Power Vent Accessories
Features
- Good efficiency – 60 to 80%
- May be used as primary heat source
- Separates room air from combustion air
- Can operate with a remote or thermostat
- Most systems can provide life-saving heat during a winter power outage
- Good heat output with thermal transfer through the glass and air circulation
- Peninsula models feature an attractive clean-face design that integrates the barrier screens into the fireplace
- Choose between the hand-painted Campfire Logs or Mixed Logs and Stones to customize your fireplace
- Multi-sided fireplaces are rated at 34,000 Btu (Nat) / 34,000 Btu (LP), and include non-combustible board for installation above the fireplace
- The optional decorative doors and fronts let you finish your new fireplace in the look that suits your décor
Specifications
Model | DVCP36PP |
Input BTU/Hr Maximum | 34,000 |
Input BTU/Hr Minimum | 23,000 |
KWH (Maximum) | 9.96 |
KWH (Minimum) | 6.74 |
Type of Gas | Natural Gas |
Ignition | Millivolt |
Vent Type | Direct Vent |
Venting | 5" x 8" |
Installation | Zero Clearance |
Orifice | #33 |
Air Shutter Opening | 3/16in (1/8in w/40ft. Vertical Vent, flue restrictor installed) |
Gas Inlet Shut-Off Valve (Pipe) | 1/2" NPT |
Gas Supply Pressures (inches water column) |
Maximum | 14 |
Minimum | 4.5 |
Manifold | 3.5 |
Dimensions
Tempered Glass Width | 16" |
Tempered Glass Height | 25" |
Height without standoff | 39" |
Width | 42" |
Depth | 24" |
Framing Width | 42" |
Framing Height | 42" |
Framing Depth | 23" |
Warranty
- 10-year limited warranty on combustion chamber; limited lifetime on glass
- All Remote Controls carry a 1-year limited warranty
- All other parts carry a 3-year limited warranty
Documents & Files
Frequently Asked Questions
Can I buy a fireplace online and install it myself?
We highly recommend a certified professional install all of our units. Any issues that arise from improper installation will not be covered under warranty. |
Does our product work during a power outage?
Yes, most of our appliances have the ability to be used in a power outage situation please see a local dealer for more information. |
What is the difference between Millivolt and electronic ignition fireplaces?
Millivolt fireplaces use the electricity produced by a standing pilot to operate the fireplace. Electronic ignition fireplaces rely on a power source to power the fireplace, this can be house voltage as well as battery voltage. |
Can I use a Wi-Fi Thermostat with my unit?
Our units are designed to be operated by millivolts or low voltage, most Wi-Fi thermostats use 24volts and are not compatible. |
Where can I find my model and serial number?
There is a rating plate attached to the valve of your appliance that will have the model and serial number information. |
Can you tell me how old my unit is?
Once you locate your rating plate the serial number will help identify the age, the first two digits of the serial number denote the year of manufacture (21, 20, 19...) the next two digits identify the week of that year that the unit was built. |
What is the difference between a fireplace, a firebox, and an insert?
Fireplaces are designed to be installed into a framed opening with specific clearances to combustibles. Fireboxes are just like Fireplaces in terms of where they can be installed but in addition a burner and a set of logs is required to finish off the unit. Inserts are designed to be installed directly into an existing wood burning fireplace that meets all standards of construction. |
