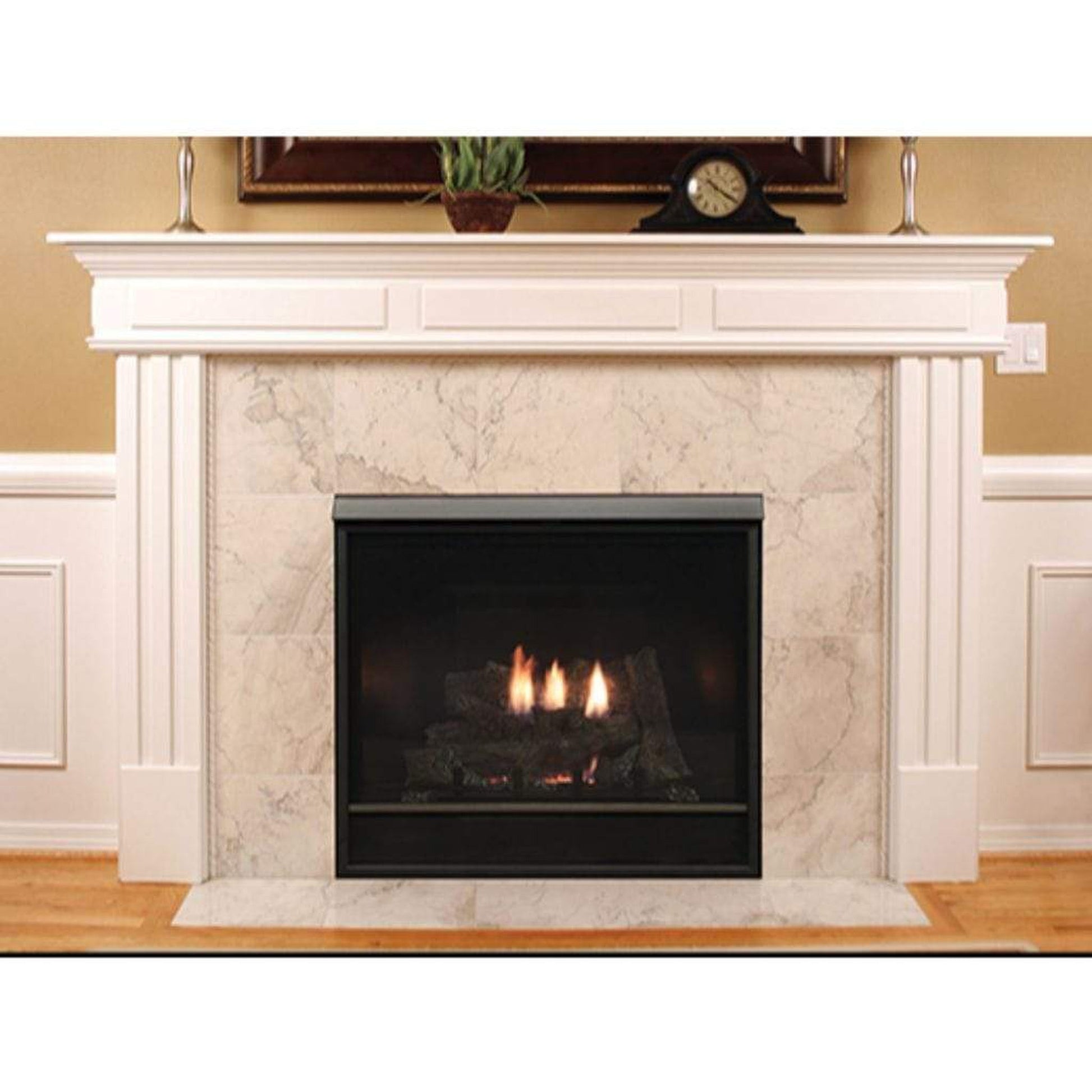

Empire 32" Tahoe Clean Face Direct Vent Deluxe Fireplace - Millivolt Control Series

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.

A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.

Advantages:

• Good efficiency – 60 to 80%
• Good heat output with thermal transfer through the glass and air circulation
• Separates room air from the combustion air
• May be used as the primary heat source
• Can operate with a remote or thermostat
• Most systems can provide live-saving heat during a winter power outage

Tahoe Direct-Vent Fireplaces

Tahoe Clean-Face Deluxe models feature our Contour tube-style burner, designed to complement the hand-painted ceramic fiber log set, and produce a natural dancing flame.

The Clean-Face Deluxe Fireplace comes with a discreet air distribution channel that eliminates the look of louvers, yet still allows you to operate the optional blower. It features a large tempered glass window that provides an unobstructed view to the log set. Choose an optional liner to customize your fireplace.

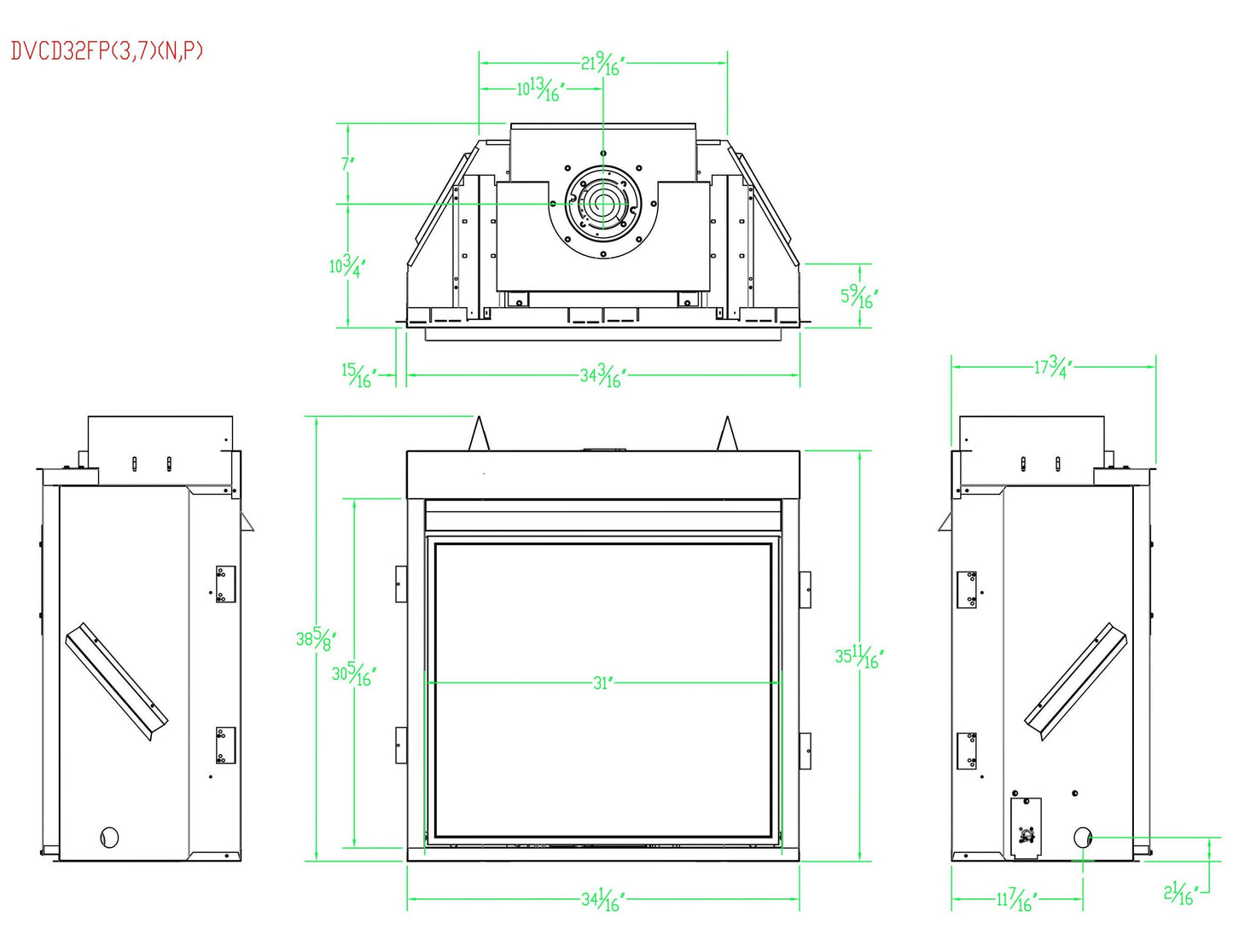

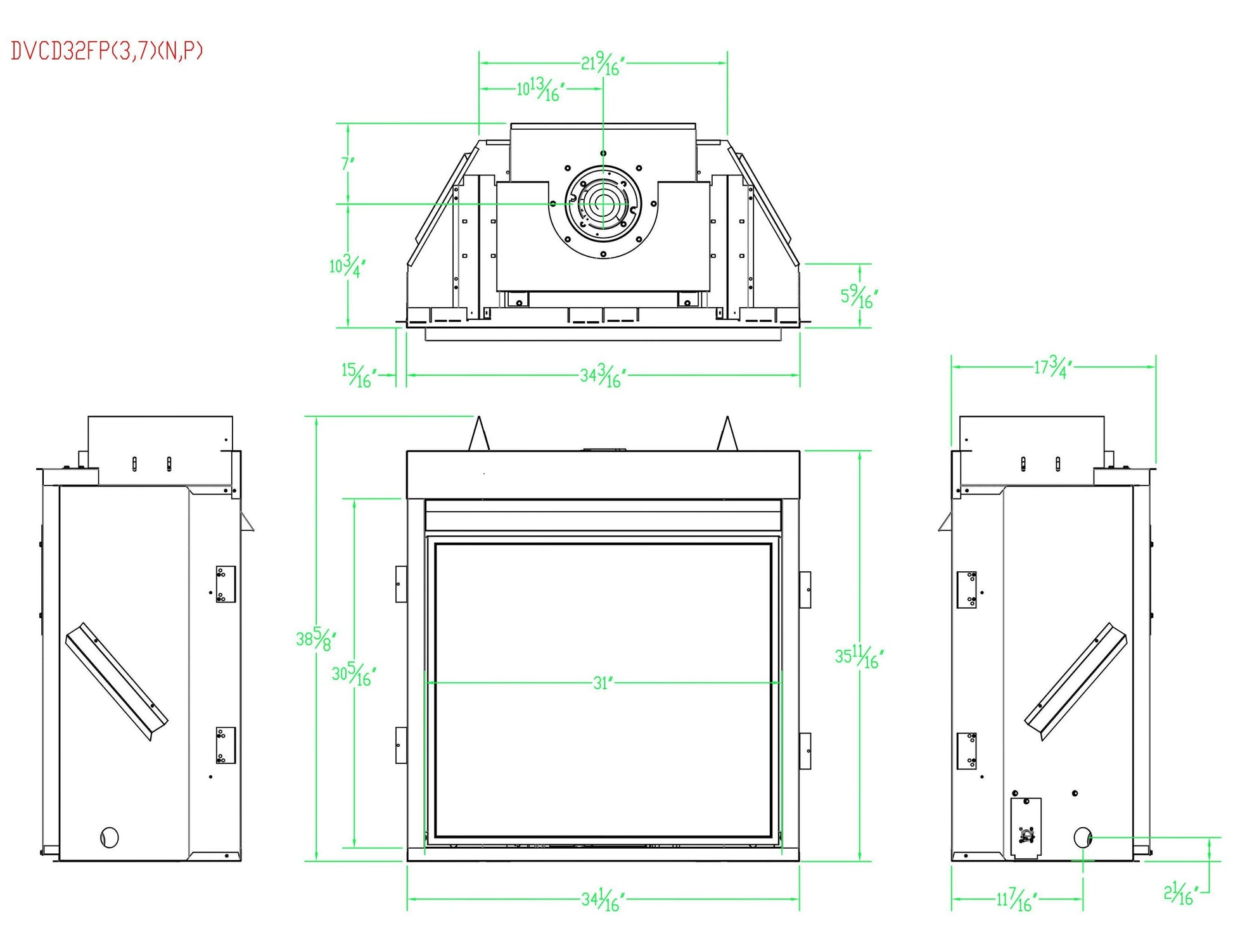

Tahoe Clean-Face Deluxe models require 17-3/4, and use 4 x 6-5/8 venting, making them ideal for applications where wall-cavity space is tight.

Designed for in-wall installation, your Tahoe Direct-Vent fireplace can be finished with tile or other non-combustible material, which conceals the outer edge of the fireplace to provide a true built-in appearance.

Tahoe Clean Face Deluxe

Tahoe Clean-Face Deluxe models feature our Contour tube-style burner, designed to complement the hand-painted ceramic fiber log set, and produce a natural dancing flame.

The Clean-Face Deluxe Fireplace comes with a discreet air distribution channel that eliminates the look of louvers, yet still allows you to operate the optional blower. It features a large heat-resistant, tempered glass window that provides an unobstructed view to the log set.

Choose an optional liner – Aged Brick, Herringbone, Stacked Limestone, or Black Reflective – to customize your fireplace.

Tahoe Clean-Face Deluxe models require 17-3/4, and use 4 x 6-5/8 venting, making them ideal for applications where wall-cavity space is tight.

Designed for in-wall installation, your Tahoe Direct-Vent fireplace can be finished with tile or other non-combustible material, which conceals the outer edge of the fireplace to provide a true built-in appearance.

FEATURES

• Available in 32", 36" and 42" sizes.
• Includes Fireplace Barrier Screen
• 7-piece Ceramic Log Set Included
• Tempered Glass 20 x 27-1/2
• Optional Liners
• 4 x 6 Venting ~ Top Vent Only
• Optional Remotes

CA Residents: See Prop 65 WARNING.

OPTIONS & ACCESSORIES

Click to see Liner Kits

	Black Reflective Fireplace Floor Panel Color: Reflective Black Reflective quality amplifies the flame presentation Designed to cover the fireplace floor and conceal the burner Offers a thoroughly modern appearance
	Herringbone Brick Fireplace Liner Ceramic fiber liner Light-colored bricks with realistic smoke patterns
	Aged Brick Fireplace Liner Type: Liner Material: Ceramic Fiber
	Stacked Fieldstone Fireplace Liner Gives your fireplace a traditional look Rustic design with irregular stones and no mortar Durable ceramic fiber construction

Click to see Blower & Conversion Kit

	Variable Speed Blower A thermal switch allows on/off operation based on temperature Increases overall thermal efficiency of the fireplace Installation bracket and wiring harness included
	Conversion Kit Natural Gas to Propane Propane to Natural Gas For use with Millivolt Control For Tahoe Clean Face Direct Vent Deluxe Fireplace

Click to see Accessories

	24 Inch Flexible Stainless Steel Gas Line Stainless steel flexible gas line 24" length Ideal for the connection of a variety of gas appliances
	Platinum Glowing Fireplace Embers Platinum glowing fireplace embers Can be placed directly on the burner Includes approximately 1 gram of ember material
	Traditional Log and Ember Bed Kit Include: six (6) burnt log pieces, white ash, and lava rock *This kit is not for use atop a burner.

DOWNLOADS

• Download Installation Guide
• Download Homeowner’s Manual
• Download Brochures
• Download Architecture
