SKU:DVCD32FP70N

Empire Tahoe Clean Face 32" Intermittent Pilot Control With On/Off Switch, Natural Gas Direct Vent Deluxe Fireplace

Empire Tahoe Clean Face 32" Intermittent Pilot Control With On/Off Switch, Natural Gas Direct Vent Deluxe Fireplace

Regular price $2,059.00
Regular price $2,388.44 Sale price $2,059.00
Sale Sold out
Shipping calculated at checkout.
Fuel Type
Ignition Type

Liners

-- Please Select --

No, Thank You

Variable Flame Remote

-- Please Select --

No, Thank You

Conversion Kit

-- Please Select --

No, Thank You

Accessories

Control Options

  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).

Combustion takes place inside a sealed chamber – with a glass front in the
case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room. A DV system is often installed along an outside wall to simplify the vent run,
but can also be installed elsewhere in the home and vented through the roof.

Tahoe Clean-Face Deluxe (DVCD)

Tahoe Clean-Face Deluxe models feature our Contour tube-style burner, designed to complement the hand-painted ceramic fiber log set, and produce a natural dancing flame.

The Clean-Face Deluxe Fireplace comes with a discreet air distribution channel that eliminates the look of louvers, yet still allows you to operate the optional blower.  It features a large heat-resistant, tempered glass window that provides an unobstructed view to the log set.

Choose an optional liner – Aged Brick, Herringbone, Stacked Limestone, or Black Reflective – to customize your fireplace. Tahoe Clean-Face Deluxe models require 17-3/4, and  use 4 x 6-5/8 venting, making them ideal for applications where wall-cavity space is tight.

Designed for in-wall installation, your Tahoe Direct-Vent fireplace can be finished with tile or other non-combustible material, which conceals the outer edge of the fireplace to provide a true built-in appearance.

What's Included

  • Tahoe Clean Face Deluxe Direct Vent Fireplace
  • Tempered Glass
  • Barrier Screen
  • Log Set

Not Included (Sold Separately)

  • Liners
  • Blower
  • Ember Kit
  • Flex Gas Line
  • Platinum Embers
  • Control Options
  • Gas Conversion Kit

Features

  • Good efficiency – 60 to 80%
  • May be used as primary heat source
  • Separates room air from combustion air
  • Can operate with a remote or thermostat
  • Most systems can provide life-saving heat during a winter power outage
  • Good heat output with thermal transfer through the glass and air circulation
  • Tahoe Clean-Face Deluxe models feature our Contour tube-style burner, designed to complement the hand-painted ceramic fiber log set, and produce a natural dancing flame
  • The Clean-Face Deluxe Fireplace comes with a discreet air distribution channel that eliminates the look of louvers, yet still allows you to operate the optional blower
  • Clean-Face systems are designed for in-wall installation. Tile or other non-combustible material may be used to conceal the outer edge of the fireplace to provide a true built-in appearance.
  • It features a large heat-resistant, tempered glass window that provides an unobstructed view to the log set
  • Deluxe Clean-Face models are offered in Millivolt and Intermittent Pilot

Specifications

Model DVCD32
Input BTU/Hr Maximum 18,000
Input BTU/Hr Minimum 14,000
KWH (Maximum) 5.3
KWH (Minimum) 4.1
Type of Gas Natural Gas
Ignition Intermittent Pilot
Vent Type Direct Vent
Venting 4 x 6 5/8
Installation Zero Clearance
Orifice #46 (0.081 inch)
Air Shutter Opening 1/16"
Gas Inlet Shut-Off Valve (Pipe) 1/2" NPT
Gas Supply Pressures (inches water column)
Maximum 14
Minimum 4.5
Manifold 3.5

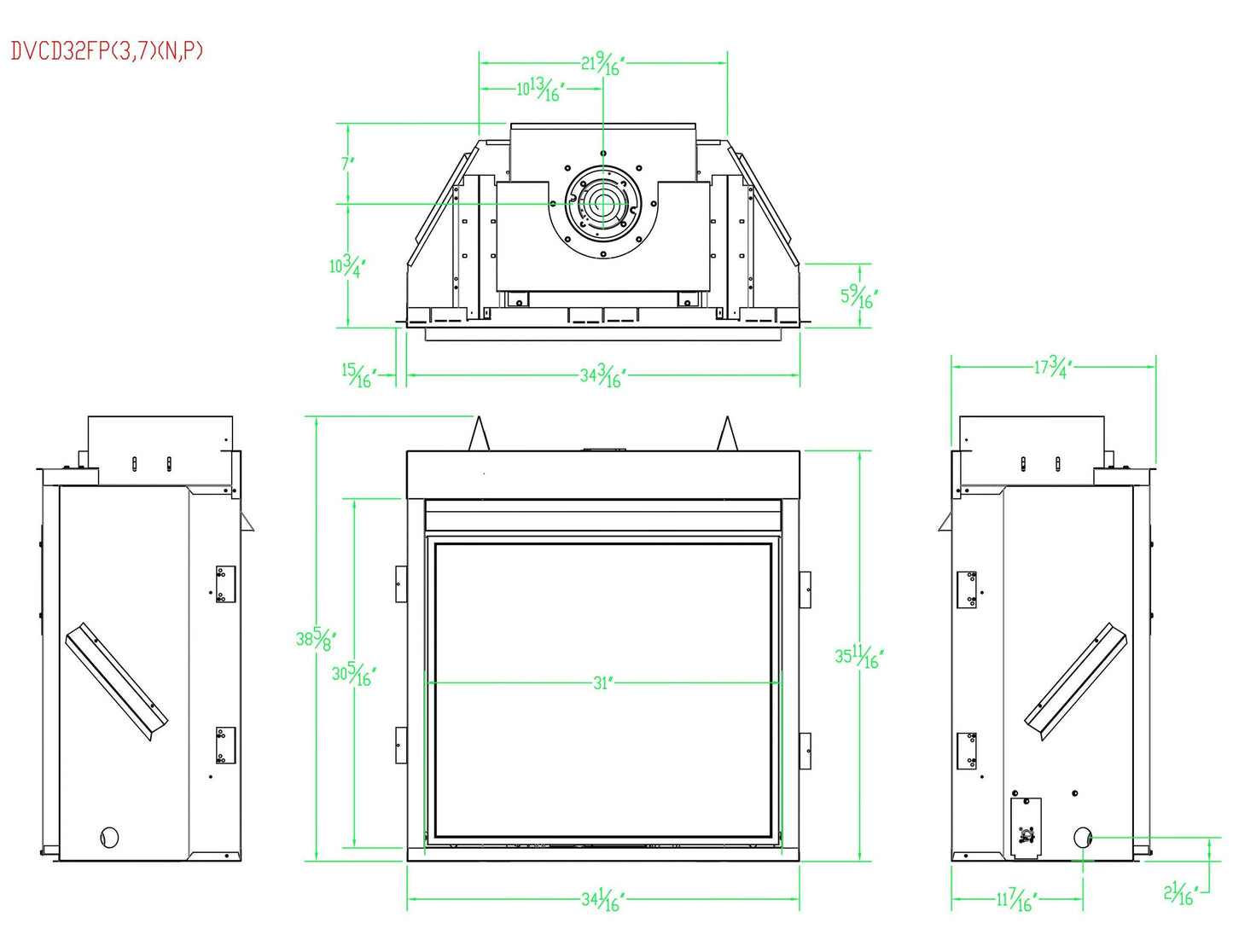

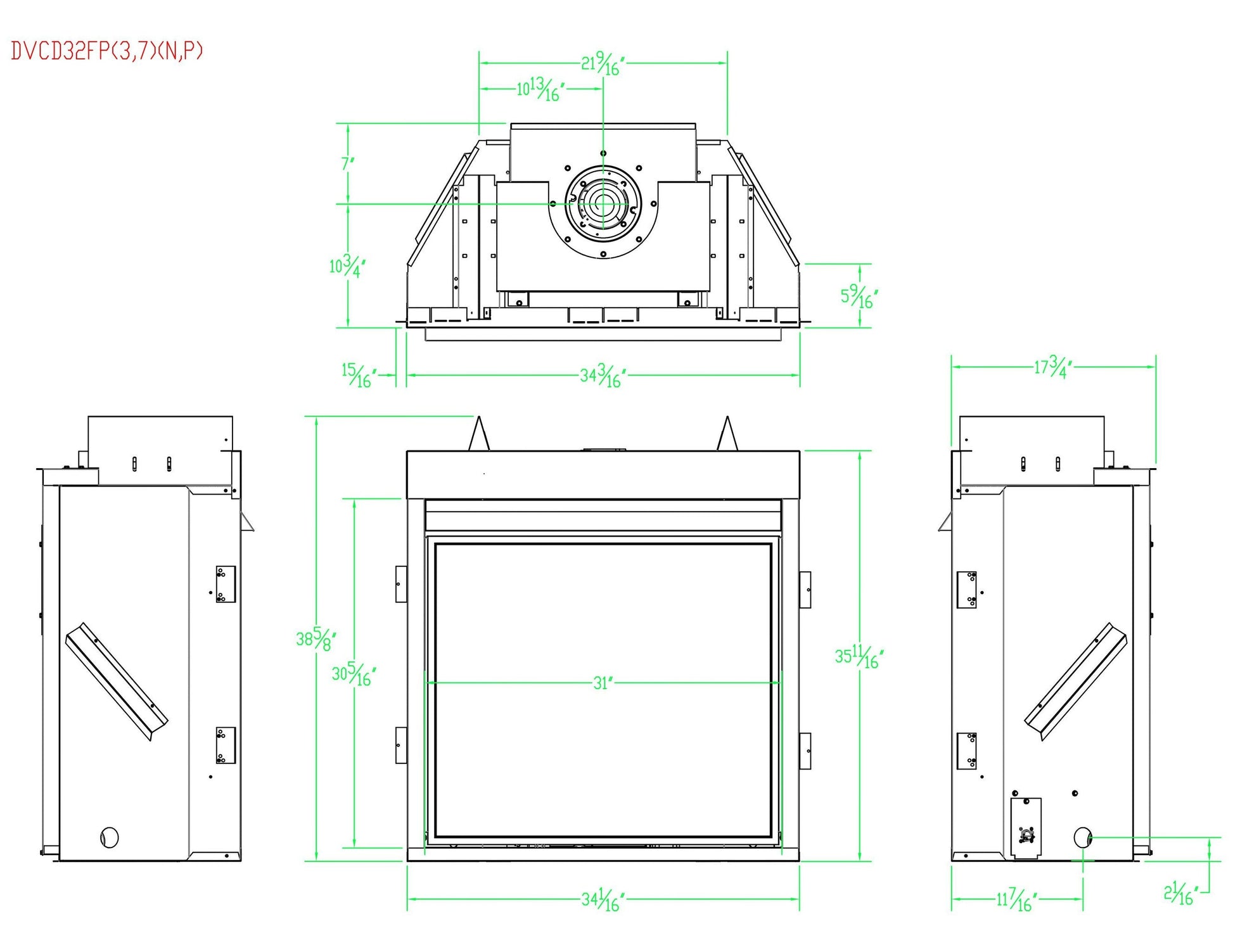

Dimensions

Tempered Glass Width 27"
Tempered Glass Height 20"
Framing Width 35"
Framing Height 39"
Framing Depth 18"

Warranty

  • 10-year limited warranty on combustion chamber; limited lifetime on glass
  • All Remote Controls carry a 1-year limited warranty
  • All other parts carry a 3-year limited warranty

Documents & Files

      Frequently Asked Questions

      Can I buy a fireplace online and install it myself?

      We highly recommend a certified professional install all of our units. Any issues that arise from improper installation will not be covered under warranty.

      Does our product work during a power outage?

      Yes, most of our appliances have the ability to be used in a power outage situation please see a local dealer for more information.

      What is the difference between Millivolt and electronic ignition fireplaces?

      Millivolt fireplaces use the electricity produced by a standing pilot to operate the fireplace. Electronic ignition fireplaces rely on a power source to power the fireplace, this can be house voltage as well as battery voltage.

      Can I use a Wi-Fi Thermostat with my unit?

      Our units are designed to be operated by millivolts or low voltage, most Wi-Fi thermostats use 24volts and are not compatible.

      Where can I find my model and serial number?

      There is a rating plate attached to the valve of your appliance that will have the model and serial number information.

      Can you tell me how old my unit is?

      Once you locate your rating plate the serial number will help identify the age, the first two digits of the serial number denote the year of manufacture (21, 20, 19...) the next two digits identify the week of that year that the unit was built.

      What is the difference between a fireplace, a firebox, and an insert?

      Fireplaces are designed to be installed into a framed opening with specific clearances to combustibles. Fireboxes are just like Fireplaces in terms of where they can be installed but in addition a burner and a set of logs is required to finish off the unit. Inserts are designed to be installed directly into an existing wood burning fireplace that meets all standards of construction.
