SKU:VFD30CC30BN

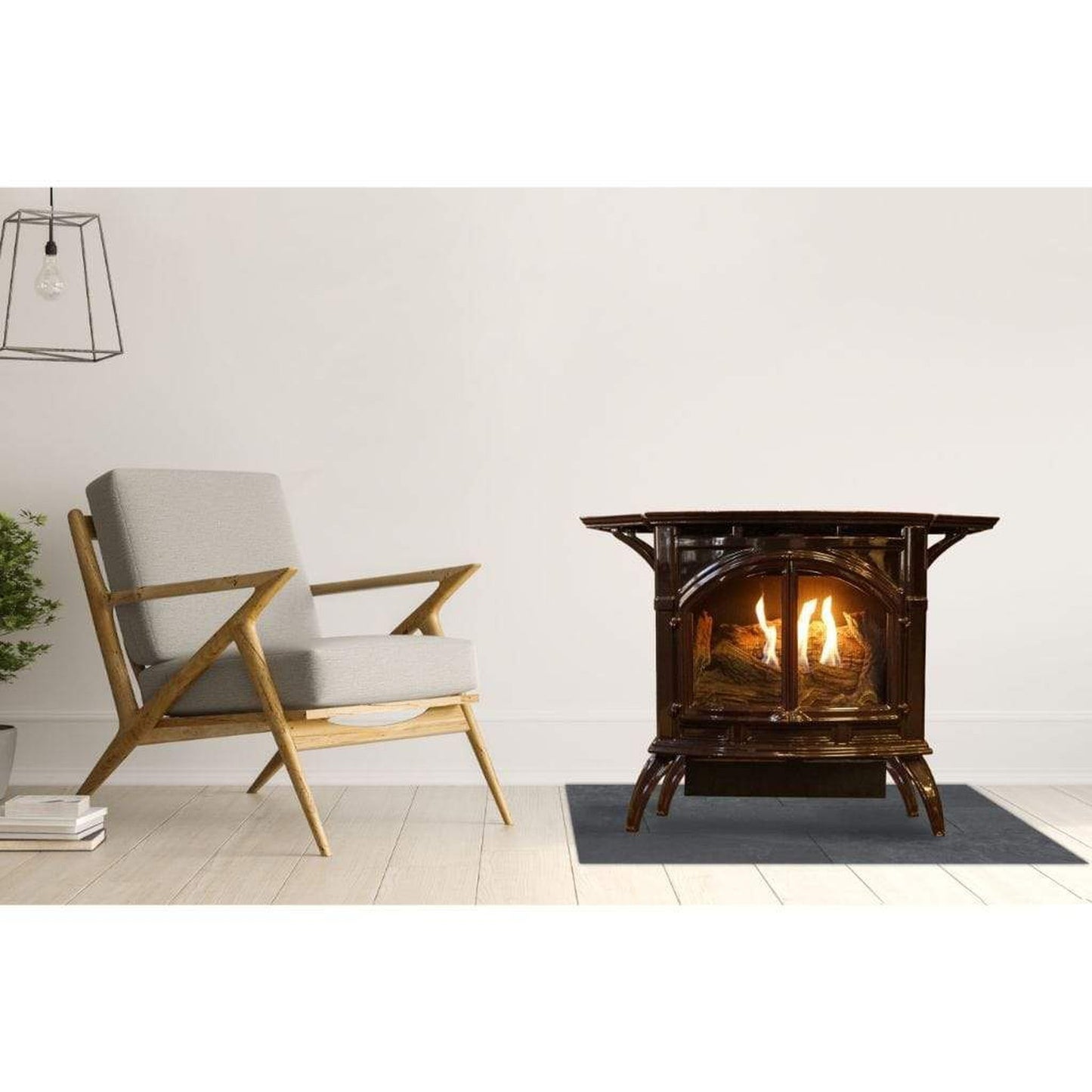

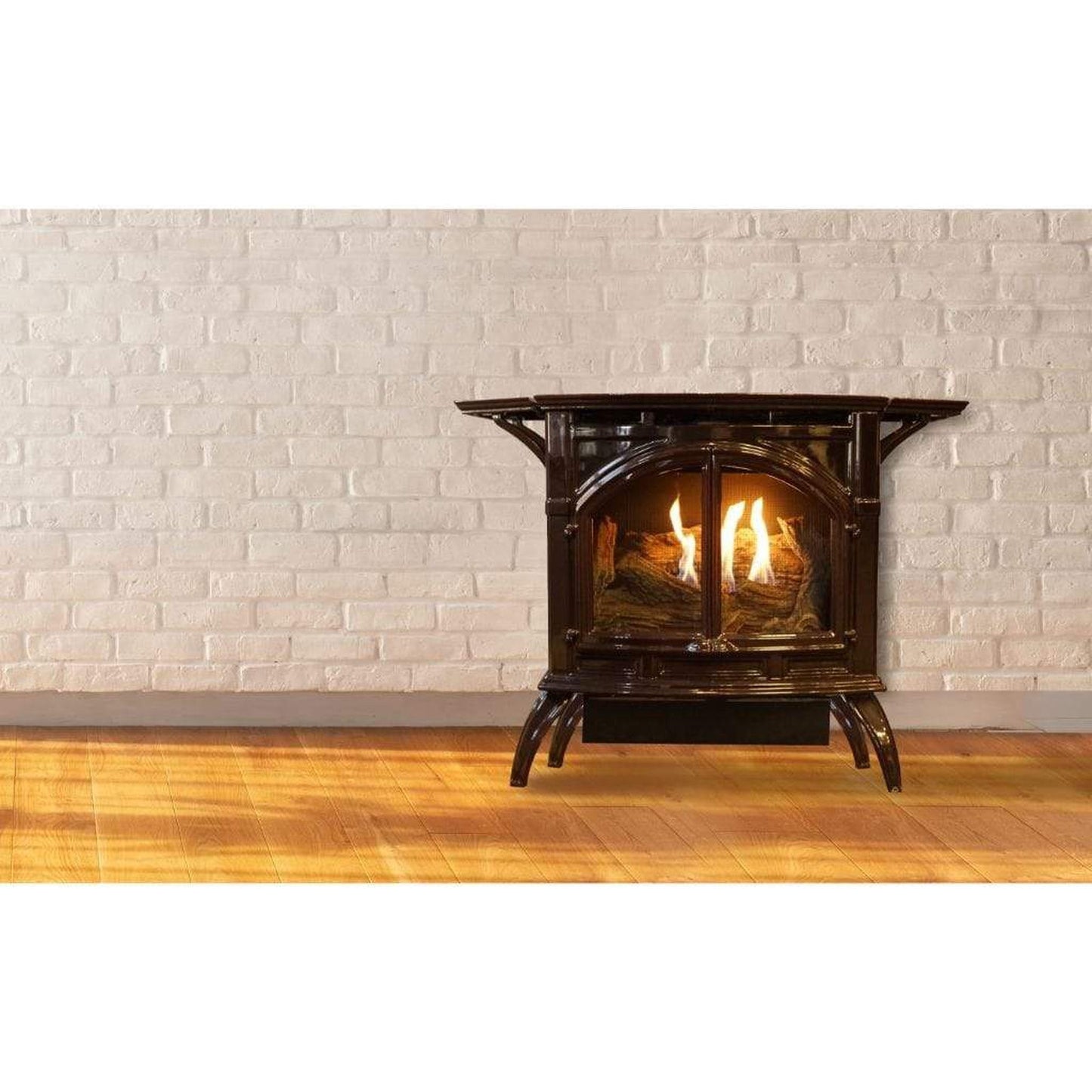

Empire Spirit 28" 25,000 BTU Porcelain Black Finish Millivolt Control With On/Off Switch, Natural Gas Vent Free Cast Iron Medium Stove
Empire Spirit 28" 25,000 BTU Porcelain Black Finish Millivolt Control With On/Off Switch, Natural Gas Vent Free Cast Iron Medium Stove
Automatic Blower
-- Please Select --
No, Thank You
Flexible Gas Line
-- Please Select --
No, Thank You
Stone Inlays Replaces Cast Iron Grids
-- Please Select --
No, Thank You
Shelf Kit
-- Please Select --
No, Thank You
Floor Pad Kit
-- Please Select --
No, Thank You
Stone Inlay Kit for Traditional Floor Pad
-- Please Select --
No, Thank You
Stone Inlay Kit for Corner Floor Pad
-- Please Select --
No, Thank You
Control Options
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Spirit Series Steel Stoves
Spirit Stoves are available in two types of ignition – Millivolt (MV) and Intermittent Pilot (IP). The Millivolt system lights a standing pilot with a pushbutton piezo ignitor. Once the standing pilot is lit, the MV system operates with an on/off switch concealed on the back of the stove or with one of Empire’s optional remote control systems.
IP systems eliminate the standing pilot for even greater energy savings. Pressing the on/off switch ignites the pilot, which then ignites the main burner. IP systems can also operate with an optional remote control system.
Vent-Free Spirit Stoves (VFD)
Vent-free Spirit Stoves come standard with Empire’s Contour burner system. The Contour Burner features precision-port technology to produce vibrant flames. Topped off with the hand-painted ceramic fiber log set and glowing embers, the effect is as realistic as a gas-fired stove gets – guaranteed to keep you and your guests mesmerized for hours.
What's Included
- Cast Iron Medium Stove
- 6-Piece Log Set
- Contour Burner
- On/Off Switch
Not Included (Sold Separately)
- Flex Gas Line
- Control Options
- Automatic Blower
- Cast Iron Stove Shelf Kit
- Optional Traditional / Corner Floor Pad
- Stone Inlay Kit Required for Floor Pad
Features
- Up to 25,000 BTUs
- Richly detailed casting
- Optional floor pads available
- Optional side shelf sets available
- Unmatched efficiency – 99.9%
- Offers the most installation versatility
- Fully operable decorative cast iron doors
- Usually less expensive to buy and to install
- Can operate with a remote or thermostat
- Most systems can provide live-saving heat during a winter power outage
- Vent-free cast iron stoves feature Empire's contour burner system, creating extra glow from the expanded ember bed
- Ceramic beads within the burner create a swirling and tumbling of the gas, This movement creates dancing flames that are indistinguishable from a wood fire
- Our hand painted ceramic fiber log set creates an effect that is stunningly realistic
- Vent-free technology eliminates the need for venting, which greatly simplifies installation
- Choose from three colors – porcelain black, porcelain mahogany, and matte black
Specifications
| Model | VFD30CC30 |
| Input BTU/HR (KW/H) Max | 25,000 |
| Input BTU/HR (KW/H) Min | 17,500 |
| Vent Type | Vent Free |
| Ignition Type | Millivolt |
| Type of Gas | Natural Gas |
| Installation | Freestanding |
| Gas Inlet (Pipe) | 3/8" |
| Air Shutter Setting | 1/16" |
Dimensions
| Width | 28" |
| Height | 28" |
| Depth | 17" |
Warranty
- All parts carry a five-year limited warranty with a five-year limited labor warranty
- All remote controls carry a one-year limited warranty
Documents & Files
-
Download Vent-Free Stove Brochure
- Download Installation and Owner's Manual
- Download Installation Instructions Optional Stone Inlay
- Download Installation Instructions Automatic Blower CIB3
-
Download Specification Sheet VFD30CC30/70
Frequently Asked Questions
Can I buy a fireplace online and install it myself?
We highly recommend a certified professional install all of our units. Any issues that arise from improper installation will not be covered under warranty. |
Does our product work during a power outage?
Yes, most of our appliances have the ability to be used in a power outage situation please see a local dealer for more information. |
What is the difference between Millivolt and electronic ignition fireplaces?
Millivolt fireplaces use the electricity produced by a standing pilot to operate the fireplace. Electronic ignition fireplaces rely on a power source to power the fireplace, this can be house voltage as well as battery voltage. |
Can I use a Wi-Fi Thermostat with my unit?
Our units are designed to be operated by millivolts or low voltage, most Wi-Fi thermostats use 24volts and are not compatible. |
Where can I find my model and serial number?
There is a rating plate attached to the valve of your appliance that will have the model and serial number information. |
Can you tell me how old my unit is?
Once you locate your rating plate the serial number will help identify the age, the first two digits of the serial number denote the year of manufacture (21, 20, 19...) the next two digits identify the week of that year that the unit was built. |
What is the difference between a fireplace, a firebox, and an insert?
Fireplaces are designed to be installed into a framed opening with specific clearances to combustibles. Fireboxes are just like Fireplaces in terms of where they can be installed but in addition a burner and a set of logs is required to finish off the unit. Inserts are designed to be installed directly into an existing wood burning fireplace that meets all standards of construction. |
