OVERVIEW
A Vent-Free system uses room air for combustion and delivers 99.9% of the available heat energy directly to the room. Vent-Free systems have an unmatched safety record, thanks in part to their clean-burning technology and their Oxygen Depletion Sensor, which instantly shuts off the valve if oxygen in the room drops to and unsafe level. Because no venting is required, Vent-Free systems offer more installation options.
Vent-Free systems are limited to 40,000 Btu and must be operated as supplemental heating sources in conjunction with a central furnace that circulates air.
Advantages:
- Unmatched efficiency – 99.9%
- Offers the most installation versatility
- Usually less expensive to buy and to install
- Can operate with a remote or thermostat
- Most systems can provide live-saving heat during a winter power outage
Empire Steel Stoves

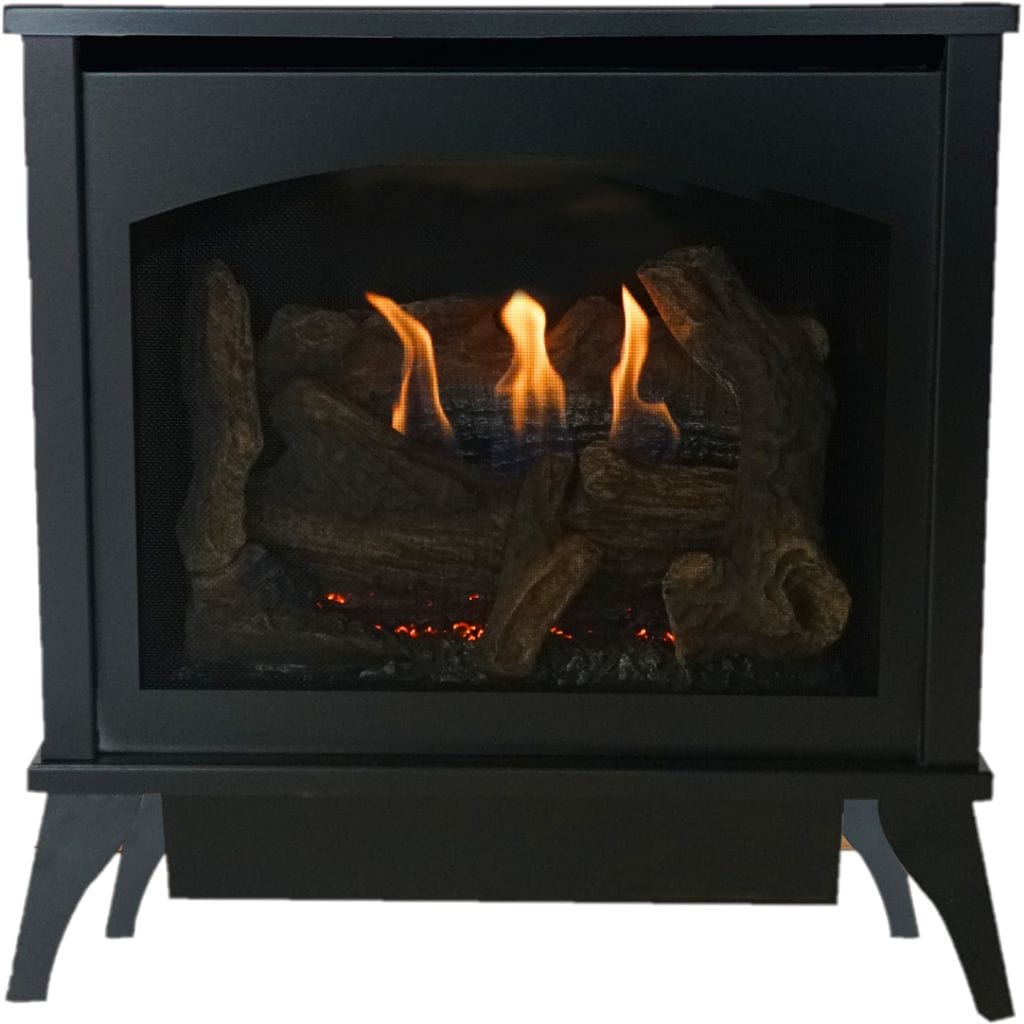

Empire vent-free steel stoves showcase Empire's contour burner system. This modern design features clean lines and an extended ember bed for added glow. The Spirit Series is offered in 2 sizes, allowing versitility for a range of room spaces. The hand painted ceramic fiber log set creates a realistic effect that brings the warmth and comfort to your home.
Choose from two sizes (20,000 BTU and 25,000 BTU).
Spirit Stoves are available in two types of ignition.
i) Millivolt (MV)
Empire Cast Iron Stoves are available in two types of ignition – Millivolt (MV) and Intermittent Pilot (IP). The Millivolt system lights a standing pilot with a pushbutton piezo ignitor. Once the standing pilot is lit, the MV system operates with an on/off switch concealed on the back of the stove or with one of Empire’s optional remote control systems.
ii) Intermittent Pilot (IP)
IP systems eliminate the standing pilot for even greater energy savings. Pressing the on/off switch ignites the pilot, which then ignites the main burner. IP systems can also operate with an optional remote control system.
Includes
- 6-piece Log Set
Features
- Up to 25,000 BTUs
- Contour Burner
- Clean lines & modern design
- Millivolt Control with On/Off Switch
- Intermittent Pilot Control with On/Off Switch
Available Models
- 22" Spirit Steel Vent Free Gas Stove (20,000 BTU)
- 25" Spirit Steel Vent Free Gas Stove (25,000 BTU)
Specifications
Model | VFD30MS |
Dimensions | 27 7/8 H x 25 1/5 W x 15 5/8 D |
Venting Type | Vent Free |
Fuel Type | Natural Gas / Propane |
Input BTU/HR (KW/H) Maximum (Propane) |
25,000 |
Input BTU/HR (KW/H) Minimum (Propane) | 21,000 |
Input BTU/HR (KW/H) Maximum (Natural) | 25,000 |
Input BTU/HR (KW/H) Minimum (Natural) | 17,500 |
DOWNLOADS
Clearances
Ceiling | 36 inches |
Back Wall | 2 inches |
Side Wall | 6 inches |
Adjacent Corner Wall | 4 inches |
OPTIONS & ACCESSORIES
Automatic Variable Blower
|
|
|
GF24 Flexible 24" Stainless Steel Gas Line
|
Click to see Control Options
|
FRBC Battery Operated On or Off Remote Control
|
FRBTC2 Battery Operated Thermostat Remote Control
|
|
FREC Electric On-Off Remote Control with Battery Transmitter
|
|
FRBTPS Battery Operated Programmable Touch Screen Remote Control
|
|
FWS1 Wall Switch On/Off
|
|
TMV Wall Thermostat Reed Switch
|
|
TRW Wall Thermostat Wireless Remote
|
Click to see Variable Remote Option
Remote Kit for Natural Gas / Propane
|
|
RCK30 Replacement Control Cover
|
WARRANTY
- All vent-free parts carry a five-year limited warranty with a five-year limited labor warranty.
- All remote controls carry a one-year limited waranty.
