SKU:VFP24FP70L10N
Empire Vail 24" 10,000 BTU Intermittent Pilot Control With On/Off Switch and Slope Glaze Burner, Natural Gas Vent Free Premium Fireplace
Empire Vail 24" 10,000 BTU Intermittent Pilot Control With On/Off Switch and Slope Glaze Burner, Natural Gas Vent Free Premium Fireplace
Liners
-- Please Select --
No, Thank You
Louvers
-- Please Select --
No, Thank You
Steel Frame
-- Please Select --
No, Thank You
Standard Cabinet Mantel With Base
-- Please Select --
No, Thank You
Corner Cabinet Mantel With Base
-- Please Select --
No, Thank You
Variable Remote
-- Please Select --
No, Thank You
Accessories
Control Options
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing

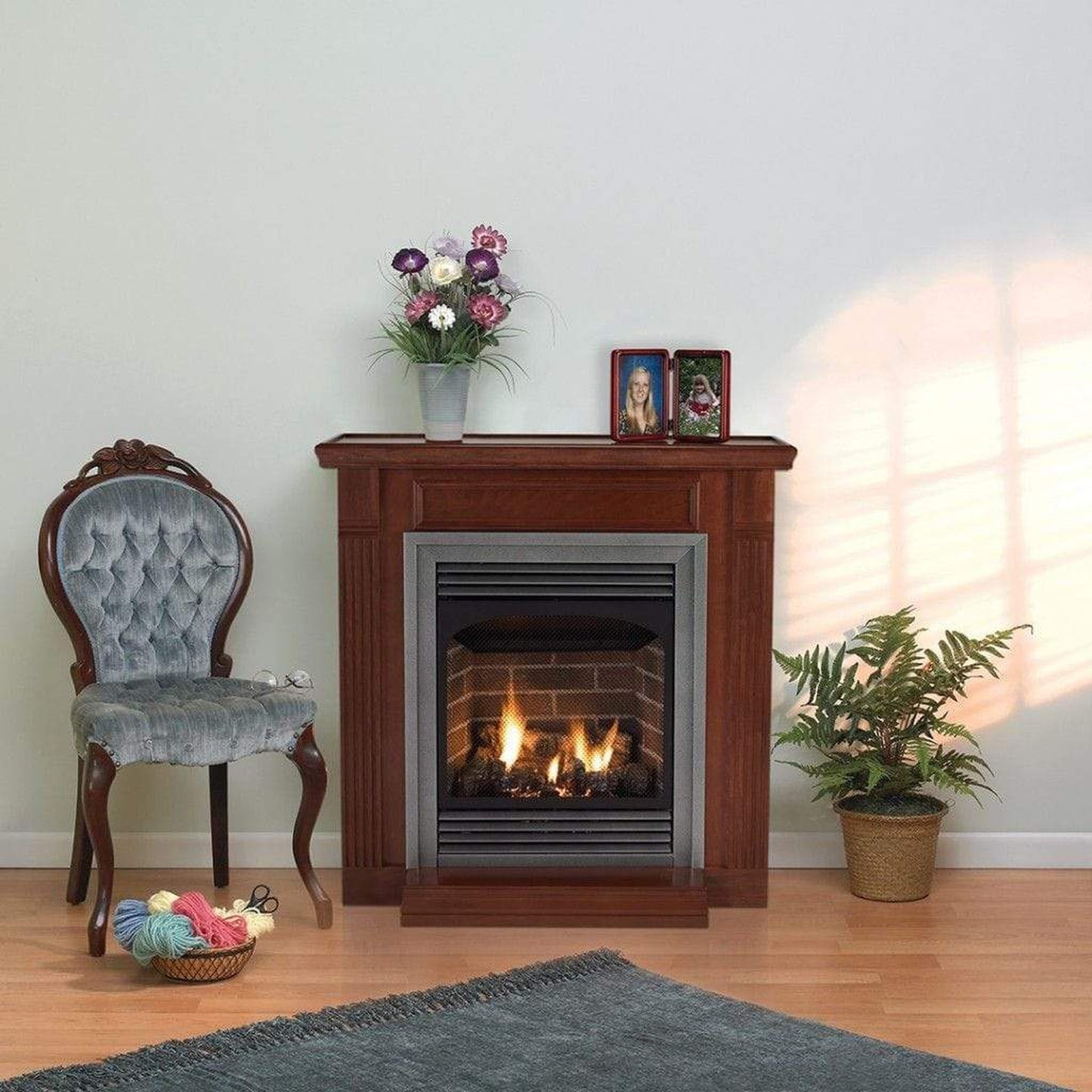

The Vail 24 delivers the beauty of hand-painted ceramic fiber logs and natural flickering flames to dens, halls, and even bedrooms.
Vail 24 Fireplaces are rated at 20,000 Btu – enough heat to keep a family room cozy and warm. Special 10,000 Btu models are available in Millivolt and Intermittent Pilot for bedroom installations, where allowed by local codes.
The Vail 24 fireplace includes matte black louvers and frame. Available accessories include louvers and metal frames (in hammered pewter), blowers, brick liners, remote controls, and Standard Cabinet and Corner Mantels (in cherry, dark oak, oak, unfinished hardwood, unfinished oak, and white).
What's Included
- Vail Vent Free Premium Fireplace
- On/Off Switch
- Slope Glaze Burner
- Ceramic Fiber Log Set
- Hood, Outer Frame, and Louvers in Matte Black
- AC Power Adapter With Battery Backup
Not Included (Sold Separately)
- Ceramic Fiber Liners
- Automatic Single Speed Blower
- Stainless Steel Flex Gas Line
- Decorative Platinum Embers
- Hammered Pewter Steel Frame
- Hammered Pewter Louvers
- Cabinet Mantel with Base
- Variable Remote
- Control Options
Features
- Unmatched efficiency – 99.9%
- Offers the most installation versatility
- Usually less expensive to buy and to install
- Can operate with a remote or thermostat
- Most systems can provide live-saving heat during a winter power outage
- The Vail 24 delivers the beauty of hand-painted logs and natural flickering flames to dens, halls, and even bedrooms
- The Vail 24 fireplace includes matte black louvers and frame
- Available accessories include louvers and metal frames (in hammered pewter), blowers, brick liners, remote controls, and Standard Cabinet and Corner Mantels (in cherry, dark oak, oak, unfinished hardwood, and white)
- The Intermittent Pilot Vail saves even more energy by eliminating the standing pilot – yet can still operate in a power outage with a battery backup
- Special 10,000 Btu models are available in Millivolt and Intermittent Pilot for bedroom installations, where allowed by local codes
Specifications
| Model | VFP24FP70L10 |
| Vent Type | Vent Free |
| Installation | Zero Clearance |
| Fuel Type | Natural Gas |
| Ignition Type | Intermittent Pilot |
| BTUH Max. Rate | 10,000 |
| BTUH Min. Rate | 10,000 |
| Air Shutter Opening | 1/16" |
| Orifice | #53 |
| Gas Supply Pressures (inches water column) |
| Regulator Pressure Setting | 3.5 |
| Gas Inlet Pressure - Maximum | 10.5 |
| Gas Inlet Pressure - Minimum | 5.0 |
Dimensions
| Width | 23" |
| Height | 27" |
| Depth | 11" |
Warranty
- All parts carry a five-year limited warranty with a five-year limited labor warranty
- All remote controls carry a one-year limited warranty
Documents & Files
- Download Product Brochure
- Download Product Manual
- Installation Instructions Aged Brick Liner
- Product Architecture
Frequently Asked Questions
Can I buy a fireplace online and install it myself?
We highly recommend a certified professional install all of our units. Any issues that arise from improper installation will not be covered under warranty. |
Does our product work during a power outage?
Yes, most of our appliances have the ability to be used in a power outage situation please see a local dealer for more information. |
What is the difference between Millivolt and electronic ignition fireplaces?
Millivolt fireplaces use the electricity produced by a standing pilot to operate the fireplace. Electronic ignition fireplaces rely on a power source to power the fireplace, this can be house voltage as well as battery voltage. |
Can I use a Wi-Fi Thermostat with my unit?
Our units are designed to be operated by millivolts or low voltage, most Wi-Fi thermostats use 24volts and are not compatible. |
Where can I find my model and serial number?
There is a rating plate attached to the valve of your appliance that will have the model and serial number information. |
Can you tell me how old my unit is?
Once you locate your rating plate the serial number will help identify the age, the first two digits of the serial number denote the year of manufacture (21, 20, 19...) the next two digits identify the week of that year that the unit was built. |
What is the difference between a fireplace, a firebox, and an insert?
Fireplaces are designed to be installed into a framed opening with specific clearances to combustibles. Fireboxes are just like Fireplaces in terms of where they can be installed but in addition a burner and a set of logs is required to finish off the unit. Inserts are designed to be installed directly into an existing wood burning fireplace that meets all standards of construction. |
