Empire 22" Small Spirit Cast Iron Vent Free Gas Stove (20,000 BTU)
Empire 22" Small Spirit Cast Iron Vent Free Gas Stove (20,000 BTU)
Automatic Blower
-- Please Select --
No, Thank You
Flexible Gas Line
-- Please Select --
No, Thank You
Shelf Kit
-- Please Select --
No, Thank You
Floor Pad Kit
-- Please Select --
No, Thank You
Stone Inlay Kit for Traditional Floor Pad
-- Please Select --
No, Thank You
Stone Inlay Kit for Corner Floor Pad
-- Please Select --
No, Thank You
Control Options
- Free Shipping on Orders Over $300
- Same-Day Order Processing
OVERVIEW
A Vent-Free system uses room air for combustion and delivers 99.9% of the available heat energy directly to the room. Vent-Free systems have an unmatched safety record, thanks in part to their clean-burning technology and their Oxygen Depletion Sensor, which instantly shuts off the valve if oxygen in the room drops to and unsafe level. Because no venting is required, Vent-Free systems offer more installation options.
Vent-Free systems are limited to 40,000 Btu and must be operated as supplemental heating sources in conjunction with a central furnace that circulates air.
Advantages:
- Unmatched efficiency – 99.9%
- Offers the most installation versatility
- Usually less expensive to buy and to install
- Can operate with a remote or thermostat
- Most systems can provide live-saving heat during a winter power outage
Empire Cast Iron Stoves
Vent-free Spirit Stoves come standard with Empire’s Contour burner system. The Contour Burner features precision-port technology to produce vibrant flames. Topped off with the hand-painted ceramic fiber log set and glowing embers, the effect is as realistic as a gas-fired stove gets – guaranteed to keep you and your guests mesmerized for hours.
Vent-free technology eliminates the need for venting, which greatly simplifies installation.
Choose from three sizes (10,000 BTU/20,000 BTU and 25,000 BTU) and three colors – porcelain black, porcelain mahogany, and matte black.
A special 10,000-Btu model is ideal for bedroom applications – where allowed by code.
i) Millivolt (MV)
Empire Cast Iron Stoves are available in two types of ignition – Millivolt (MV) and Intermittent Pilot (IP). The Millivolt system lights a standing pilot with a pushbutton piezo ignitor. Once the standing pilot is lit, the MV system operates with an on/off switch concealed on the back of the stove or with one of Empire’s optional remote control systems.
ii) Intermittent Pilot (IP)
IP systems eliminate the standing pilot for even greater energy savings. Pressing the on/off switch ignites the pilot, which then ignites the main burner. IP systems can also operate with an optional remote control system.

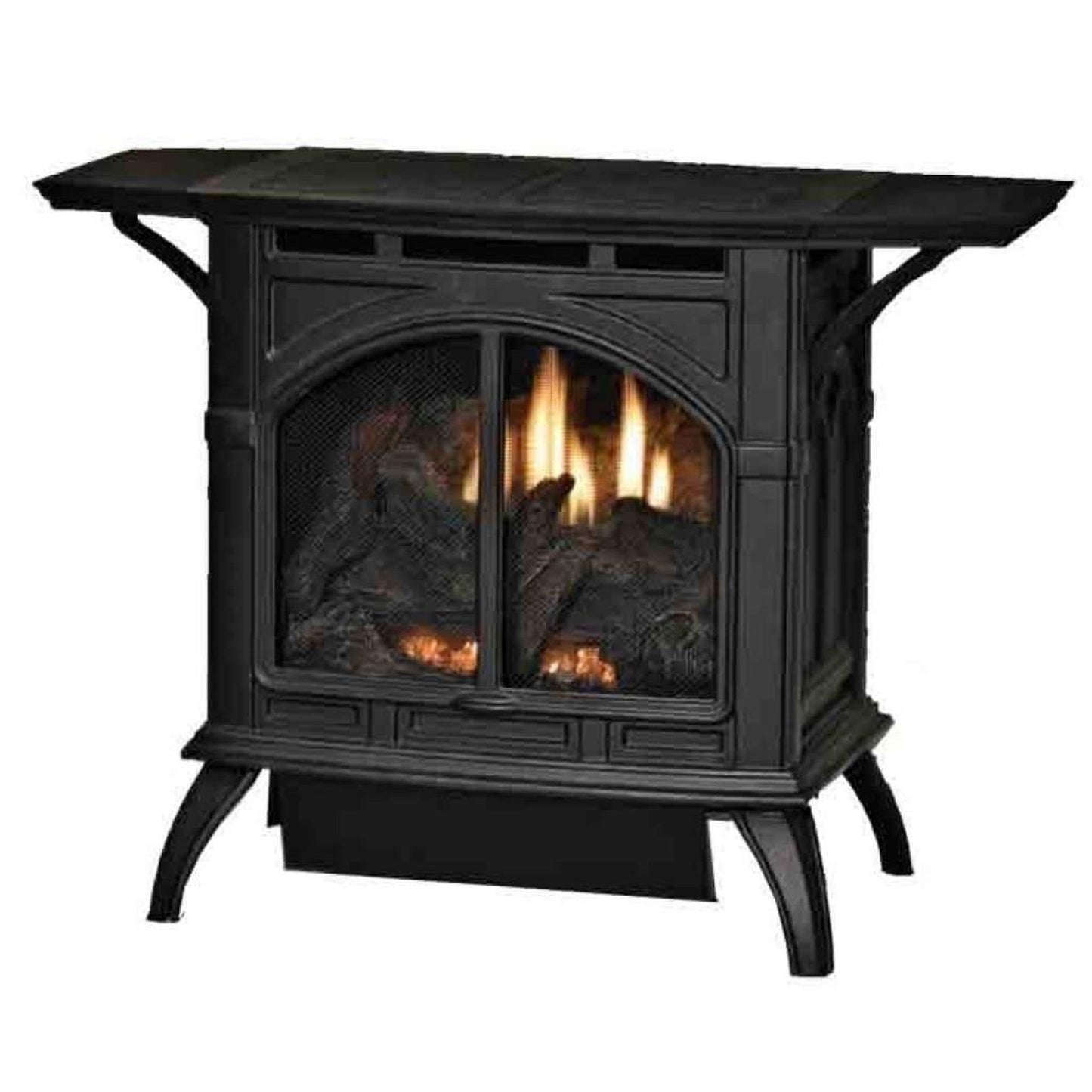

*Please Note: Pictured with optional cast iron shelf kit.
Features
- Up to 20,000 BTUs Contour Burner
- Richly detailed casting
- Decorative cast iron doors (non-operable)
- Available in three finishes: porcelain black, porcelain mahogany, and matte black
- Optional side shelf sets available
- Optional floor pads available
- Traditional cast iron stove look
- Your choice of finish and fuel type
- Compact design with big heat output
Available Models
- 22" Vent Free Gas Stove 10,000 BTUs
- 22" Vent Free Gas Stove 20,000 BTUs
- 28" Vent Free Gas Stove 25,000 BTUs
Includes
- 6-piece Log Set
Specifications
Model | VFD20CC |
Dimensions | 24 1/8" (H) x 21 1/2" (W) x 15 3/8" (D) |
Dimensions with Shelves | 24 1/8" (H) x 33 3/4" (W) x 15 3/8" (D) |
Input BTU/HR (KW/H) Maximum (Propane) | 20,000 |
Input BTU/HR (KW/H) Minimum (Propane) | 16,000 |
Input BTU/HR (KW/H) Maximum (Natural Gas) | 20,000 |
Input BTU/HR (KW/H) Minimum (Natural Gas) | 14,500 |
DOWNLOADS
-
Download Vent-Free Stove Brochure
- Download Installation and Owner's Manual
- Download Installation Manual Automatic Blower CIB4
- Download Installation Manual Optional Stone Inlays CIFPB1
- Download Installation Manual Optional Stone Inlays CIFPB1C
- Download Specification Sheet VFD20CC30/70
Clearances
Top of appliance (ceiling) | 36 inches |
Rear Wall | 2 inches |
Side Wall | 6 inches |
Heater Corners (45° angle) to Wall | 4 inches |
Floor | 0 inches |
OPTIONS & ACCESSORIES
Floor Pad Kit
- Traditional Floor Pad Kit *Requires a Stone Inlay Kit
|
- Corner Floor Pad Kit *Requires a Stone Inlay Kit
|
|
Cast Iron Stove Left And Right Shelf Kit
|
|
Automatic Variable Blower
|
GF24 Flexible 24" Stainless Steel Gas Line
|
Click to see Stone Inlays
|
Stone American Beauty Marble
|
Stone Pearl Marble
|
|
Stone Cappuccino Marble
|
|
Stone Graphite Granite
|
Click to see Control Options
|
FRBC Battery Operated On or Off Remote Control
|
FRBTC2 Battery Operated Thermostat Remote Control
|
|
FREC Electric On-Off Remote Control with Battery Transmitter
|
|
FRBTPS Battery Operated Programmable Touch Screen Remote Control
|
|
FWS1 Wall Switch On/Off
|
|
TMV Wall Thermostat Reed Switch
|
|
TRW Wall Thermostat Wireless Remote
|
Click to see Variable Remote for Intermittent Pilot
|
Remote Kit for Natural Gas / Propane
|
RCK20 Replacement Control Cover
|
WARRANTY
- All vent-free parts carry a five-year limited warranty with a five-year limited labor warranty.
- All remote controls carry a one-year limited waranty.
