SKU:DVP20CC30BN

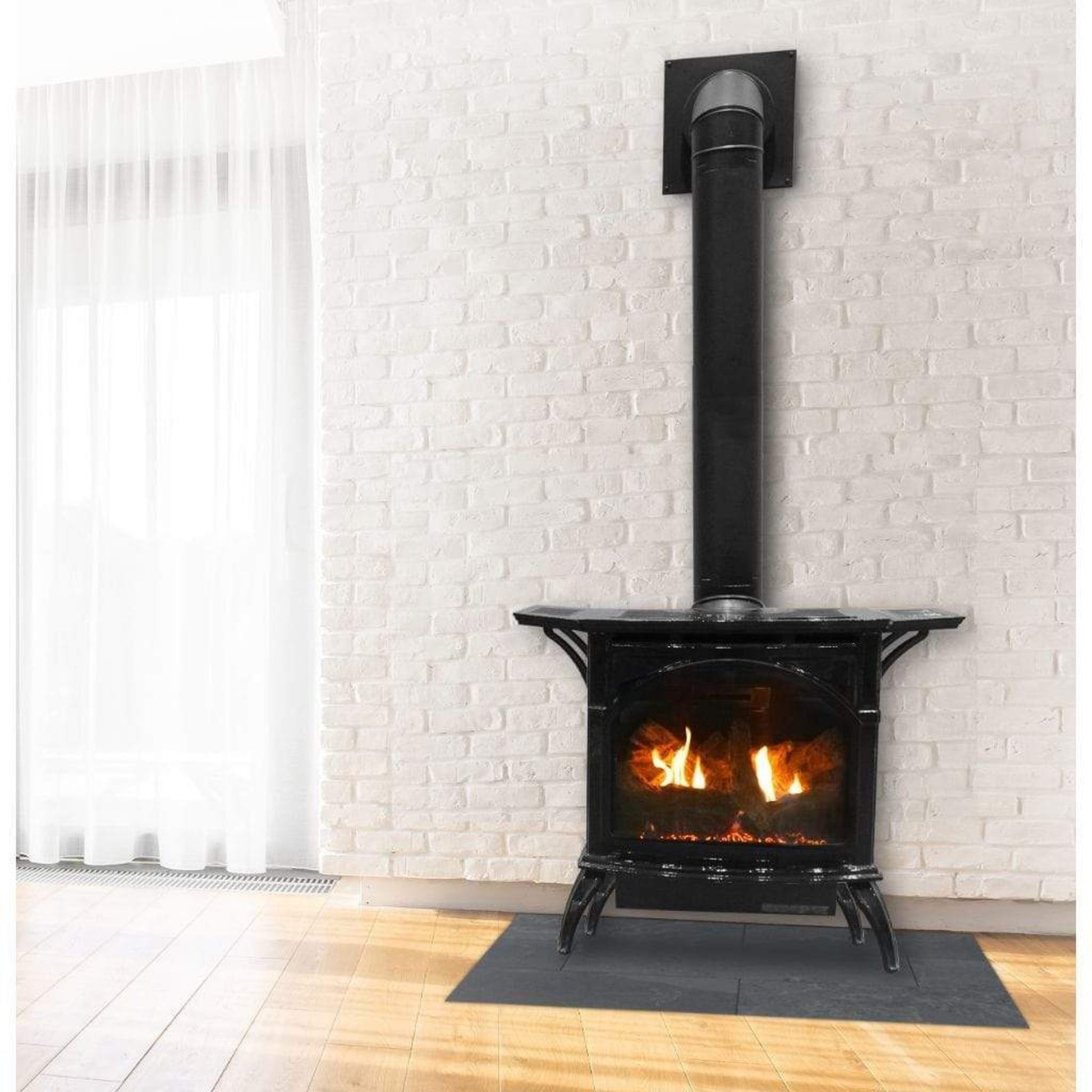

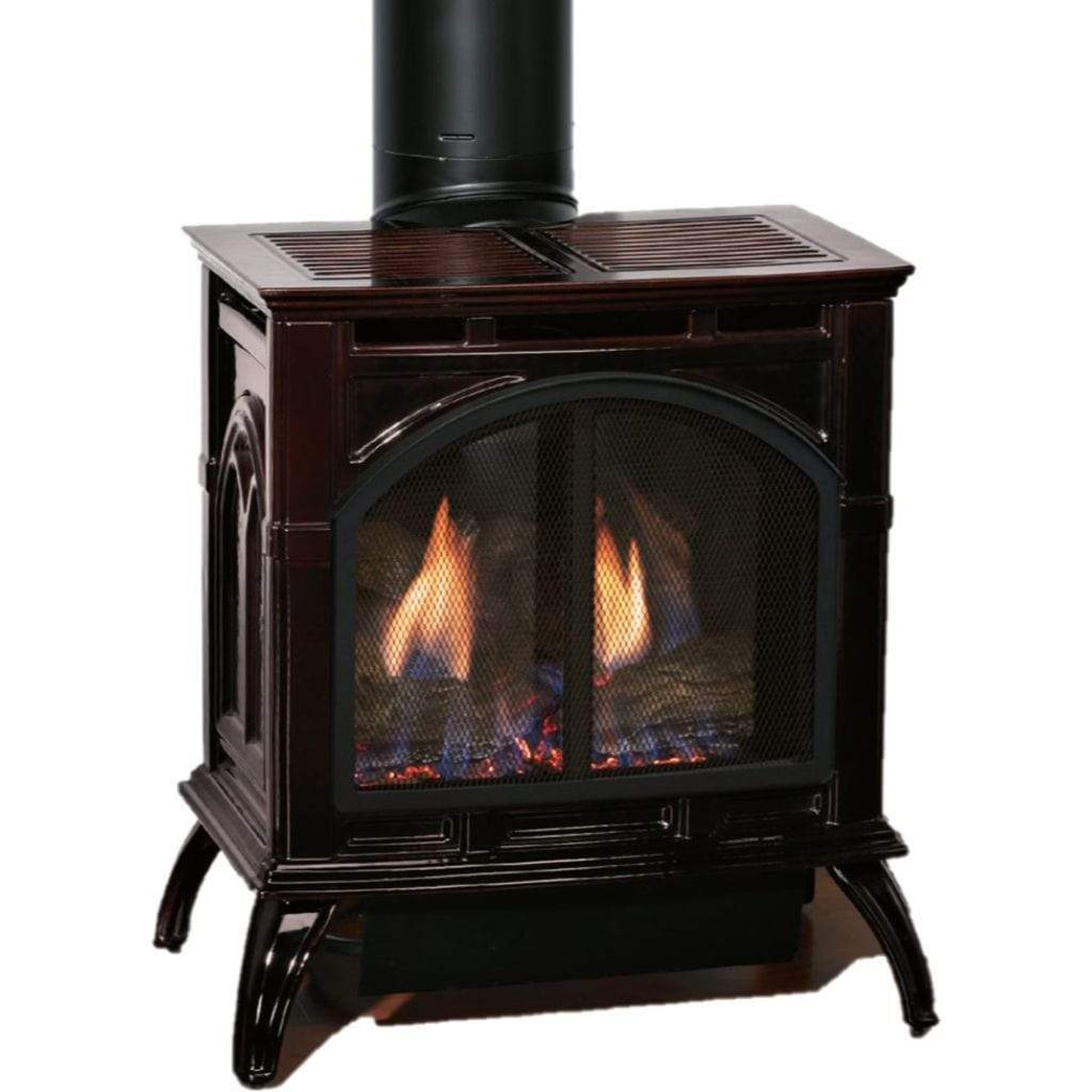

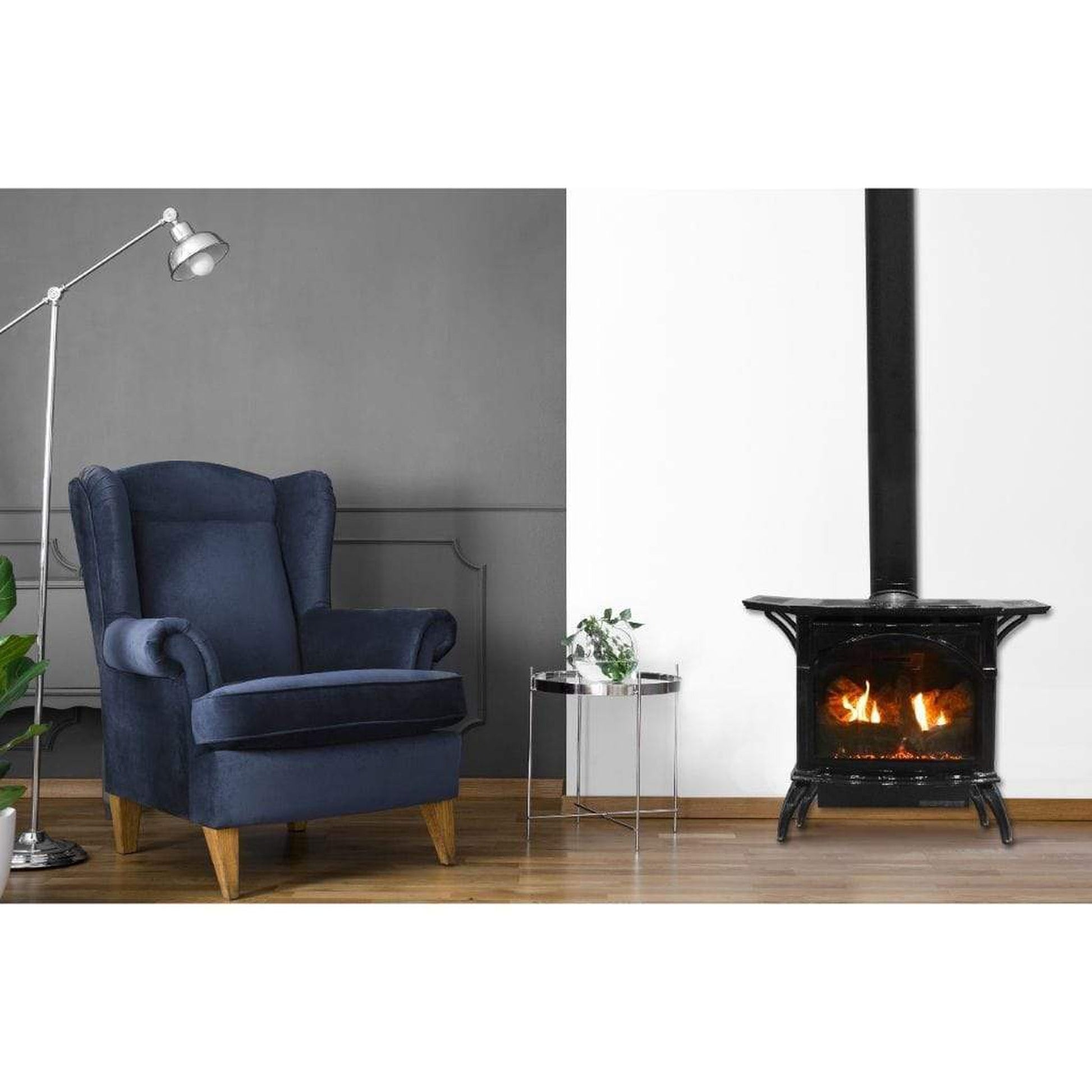

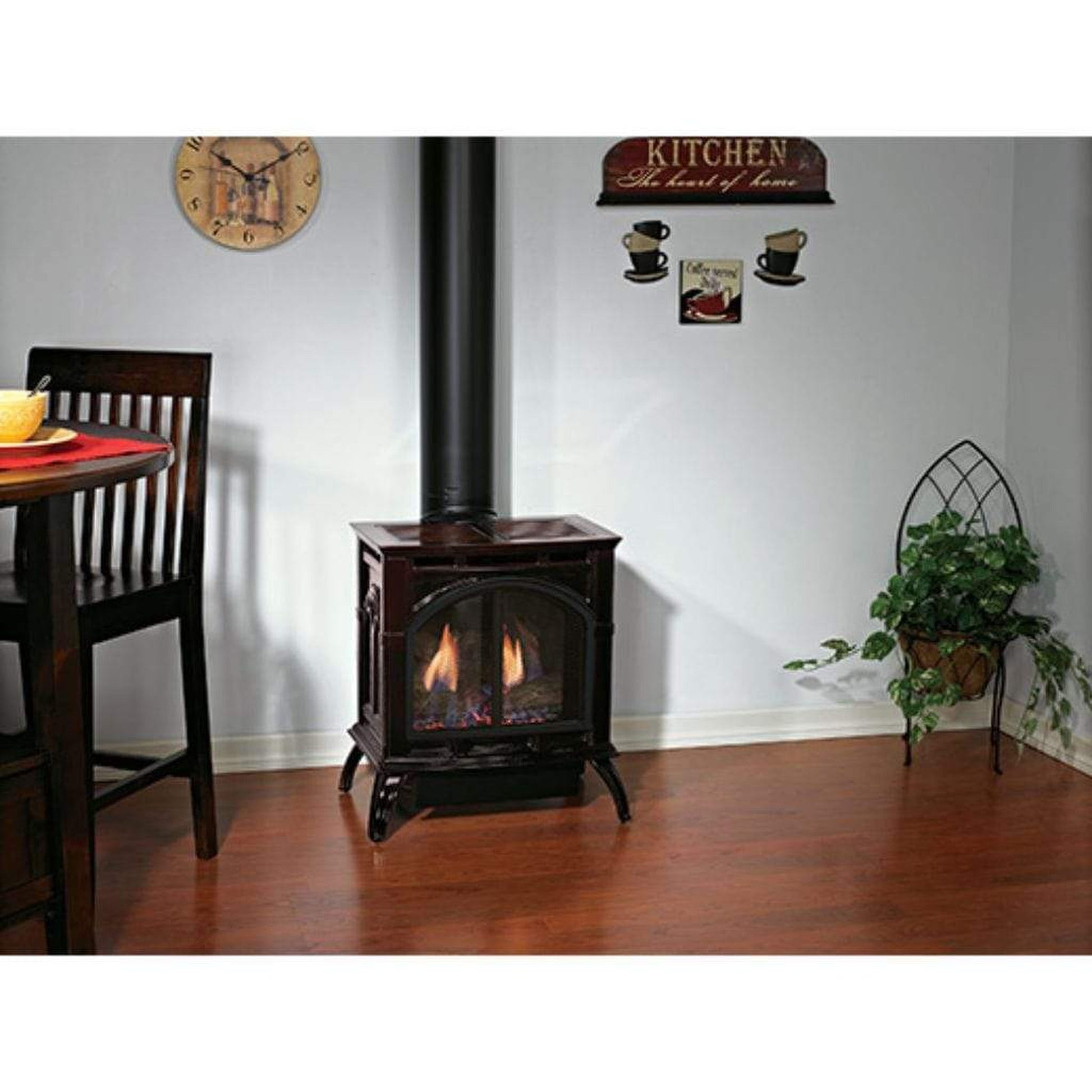

Empire Spirit 22" Porcelain Black Finish Millivolt Control With On/Off Switch, Natural Gas Direct Vent Cast Iron Small Stove
Empire Spirit 22" Porcelain Black Finish Millivolt Control With On/Off Switch, Natural Gas Direct Vent Cast Iron Small Stove
45-Degree Elbow (Required)
-- Please Select --
No, Thank You
Liner
-- Please Select --
No, Thank You
Automatic Blower
-- Please Select --
No, Thank You
Flexible Gas Line
-- Please Select --
No, Thank You
Conversion Kit
-- Please Select --
No, Thank You
Shelf Kit
-- Please Select --
No, Thank You
Floor Pad Kit
-- Please Select --
No, Thank You
Stone Inlay Kit for Traditional Floor Pad
-- Please Select --
No, Thank You
Stone Inlay Kit for Corner Floor Pad
-- Please Select --
No, Thank You
Control Options
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
A Direct-Vent system uses two vent pipes. One draws air in from outdoors to support combustion. The other exhausts the by-products of combustion to the outside. The two vent pipes may be concentric (exhaust pipe within a larger diameter intake pipe) or co-linear (separate pipes of about the same size).
Combustion takes place inside a sealed chamber – with a glass front in the case of a fireplace. Room air circulates around the combustion chamber, often assisted by a blower, to heat the room.
A DV system is often installed along an outside wall to simplify the vent run, but can also be installed elsewhere in the home and vented through the roof.
Spirit Series Cast Iron Stoves
Spirit Stoves are available in two types of ignition – Millivolt (MV) and Intermittent Pilot (IP). The Millivolt system lights a standing pilot with a pushbutton piezo ignitor. Once the standing pilot is lit, the MV system operates with an on/off switch concealed on the back of the stove or with one of Empire’s optional remote control systems.
IP systems eliminate the standing pilot for even greater energy savings. Pressing the on/off switch ignites the pilot, which then ignites the main burner. IP systems can also operate with an optional remote control system.
Direct-Vent Spirit Stoves (DVP)
Direct-Vent Spirit Stoves include Empire’s Slope Glaze Burner system with expanded ember bed for extra glow. Ceramic beads within the burner swirl and tumble the gas to create naturally swirling flames that are indistinguishable from a wood fire. Topped off with the hand-painted ceramic fiber log set and glowing embers, the effect is stunningly realistic and guaranteed to keep you and your guests mesmerized for hours.
What's Included
- Small Cast Iron Stove
- 4-Piece Log Set
- Fireplace Barrier Screen
- Slope Glaze Burner
Not Included (Sold Separately)
- 45-Degree Elbow (Required)
- Black Porcelain Liner
- Automatic Blower
- Flex Gas Line
- Control Options
- Gas Conversion Kit
- Cast Iron Stove Shelf Kit
- Optional Traditional Floor Pad
- Optional Traditional / Corner Floor Pad
- Stone Inlay Kit Required for Floor Pad
Features
- Good efficiency – 60 to 80%
- May be used as primary heat source
- Separates room air from combustion air
- Can operate with a remote or thermostat
- Most systems can provide life-saving heat during a winter power outage
- Good heat output with thermal transfer through the glass and air circulation
- Direct vent cast iron stoves feature Empire's slope glaze burner system, creating extra glow from the expanded ember bed
- Ceramic beads within the burner create a swirling and tumbling of the gas
- This movement creates dancing flames that are indistinguishable from a wood fire
- Hand painted ceramic fiber log set creates an effect that is stunningly realistic
Specifications
| Model | DVP20CC |
| Input BTU/HR (KW/H) Max | 19,500 |
| Input BTU/HR (KW/H) Min | 13,500 |
| Finish | Porcelain Black |
| Vent Type | Direct Vent |
| Ignition Type | Millivolt |
| Type of Gas | Natural Gas |
| Venting | 4 x 6 5/8 |
| Installation | Freestanding |
| Gas Inlet (Pipe) | 3/8" |
| Orifice | 2.15mm |
| Air Shutter Setting | 1/8" |
| Gas Supply Pressure |
| Maximum | 10.5" W.C. / 2.614 kPa |
| Minimum | 4.5" W.C. / 1.121 kPa |
| Manifold | 3.5" W.C. / .872 kPa |
Dimensions
| Width | 21" |
| Height | 24" |
| Depth | 16" |
Warranty
- All direct vent parts carry a ten-year limited warranty on combustion chamber, with a limited lifetime on glass
- All remote controls carry a one-year limited warranty
- All other parts carry a three-year limited warranty
Documents & Files
- Download Direct-Vent Stove Brochure
- Download Installation Instructions and Owner's Manual
- Download Installation Instructions Black Porcelain Liner Kit
-
Download Specification Sheet DVP20CC30/70
Frequently Asked Questions
Can I buy a fireplace online and install it myself?
We highly recommend a certified professional install all of our units. Any issues that arise from improper installation will not be covered under warranty. |
Does our product work during a power outage?
Yes, most of our appliances have the ability to be used in a power outage situation please see a local dealer for more information. |
What is the difference between Millivolt and electronic ignition fireplaces?
Millivolt fireplaces use the electricity produced by a standing pilot to operate the fireplace. Electronic ignition fireplaces rely on a power source to power the fireplace, this can be house voltage as well as battery voltage. |
Can I use a Wi-Fi Thermostat with my unit?
Our units are designed to be operated by millivolts or low voltage, most Wi-Fi thermostats use 24volts and are not compatible. |
Where can I find my model and serial number?
There is a rating plate attached to the valve of your appliance that will have the model and serial number information. |
Can you tell me how old my unit is?
Once you locate your rating plate the serial number will help identify the age, the first two digits of the serial number denote the year of manufacture (21, 20, 19...) the next two digits identify the week of that year that the unit was built. |
What is the difference between a fireplace, a firebox, and an insert?
Fireplaces are designed to be installed into a framed opening with specific clearances to combustibles. Fireboxes are just like Fireplaces in terms of where they can be installed but in addition a burner and a set of logs is required to finish off the unit. Inserts are designed to be installed directly into an existing wood burning fireplace that meets all standards of construction. |
