SKU:DV215SGXNAT

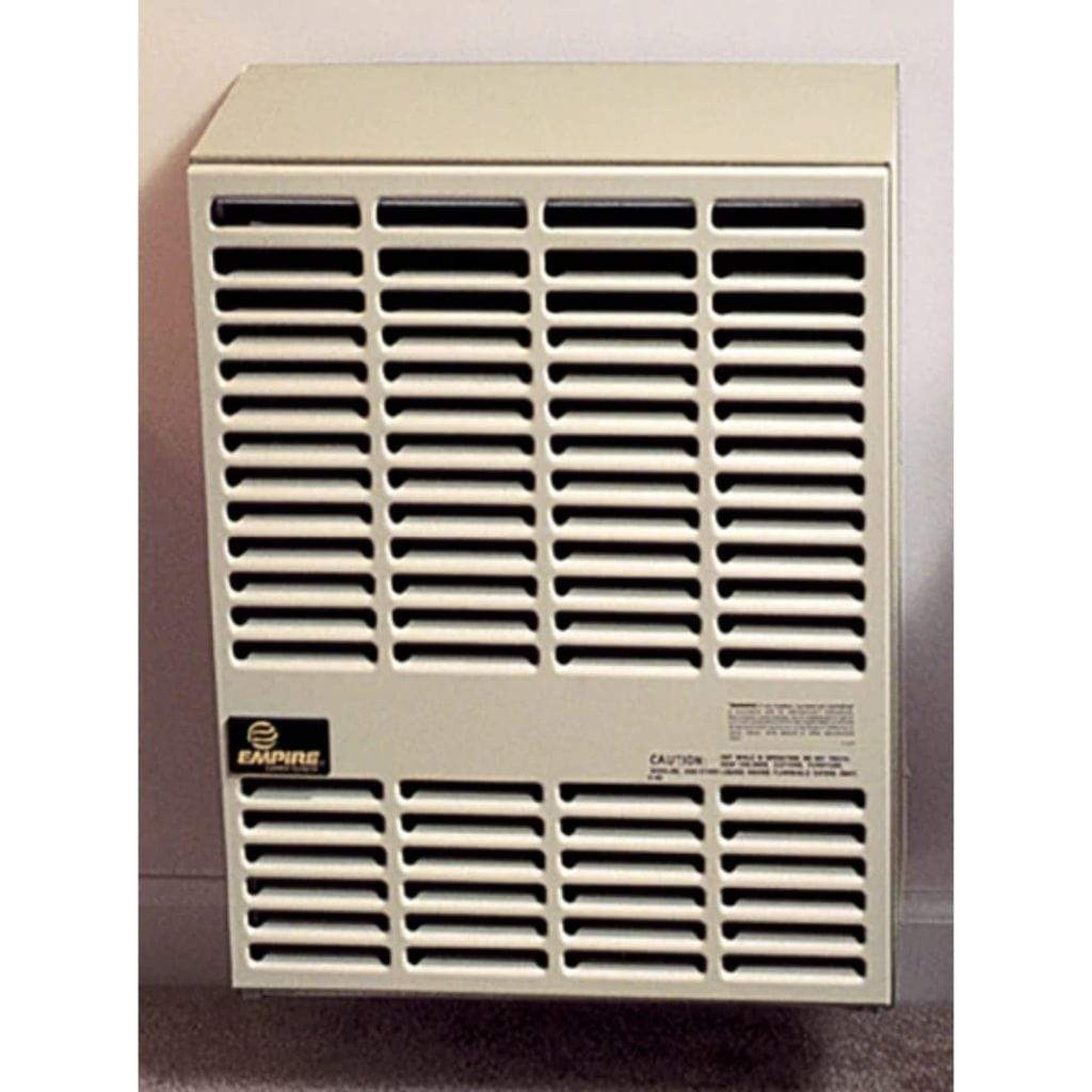

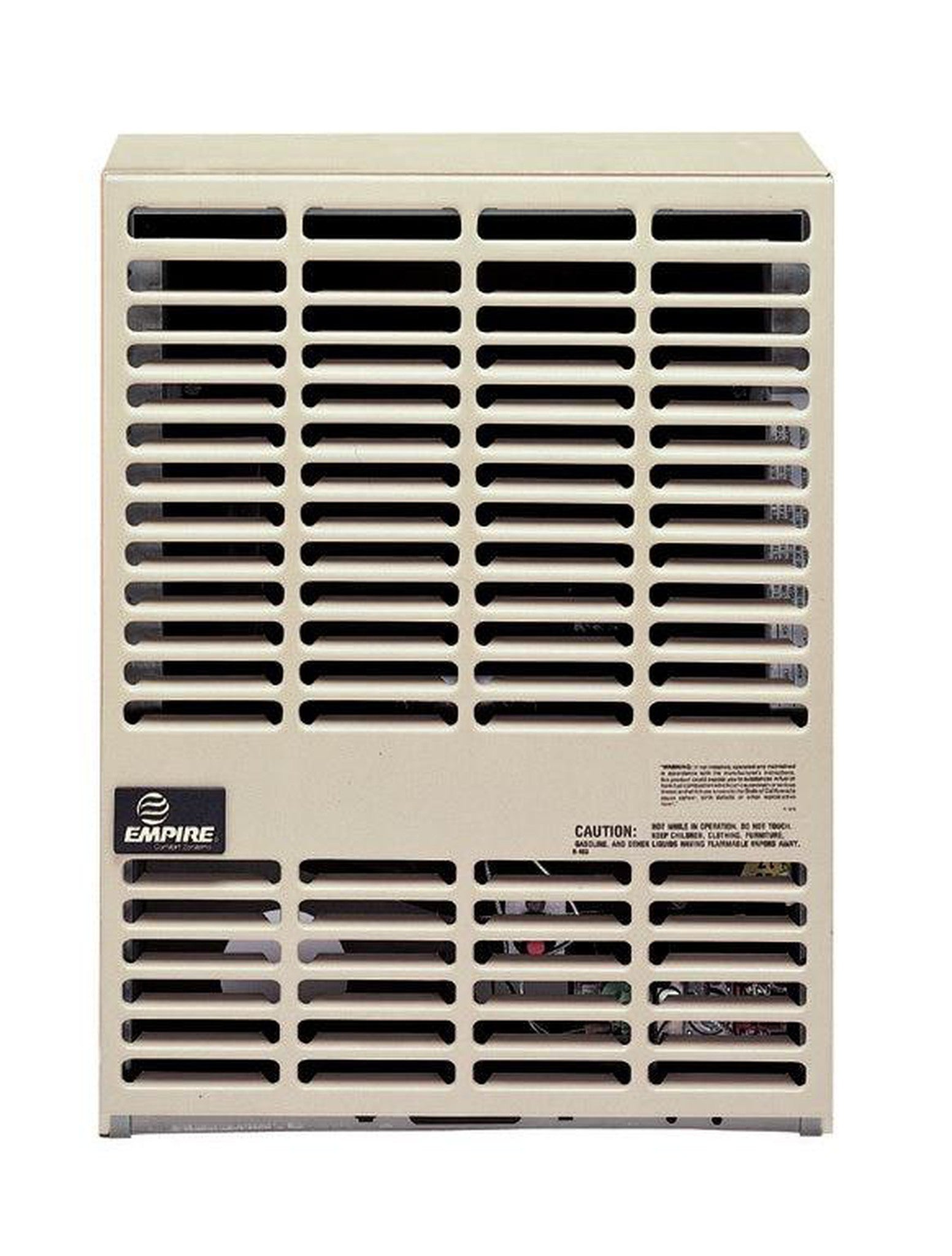

Empire 20" 15,000 BTU Beige Millivolt Control Without Thermostat, Natural Gas Direct Vent Wall Furnace
Empire 20" 15,000 BTU Beige Millivolt Control Without Thermostat, Natural Gas Direct Vent Wall Furnace
Automatic Blower
-- Please Select --
No, Thank You
Conversion Kit
-- Please Select --
No, Thank You
Venting Kits
Control Options
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Direct-Vent systems mount on an outside wall and have a vent-within-a-vent system to draw in outdoor air to support combustion and exhaust flue products to the outdoors. The vent cap installs on the outside wall of the home. Because they do not draw your already-heated room air to support combustion, Direct-Vent systems are among the most efficient of the vented heaters. A Direct-Vent system may be installed as your home’s primary heating system.
Whether you need to heat a single room or an entire home, Empire has Direct-Vent Furnaces to suit your needs. Specifically designed for areas where flues or chimneys are not available or cannot be used. Removable front panels for easy cleaning and servicing. Uses outside air to support combustion. Inside air is warmed as it recirculates around a sealed chamber. This warm air heats the room cleanly and efficiently.
Clean and cost-efficient comfort make DV215 the perfect heater to warm your smaller rooms. The slim, compact design allows the heater to tuck out of the way on an outside wall. Quiet burners, matchless piezo ignition, and all the safety features you expect from Empire Comfort Systems come standard.
Optional automatic blowers install easily for more even heat distribution. Ideal for bedrooms or studies, wall furnaces add comfort and beauty to any décor.
What's Included
- 20" 15,000 BTU Beige Millivolt Control Without Thermostat, Direct Vent Wall Furnace
- Standard Vent Kit Through Outside Wall
Not Included (Sold Separately)
- Blower Kit
- Slim Line Vent Kit
- Gas Conversion Kit
- Vinyl Siding Vent Kit
- Vent Extension Kit
-
Wall Thermostats
Features
- Made in USA
- Quiet operation
- Heats without electricity
- Ideal for bedrooms or studies
- Matchless Push button Piezo ignition
- Slim, compact cabinet mounts on an outside wall
- Cost-efficient installation – no chimney is needed
-
Total comfort for a fraction of the cost of electric heat
Specifications
Model | DV215SGXNAT |
Cabinet and Front Panel | Beige |
BTU Input | 15,000 |
Overall Dimensions |
Width | 20" |
Depth | 9" |
Height | 25" |
Shipping Weight | 60 lbs |
Control Options (Optional) |
Works with Manual, Toggle Switch, Thermostat, Wall Switch or Remote Control |
Minimum Clearances to Combustibles |
Top | 12" |
Each Side | 1" |
Bottom of Unit to Floor Covering | 0" |
Gas Inlet |
Type of Gas | Natural Gas |
Iron Pipe Size (N.P.T.) | 1/2" |
Wall to Valve Inlet | 6 3/16" |
Right Side to Valve Inlet | 6 7/8" |
Center of Vent to Valve Inlet | N/A |
Valve Inlet to Floor Covering | 2 11/16" |
Venting |
Wall Depth Minimum | 4 1/2" |
Wall Depth Maximum | 13" |
Vent Opening in Wall | 6 1/2" Dia. |
Center of Vent to Nearest Outside Corner of Building or Obstruction | 16" |
Center of Vent from any Opening through which Flue Gases Could Enter a Building | 9" |
Bottom of Vent above Grade | 12" |
Edge of Vent to Nearest Projecting Surface | 6" |
Vent Projection from Outside Wall | 4" |
Center of Flue to Floor Covering | 19 3/8" |
Safety Control |
Pilot and Main Burners include Automatic Shut-off |
Warranty
Combustion Chamber | 10-Year limited warranty |
All other parts | 1-Year limited warranty |
Documents & Files
Frequently Asked Questions
Does our product work during a power outage?
Yes, most of our appliances have the ability to be used in a power outage situation please see a local dealer for more information. |
What is the difference between, Millivolt and electronic ignition heaters?
Millivolt fireplaces use the electricity produced by a standing pilot to operate the fireplace. Electronic ignition fireplaces rely on a power source to power the fireplace, this can be house voltage as well as battery voltage. |
Can I use a Wi-Fi Thermostat with my unit?
Our units are designed to be operated by millivolts or low voltage, most Wi-Fi thermostats use 24volts and are not compatible. |
Where can I find my model and serial number?
There is a rating plate attached to the valve of your appliance that will have the model and serial number information. |
Can you tell me how old my unit is?
Once you locate your rating plate the serial number will help identify the age, the first two digits of the serial number denote the year of manufacture (21, 20, 19...) the next two digits identify the week of that year that the unit was built. |
