SKU:DGR32WNG
Dimplex DGR Series 25" Outdoor Wall Mounted Natural Gas Infrared Heater
Dimplex DGR Series 25" Outdoor Wall Mounted Natural Gas Infrared Heater
Optional Ceiling Mount Bracket
Low Clearance Heat Shield
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Outdoor patios are becoming more and more luxurious to homeowners and restaurant patrons. The Dimplex DGR series wall-mounted natural gas infrared heater is both durable and powerful – perfect for early spring and late summer. This heater will also save you space with wall or ceiling mounting available, allowing you freedom in furniture placement and design. All you need to do is extend your natural gas line in order to extend your patio season.
- Powerful, stylish and portable heat for outdoor areas
- Heat on demand - when and where you need it
- Durable stainless steel construction
- Advanced safety features including world class wind protection up to 9.9 Mph/16 km/hr.
*Also available in portable Freestanding Propane Gas Model
Product Details
|
MODEL NUMBER |
DGR32WNG |
|
NUMBER OF BURNERS |
4 CERAMIC TILES |
|
IGNITION TYPE |
Electronic finger pull with easy ON/OFF (AA Battery) |
|

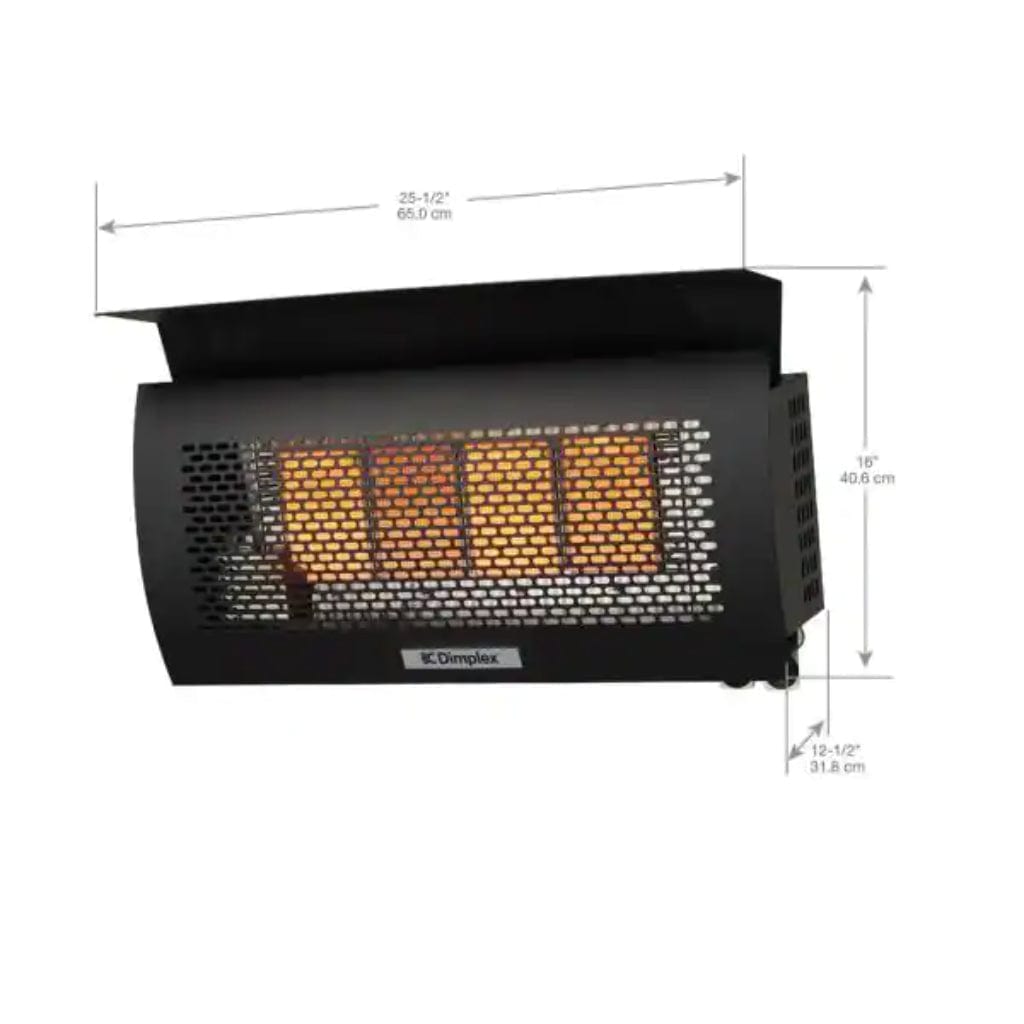

DIMENSIONS |
25.5” (W) x 12.5” (D) x 16” (H) |
|
HOSE CONNECTION |
5/8” – 18UNF (3/8” SAE) [Includes 12” hose and NG regulator] |
|
OVERHEAD CLEARANCE |
Protective grill and reflector guarantee safe operation and only a minimum 20” overhead clearance required |
|
WEIGHT |
25.35 lbs |
|
HEATING AREA |
172 sq. ft. |
|
GAS TYPE |
Natural Gas |
|
WIND PROTECTION |
16 km/hr |
|
HEAT OUTPUT |
31500 BTU |
|
MATERIALS OF CONSTRUCTION |
Stainless Steel (430SS) with high temperature paint coating. |
|
PRODUCT FINISH |
High Temp. Black Color Painted Stainless Steel 430 |
| HEAT TYPE | Radiant |
| BUILT-IN THERMOSTAT | No |
|
WARRANTY |
1 year |
Key Features and Benefits
Flexible Installation Options - Wall mount using the included bracket and select your desired angle, or suspend from the ceiling— direct heat where it is needed
Heat on Demand - Warm outdoor commercial and residential areas up to 172.2 sq. ft. (16 m2) with just one heater
Powerful heating - Commercial grade 4-tile ceramic burner produces 31,500 BTUs of heat
Innovative Design - No electricity or hard wiring required, works independently with a natural gas line
Superior Construction - Heater head is constructed of 430 stainless steel and coated with a high-temperature paint, the DGR offers world-class wind protection up to 9 mph (16 km/hr.)
Advanced Safety - Protective grille and reflector contain flames and keep the surrounding surfaces cool
Simple Operation - Electronic finger pull makes for safe, easy ignition and turn
Accessories
|
Optional Ceiling Mount BracketThe Dimplex Optional Ceiling Mount Pole for DGR Series Heaters offers you more options to set up your DGR series heater than ever before, allowing you to now mount it from the ceiling.
|
|
|
Low Clearance Heat ShieldDimplex DGRSHIELD Low clearance heat shield allows for 12" (30.5 cm) overhead clearance to your mounted heater and also offers an additional layer of protection between both you and the heater itself.
|
Downloads
-
Download Sellsheet X-DGR32WNG Infrared Heater
- Download Installation Manual -X-DGR32WNG Infrared Heater
