The most sophisticated patio heaters for the 21st century patio is here! What makes it the best? Simple..it works. It does what it is supposed to do: it keeps people on the patio or deck warm, no matter what! Producing gas-fired energy in the form of infrared waves, this heater warms the patio at the turn of a switch – performance which has been called one step shy of magic.  Create a warm, comfortable smoking area, increase your outdoor dining season by 70 percent, and look great doing it! Calcana Industries is in the business of heating outdoor dining and smoking areas allowing you to serve more customers and increase profits!

• Up to 75,000 BTU capacity with a fuel cost of less than 75 per hour
  Variable heat control from 50 to 100 percent capacity
• Heaters take up zero floor space
• Wall or ceiling mounting available, covered or uncovered applications

The PH Series has been specifically engineered to be an Outdoor People-Heater. This heater was developed to operate in practically any outside environment. Calcana Patented Variable output control, unique in the industry, ensures the proper comfort level under changing weather conditions.

Upscale residential patios and restaurant establishments provide the perfect setting for an alfresco dining experience. The PH Series enhances time spent outdoors by providing effective, comfortable warmth that almost has to be felt to be believed. The astonishing performance of the equipment under the harshest of conditions has surprised even the designers.

Calcana Standard Output Stainless Steel Gas Patio Heater is a sleek and sophisticated outdoor heater. Powered by propane or natural gas, this infrared heater can work at high altitudes and is not affected by the wind.

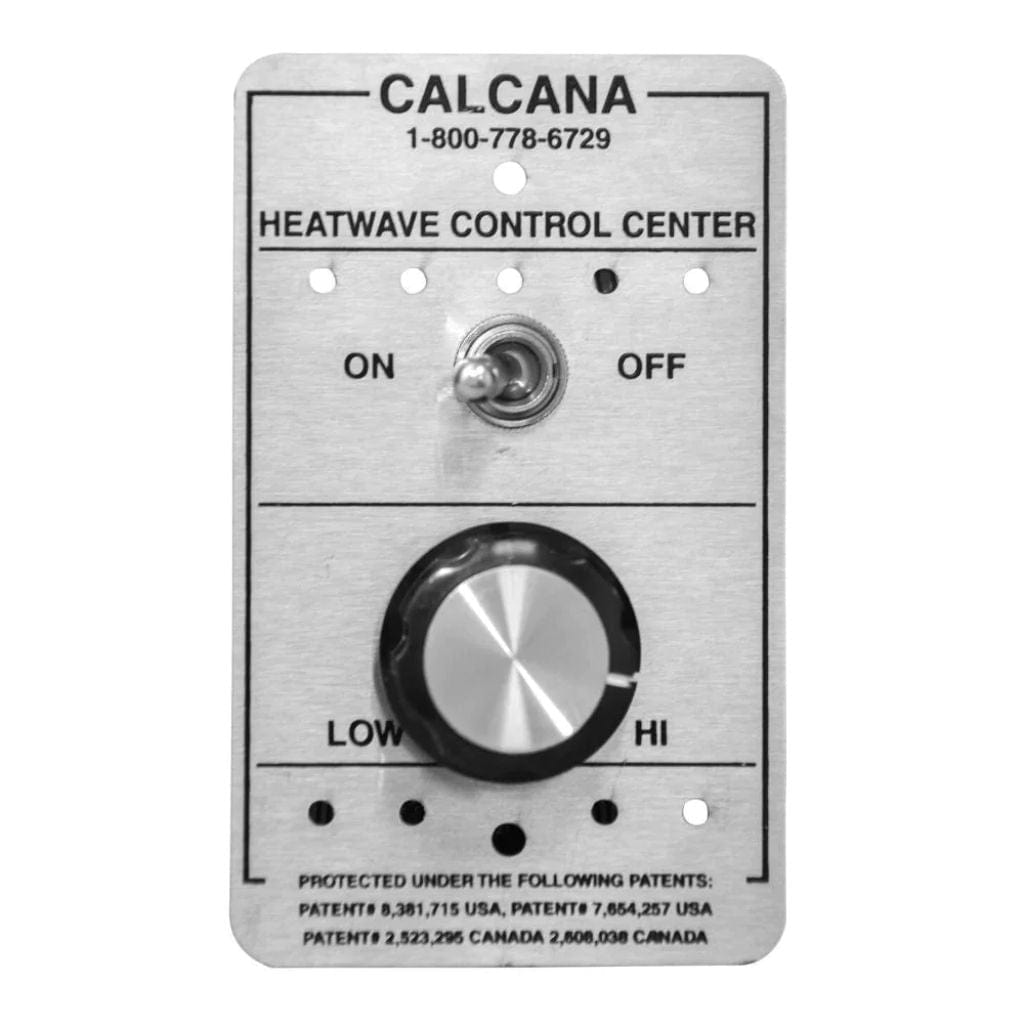

Available in sizes: 10', 15' and 10'. This commercial-grade stainless steel heater has a modulating control panel so you can set the heat just right for maximum comfort. The heating area varies according to the heater's length.

What's Included

• Patio Heater
• Pre-Assembled Burner Control Housing
• User's Manual

Not Included (Sold Separately)

• 90 degree elbow kit (PH50 & PH75 only)
• 180 degree U-Bend kit (PH75 only)
• Mounting Kit
• Gas Flex and Connector


Features

• Easy to operate, just flick the switch
• No pilot lights!
• Patented Variable heat settings
• Low clearance to combustible requirements
• Sleek, architectural design
• Various lengths and configurations available
• Available in natural gas or propane
• Inputs from 40,000 to 75,000 BTUs/Hr
• Heavy-duty construction, with anti-walk reflector design(will not shift or twist during expansion and contraction)
• 3-Try Direct Spark Ignition system, with 100% safety shut off
• Largest and heaviest gauge reflector in the industry
• 8-sided aluminum reflector
• Virtually maintenance free
• Certified to 40F weather conditions
• Wind/weather proof enclosed burner chamber
• Effective in snow/ice melt applications


Numerous applications include:

• Restaurant Patios
• Residential Patios / Decks
• Golf course / Driving ranges
• Night Club / Bar line-ups
• Ski Lift areas
• Doorman / Valet areas
• Smoking areas
• Swimming Pool / Hot Tub areas
• Anywhere people gather outside

Specifications

Manufacturer Trade Model Number	PH-75A-20
Dimensions - w, h, d	258 in. x 15 in. x 9 in.
Minimum Gas Consumption Btu/h	20,000
Maximum Gas Consumption Btu/h	75,000
Minimum Gas Inlet Pressure	11.5″ W.C.
Maximum Gas Inlet Pressure	14.0″ W.C.
Gas Pressure at Manifold	10.5″ W.C.
Gas Connection Size	0.5″ N.P.T.
Ignition System	DSI Ignition
Gas Type	Natural Gas

Dimensions

Side View
Plan View
