Bromic Platinum Smart-Heat 300 Series 22" Outdoor Natural Gas Patio Heater
Bromic Platinum Smart-Heat 300 Series 22" Outdoor Natural Gas Patio Heater
Wireless On/Off Controller
-- Please Select --
No, Thank You
Affinity Expansion Board
-- Please Select --
No, Thank You
Heat Deflector
-- Please Select --
No, Thank You
Ceiling Mount Pole
-- Please Select --
No, Thank You
Replacement/Spare Parts
-- Please Select --
No, Thank You
- Free Shipping on Orders Over $300
- Same-Day Order Processing
Elegant design without compromises. The Platinum Smart-Heat™ Gas heater series features a signature ceramic-glass screen that provides efficient and comforting even heat distribution across large areas. Available in both natural gas and propane fuel sources, two power outputs and a wide array of ceiling and wall mounting options.
Add style and warmth to your patio, with Bromic’s Platinum Gas range. This powerful heater combines elegant design with industry-leading technology. With its signature ceramic fascia in a sleek black finish, the Bromic Platinum Gas will not only look great on your wall or ceiling, but will also quickly project radiant heat deep into your outdoor area (up to 215ft2) while adding an extra layer of comfort with its soft red glow. The Platinum Gas series successfully overcomes winds of up to 12mph, keeping you and your guests warm in any condition.
What's Included
- Patio Heater
Not Included (Sold Separately)
- Wireless On/Off Controller
- Smart-Heat Link Home Automation
- Affinity Expansion Board
- Heat Deflector
- Ceiling Mount Pole
Features
Built with premium stainless-steel construction, complete with a sleek ceramic glass screen and a fully enclosed body, the Platinum Gas heater provides powerful heat distribution to outdoor spaces, even in areas with high winds!
- Built with premium stainless-steel construction, complete with a sleek ceramic glass screen and a fully enclosed body, the Platinum Gas heater provides powerful heat distribution to outdoor spaces, even in areas with high winds!

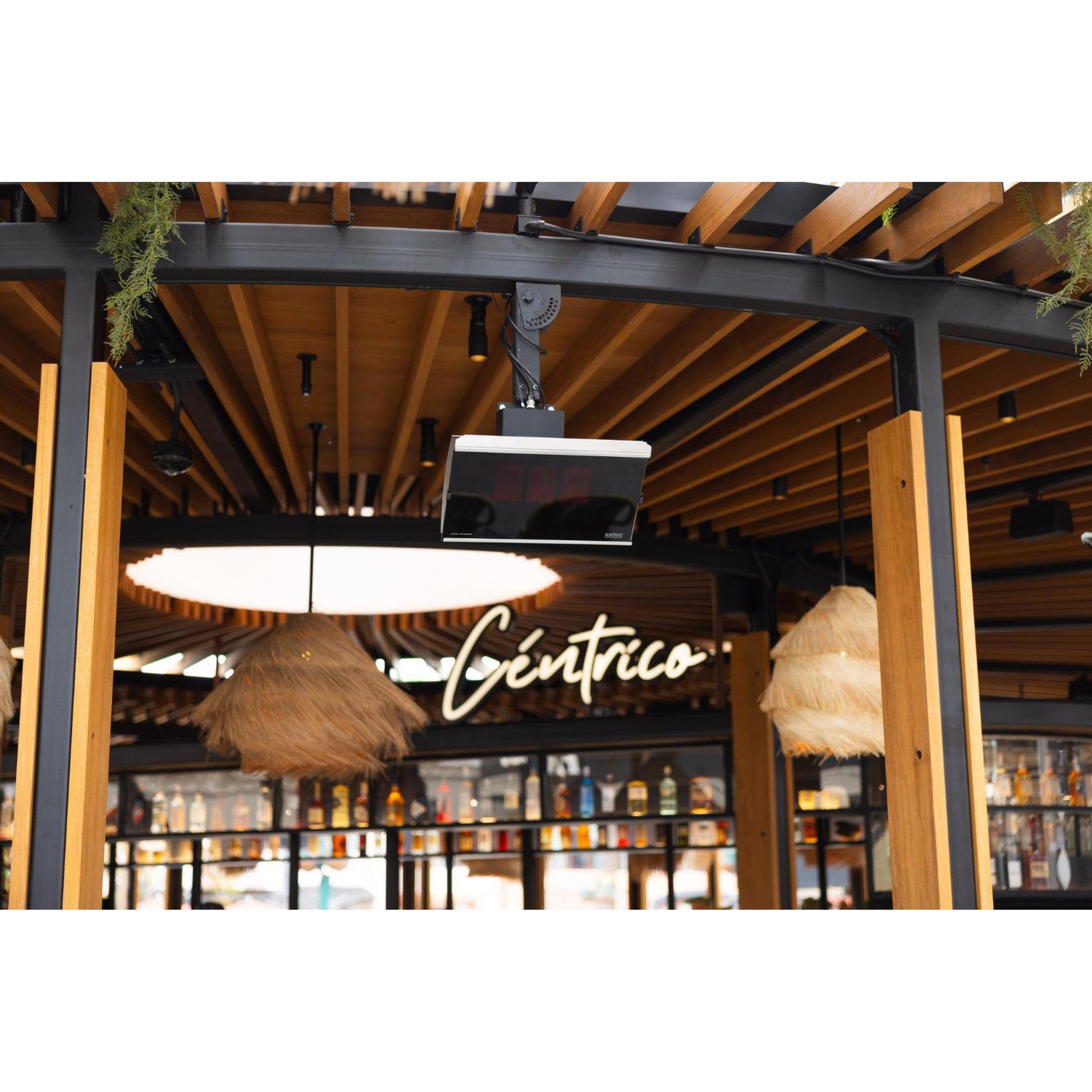

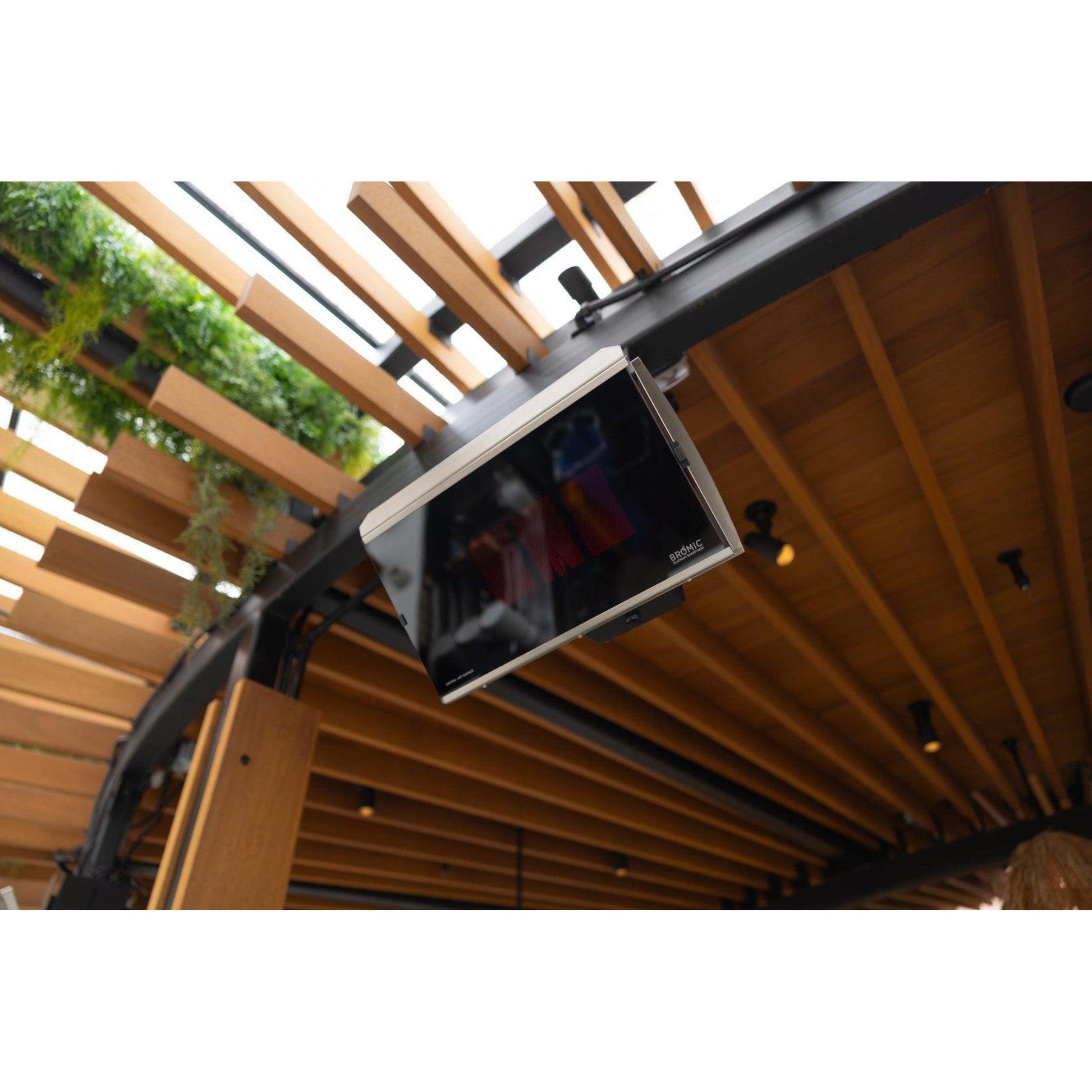

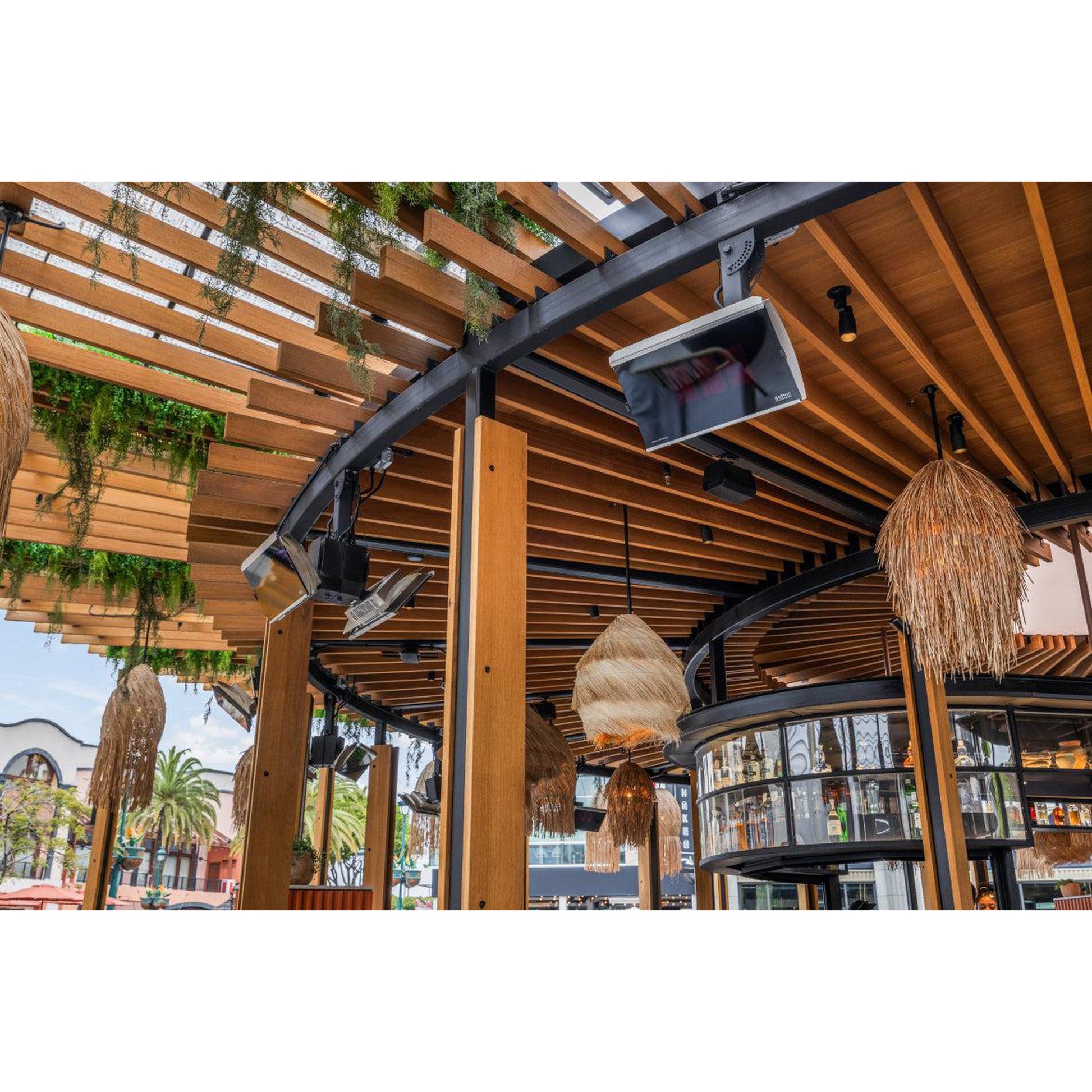

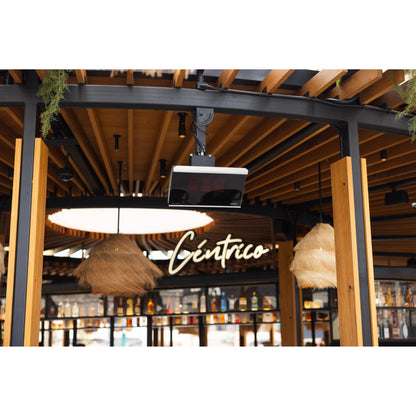

- Mounting Flexibility - Wall or ceiling mounted options
- Pivot Bracket - Allows for directional and efficient heat distribution
- Premium Construction - High performing stainless steel for long lasting and durable use
- Ultimate Wind Resistance - Innovative patented technology ensures reliable function in wind speeds up to 12 mph
- Unrivaled Coverage - Project comfort evenly across a wide expanse while reaching deeply into open areas
- Patented Direct Ignition System - Instantaneous ignition, whenever you require it, without the need for a pilot light
- Stylish Tinted Glass-Ceramic Fascia - Spread comforting heat evenly across a large area
- Environmental Efficiency - Slow-release ceramic burners are supremely efficient and the most environmentally sustainable gas-fired heating method available.
Specifications
Model |
Smart-Heat Platinum 300 Series |
Item Number |
BH0110001-1 |
Fuel Type | Natural Gas |
Output | 23,600 BTU |
Heat Area | 160 Sq.ft. |
Mounting Options | Ceiling Mount Wall Mount Ceiling Pole Mount |
Min. Floor Clearance | 96” |
Rated Current | 110V/2A |
Dimensions | 22.1” (W) x 16.6” (H) x 15.9” (D) |
Weight | 33 lbs. |
Approval Certification |
Intertek 4009079 |
Technical Dimensions

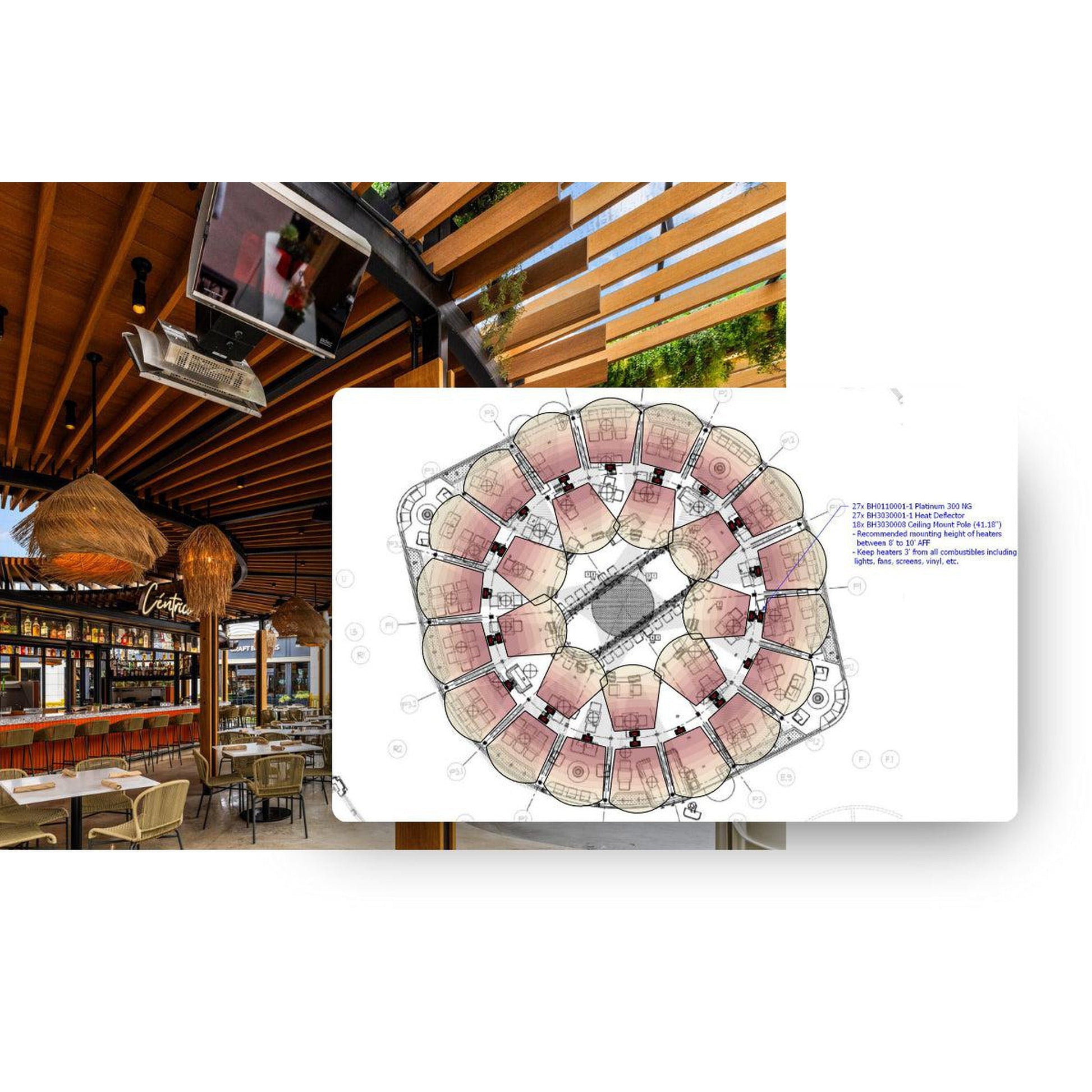

Heat Blooms
Clearances
Bromic Smart-Heating Switch Compatibility Chart
Warranty
Bromic Heating Warranty is applicable to the original owner only. In accordance with the warranty terms and conditions specified below. |
Bromic Heating or its agent (the warrantor) will furnish the original owner for both commercial and residential applications;
- a replacement Bromic Heating heater or
- a replacement part for any component part which fails.
Platinum Electric | 1 Year Parts |
Platinum Electric Marine | 5 Year Parts (5 year warranty is for land based applications only does not cover installations on marine vessels) |
Platinum Gas | 1 Year Parts |
Tungsten Series | 1 Year Parts (7 Years on Elements) |
Tungsten Portable | 1 Year Parts |
Eclipse Series | 1 Year Parts |
Controllers | 1 Year Parts |
Service and Labor Responsibility
Under this limited warranty, the warrantor will provide only a replacement heater or part thereof. The owner is responsible for all other costs.
Such costs may include, but are not limited to:
- Labor charges for service, removal, or reinstallation of the heater or part thereof.
- Shipping and delivery charges for forwarding the new heater or replacement part from the nearest distributor and returning the claimed defective heater or part to such distributor.
- All cost necessary or incidental for handling and administrative charges and for any materials and/or permits required for installation of the replacement heater or part.
IMPORTANT: Bromic Heaters must be installed by a licensed technician. Installation attempted by a non-authorized agent/technician will void the warranty.
Documents & Files
-
Bromic Full Product Catalog
-
Platinum Collection Guide
-
Platinum Gas Specifications Guide
-
3-Part Specification Guide
- Installation Manual
Frequently Asked Questions
What is supplied with the mounted gas heaters?All our Smart-Heat gas heaters come with wall mount brackets. Ceiling poles, deflectors and controllers can be purchased as additional accessories. |
Can I install the heater myself?No, our Bromic Smart-Heat gas heaters need to be installed by a licensed technician. |
Do the gas heaters require an electrical supply?Yes, these heaters have an electric ignition which requires an electrical supply. |
How can I control the heater?We recommend adding the Bromic On/Off controller and wireless remote, so the heater can be turned off and on from the comfort of your home. Alternatively, the heater can also be controlled via a standard wall switch. |
Can I adjust the heat output on the gas heaters?Our gas heaters are on/off only. If you’re looking for a dimmable option, the we would recommend our Bromic electric heaters, which allow for more precise control over the heat output. |
Is the heater supplied with a heat deflector?No. Heat deflectors are available as an additional accessory. |
Does the heater come with a cover?No, we do not offer cover for our fixed installed heaters as these present a fire-hazard as there is a risk the heater might get accidentally switched on with the cover on. |
Can this heater be connected to a smart home or building automation system?Yes, the heater can be connected to smart home and building technology, provided the system has been fitted with a RS232 port. For this, you require our On/Off Controller and our Bromic Smart-Heat Link RS232 plugin. |
How many Platinum gas heaters do I need?The number of Platinum gas heaters needed depends entirely on the size and layout of the space, as well as the size and wattage of the heaters you are installing. |
Propane vs. natural gas: which is better?The choice between a natural gas and electric outdoor heating depends on your specific needs and accessibility to fuel source. Not sure how to select which option is right for your space? Check our Comparative Fuel Guide below. Running costs will vary per model and power output (wattage for electric and BTU for gas). In general, natural gas tends to be the cheapest way to heat a patio, followed by electric and then propane. Below is an estimate on how much it would cost to heat a 400ft2 patio with Bromic’s range of patio heaters. Still unsure on whether to choose gas or electric patio heaters? Head over to our complimentary design service page and one of our heating experts will be able to advise you on the ideal solutions for your project. |
Do Platinum gas heaters need ventilation?Bromic’s Platinum Gas heater does require ventilation as potentially harmful biproducts are released in the air. Please refer to the corresponding Installation Manual to ensure proper clearances are met for safe operation. |
Are Platinum gas heaters weather resistant?Yes, Bromic’s Platinum Collection of outdoor heaters are designed to be weather resistant. Constructed from 304-grade stainless steel with a fully sealed heater body to protect internal elements, this outdoor ceramic heater is IP certified for outdoor use, making them durable and reliable, even in various weather conditions. It is important to install these heaters under coverings to protect from the elements and conduct regular maintenance for longevity of use. |
Can I leave Platinum gas heaters on all night?While Bromic’s Platinum Collection heaters, including their Platinum Gas ceramic heater for outside, are designed for extended outdoor use, it is generally not recommended to leave any outdoor heater on overnight for safety reasons. We recommend turning off the Platinum heaters, including the ceramic heater for outside, when not in use and following the installation manuals for safe operation and maintenance. Afraid you will forget? Check out Bromic’s control options for added piece of mind. |
What are the clearance requirements for Platinum gas heaters?Consult the product installation manuals for specific clearance requirements, as these guidelines are crucial for safe and efficient operation. Generally, proper clearances are necessary to prevent hazards, ensure safety, and maintain the longevity of the heaters. |
General FAQs
What’s better? Electric or Gas?There are multiple benefits to each of these power sources. Ultimately, it’ll depend on the space that needs to be heated and what existing power sources are available. |
What is radiant heat?Radiant heat works like the sun. Instead of heating the air around you, it heats people and objects. This makes radiant heat a more effective heating source, as it is less likely to be affected by the wind. |
Can the Bromic propane free-standing heaters be converted from propane to natural gas?Yes. We do offer a conversion kit that allows the heater to be hooked up to a natural gas line. |
What kind of gas tank can be used with the heater??The Bromic Tungsten Portable can hold a standard 5 gallon propane tank or a 10 gallon propane tank. |
What’s the difference between the Tungsten and Platinum collections?There are a number of differences. First and foremost, they differ in their designs. While our Tungsten collection features a honeycomb mesh in front of the heat panels, our Platinum series is covered by a ceramic glass screen that is encased in a stainless-steel frame. The electric heaters in the collections also differ in the heat output. Our Tungsten series comes in 2000, 3000, 4000 and 6000W, while our Platinum Electric heaters are available in 2300 and 3400W. |
Do the heaters come with a controller?Besides the Eclipse Portable heater, the heaters do not come with a controller as everyone has different preferences when it comes to how they want to control their heater. Bromic offers a variety of controls options, which can be purchased as an additional accessory. |
How can I control the heaters?We offer various options to control your heater. Depending on the model, you can choose between simple on/off controls or dimmer controls (electric heaters only). We also offer a master remote to control groups of heaters. |
Can the heaters be paired with automatic controls such as timers and thermostats?Yes, this is possible via a home or building automation system. We offer the Bromic Smart-Heat Link, which can connect to a building automation system via RS232 plugin. |
Can I use my home automation system with Bromic heaters?Bromic outdoor heaters can be linked to any home automation device that offers a RS232 communication connection. Many home automation systems will offer a RS232 port either as standard or as a retrofit option. |
What do I need to connect my Bromic outdoor heater to my home automation system?You choose how you wish to control your heater. You can pair any combination and number of Bromic On/Off and/or Dimmer controls together with one Bromic Smart-Heat Link. |
My heater shows signs of rust. Is this covered under the warranty?While all our heaters have a corrosion-resistant base material or paint, it remains the owners responsibility to periodically clean the heaters to maintain the high level finish. We also recommend using our Platinum Marine heating series for coastal conditions which provides additional corrosion resistance. |
Are Bromic Heaters weatherproof?Bromic Heaters are weather resistant, but not water proof. They can be exposed to the elements, but as with any outdoor product, the better the care, the longer the life. |
Can I install the fixed mounted heaters myself?No, all the fixed mounted heaters must be installed by a licensed technician. |
How do I know if I need the 208V or 220-240V electric heater version?In North America, the terms 220V, 230V, and 240V all refer to the same system voltage level. It’s primarily reserved for use in residential buildings and comes from a single phase system. A 240V service is accomplished by using two “hot” 120V standard lines. Most large electric appliances likes cook stoves, hot water heaters, and some other home appliances require this voltage. 208V, on the other hand, is from a 3 phase system and primarily found in commercial applications. |
