SKU:OB48MAPT

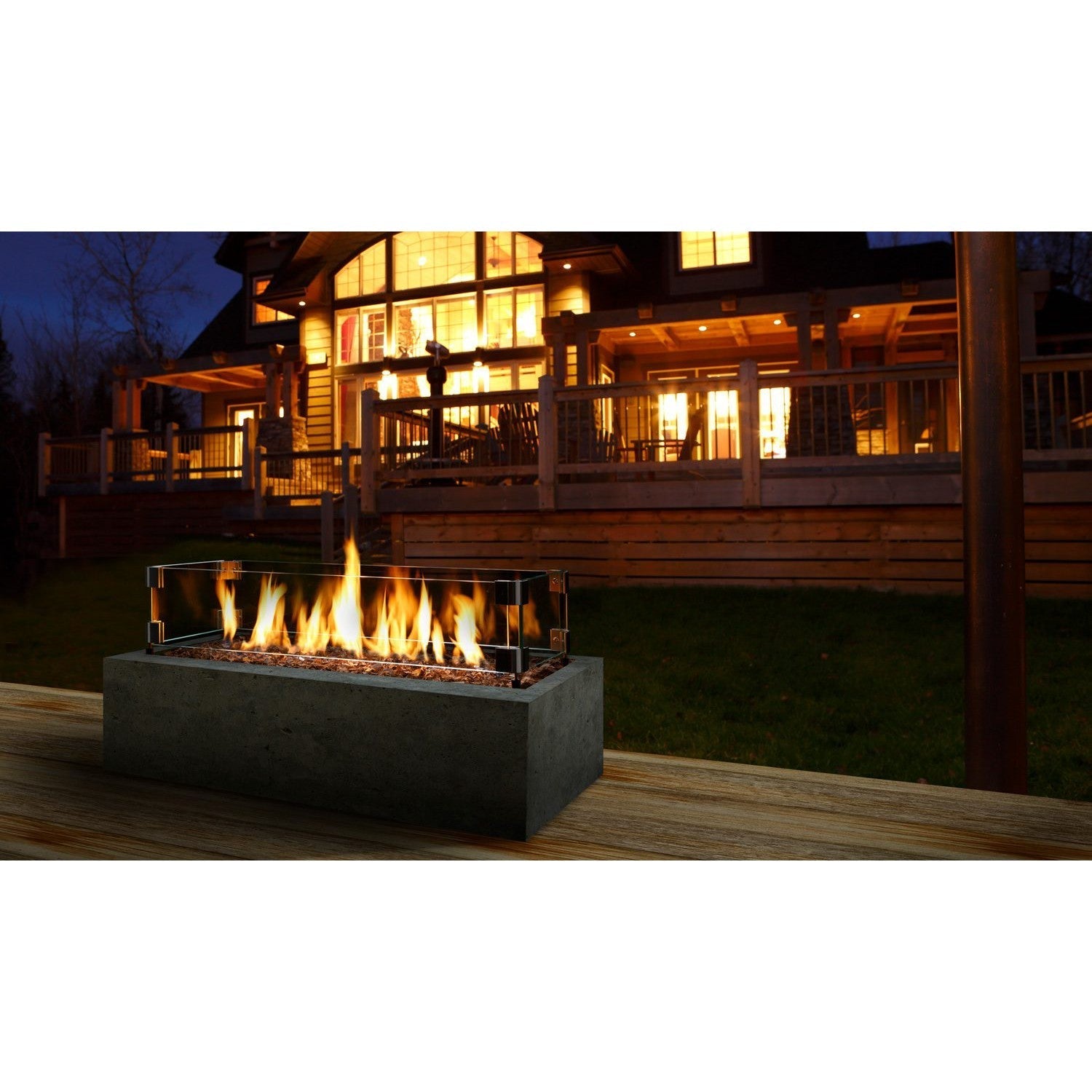

Barbara Jean Collection by Kingsman 48" OB48 Outdoor Linear Gas Fireplace Burner

Name: Barbara Jean Collection by Kingsman 48" OB48 Outdoor Linear Gas Fireplace Burner
Brand: Kingsman
SKU: OB48MAPT
Price: 833.0 USD
Availability: InStock

$833.00

~~$1,000.00~~ $833.00

Sale Sold out

Shipping calculated at checkout.

Valve Type/Fuel Type Manual-Propane Millivolt-Natural Gas IPI P2-Natural Gas

Product variants

Decorative Glass Media

Required to Complete Unit

1/2" Glass Media (20 lb) - Cobalt Blue

1/2" Glass Media (20 lb) - Black

1/2" Glass Media (20 lb) - Bronze

1/2" Glass Media (20 lb) - White

1/2" Glass Media (20 lb) - Glacier Ice

Wind Guards (Required)

Decorative Log Set

Decorative Rock Set

Assorted Cannonballs

Decorative Stones Media Kit

Black and Grey Remote Millivolt (On/Off)

Spark Assist for Millivolt Valve

Conversion Kit to Propane Millivolt

Conversion Kit To Propane IPI P2

Universal Valve Bracket Mount

Burner Lid

Regulator and 5FT Hose

Free Shipping on Orders Over $300
Same-Day Order Processing

Outdoor Gas Burner Systems

Completely flexible, the Linear Outdoor Burner is the perfect project for do-it-yourselfers. Five sizes available (24", 36", 48", 72", 96”) and for longer lengths simply link them together to create your own custom size!

Plus, adding decorative glass, cannonballs and wind guard options ensure you create the look you want. When you have achieved your desired look, invite family and friends to gather around for a perfect get together outdoors.

This fireplace burner is perfect for your outdoor space, generating up to 80,000 BTUs and being ANSI- and CSA-certified. Enjoy the ultimate outdoor fireplace experience with this quality product from Kingsman.

All burners are manufactured with Satin Coat steel with a high temperature black paint finish. Satin Coat steel is pretreated with a Zinc coating for corrosion resistance and paint adhesion.

Millivolt valve control

Product Dimensions: 7 1/2” W x 2" H x 50" L (OB48MVN)
Maximum BTU:80,000
Millivolt valve control
48 Inch Outdoor Linear Fireplace Burner
Certified for USA and Canada to ANSI Z21.97-2014, CSA 2.41-2014
Converts to use liquid propane with the 48OB-CKLP fuel conversion kit

Manual valve control

Product Dimensions: 7 1/2” W x 2" H x 50" L (OB48MAP)
Maximum BTU:80,000
Manual valve control
48 Inch Outdoor Linear Fireplace Burner
Includes a conversion orifice for natural gas
Burner comes ready for use with liquid propane
Certified for USA and Canada to ANSI Z21.97-2014, CSA 2.41-2014

IPI P2 Valve control

Product Dimensions: 7 1/2” W x 2" H x 50" L (OB48IPN)
Maximum BTU:80,000
Millivolt valve control
48 Inch Outdoor Linear Fireplace Burner
Certified for USA and Canada to ANSI Z21.97-2014, CSA 2.41-2014
Converts to use liquid propane with the 48OB‐CKLP2 fuel conversion kit

IPI Proflame 2 will be offered in our Outdoor Linear burners, models OB48” this will include LED lighting and remote control.

*Please Note: This is a burner system only. A customer supplied or separately purchased table or enclosure is needed to house this burner system.

Product Specification

Model	OB48MAP	OB48MVN	OB48IPN
Valve	Manual	Millivolt	IPI Proflame 2
Fuel	Propane	Natural Gas	Natural Gas
Input	80,000 BTU	80,000 BTU	80,000 BTU
Size	7 1/2” W x 2" H x 50" L	7 1/2” W x 2" H x 50" L	7 1/2” W x 2" H x 50" L
Conversion Kit	NG Orifice Conversion Kit (included)	48OB-CKLP Conversion Kit to Propane Millivolt (optional)	48OB‐CKLP2 Conversion Kit to Propane Millivolt (optional)

*Note: LP Manual (MAP) Valve systems are shipped with accompanying orifice for NG Conversion and Millivolt/IPI P2 systems are shipped as NG systems (MVN) and require a conversion kit for LP Conversion.

Dimensions

CA Residents: See Prop 65 WARNING

Optional Accessories

Decorative Glass Media (Required to Complete Unit)

	1/2" Cobalt Blue Kingsman (Barbara Jean) 1/2" Cobalt Blue Fireplace Glass Media - 20 lb Kit Color: Cobalt Contains 20 pounds of 1/2" Cobalt Blue Glass Media Designed for use in Kingsman outdoor fireplaces and burners
	1/2" Black Kingsman (Barbara Jean) 1/2" Black Fireplace Glass Media - 20 lb Kit Color: Black Contains 20 pounds of 1/2" Black Glass Media Designed for use in Kingsman outdoor fireplaces and burners
	1/2" Bronze Kingsman (Barbara Jean) 1/2" Bronze Fireplace Glass Media - 20 lb Kit Color: Bronze Contains 20 pounds of 1/2" Bronze Glass Media Designed for use in Kingsman outdoor fireplaces and burners
	1/2" White Kingsman (Barbara Jean) 1/2" White Fireplace Glass Media - 20 lb Kit Color: White Contains 20 pounds of 1/2" White Glass Media Designed for use in Kingsman outdoor fireplaces and burners
	1/2" Zircon Glacier Ice Kingsman (Barbara Jean) 1/2" ZIRCON Glacier Ice Fireplace Glass Media - 20 lb Kit Color: Glacier Ice Contains 20 pounds of 1/2" Glacier Ice Glass Media Designed for use in Kingsman outdoor fireplaces and burners

Wind Guards (Required)

Wind Guard

Product Dimensions: 7 1/2” W x 5 1/2" H x 50” L
48 Inch glass windguard for outdoor linear fireplace burners
4 piece set including 4 glass panes with stainless steel edge connectors
Designed for use with 48 inch Kingsman linear outdoor burners

Burner Lid

Burner Lid for 48" ‐ Black

Protects your fire pit burner and fire glass when not in use
Designed to cover 48-inch linear drop-in or flat pan
Burner lid measures 48-inch

Decorative Log Set

Drift Wood Log Set (3 pc)

3 Piece Fiber Drift Wood Gas Log Set
Highly detailed five piece log set mimics the look of real driftwood
Designed to be paired with decorative fireplace glass media

Drift Wood Log Set (5 pc)

5 Piece Fiber Drift Wood Gas Log Set
Highly detailed five piece log set mimics the look of real driftwood
Designed to be paired with decorative fireplace glass media

Decorative Rock Set

	Multi-Colored Rock Set Color: Multicolored Adds a rustic beauty to any Barbara Jean collection outdoor gas fireplace Various colored stones for variety
	Natural Rock Set Color: Natural Adds a rustic beauty to any Barbara Jean collection outdoor gas fireplace

Assorted Cannonballs

Assorted Cannonballs (14 pc)

Color: Various Colors
Unique design alternative to glass media
Design for Kingsman fireplaces and stoves
Can be used with glass media accents

Decorative Stones Media Kit

	Decorative Stones (80 pc) Color: Multicolored Adds a rustic beauty to any Barbara Jean collection outdoor gas fireplace Various colored stones for variety Kit of 80 colored stones
	Decorative Stones (10 pc) Color: Multicolored Adds a rustic beauty to any Barbara Jean collection outdoor gas fireplace Various colored stones for variety Kit of 10 colored stones

Remote Millivolt

Black and Grey Remote Millivolt (On/Off)

Simple on/off operation for millivolt appliances
Allows for the operation of the appliance without manual control
Included receiver easily mounts within the appliance chassis
Reliable RF transmitter operation

Spark Assist (AA Battery not included)

Spark Assist for Millivolt Valve

Accessory Type: Piezo Ignitor
Designed to ease lighting of outdoor fireplaces
AA battery operated
Designed specifically for OFP42 series fireplaces

Universal Valve Bracket Mount

Universal Gas Valve Bracket Mount for Custom Fireplace Valves

Universal valve bracket mount
Allows mounting of various styles of control valves

Conversion Kit

Conversion Kit to Propane Millivolt

Complete with conversion instructions
Go from Natural Gas to Liquid Propane
Fuel conversion kit for Kingsman units with millivolt controls
Includes all necessary gas valve and pilot assembly conversion components
Converts Kingsman/Barbara Jean OB48 series natural gas burners and OFP5548 fireplaces to propane

Conversion Kit to Propane IPI P2

Complete with conversion instructions
Go from Natural Gas to Liquid Propane
Fuel conversion kit for Kingsman units with IPI P2 controls
Includes all necessary gas valve and pilot assembly conversion components
Converts Kingsman/Barbara Jean IPI P2 OB48 series natural gas burners and OFP5548 fireplaces to propane

Regulator and 5FT Hose

Regulator and 5FT Hose

Used if converting MV NG to Propane
Fiber reinforced rubber hose
CSA certified
