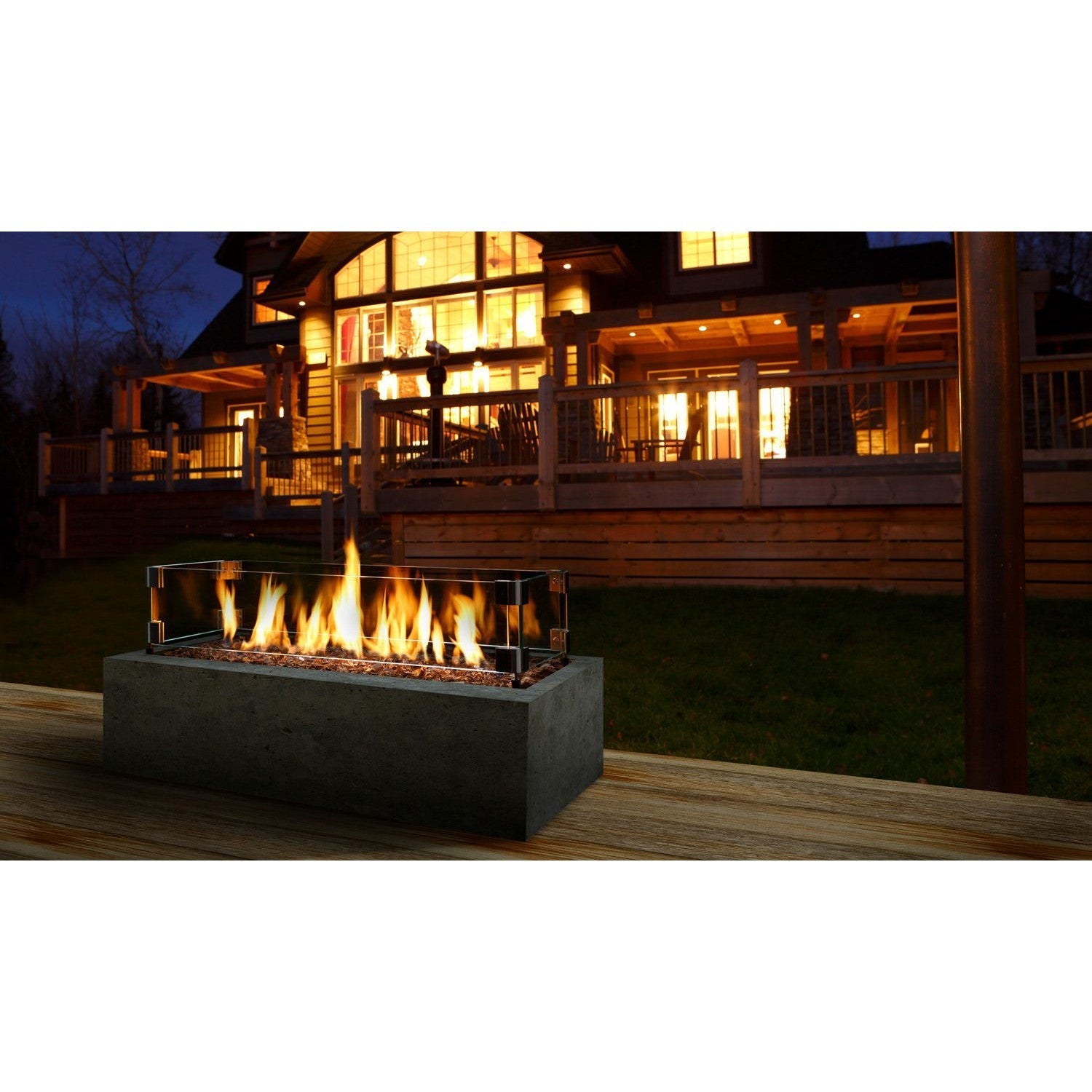

Barbara Jean Collection by Kingsman 24" OB24 Outdoor Linear Gas Fireplace Burner

Barbara Jean Collection by Kingsman 24" OB24 Outdoor Linear Gas Fireplace Burner

Regular price $721.00
Regular price $866.00 Sale price $721.00
Sale Sold out
Shipping calculated at checkout.
Valve Type/Fuel Type

Decorative Glass Media

Required to Complete Unit

1/2" Glass Media (10 lb) - Cobalt Blue
1/2" Glass Media (10 lb) - Black
1/2" Glass Media (10 lb) - Bronze
1/2" Glass Media (10 lb) - White
1/2" Glass Media (10 lb) - Glacier Ice

Wind Guards (Required)

-- Please Select --

No, Thank You

Decorative Log Set

-- Please Select --

No, Thank You

Decorative Rock Set

-- Please Select --

No, Thank You

Assorted Cannonballs

-- Please Select --

No, Thank You

Decorative Stones Media Kit

-- Please Select --

No, Thank You

Black and Grey Remote Millivolt (On/Off)

-- Please Select --

No, Thank You

Spark Assist for Millivolt Valve

-- Please Select --

No, Thank You

Conversion Kit to Propane Millivolt

-- Please Select --

No, Thank You

Conversion Kit To Propane IPI P2

-- Please Select --

No, Thank You

Universal Valve Bracket Mount

-- Please Select --

No, Thank You

Burner Lid

-- Please Select --

No, Thank You

Regulator and 5FT Hose

-- Please Select --

No, Thank You

  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

Outdoor Gas Burner Systems

Completely flexible, the Linear Outdoor Burner is the perfect project for do-it-yourselfers. Five sizes available (24", 36", 48", 72", 96”) and for longer lengths simply link them together to create your own custom size!

Plus, adding decorative glass, cannonballs and wind guard options ensure you create the look you want. When you have achieved your desired look, invite family and friends to gather around for a perfect get together outdoors.

This fireplace burner is perfect for your outdoor space, generating up to 40,000 BTUs and being ANSI- and CSA-certified. Enjoy the ultimate outdoor fireplace experience with this quality product from Kingsman.

All burners are manufactured with Satin Coat steel with a high temperature black paint finish. Satin Coat steel is pretreated with a Zinc coating for corrosion resistance and paint adhesion.

Millivolt valve control

  • Product Dimensions: 7 1/2” W x 2" H x 26” L (OB24MVN)
  • Maximum BTU:40,000
  • 24 Inch Outdoor Linear Fireplace Burner
  • Certified for USA and Canada to ANSI Z21.97-2014, CSA 2.41-2014
  • Converts to use liquid propane with the optional 24OB-CKLP fuel conversion kit

Manual valve control

  • Product Dimensions: 7 1/2” W x 2" H x 26” L (OB24MAP)
  • Maximum BTU:40,000
  • 24 Inch Outdoor Linear Fireplace Burner
  • Includes a conversion orifice for natural gas
  • Burner comes ready for use with liquid propane
  • Certified for USA and Canada to ANSI Z21.97-2014, CSA 2.41-2014

IPI P2 Valve control

  • Product Dimensions: 7 1/2” W x 2" H x 26” L (OB24IPN)
  • Maximum BTU:40,000
  • 24 Inch Outdoor Linear Fireplace Burner
  • Certified for USA and Canada to ANSI Z21.97-2014, CSA 2.41-2014
  • Converts to use liquid propane with the optional 24OB‐CKLP2 fuel conversion kit

IPI Proflame 2 will be offered in our Outdoor Linear burners, models OB24” this will include LED lighting and remote control.

*Please Note: This is a burner system only. A customer supplied or separately purchased table or enclosure is needed to house this burner system.

Product Specification

 Model OB24MAP OB24MVN OB24IPN
 Valve Manual Millivolt IPI Proflame 2
 Fuel Propane Natural Gas Natural Gas
 Input 40,000 BTU 40,000 BTU 40,000 BTU
 Size 26”L x 7 1/2”W 26”L x 7 1/2”W 26”L x 7 1/2”W
Conversion Kit NG Orifice Conversion Kit (included) 24OB-CKLP Conversion Kit to Propane Millivolt (optional) 24OB‐CKLP2 Conversion Kit to Propane Millivolt (optional)


*Note:
LP Manual (MAP) Valve systems are shipped with accompanying orifice for  NG Conversion and Millivolt/IPI P2 systems are shipped as NG systems (MVN) and require a conversion kit for LP Conversion.

 Dimensions




CA Residents: See Prop 65 WARNING

Optional Accessories

 Decorative Glass Media (Required to Complete Unit)

1/2" Cobalt Blue

  • Kingsman (Barbara Jean) 1/2" Cobalt Blue Fireplace Glass Media - 10 lb Kit
  • Color: Cobalt
  • Contains 10 pounds of 1/2" Cobalt Blue Glass Media
  • Designed for use in Kingsman outdoor fireplaces and burners

    1/2" Black

    • Kingsman (Barbara Jean) 1/2" Black Fireplace Glass Media - 10 lb Kit
    • Color: Black
    • Contains 10 pounds of 1/2" Black Glass Media
    • Designed for use in Kingsman outdoor fireplaces and burners

    1/2" Bronze

    • Kingsman (Barbara Jean) 1/2" Bronze Fireplace Glass Media - 10 lb Kit
    • Color: Bronze
    • Contains 10 pounds of 1/2" Bronze Glass Media
    • Designed for use in Kingsman outdoor fireplaces and burners

    1/2" White

    • Kingsman (Barbara Jean)  1/2" White Fireplace Glass Media - 10 lb Kit
    • Color: White
    • Contains 10 pounds of 1/2" White Glass Media
    • Designed for use in Kingsman outdoor fireplaces and burners

    1/2" Zircon Glacier Ice

    • Kingsman (Barbara Jean) 1/2" ZIRCON Glacier Ice Fireplace Glass Media - 10 lb Kit
    • Color: Glacier Ice
    • Contains 10 pounds of 1/2" Glacier Ice Glass Media
    • Designed for use in Kingsman outdoor fireplaces and burners


     Wind Guards (Required)

    Wind Guard
    • Product Dimensions: 7 1/2” W x 5 1/2" H x 26” L
    • 24 Inch glass windguard for outdoor linear fireplace burners
    • 4 piece set including 4 glass panes with stainless steel edge connectors
    • Designed for use with 24 inch Kingsman linear outdoor burners


    Burner Lid



    Burner Lid for 36" ‐ Black

    • Protects your fire pit burner and fire glass when not in use
    • Designed to cover 24-inch linear drop-in or flat pan
    • Burner lid measures 24-inch


    Decorative Log Set

    Drift Wood Log Set (3 pc)

    • 3 Piece Fiber Drift Wood Gas Log Set
    • Highly detailed five piece log set mimics the look of real driftwood
    • Designed to be paired with decorative fireplace glass media

    Drift Wood Log Set (5 pc)

    • 5 Piece Fiber Drift Wood Gas Log Set
    • Highly detailed five piece log set mimics the look of real driftwood
    • Designed to be paired with decorative fireplace glass media


    Decorative Rock Set

    Multi-Colored Rock Set
    • Color: Multicolored
    • Adds a rustic beauty to any Barbara Jean collection outdoor gas fireplace
    • Various colored stones for variety
    Natural Rock Set
    • Color: Natural
    • Adds a rustic beauty to any Barbara Jean collection outdoor gas fireplace


    Assorted Cannonballs

    Assorted Cannonballs (14 pc)
    • Color: Various Colors
    • Unique design alternative to glass media
    • Design for Kingsman fireplaces and stoves
    • Can be used with glass media accents


    Decorative Stones Media Kit

    Decorative Stones (80 pc)
    • Color: Multicolored
    • Adds a rustic beauty to any Barbara Jean collection outdoor gas fireplace
    • Various colored stones for variety
    • Kit of 80 colored stones
    Decorative Stones (10 pc)
    • Color: Multicolored
    • Adds a rustic beauty to any Barbara Jean collection outdoor gas fireplace
    • Various colored stones for variety
    • Kit of 10 colored stones


    Remote Millivolt

    Black and Grey Remote Millivolt (On/Off)
    • Simple on/off operation for millivolt appliances
    • Allows for the operation of the appliance without manual control
    • Included receiver easily mounts within the appliance chassis
    • Reliable RF transmitter operation


    Spark Assist (AA Battery not included)

    Spark Assist for Millivolt Valve
    • Accessory Type: Piezo Ignitor
    • Designed to ease lighting of outdoor fireplaces
    • AA battery operated
    • Designed specifically for OFP42 series fireplaces


    Universal Valve Bracket
    Mount

    Universal Gas Valve Bracket Mount for Custom Fireplace Valves

    • Universal valve bracket mount
    • Allows mounting of various styles of control valves

    Conversion Kit

    Conversion Kit to Propane Millivolt
    • Complete with conversion instructions
    • Go from Natural Gas to Liquid Propane
    • Fuel conversion kit for Kingsman units with millivolt controls
    • Includes all necessary gas valve and pilot assembly conversion components
    • Converts Kingsman/Barbara Jean OB24 series natural gas burners to propane

      Conversion Kit to Propane IPI P2

      • Complete with conversion instructions
      • Go from Natural Gas to Liquid Propane
      • Fuel conversion kit for Kingsman units with IPI P2 controls
      • Includes all necessary gas valve and pilot assembly conversion components
      • Converts Kingsman/Barbara Jean IPI P2 OB24 series natural gas burners to propane


      Regulator and 5FT Hose

      Regulator and 5FT Hose

      • Used if converting MV NG to Propane
      • Fiber reinforced rubber hose
      • CSA certified
