Sierra Flame by Amantii 36" Thompson Direct Vent Linear Gas Fireplace

Sierra Flame by Amantii 36" Thompson Direct Vent Linear Gas Fireplace

$3,599.00
$4,319.00 $3,599.00
Sale Sold out
Shipping calculated at checkout.
Fuel Type

Venting Options

Termination Kit
Horizontal Flex Term Kit
Coaxial Flex
Coupler Kit
Dura-Hard
Dura-Flex

Through The Roof Kit

Through The Roof Kit

Steep Through The Roof Kit

Steep Through The Roof Kit

Fuel Conversion Kit

-- Please Select --

Natural Gas Conversion Kit

Liquid Propane Conversion Kit

No, Thank You
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

DESIGN INTEGRITY, QUALITY CRAFTSMANSHIP & ATTENTION TO DETAIL

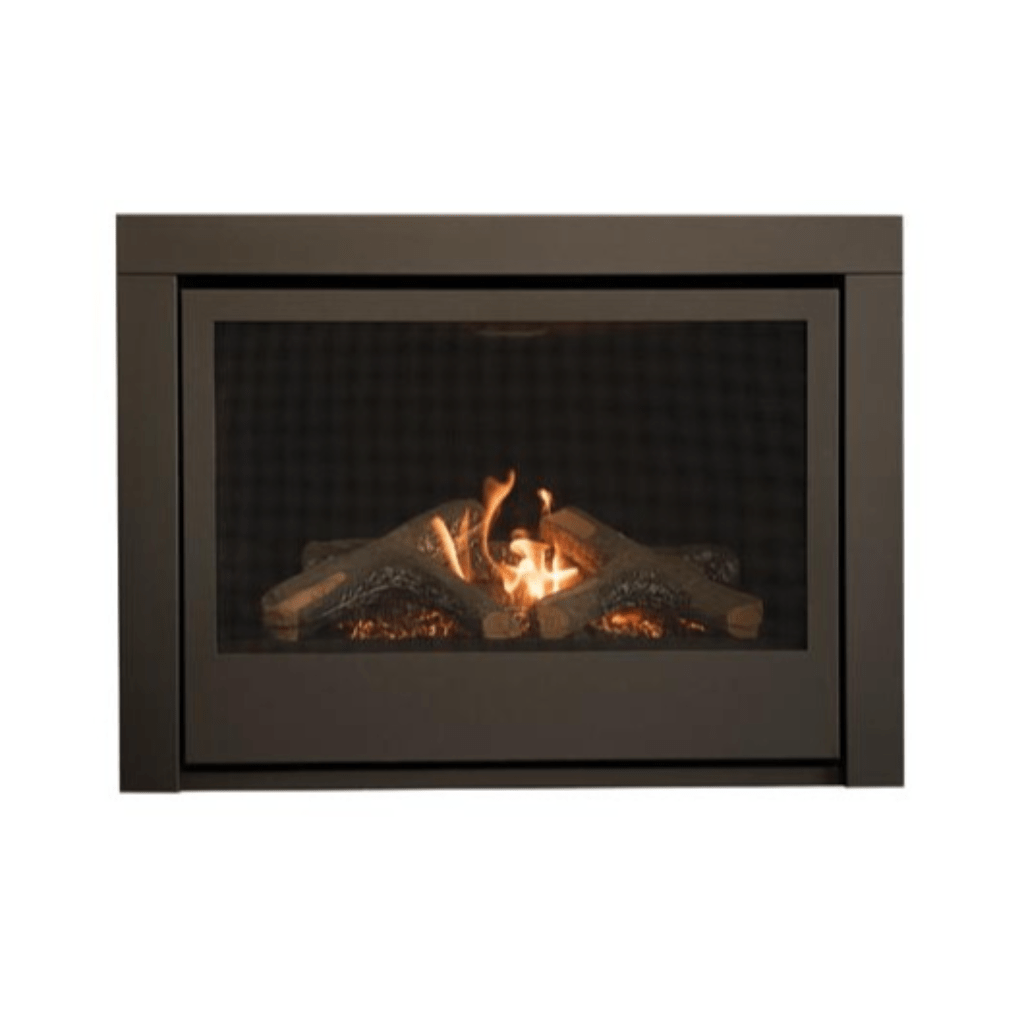

The stylish Thompson 36 direct vent gas fireplace can really put out the heat – at 36″ x 15″ in size, it is a compact gas fireplace that has on output of 26,000 BTU’s.

With framing dimensions of 37" H x 38" W x 15" D and a viewing area of 16-1/2" H x 29" W, this 36" Deluxe Thompson features a trim and safety barrier that comes pre-attached to the unit, borosilicate glass that withstands extreme amounts of heat to prevent shattering, electronic ignition functions controlled by a deluxe remote control with flame adjustable capabilities and a fan modulating valve to sustain desired room temperatures.

Available in deluxe models only and in natural gas and propane.

FEATURES

  • Black trim & safety barrier (both attached to unit)
  • 26,000 BTU
  • Electronic ignition
  • Borosilicate glass
  • 100% Safety shut off
  • Top vent only
  • Black Porcelain panels
  • 4 piece log set
  • Deluxe digital remote control
  • Fan kit
  • Modulating valve

IDEAL APPLICATIONS

  • New builds & Renovations
  • Restaurants
  • Commercial Spaces
  • Condominiums

GAS SPECIFICATIONS

Framing Dimensions Viewing Area BTUs (NG) AFUE / P.4
(NG Efficiency)		 Weight*
Hi Low
37” H x 38” W x 15” D
16-1/2” H x 29” W
26,000
18,000
67.68%
125 lbs.



Venting**
Ceiling /
Mantle Height
4” flex vent on exhaust side
7” flex vent on the air intake side
Internl ceiling= 52” from top of unit
Mantel height=42”


**Venting – Any certified 2 ply flex piping can be used. Certified on Duravent, Selkirk, Metal Fab, ICC

DIMENSION

INCLUDED MEDIA & ACCESSORIES



9 Piece Rocks



Remote


GLASS VIEWING AREA

  • 16-1/2” H x 29” W

OPTIONAL ACCESSORIES

Click to see Fuel Conversion Kit

This conversion kit for the Sierra Flame Thompson series direct vent linear fireplace will help you convert your Thompson fireplace from one fuel source to another, just select the right one for you.



Fuel Conversion Kit

  • Fireplace insert fuel conversion kit
  • Specifically for the Sierra Flame Thompson series
  • Convert your fireplace unit to use either natural gas or liquid propane
    		•

    Click to see Venting Components
    Below is a list of chimney components that are compatible with this item. If you are comfortable picking the components that you need for venting this item, please choose from the items below.
    All models come 4" & 7" Flex Ready

    TERM-KIT

    • Termination kit for 4" & 7" vent Includes: 1 wall thimble, Horizontal term vent, No flex included.
    • * Must supply own flex or purchase 10' 4" x 7" flex length only
    • Size: 4 Inch
    • Color: Black
    • Termination kit for 4 x 7" venting
    • Termination kit for Sierra Flame direct vent fireplaces

    *Venting Requirements: This unit requires venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.

    * Please Note: Customer supplies their own flex vent pipe.

    SF94217405

    • If 5' of flex is required, use this kit:
    • "4”X 7” Horizontal Flex Termination Kit w/ 5’ of Flex, Horizontal Termination, Wall Thimble.
    • Includes Coaxial flex lengths, horizontal termination, wall thimble, screw package, sealant

    SF94207410

    • To extend SF94217405 an additional 10' purchase this:
    • 4” X 7” Coaxial Flex, 10’ Length Extends SF94217405 – 5’ Flex Kit Couplers Sold Separate – SF942074C

    SF942074C

    • 4” X 7” Flex Extension Coupler Kit (1-4” & 1-7”)
    • Includes 2 couplers, 1 for the inner flex and 1 for the outer flex
    • Size: 4 Inch
      Color: Stainless Steel
      One 4" flexible vent pipe coupler
      One 7" flexible vent pipe coupler
      4" x 7" flexible vent pipe extension coupler kit

    *Venting Requirements: This unit requires venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.

    DURA-HARD

    • For Hard pipe only installations
    • Adapter to use hard pipe off of fireplace
    • Size: 4 Inch
    • Transitional adaptor
    • Constructed from galvanized steel
    • Connects flexible vent pipe to rigid vent pipe

    *Venting Requirements: This unit requires venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.



    DURA-FLEX

    • To convert from flex to hard pipe
    • Galvanized adapter to go from flex to hard pipe
    • Size: 3 Inch
    • Transitional adaptor
    • Safely transitions flexible vent pipe to rigid vent sections

    *Venting Requirements: This unit requires venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.
