SKU:PALISADE-36-NG

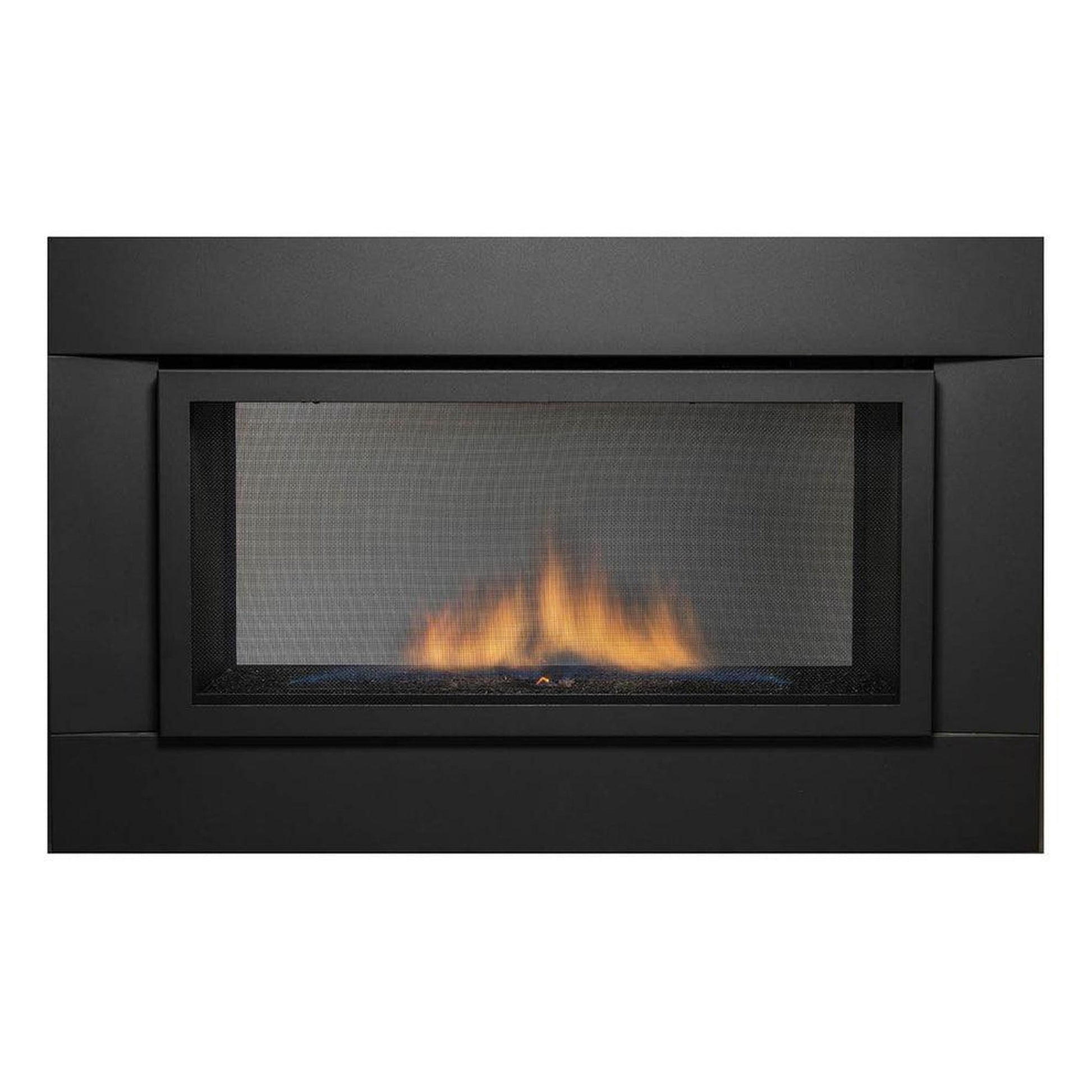

Sierra Flame by Amantii 36" Palisade See-Through Direct Vent Linear Fireplace

Name: Sierra Flame by Amantii 36" Palisade See-Through Direct Vent Linear Fireplace
Brand: Amantii
SKU: PALISADE-36-NG
Price: 4299.0 USD
Availability: InStock

$4,299.00

~~$5,159.00~~ $4,299.00

Sale Sold out

Shipping calculated at checkout.

System Standard Deluxe

Fuel Type Natural Gas Liquid Propane

Product variants

Optional Decorative Surround

Optional Venting

Termination Kit

Through The Roof Kit

Steep Through the Roof Kit

Optional Designer Media Kit

Optional Fuel Conversion Kit

Free Shipping on Orders Over $300
Same-Day Order Processing

DESIGN INTEGRITY, QUALITY CRAFTSMANSHIP & ATTENTION TO DETAIL

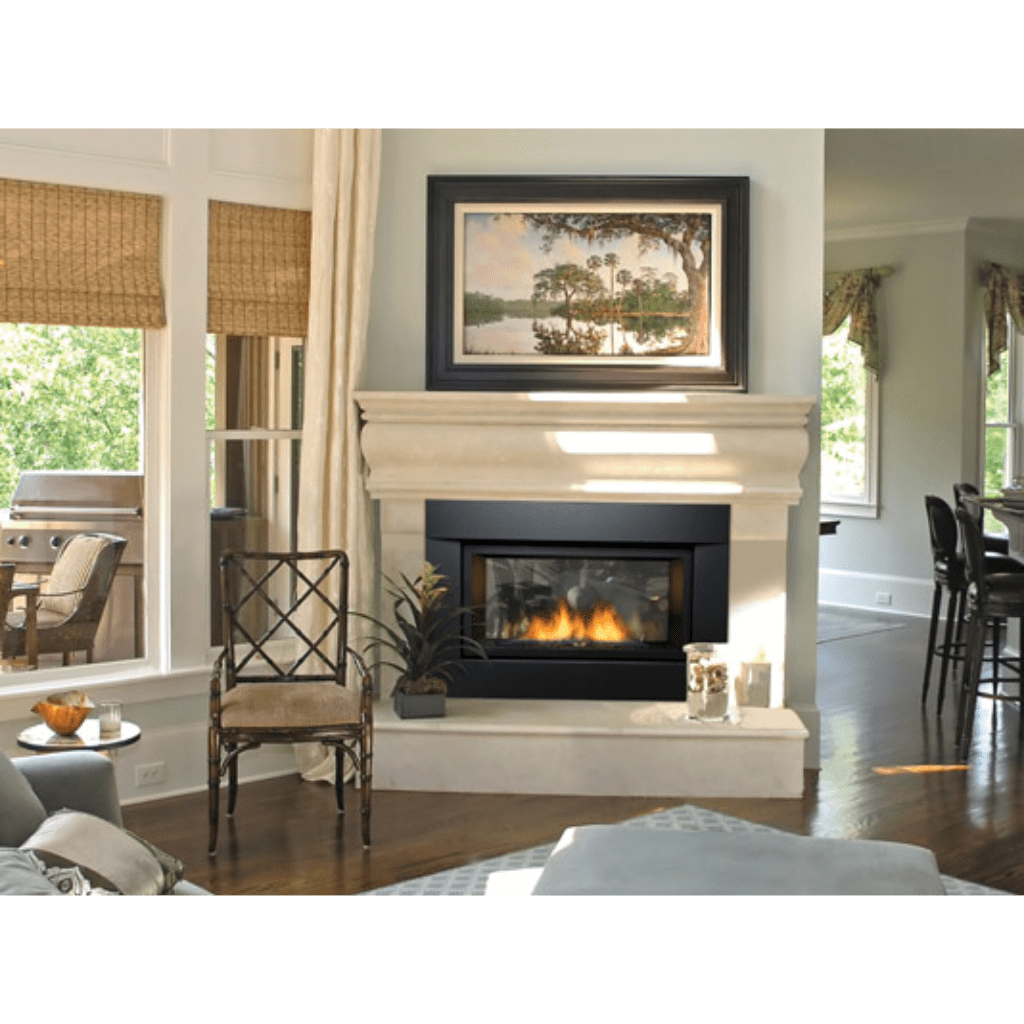

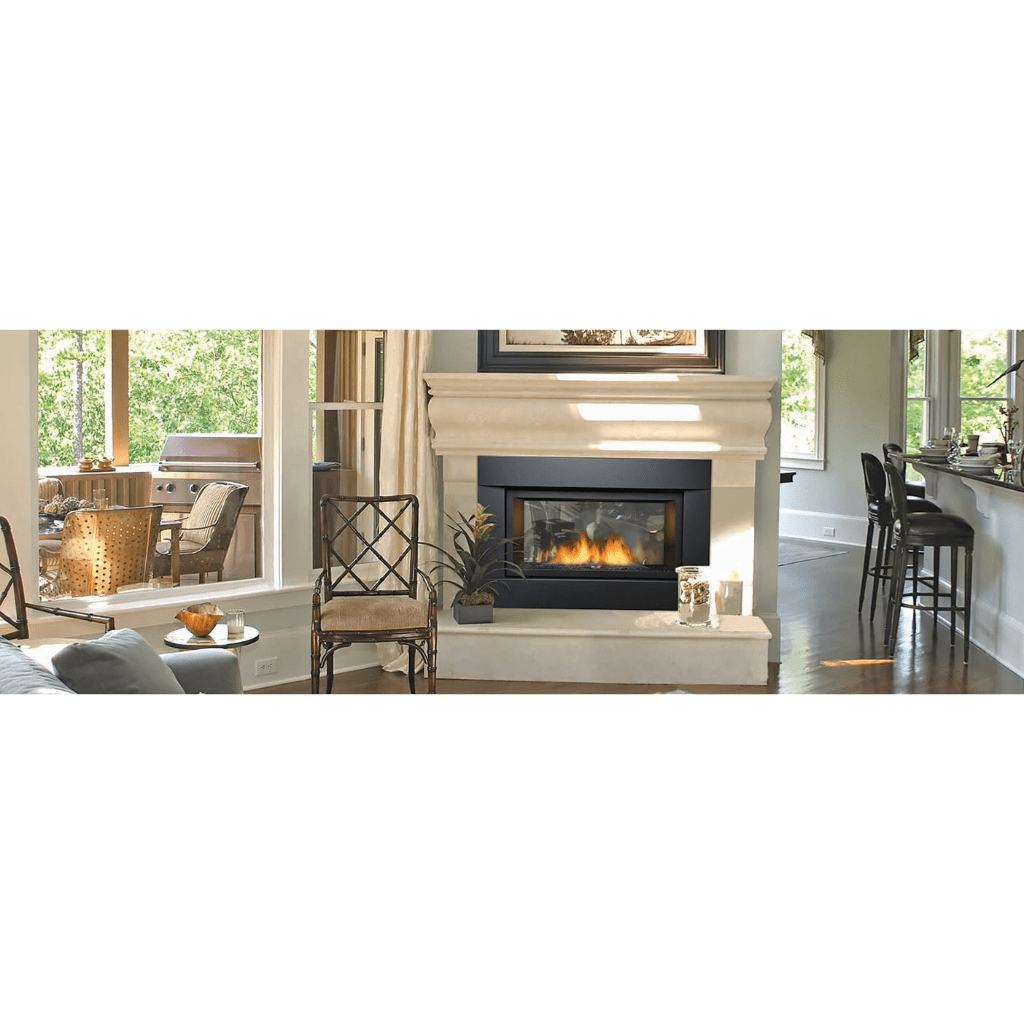

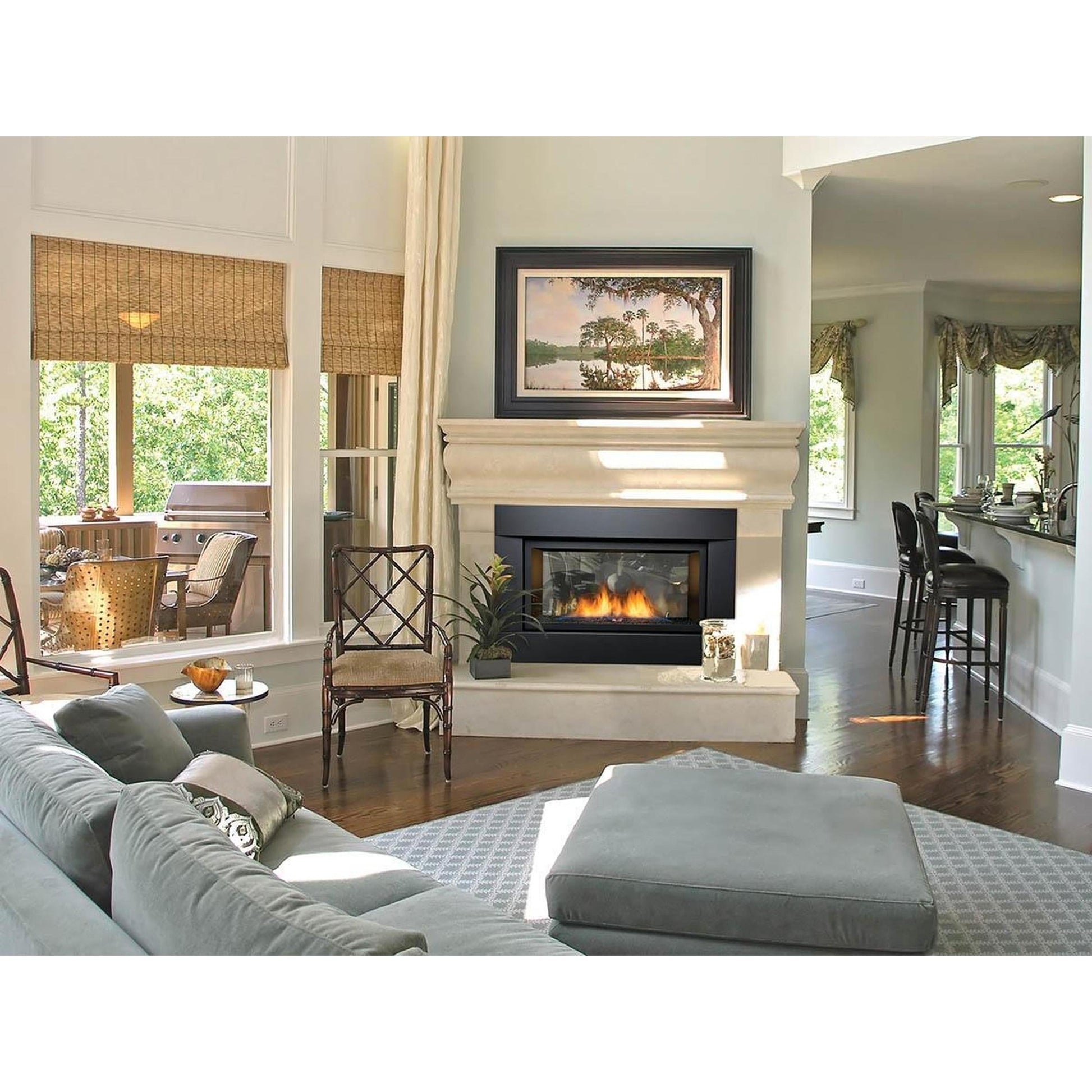

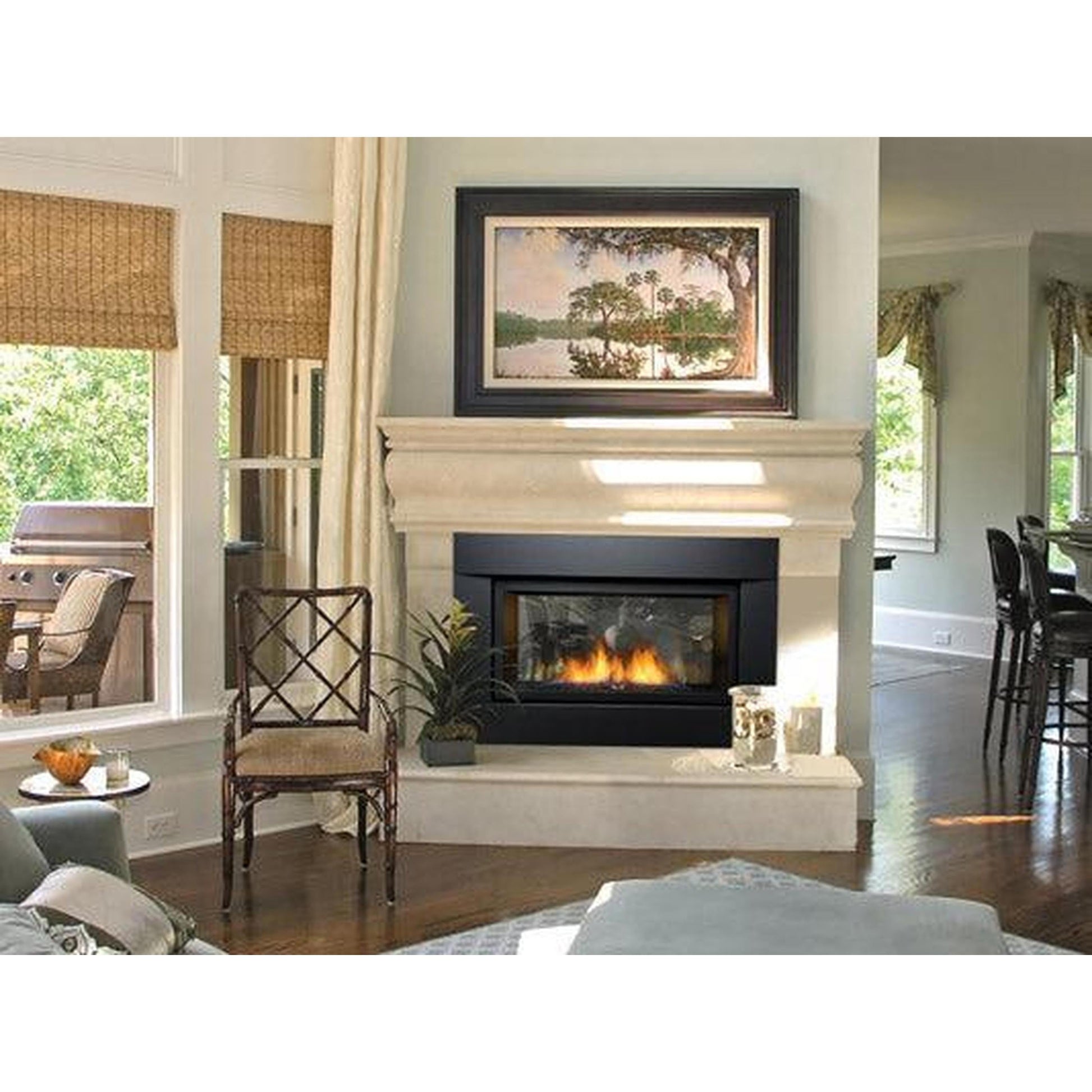

The Palisade see-thru direct vent fireplace is a perfect choice for today’s contemporary floor plans, allowing you a great view of your fireplace from more than one room. Not only is the Palisade smart but sexy as well with it’s curved front face design.

This compact gas fireplace is only 10 7/8” deep but offers an impressive glass viewing area so you can enjoy even more flame.

The Palisade is available in Standard and Deluxe systems. Each unit comes with contemporary black porcelain panels, black reflective glass and 3 piece rock set. This fireplace also comes standard to run on natural gas but also available for liquid propane use. Safety barrier recommended.

FEATURES

Standard System

True Clean face design
2 safety screens
20,000 BTU
Electronic Ignition
Tempered glass
100% Safety shut off
Side vent only
Black porcelain panels
Remote control (basic)
Black reflective fire glass
3 Piece decorative rock media set

Deluxe System

True clean face design
2 safety screens
20,000 BTU
Electronic ignition
Tempered glass
100% safety shut off
Side vent only
Black porcelain panels
Deluxe digital remote control
Fan kit
Modulating valve

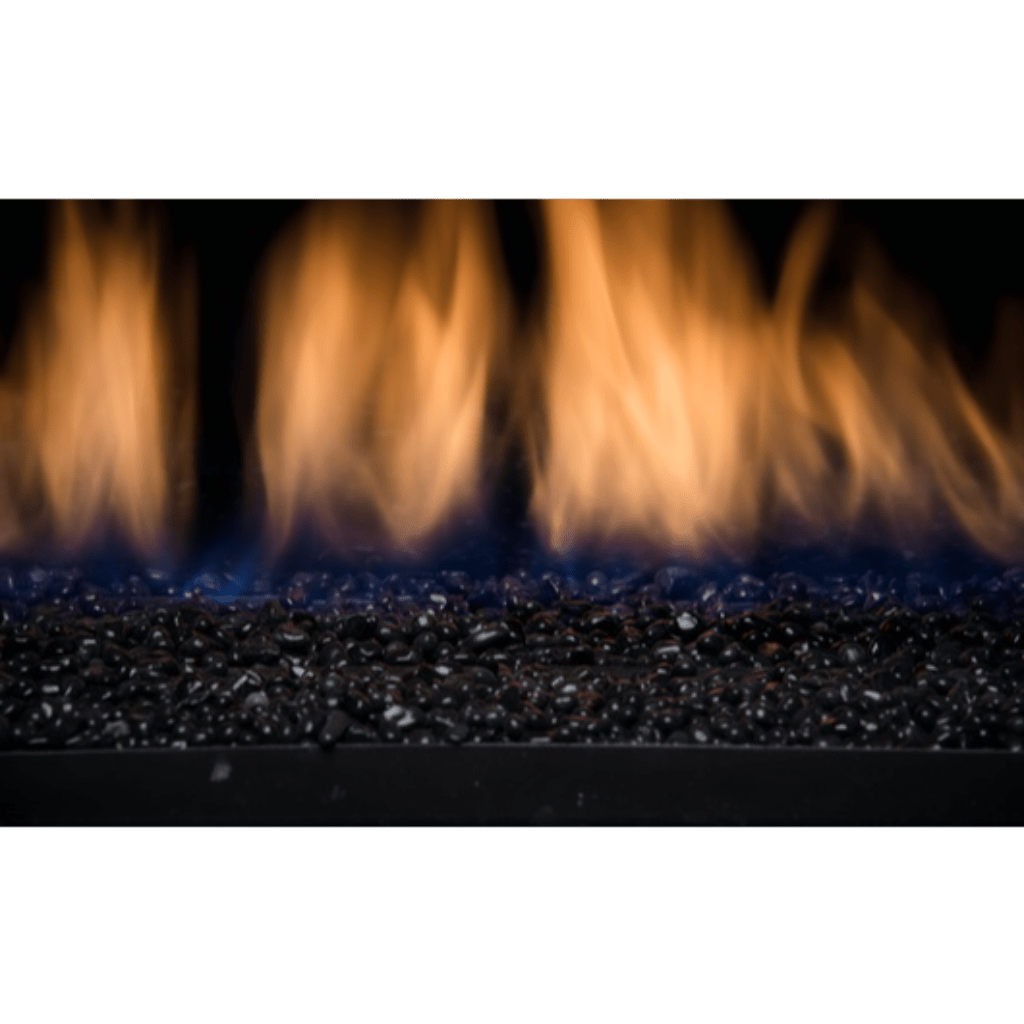

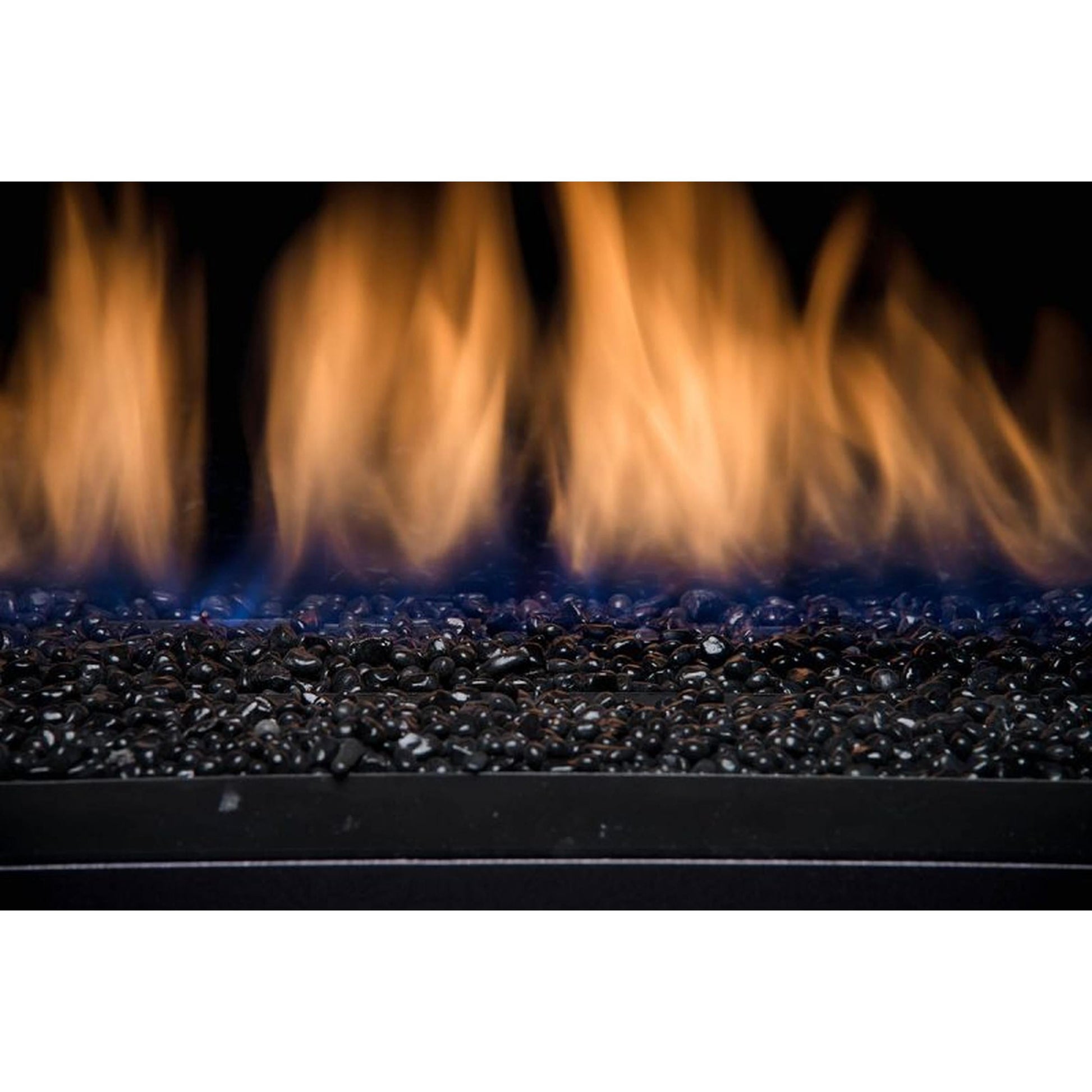

Black reflective fire glass and rock set

IDEAL APPLICATIONS

New builds & Renovations
Restaurants
Commercial Spaces
Condominiums

GAS SPECIFICATIONS

Framing Dimensions	Viewing Area	BTUs (NG)		AFUE / P.4 (NG Efficiency)	Weight*
Framing Dimensions	Viewing Area	Hi	Low	AFUE / P.4 (NG Efficiency)	Weight*
32” H x 39-1/2” W x 10-7/8” D	15” H x 32-1/2” W	20,000	13,000	63.45%	105 lbs.

Venting**	Ceiling / Mantle Height
4” flex vent on exhaust side 7” flex vent on the air intake side	Internal ceiling = minimum 40” Mantle Height = minimum 40””

**Venting – Any certified 2 ply flex piping can be used. Certified on Duravent, Selkirk, Metal Fab, ICC

DIMENSION

INCLUDED MEDIA & ACCESSORIES

9 Piece Rocks

Stones

Remote

SURROUND DIMENSIONS

Model number	Outside Surround Dimensions (H x W)	Description
PALI SADE-36-SURR	26.56 x 42.87	Black surround (without access panel)
PALI SADE-36-SURR-AP	26.56 x 42.87	Black surround with access panel

GLASS VIEWING AREA

15” H x 32-1/2” W

OPTIONAL ACCESSORIES

SURROUND OPTIONS

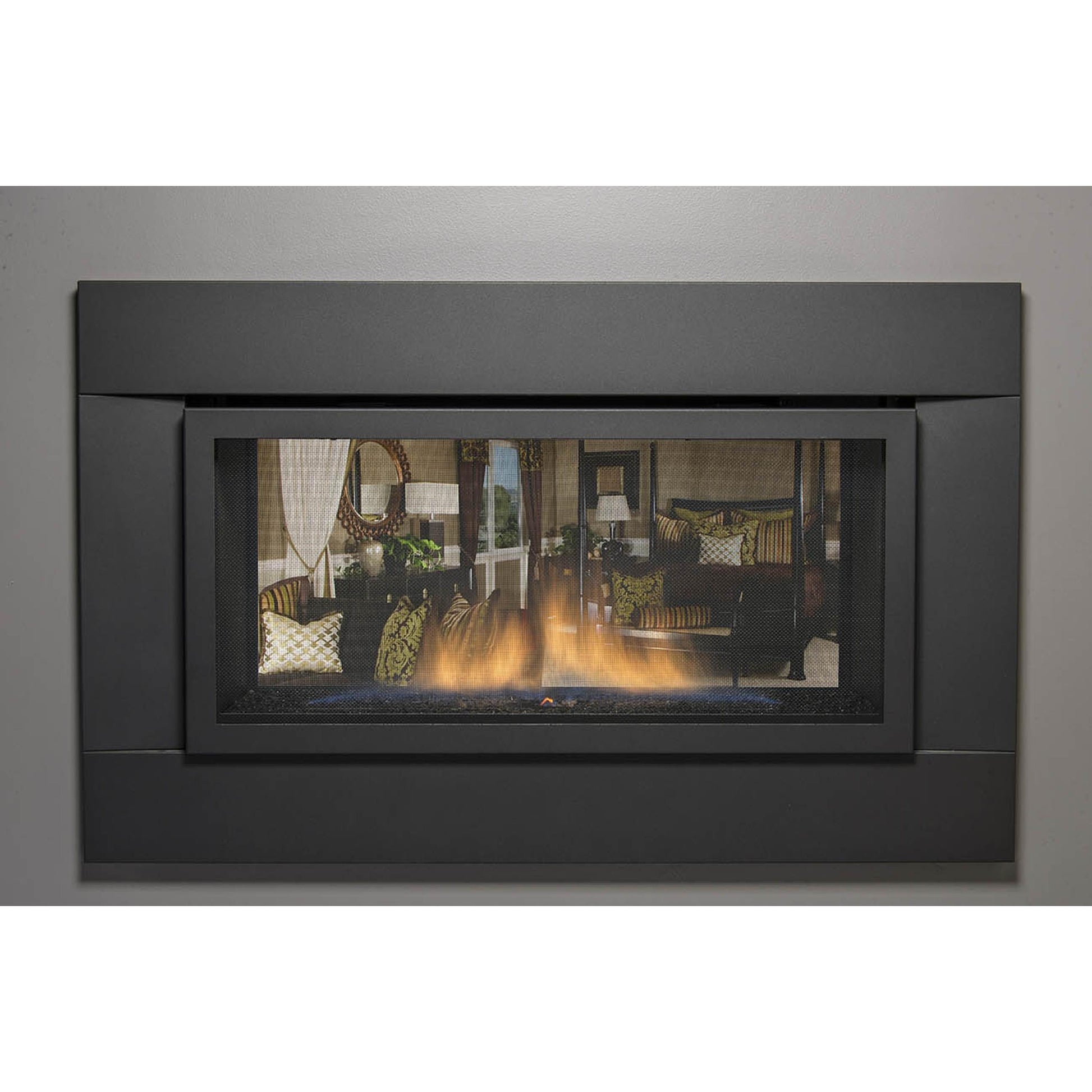

Decorative Surround - optional to complete unit

Customers have a range of decorative surround options from which to select. While the clean face design often comes standard with these fireplaces, this optional, decorative, picturesque black surround feature encases the fireplace to give it a more polished and complete look.

Black Surround without Access Panel

Size: 42 Inches x 26 Inches
Color: Black
Solid black gas fireplace without front side access panel
Specifically designed for the Sierra Flame Palisade series see-thru gas fireplace
Design Specialties overlays

Black Surround with Access Panel

Size: 42 Inches x 26 Inches
Color: Black
Solid black gas fireplace with front side access panel
Specifically designed for the Sierra Flame Palisade series see-thru gas fireplace
Design Specialties overlays

Click to see Optional Decorative Media Options

Customize the look of your electric fireplace by purchasing from our selection of stylish decorative media.

	AMSF‐GLASS‐01 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Clear’
	AMSF‐GLASS‐02 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Light Brown’
	AMSF‐GLASS‐03 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Charcoal’
	AMSF‐GLASS‐04 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Champagne’
	AMSF‐GLASS‐05 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Dark Grey’
	AMSF‐GLASS‐06 – 1 Box includes approx. 5 lbs of 1″ Clear ‘Gem’ fireglass ‐ 1 sq. ft. of media coverage ‘clear’ Color: ‘Clear’
	AMSF‐GLASS‐07 – 1 Box includes approx. 5 lbs of white frosted fireglass ‐ 1 sq. ft. of media coverage ‘white’ Color: ‘White’
	AMSF‐GLASS‐08 – 1 Box includes approx. 5 lbs of dusty purple frosted fireglass ‐ 1 sq. ft. of media coverage ‘white’ Color: ‘Dusty Purple’
	AMSF‐GLASS‐09 – 1 Box includes approx. 5 lbs of amber small bead fireglass ‐ 1 sq. ft. of media coverage ‘amber’ Color: ‘Amber’
	AMSF‐GLASS‐10 – 1 Box includes approx. 5 lbs of small bead fireglass ‐ 1 sq. ft. of media coverage ‘orange’ Color: ‘Orange’
	AMSF‐GLASS‐11 – 1 Box includes approx. 5 lbs of small “suntea’ bead fireglass ‐ 1 sq. ft. of media coverage ‘suntea’ Color: ‘Suntea’
	AMSF‐GLASS‐12 – 1 Box includes approx. 5 lbs of small “black’ bead fireglass ‐ 1 sq. ft. of media coverage ‘black’ Color: ‘Black’
	AMSF‐GLASS‐13 – 1 Box includes approx. 5 lbs of small “sable’ bead fireglass ‐ 1 sq. ft. of media coverage ‘sable’ Color: ‘Sable’

Click to see Optional Designer Media Kits

DESIGN‐MEDIA‐6PCE

6 piece log set with black fire glass, 90 piece pebble, rocks, Embers 1, Embers 2, Embers 3 and Embers 4

Use With:

Newcomb
Palisade
Emerson
Langley

Click to see Fuel Conversion Kit

This conversion kit for the Sierra Flame Palisade series direct vent linear fireplace will help you convert your Palisade fireplace from one fuel source to another, just select the right one for you.

Fuel Conversion Kit

Fireplace insert fuel conversion kit

Specifically for the Sierra Flame Palisade series

Convert your fireplace unit to use either natural gas or liquid propane

Click to see Venting Components

Below is a list of chimney components that are compatible with this item. If you are comfortable picking the components that you need for venting this item, please choose from the items below.

All models come 4" & 7" Flex Ready

	TERM-KIT Termination kit for 4" & 7" vent Includes: 1 wall thimble, Horizontal term vent, No flex included. * Must supply own flex or purchase 10' 4" x 7" flex length only Size: 4 Inch Color: Black Termination kit for 4 x 7" venting Termination kit for Sierra Flame direct vent fireplaces Venting Requirements: This unit requires venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit. Please Note: Customer supplies their own flex vent pipe.
	SF94217405 If 5' of flex is required, use this kit: "4”X 7” Horizontal Flex Termination Kit w/ 5’ of Flex, Horizontal Termination, Wall Thimble. Includes Coaxial flex lengths, horizontal termination, wall thimble, screw package, sealant
	SF94207410 To extend SF94217405 an additional 10' purchase this: 4” X 7” Coaxial Flex, 10’ Length Extends SF94217405 – 5’ Flex Kit Couplers Sold Separate – SF942074C
	SF942074C 4” X 7” Flex Extension Coupler Kit (1-4” & 1-7”) Includes 2 couplers, 1 for the inner flex and 1 for the outer flex Size: 4 Inch Color: Stainless Steel One 4" flexible vent pipe coupler One 7" flexible vent pipe coupler 4" x 7" flexible vent pipe extension coupler kit *Venting Requirements: This unit requires venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.
	DURA-HARD For Hard pipe only installations Adapter to use hard pipe off of fireplace Size: 4 Inch Transitional adaptor Constructed from galvanized steel Connects flexible vent pipe to rigid vent pipe *Venting Requirements: This unit requires venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.
	DURA-FLEX To convert from flex to hard pipe Galvanized adapter to go from flex to hard pipe Size: 3 Inch Transitional adaptor Safely transitions flexible vent pipe to rigid vent sections *Venting Requirements: This unit requires venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.
