SKU:NEWCOMB-36-NG

Sierra Flame by Amantii 36" Newcomb Direct Vent Linear Gas Fireplace

Name: Sierra Flame by Amantii 36" Newcomb Direct Vent Linear Gas Fireplace
Brand: Amantii
SKU: NEWCOMB-36-NG
Price: 2999.0 USD
Availability: InStock

$2,999.00

~~$3,599.00~~ $2,999.00

Sale Sold out

Shipping calculated at checkout.

System Standard Deluxe

Fuel Type Natural Gas Liquid Propane

Product variants

Free Shipping on Orders Over $300
Same-Day Order Processing

DESIGN INTEGRITY, QUALITY CRAFTSMANSHIP & ATTENTION TO DETAIL

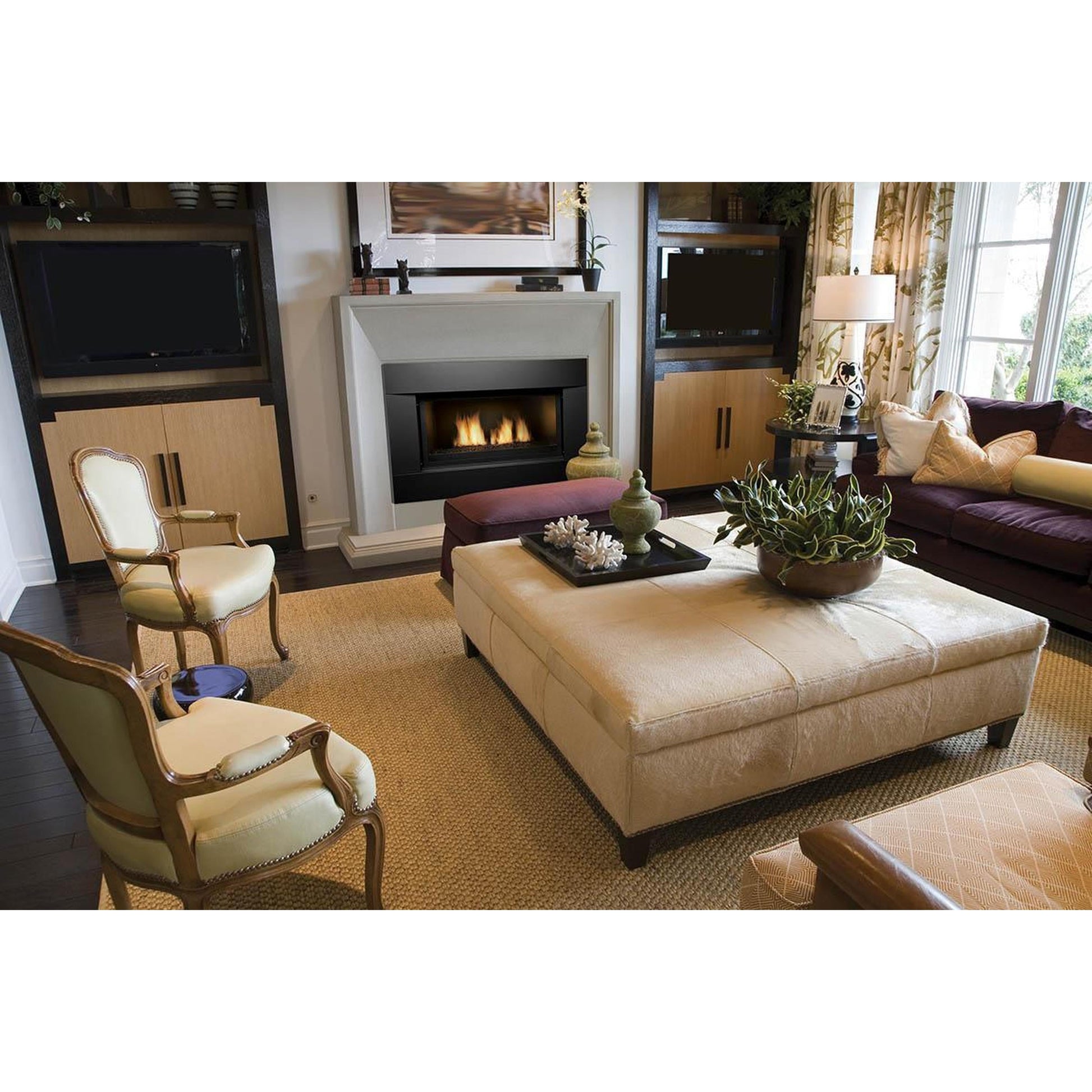

With the contemporary styled Newcomb gas fireplace you can make that first impression a good one! Imagine cozying up with this unit!

The Newcomb 36 is available in Standard or Deluxe systems offering basic remote control or deluxe 7 day programmable thermostat remote, 6 stage dual fan control and modulating valve so you can control the flame.

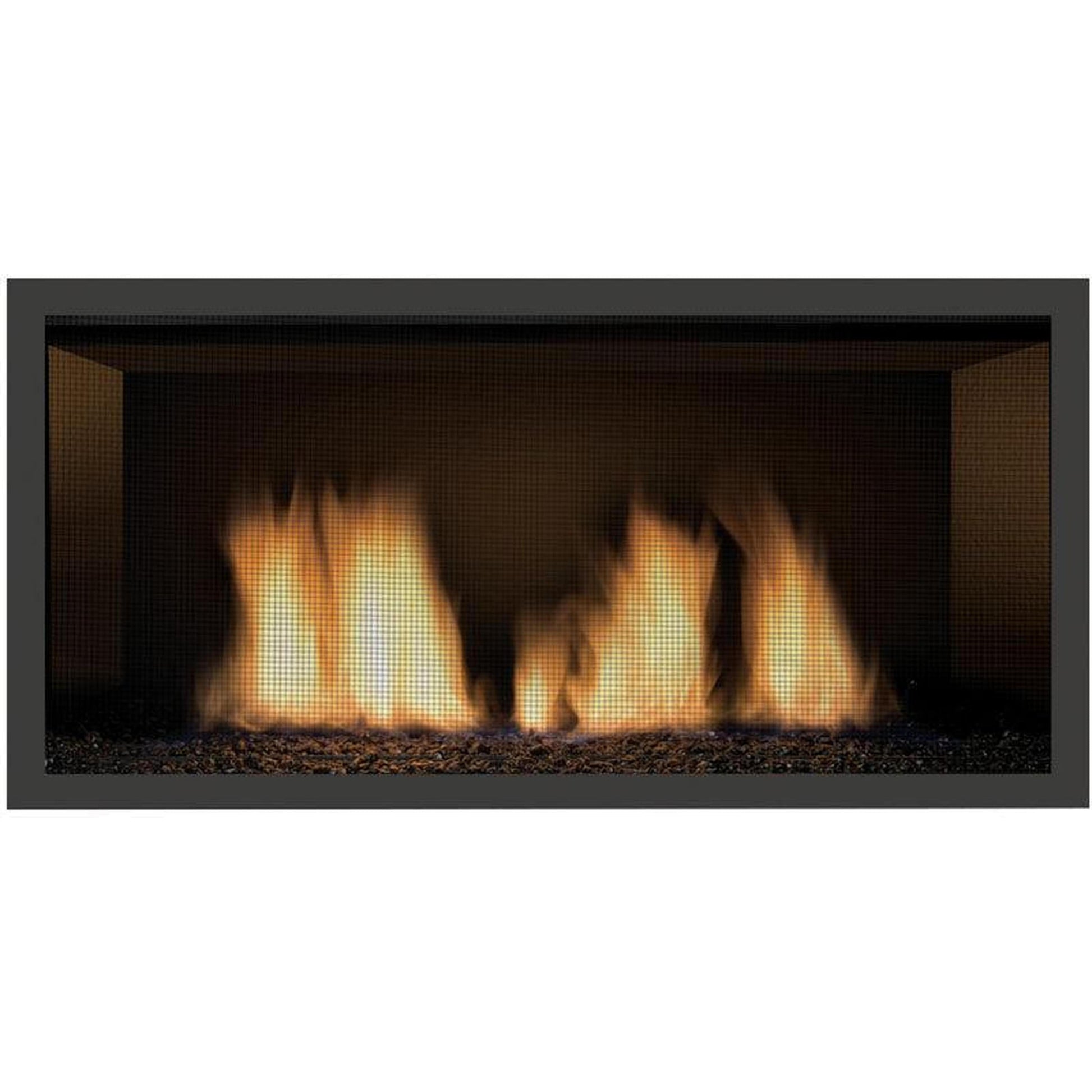

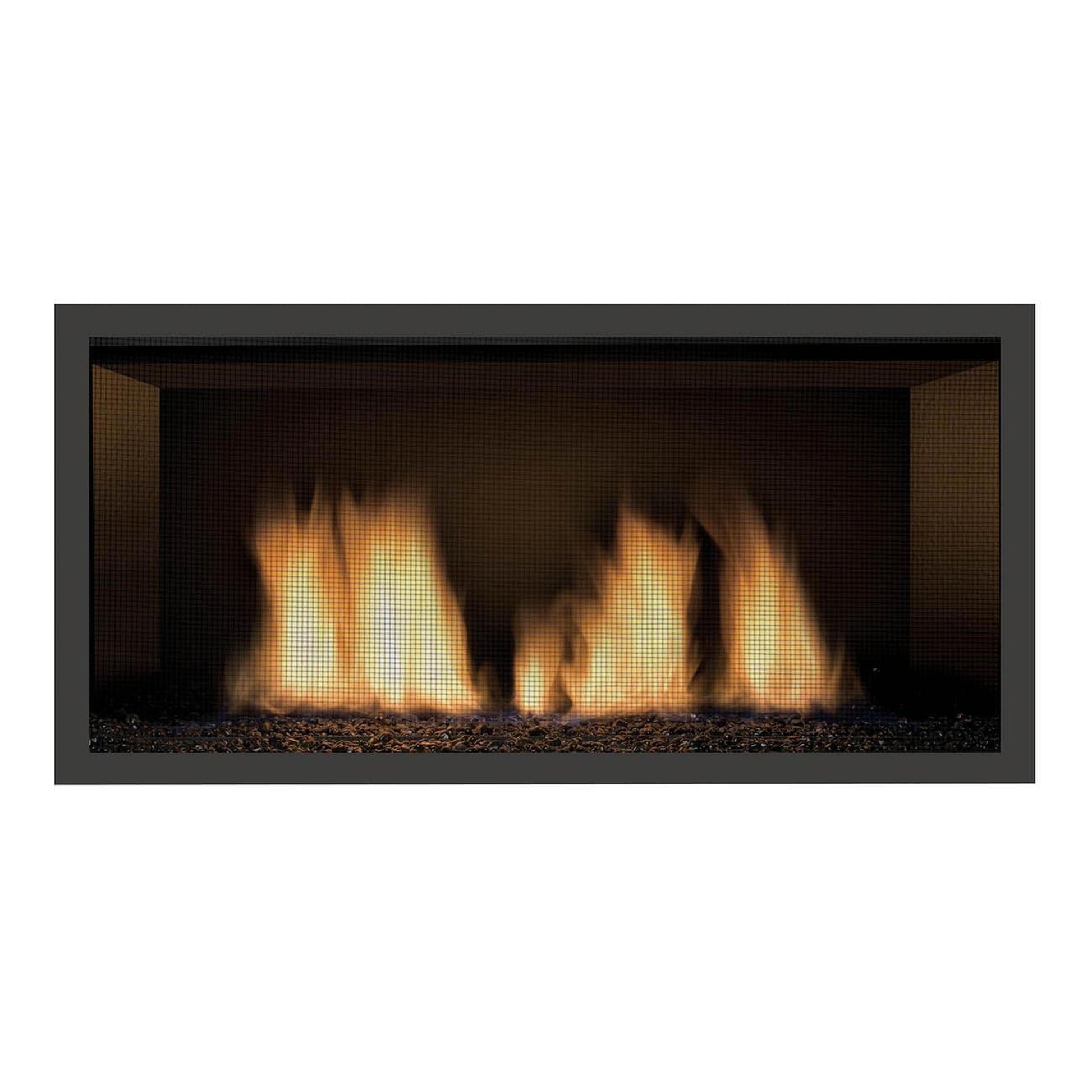

Available with the Newcomb are two optional surrounds (stainless steel and decorative black). This fireplace comes standard with contemporary black porcelain panels, black reflective glass and a 3 piece rock set. Comes standard to run on natural gas but also available for liquid propane use.

FEATURES

Standard System – NEWCOMB-36

True clean face design
Tempered glass
21,000 BTU
100% Safety shut off
Top vent only
Electronic ignition
Remote Control (basic)
Black porcelain panels

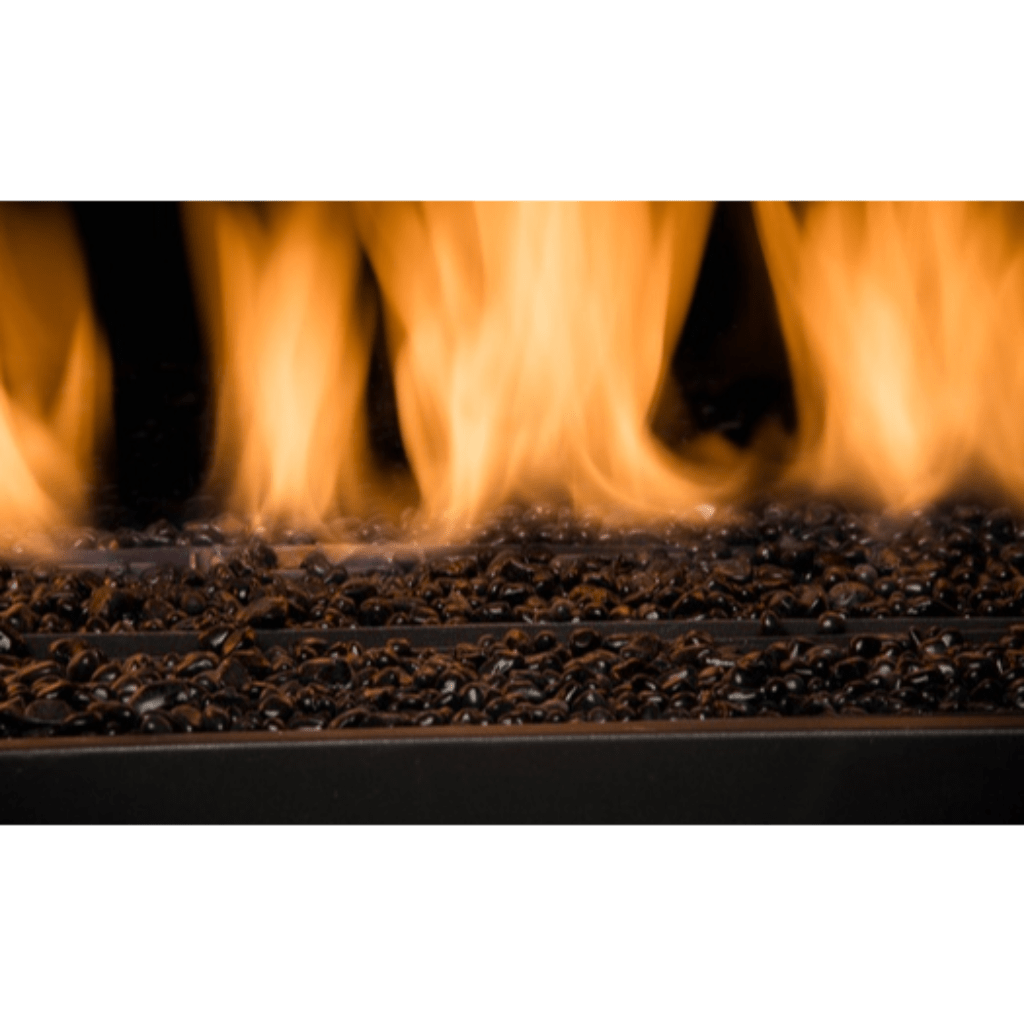

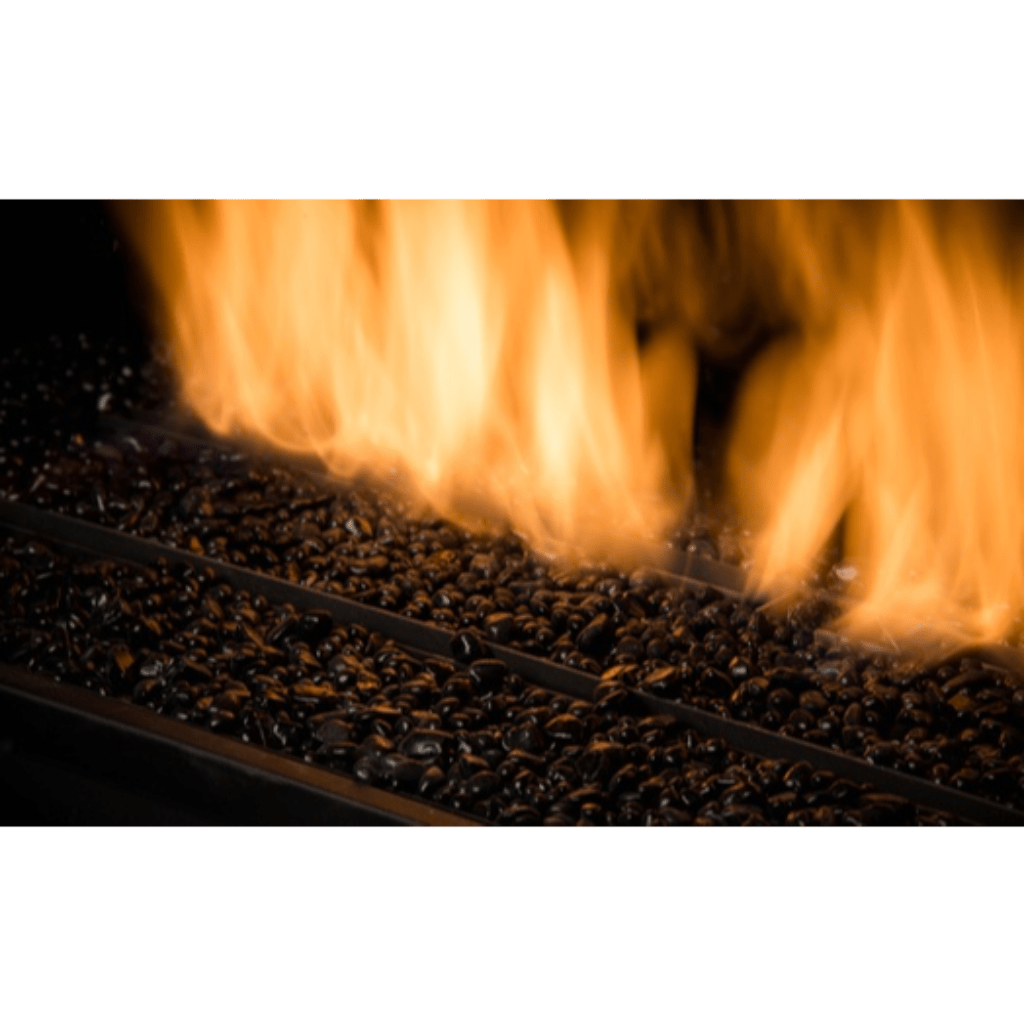

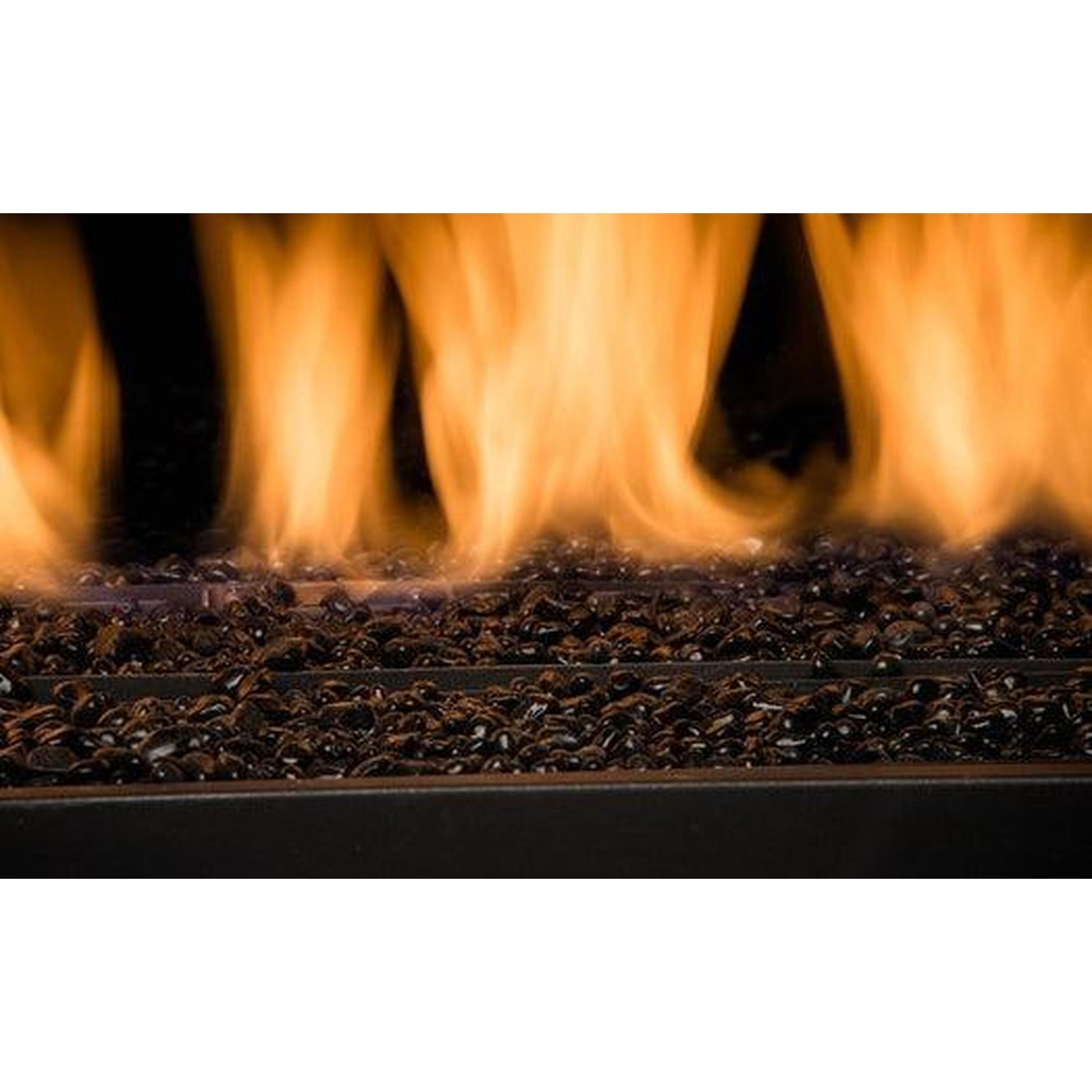

Black reflective fire glass & 3 piece decorative rock set

Deluxe System – NEWCOMB-36-DELUXE

True clean face design
Tempered glass
21,000 BTU
100% Safety shut off
Top vent only
Electronic ignition
Fan kit
Modulating valve
Electronic ignition
Remote control (basic)
Deluxe digital remote control
Black reflective fire glass & 3 piece decorative rock set

IDEAL APPLICATIONS

New builds & Renovations
Restaurants
Commercial Spaces
Condominiums

GAS SPECIFICATIONS

Framing Dimensions	Viewing Area	BTUs (NG)		AFUE / P.4 (NG Efficiency)	Weight*
Framing Dimensions	Viewing Area	Hi	Low	AFUE / P.4 (NG Efficiency)	Weight*
33-1/2” H x 38” W x 15-1/2” D	15” H x 32-1/2” W	21,000	13,000	65.1 %	115 lbs.

Venting**	Ceiling / Mantle Height
4” flex vent on exhaust side 7” flex vent on the air intake side	Internal ceiling = minimum 48” Mantle Height = minimum 40”

**Venting – Any certified 2 ply flex piping can be used. Certified on Duravent, Selkirk, Metal Fab, ICC

DIMENSION

INCLUDED MEDIA & ACCESSORIES

9 Piece Rocks

Stones

Remote

SURROUND DIMENSIONS

Model number	Outside Surround Dimensions (H x W)	Description
NEWCOMB-CLEAN-BLK	14.89 x 32.66	Clean Face Black Black Surround with safety barrier

GLASS VIEWING AREA

15” H x 32-1/2” W

OPTIONS & ACCESSORIES

SURROUND OPTIONS
Trim & Barrier- required to complete unit

The clean face, black surround and safety barrier for the Sierra Flame Newcomb 55 inch direct vent linear fireplace is sure to improve your hearth experience and safe. This Sierra Flame Newcomb series surround has a clean and classic design that creates the perfect attractive look, fitting in well with any décor.

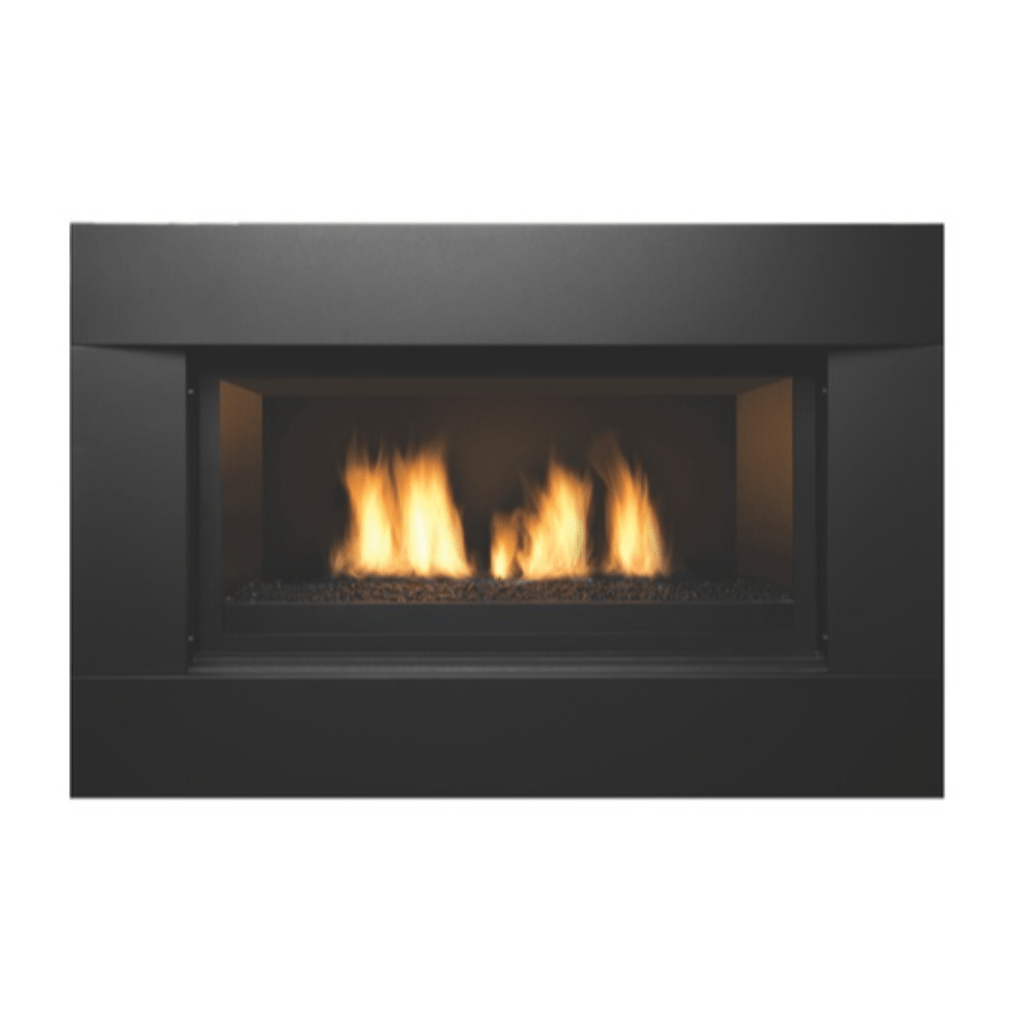

	Clean Face Black Surround with safety barrier Size: 32 Inches x 14 Inches Color: Black Clean face solid black surround with safety barrier Specifically built for the Sierra Flame Newcomb series Clean face black surround Design Specialties overlays
	Stainless steel surround with safety barrier Size: 36 Inches Color: Stainless Steel Optional accessory The stunning stainless steel surround The perfect finish for your fireplace Easily hide gaps between your fireplace opening and your unit Specifically designed for Sierra Flame Newcomb series fireplaces Outside Surround Dimensions: 43-1/4" W x 27-1/4"H

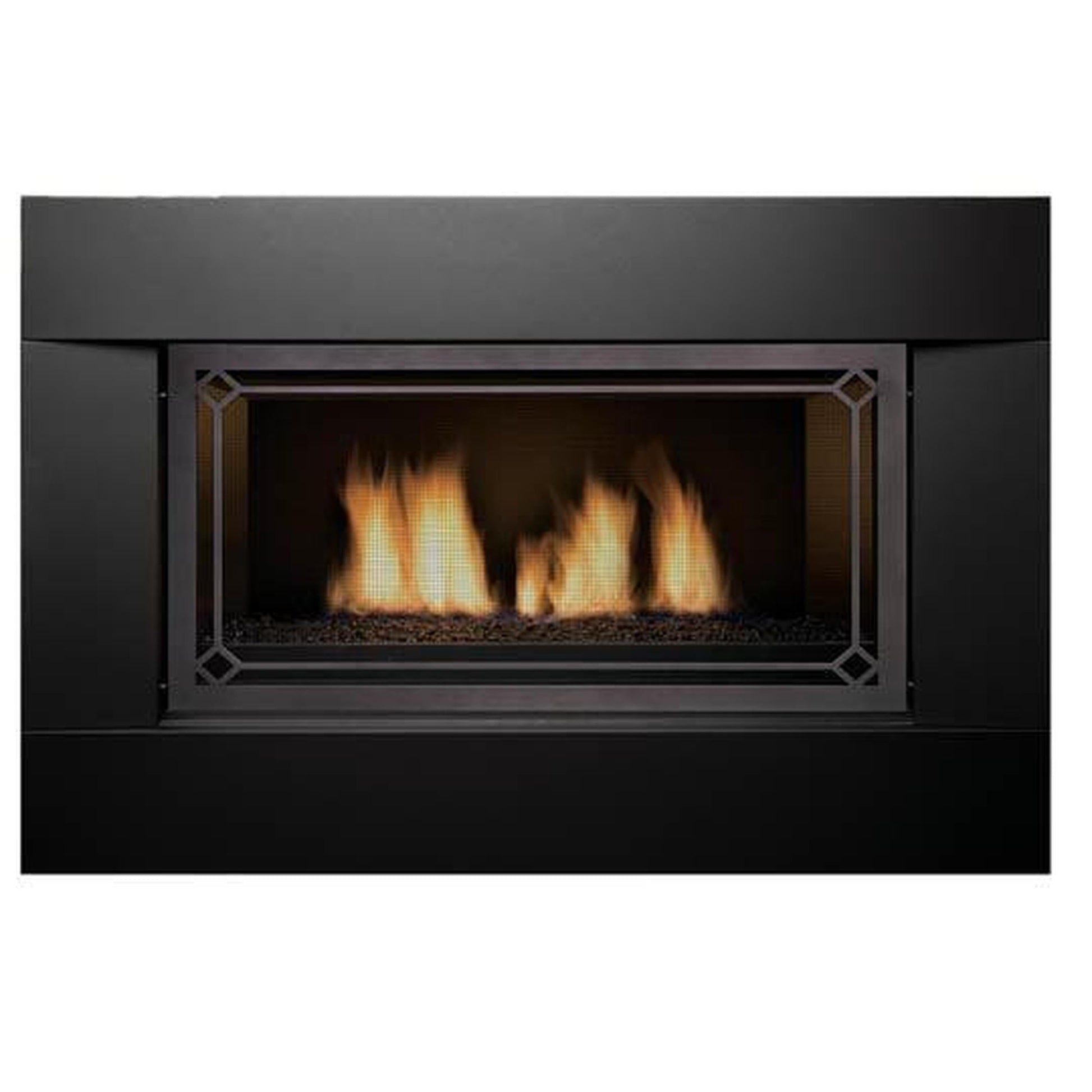

	Decorative Black Surround with screen Color: Black Size: 36 Inches Optional accessory The perfect finish for your fireplace Decorative black surround with screen Easily hide gaps between your fireplace opening and your unit Specifically designed for Sierra Flame Newcomb series fireplaces Outside Surround Dimensions: 43 1/4" W x 27 1/4" H
	Basic black surround with safety barrier Size: 38 Inches Color: Black Optional accessory Stunning black surround The perfect finish for your fireplace Easily hide gaps between your fireplace opening and your unit Specifically designed for Sierra Flame Newcomb series fireplaces Outside Surround Dimensions: 38 1/4" W x 25 1/2" H

Click to see Optional Decorative Media Options

Customize the look of your electric fireplace by purchasing from our selection of stylish decorative media.

	AMSF‐GLASS‐01 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Clear’
	AMSF‐GLASS‐02 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Light Brown’
	AMSF‐GLASS‐03 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Charcoal’
	AMSF‐GLASS‐04 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Champagne’
	AMSF‐GLASS‐05 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Dark Grey’
	AMSF‐GLASS‐06 – 1 Box includes approx. 5 lbs of 1″ Clear ‘Gem’ fireglass ‐ 1 sq. ft. of media coverage ‘clear’ Color: ‘Clear’
	AMSF‐GLASS‐07 – 1 Box includes approx. 5 lbs of white frosted fireglass ‐ 1 sq. ft. of media coverage ‘white’ Color: ‘White’
	AMSF‐GLASS‐08 – 1 Box includes approx. 5 lbs of dusty purple frosted fireglass ‐ 1 sq. ft. of media coverage ‘white’ Color: ‘Dusty Purple’
	AMSF‐GLASS‐09 – 1 Box includes approx. 5 lbs of amber small bead fireglass ‐ 1 sq. ft. of media coverage ‘amber’ Color: ‘Amber’
	AMSF‐GLASS‐10 – 1 Box includes approx. 5 lbs of small bead fireglass ‐ 1 sq. ft. of media coverage ‘orange’ Color: ‘Orange’
	AMSF‐GLASS‐11 – 1 Box includes approx. 5 lbs of small “suntea’ bead fireglass ‐ 1 sq. ft. of media coverage ‘suntea’ Color: ‘Suntea’
	AMSF‐GLASS‐12 – 1 Box includes approx. 5 lbs of small “black’ bead fireglass ‐ 1 sq. ft. of media coverage ‘black’ Color: ‘Black’
	AMSF‐GLASS‐13 – 1 Box includes approx. 5 lbs of small “sable’ bead fireglass ‐ 1 sq. ft. of media coverage ‘sable’ Color: ‘Sable’

Click to see Optional Designer Media Kits

DESIGN‐MEDIA‐6PCE

6 piece log set with black fire glass, 90 piece pebble, rocks, Embers 1, Embers 2, Embers 3 and Embers 4

Use With:

Newcomb
Palisade
Emerson
Langley

Click to see Fuel Conversion Kit

This conversion kit for the Sierra Flame Newcomb series direct vent linear fireplace will help you convert your Newcomb fireplace from one fuel source to another, just select the right one for you.

Fuel Conversion Kit

Fireplace insert fuel conversion kit

Specifically for the Sierra Flame Newcomb series

Convert your fireplace unit to use either natural gas or liquid propane

Click to see Venting Components

Below is a list of chimney components that are compatible with this item. If you are comfortable picking the components that you need for venting this item, please choose from the items below.

All models come 4" & 7" Flex Ready

	TERM-KIT Termination kit for 4" & 7" vent Includes: 1 wall thimble, Horizontal term vent, No flex included. * Must supply own flex or purchase 10' 4" x 7" flex length only Size: 4 Inch Color: Black Termination kit for 4 x 7" venting Termination kit for Sierra Flame direct vent fireplaces Venting Requirements: This unit requires venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit. Please Note: Customer supplies their own flex vent pipe.
	SF94217405 If 5' of flex is required, use this kit: "4”X 7” Horizontal Flex Termination Kit w/ 5’ of Flex, Horizontal Termination, Wall Thimble. Includes Coaxial flex lengths, horizontal termination, wall thimble, screw package, sealant
	SF94207410 To extend SF94217405 an additional 10' purchase this: 4” X 7” Coaxial Flex, 10’ Length Extends SF94217405 – 5’ Flex Kit Couplers Sold Separate – SF942074C
	SF942074C 4” X 7” Flex Extension Coupler Kit (1-4” & 1-7”) Includes 2 couplers, 1 for the inner flex and 1 for the outer flex Size: 4 Inch Color: Stainless Steel One 4" flexible vent pipe coupler One 7" flexible vent pipe coupler 4" x 7" flexible vent pipe extension coupler kit *Venting Requirements: This unit requires venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.
	DURA-HARD For Hard pipe only installations Adapter to use hard pipe off of fireplace Size: 4 Inch Transitional adaptor Constructed from galvanized steel Connects flexible vent pipe to rigid vent pipe *Venting Requirements: This unit requires venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.
	DURA-FLEX To convert from flex to hard pipe Galvanized adapter to go from flex to hard pipe Size: 3 Inch Transitional adaptor Safely transitions flexible vent pipe to rigid vent sections *Venting Requirements: This unit requires venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.
