Sierra Flame by Amantii 30" Abbot Direct Vent Linear Gas Fireplace

Name: Sierra Flame by Amantii 30" Abbot Direct Vent Linear Gas Fireplace
Brand: Amantii
SKU: ABBOT-30BL-DELUXE-NG
Price: 3399.0 USD
Availability: InStock

$3,399.00

Sale Sold out

Shipping calculated at checkout.

Panels Ceramic Brick Panels & Log Set Black Porcelain Panels & Glass_Rock Set

Fuel Type Natural Gas Liquid Propane

Product variants

Free Shipping on Orders Over $300
Same-Day Order Processing

DESIGN INTEGRITY, QUALITY CRAFTSMANSHIP & ATTENTION TO DETAIL

Just like that little black dress that goes with everything, the Abbott’s direct vent gas fireplace insert is understated sophistication with a no fuss contemporary design.

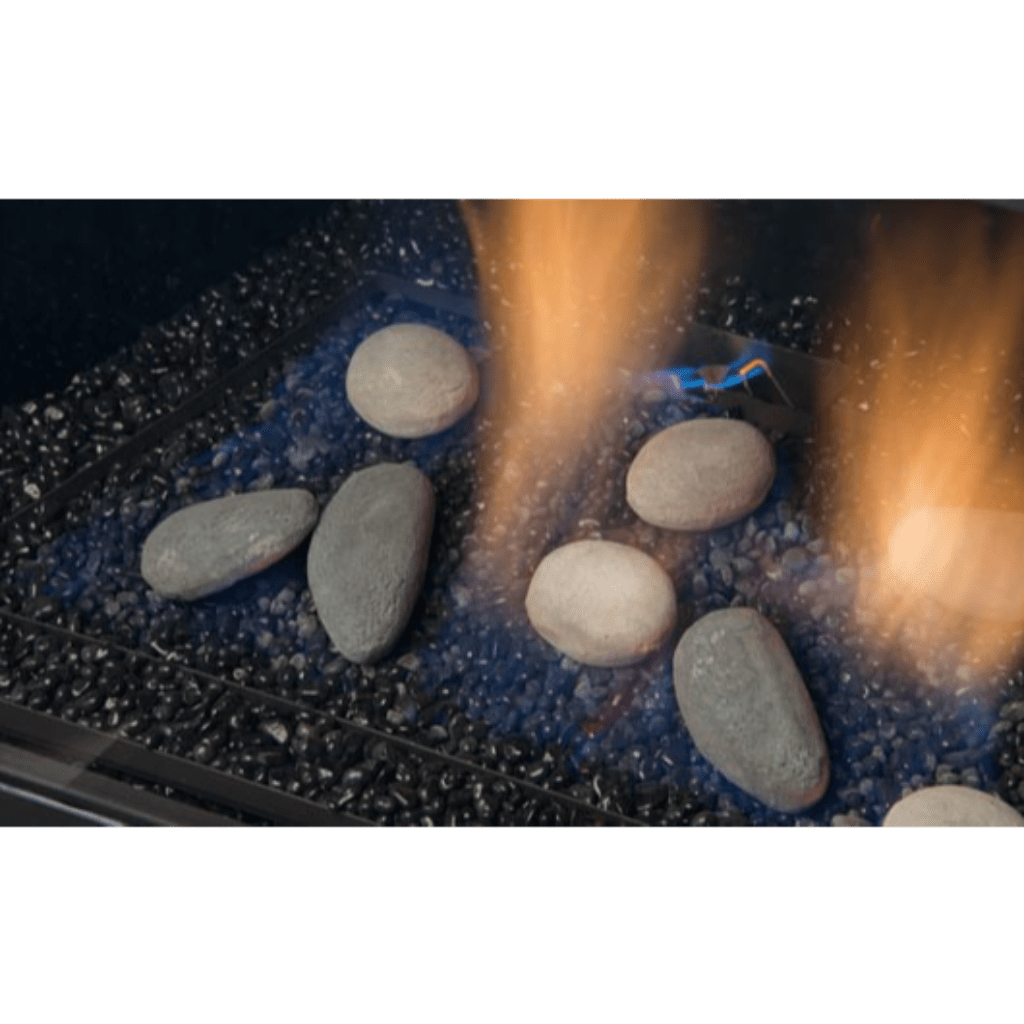

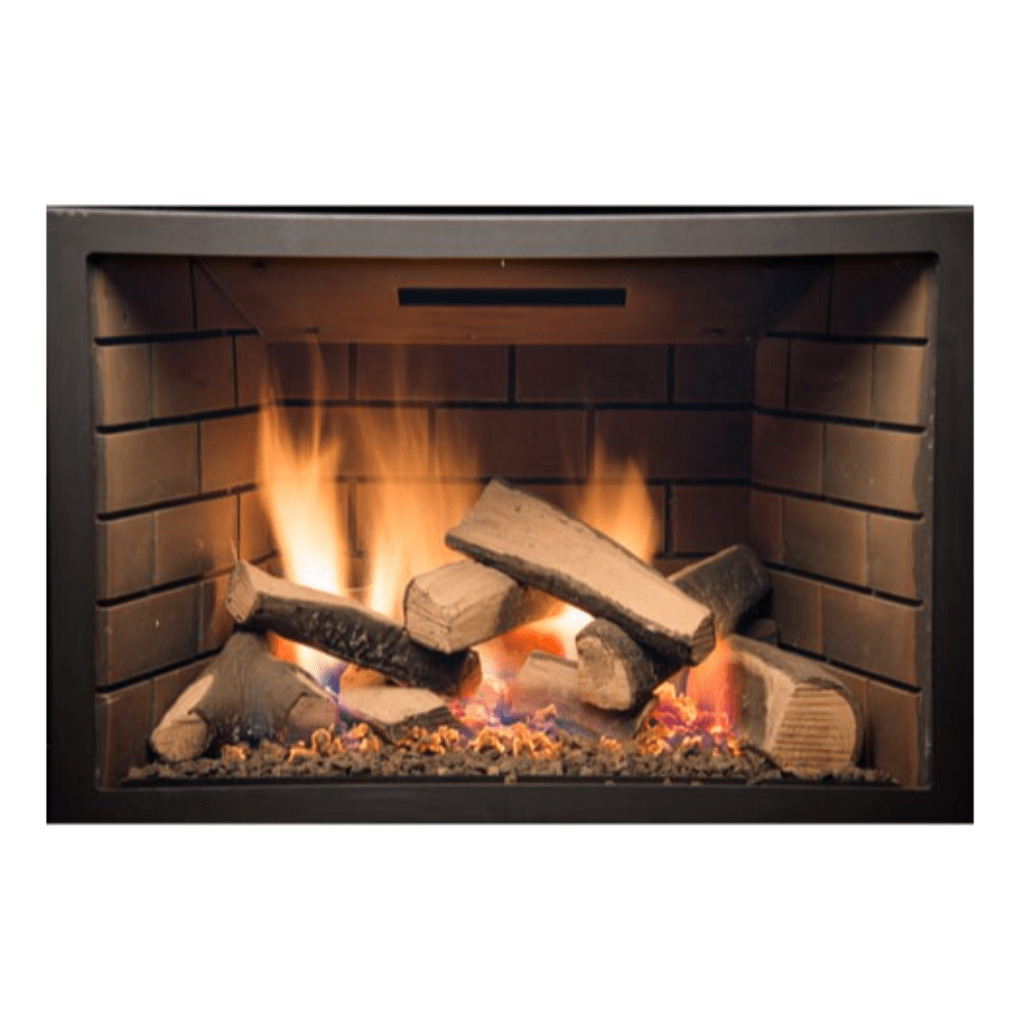

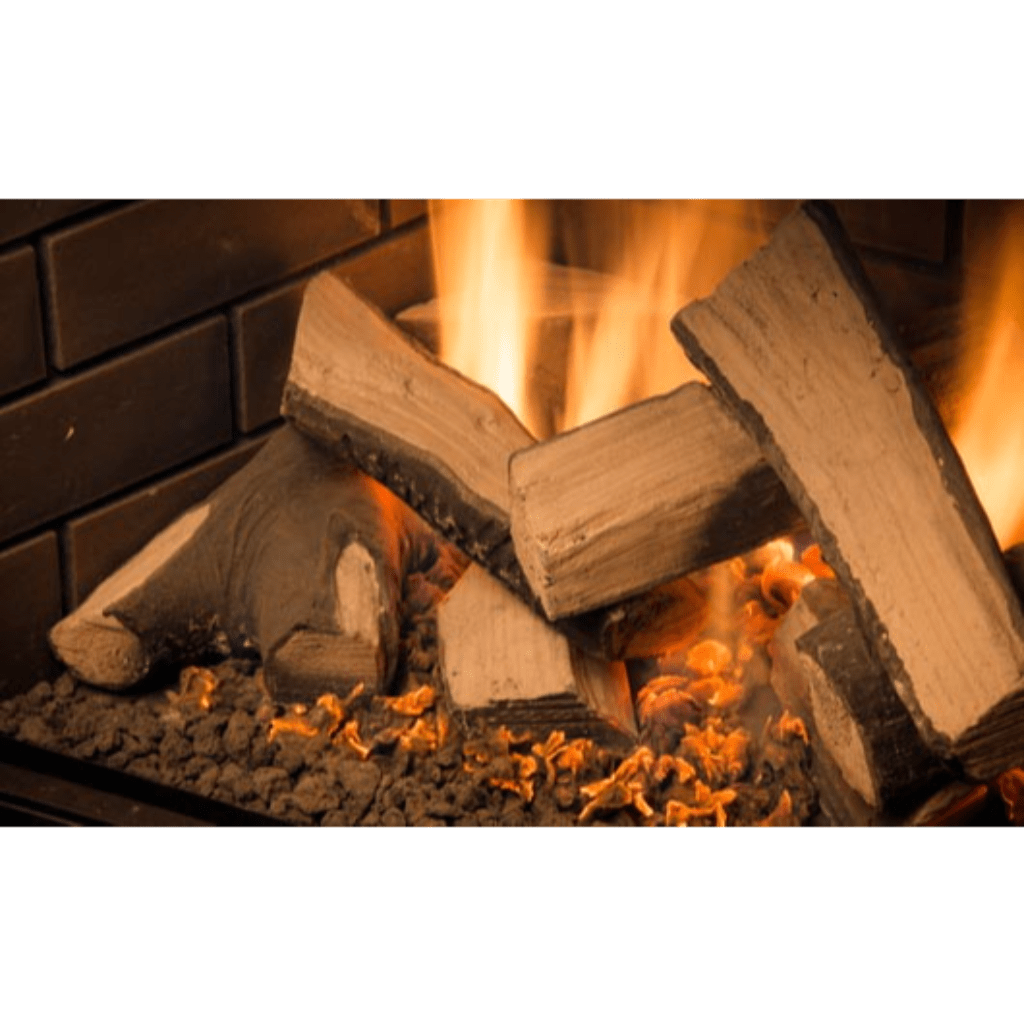

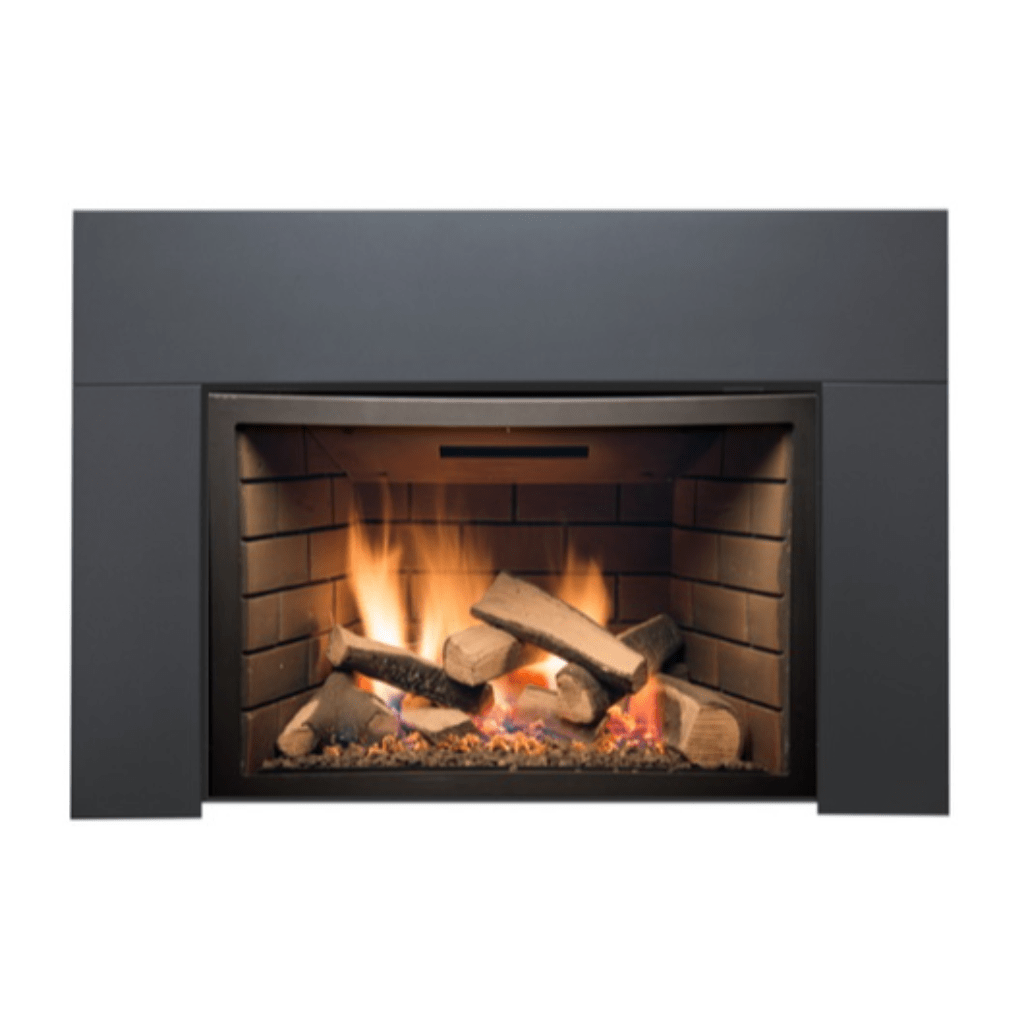

With it’s impressive glass viewing area, the Abbot is available in Deluxe and Premiere systems that offer you superior flame and heat control. Each insert comes with the standard black porcelain panels, black reflective glass and a 9 piece rock set. For a more traditional look try the optional ceramic brick panels and log set. Comes standard to run on natural gas but also available for liquid propane use.

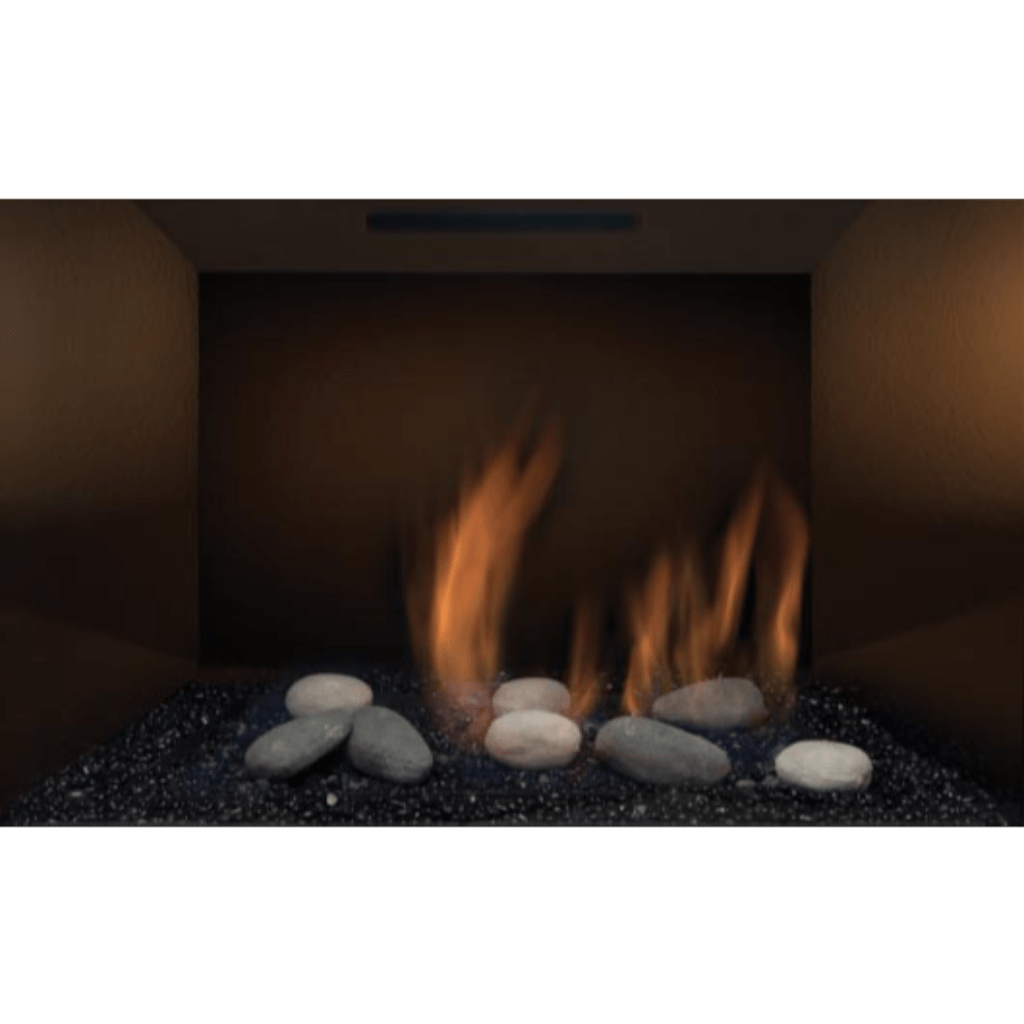

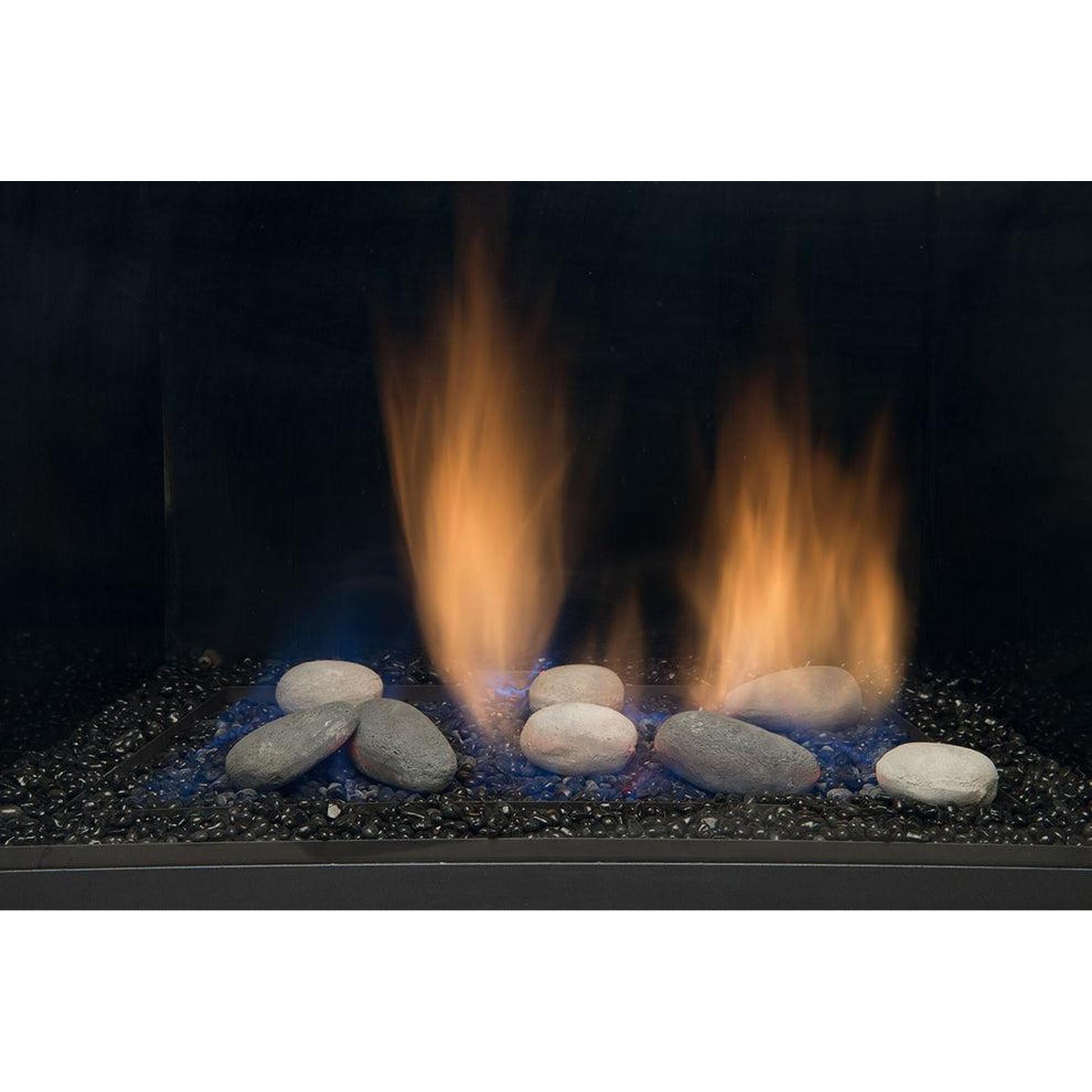

Sierra Flame’s Direct Vent Insert is a true clean face design offering an impressive glass viewing area. The Abbot is available in Deluxe and Premiere systems and comes standard with contemporary black porcelain panels, black reflective glass and a 9 piece rock set OR traditional ceramic brick panels and log set.

FEATURES

Premiere System

True clean face design
Ceramic glass
26,000 BTU
Hi/low modulating flame control
Electronic ignition
100% safety shut off
On/off thermostat
Battery powered

Deluxe System

True clean face design
Ceramic glass
26,000 BTU
7 day programmable thermostat remote control
7 stage modulating flame control
Full fan kit w/6 stage adjustable fan control
110v required
Electronic ignition
100% safety shut off

IDEAL APPLICATIONS

Renovations, but has to have an existing masonry fireplace

GAS SPECIFICATIONS

Framing Dimensions	Viewing Area	BTUs (NG)		AFUE / P.4 (NG Efficiency)	Weight*
Framing Dimensions	Viewing Area	Hi	Low	AFUE / P.4 (NG Efficiency)	Weight*
20-1/4” H x 27” W x 15” D – Premiere 20-1/4” H x 27” W x 16-1/4” D – Deluxe	16” H x 25” W	26,000	10,500	68.3 %	115 lbs.

Venting**	Ceiling / Mantle Height
3” flex vent on exhaust side 3” flex vent on the air intake side	Mantle Height = minimum 33” with a 4” deep mantle Please see manual for other mantle clearances

**Venting – Any certified 2 ply flex piping can be used. Certified on Duravent, Selkirk, Metal Fab, ICC

DIMENSION

INCLUDED MEDIA & ACCESSORIES

9 Piece Rocks

Stones

Remote

Log Set

Remote

SURROUND DIMENSIONS

Model number	Outside Surround Dimensions (H x W)	Description
ABBOT-30-BLK-28	28.03 x 40.12	Standard black 3 sided surround
ABBOT-30-BLK-26	26.03 x 40.12	Standard black 3 sided surround

GLASS VIEWING AREA

16” H x 25” W

OPTIONS & ACCESSORIES

SURROUND OPTIONS
Decorative Surround - optional to complete unit

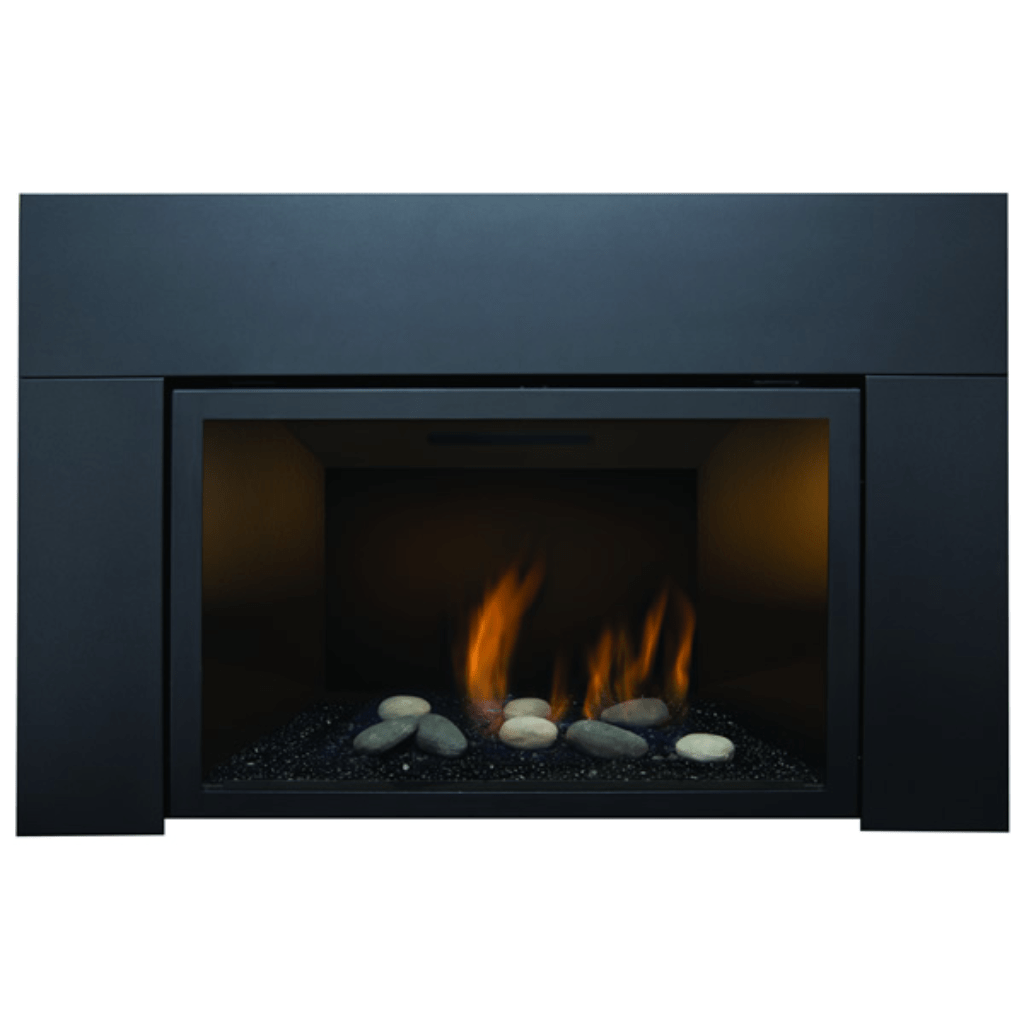

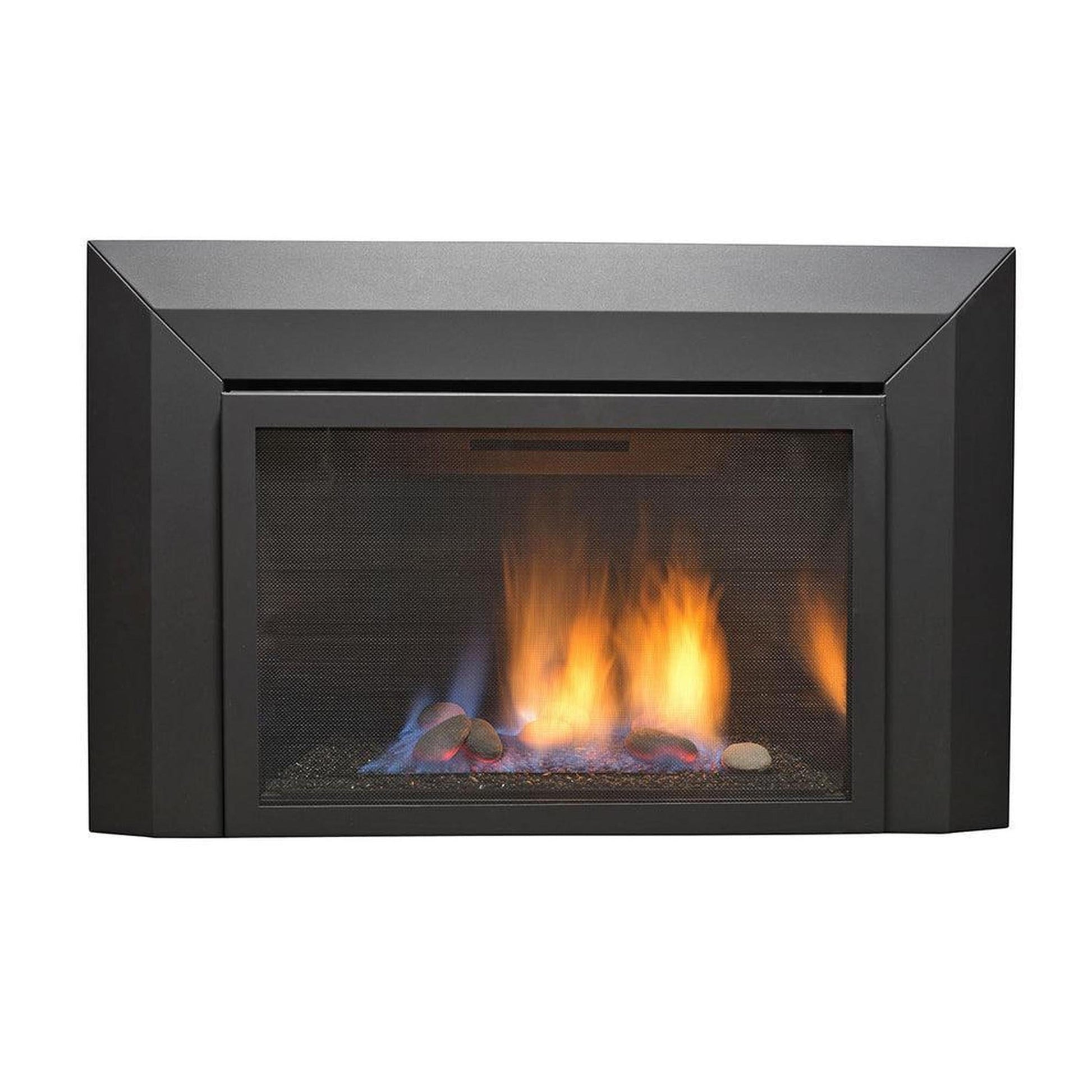

	Standard 3-Sided Black Surround ABBOT-30-BLK-28 Size: 40 Inches x 28 Inches Color: Black Solid black 3-sided surround Safety barrier screen included Specifically for the Sierra Flame Abbot series Child safety screen Design Specialties overlays
	Standard 3-Sided Black Surround ABBOT-30-BLK-26 Size: 40 Inches x 26 Inches Color: Black Solid black 3-sided surround Safety barrier screen included Specifically for the Sierra Flame Abbot series Child safety screen Design Specialties overlays
	Standard 4-Sided Black Surround ABBOT-4PCE-BLK-32 Size: 40 Inches x 31 Inches Color: Black Solid black 4-sided surround Safety barrier screen included Specifically for the Sierra Flame Abbot series Child safety screen Design Specialties overlays
	Required - Safety Screen for Abbot Gas Fireplaces Sierra Flame Safety Screen for Abbot Gas Fireplace Insert provides an attractive installation accessory for your Abbot gas fireplace. Achieve a finished, professional look with ease with this surround kit.

Click to see Optional Decorative Media Options

Customize the look of your electric fireplace by purchasing from our selection of stylish decorative media.

	AMSF‐GLASS‐01 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Clear’
	AMSF‐GLASS‐02 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Light Brown’
	AMSF‐GLASS‐03 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Charcoal’
	AMSF‐GLASS‐04 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Champagne’
	AMSF‐GLASS‐05 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Dark Grey’
	AMSF‐GLASS‐06 – 1 Box includes approx. 5 lbs of 1″ Clear ‘Gem’ fireglass ‐ 1 sq. ft. of media coverage ‘clear’ Color: ‘Clear’
	AMSF‐GLASS‐07 – 1 Box includes approx. 5 lbs of white frosted fireglass ‐ 1 sq. ft. of media coverage ‘white’ Color: ‘White’
	AMSF‐GLASS‐08 – 1 Box includes approx. 5 lbs of dusty purple frosted fireglass ‐ 1 sq. ft. of media coverage ‘white’ Color: ‘Dusty Purple’
	AMSF‐GLASS‐09 – 1 Box includes approx. 5 lbs of amber small bead fireglass ‐ 1 sq. ft. of media coverage ‘amber’ Color: ‘Amber’
	AMSF‐GLASS‐10 – 1 Box includes approx. 5 lbs of small bead fireglass ‐ 1 sq. ft. of media coverage ‘orange’ Color: ‘Orange’
	AMSF‐GLASS‐11 – 1 Box includes approx. 5 lbs of small “suntea’ bead fireglass ‐ 1 sq. ft. of media coverage ‘suntea’ Color: ‘Suntea’
	AMSF‐GLASS‐12 – 1 Box includes approx. 5 lbs of small “black’ bead fireglass ‐ 1 sq. ft. of media coverage ‘black’ Color: ‘Black’
	AMSF‐GLASS‐13 – 1 Box includes approx. 5 lbs of small “sable’ bead fireglass ‐ 1 sq. ft. of media coverage ‘sable’ Color: ‘Sable’

Click to see Fuel Conversion Kit

This conversion kit for the Sierra Flame Abbot series direct vent linear fireplace will help you convert your Abbot fireplace from one fuel source to another, just select the right one for you.

Fuel Conversion Kit

Fireplace insert fuel conversion kit

Specifically for the Sierra Flame Abbot series

Convert your fireplace unit to use either natural gas or liquid propane

Click to see Venting Components

94203370HWS

3" X 3" VCL Pro-Form Insert kit, 2 each 35' Flex liner & round, Vertical termination.

Size: 3 Inch
Round vertical termination
Set of two 35' long flex chimney liners
3" x 3" VCL Pro-Form fireplace insert venting kit

Includes: Round Co-linear High Wind Vertical Termination & 2 Each 3" x 35' flex liners.

*Venting Requirements: This unit requires venting pipe with an inner diameter of 3 Inches. Please see the Venting Components section on this page if available for venting pipe that must be used with this unit.

CHIM-CAP

Direct vent gas fireplace insert chimney cap
Built specifically for venting of the Sierra Flame Abbot series gas fireplace insert

The Sierra Flame Chimney Cap for venting terminations is an optional accessory for the Abbot Series 30 inch direct vent insert fireplace. This Abbot series chimney cap will fit tightly within your termination and prevent an unwanted visit from a little critter, water damage to your chimney, and it keeps the random spark from lighting your roof on fire.
